Wireless Universal Serial BusBy :MAHADEVASWAMYCet DSP m.tech1/2/20111JAIN UNIVERSITYCET DIGITAL SIGNAL PROCESSING

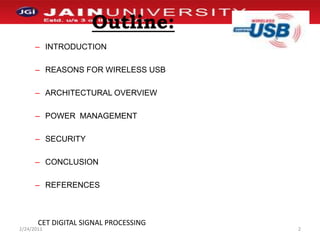

Outline:INTRODUCTIONREASONS FOR WIRELESS USBARCHITECTURAL OVERVIEWPOWER MANAGEMENTSECURITYCONCLUSIONREFERENCES 1/2/20112CET DIGITAL SIGNAL PROCESSING

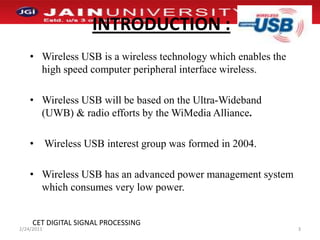

INTRODUCTION :Wireless USB is a wireless technology which enables the high speed computer peripheral interface wireless.Wireless USB will be based on the Ultra-Wideband (UWB) & radio efforts by the WiMedia Alliance. Wireless USB interest group was formed in 2004.Wireless USB has an advanced power management system which consumes very low power. 1/2/20113CET DIGITAL SIGNAL PROCESSING

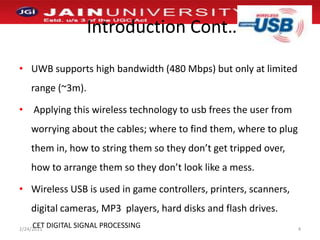

Introduction ContUWB supports high bandwidth (480 Mbps) but only at limited range (~3m). Applying this wireless technology to usb frees the user from worrying about the cables; where to find them, where to plug them in, how to string them so they dont get tripped over, how to arrange them so they dont look like a mess. Wireless USB is used in game controllers, printers, scanners, digital cameras, MP3 players, hard disks and flash drives.1/2/20114CET DIGITAL SIGNAL PROCESSING
1/2/20115CET DIGITAL SIGNAL PROCESSING

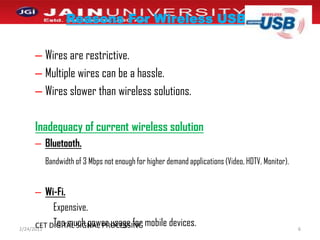

Reasons For Wireless USBWires are restrictive.Multiple wires can be a hassle. Wires slower than wireless solutions.Inadequacy of current wireless solutionBluetooth.Bandwidth of 3 Mbps not enough for higher demand applications (Video, HDTV, Monitor).Wi-Fi.Expensive. Too much power usage for mobile devices.1/2/20116CET DIGITAL SIGNAL PROCESSING

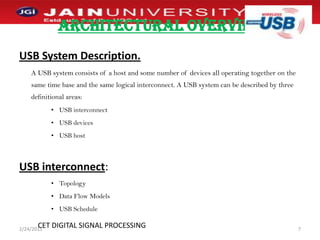

ARCHITECTURAL OVERVIEWUSB System Description.A USB system consists of a host and some number of devices all operating together on the same time base and the same logical interconnect. A USB system can be described by three definitional areas:USB interconnectUSB devicesUSB hostUSB interconnect:TopologyData Flow ModelsUSB Schedule1/2/20117CET DIGITAL SIGNAL PROCESSING

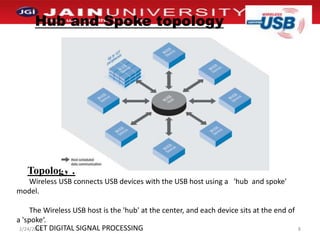

Hub and Spoke topologyTopology : Wireless USB connects USB devices with the USB host using a 'hub and spoke' model. The Wireless USB host is the 'hub' at the center, and each device sits at the end of a 'spoke.1/2/20118CET DIGITAL SIGNAL PROCESSING

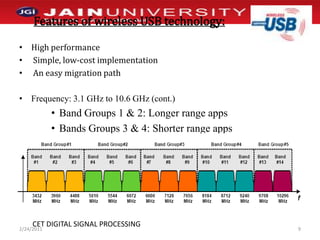

Features of wireless USB technology: High performance Simple, low-cost implementation An easy migration pathFrequency: 3.1 GHz to 10.6 GHz (cont.)Band Groups 1 & 2: Longer range appsBands Groups 3 & 4: Shorter range apps1/2/20119CET DIGITAL SIGNAL PROCESSING

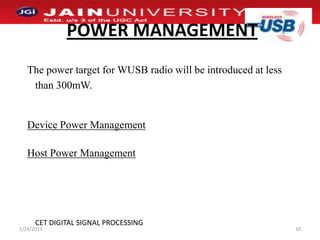

POWER MANAGEMENTThe power target for WUSB radio will be introduced at less than 300mW.Device Power ManagementHost Power Management1/2/201110CET DIGITAL SIGNAL PROCESSING

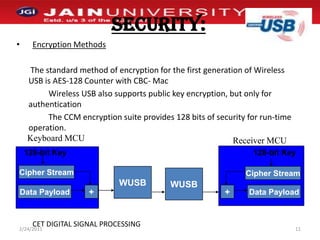

SECURITY:Encryption Methods The standard method of encryption for the first generation of Wireless USB is AES-128 Counter with CBC- Mac Wireless USB also supports public key encryption, but only for authentication The CCM encryption suite provides 128 bits of security for run-time operation.1/2/201111Keyboard MCUReceiver MCU128-bit Key128-bit KeyCipher StreamWUSBCipher StreamWUSBData Payload+Data Payload+CET DIGITAL SIGNAL PROCESSING

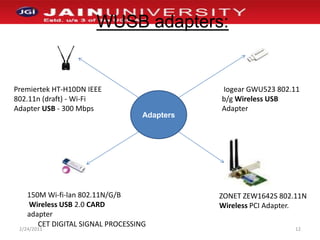

WUSB adapters:1/2/201112Iogear GWU523 802.11 b/g WirelessUSB AdapterPremiertek HT-H10DN IEEE 802.11n (draft) - Wi-Fi Adapter USB - 300 MbpsAdapters150M Wi-fi-lan 802.11N/G/BWirelessUSB 2.0 CARD adapterZONET ZEW1642S 802.11N Wireless PCI Adapter.CET DIGITAL SIGNAL PROCESSING

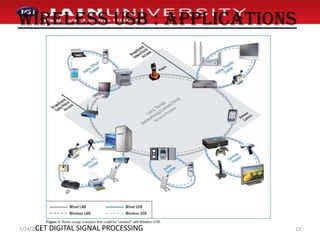

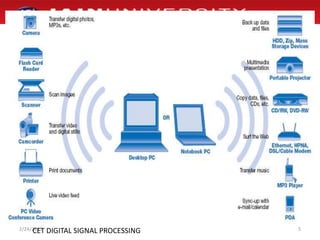

Wireless USB : Applications1/2/201113CET DIGITAL SIGNAL PROCESSING

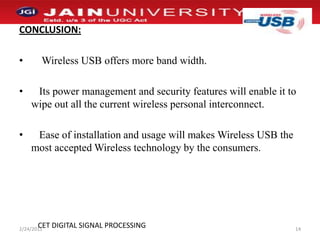

遺或鰻遺晦雨皆鴛或鰻:油 Wireless USB offers more band width. Its power management and security features will enable it to wipe out all the current wireless personal interconnect. Ease of installation and usage will makes Wireless USB the most accepted Wireless technology by the consumers.1/2/201114CET DIGITAL SIGNAL PROCESSING

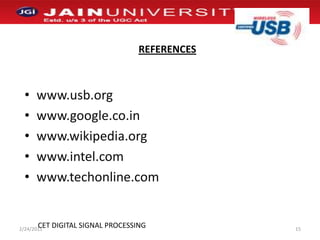

REFERENCESwww.usb.orgwww.google.co.inwww.wikipedia.orgwww.intel.comwww.techonline.com1/2/201115CET DIGITAL SIGNAL PROCESSING
Questions ?1/2/201116Thank youCET DIGITAL SIGNAL PROCESSING
