The project involved designing five nodes placed in a series along an existing path to tell the story of Pomona's history, from past to present to future. The node design was inspired by a film reel and wraps around the path. The site chosen sits near other community buildings and features views of Mount Cooroora. The building design mimics the mountain and keeps void spaces open to signify the landscape's historical importance. It allows circulation that experiences a journey through time.

1 of 11
Download to read offline
Project 2 - Civic Architecture DAB510 Architectural Design 5 Zacharias Michael (n8602671) Pomona

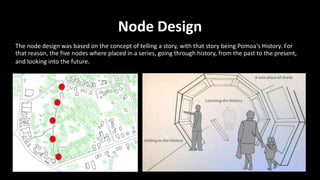

The node design was based on the concept of telling a story, with that story being Pomoa's History. For that reason, the five nodes where placed in a series, going through history, from the past to the present, and looking into the future. Node Design
Node Design The form of the node intallation was taken from a film reel, and manipulated to create intruige in the structure by wrapping around the existing path to give an invitaion to enter.

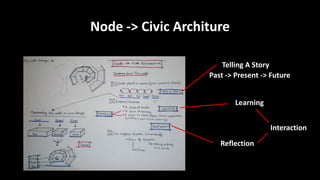

Node -> Civic Architure Telling A Story Learning Reflection Past -> Present -> Future Interaction

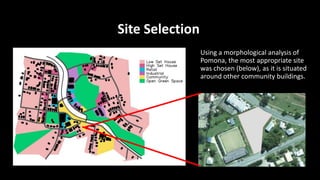

Site Selection Using a morphological analysis of Pomona, the most appropriate site was chosen (below), as it is situated around other community buildings.

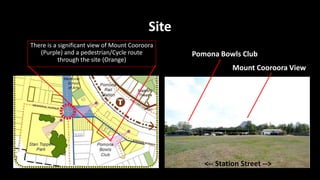

Site <-- Station Street --> Pomona Bowls Club Mount Cooroora View There is a significant view of Mount Cooroora (Purple) and a pedestrian/Cycle route through the site (Orange)

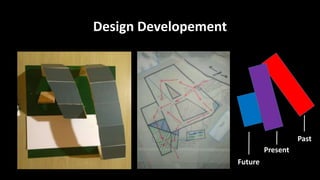

Design Developement Past Present Future

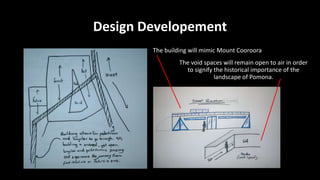

Design Developement The building will mimic Mount Cooroora The void spaces will remain open to air in order to signify the historical importance of the landscape of Pomona.

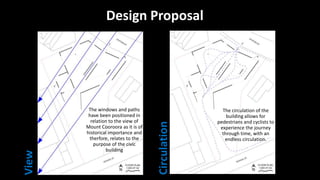

Design Proposal The windows and paths have been positioned in relation to the view of Mount Cooroora as it is of historical importance and therfore, relates to the purpose of the civic building The circulation of the building allows for pedestrians and cyclists to experience the journey through time, with an endless circulation. Circulation View

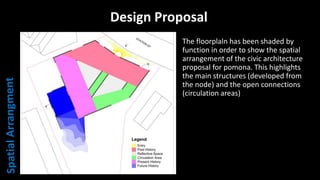

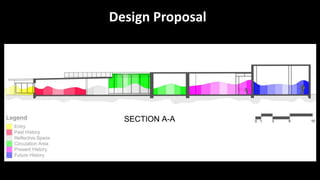

Design Proposal The floorplaln has been shaded by function in order to show the spatial arrangement of the civic architecture proposal for pomona. This highlights the main structures (developed from the node) and the open connections (circulation areas)
Design Proposal
