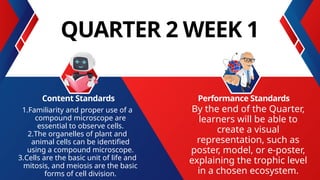

2. QUARTER 2 WEEK 1
1.Familiarity and proper use of a
compound microscope are
essential to observe cells.
2.The organelles of plant and
animal cells can be identified
using a compound microscope.
3.Cells are the basic unit of life and
mitosis, and meiosis are the basic
forms of cell division.
Content Standards Performance Standards
By the end of the Quarter,
learners will be able to
create a visual
representation, such as
poster, model, or e-poster,
explaining the trophic level
in a chosen ecosystem.

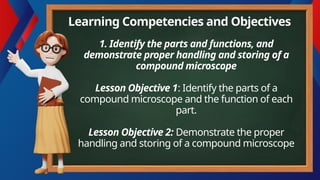

3. Learning Competencies and Objectives
1. Identify the parts and functions, and
demonstrate proper handling and storing of a
compound microscope
Lesson Objective 1: Identify the parts of a
compound microscope and the function of each
part.
Lesson Objective 2: Demonstrate the proper
handling and storing of a compound microscope

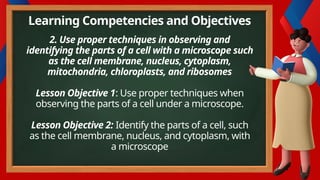

4. Learning Competencies and Objectives
2. Use proper techniques in observing and
identifying the parts of a cell with a microscope such
as the cell membrane, nucleus, cytoplasm,
mitochondria, chloroplasts, and ribosomes
Lesson Objective 1: Use proper techniques when
observing the parts of a cell under a microscope.
Lesson Objective 2: Identify the parts of a cell, such
as the cell membrane, nucleus, and cytoplasm, with
a microscope

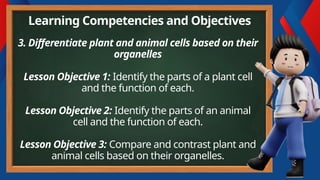

5. 3. Differentiate plant and animal cells based on their
organelles
Lesson Objective 1: Identify the parts of a plant cell
and the function of each.
Lesson Objective 2: Identify the parts of an animal
cell and the function of each.
Lesson Objective 3: Compare and contrast plant and
animal cells based on their organelles.
Learning Competencies and Objectives

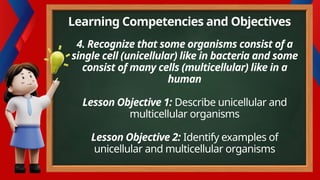

6. 4. Recognize that some organisms consist of a
single cell (unicellular) like in bacteria and some
consist of many cells (multicellular) like in a
human
Lesson Objective 1: Describe unicellular and
multicellular organisms
Lesson Objective 2: Identify examples of
unicellular and multicellular organisms
Learning Competencies and Objectives

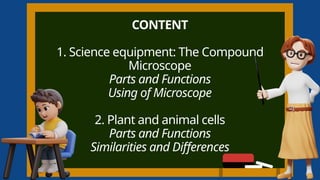

7. Content
CONTENT
1. Science equipment: The Compound
Microscope
Parts and Functions
Using of Microscope
2. Plant and animal cells
Parts and Functions
Similarities and Differences

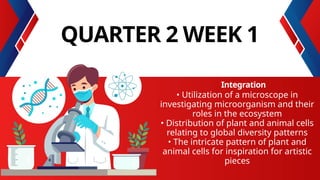

8. QUARTER 2 WEEK 1
Integration
? Utilization of a microscope in
investigating microorganism and their
roles in the ecosystem
? Distribution of plant and animal cells
relating to global diversity patterns
? The intricate pattern of plant and
animal cells for inspiration for artistic
pieces

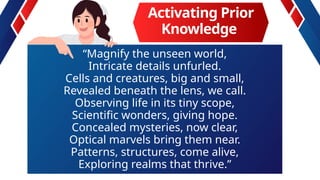

10. Activating Prior
Knowledge
¡°Magnify the unseen world,
Intricate details unfurled.
Cells and creatures, big and small,
Revealed beneath the lens, we call.
Observing life in its tiny scope,
Scientific wonders, giving hope.
Concealed mysteries, now clear,
Optical marvels bring them near.
Patterns, structures, come alive,
Exploring realms that thrive.¡±

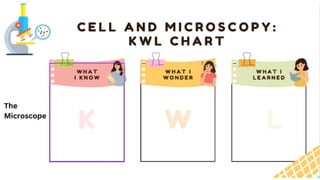

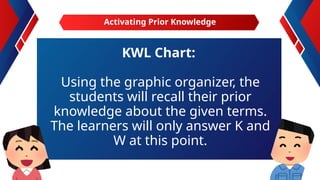

15. KWL Chart:
Using the graphic organizer, the
students will recall their prior
knowledge about the given terms.
The learners will only answer K and
W at this point.
Activating Prior Knowledge

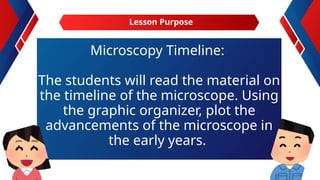

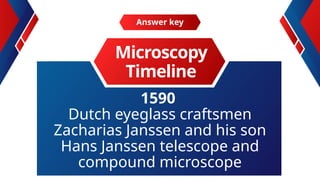

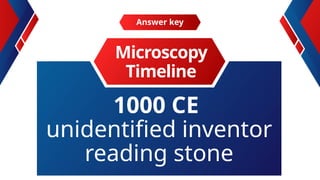

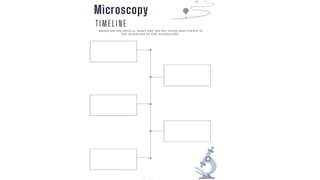

18. Microscopy Timeline:
The students will read the material on
the timeline of the microscope. Using
the graphic organizer, plot the
advancements of the microscope in
the early years.
Lesson Purpose

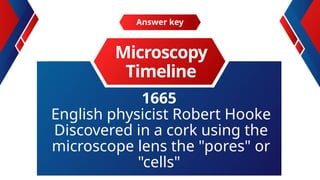

25. 1665
English physicist Robert Hooke
Discovered in a cork using the
microscope lens the "pores" or
"cells"
Answer key
Microscopy
Timeline

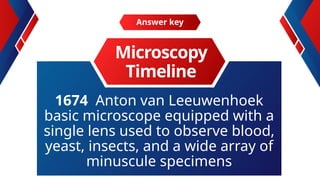

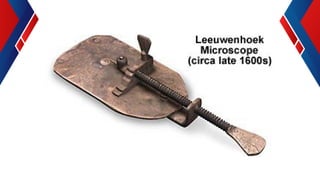

27. 1674 Anton van Leeuwenhoek
basic microscope equipped with a
single lens used to observe blood,
yeast, insects, and a wide array of
minuscule specimens
Answer key
Microscopy
Timeline

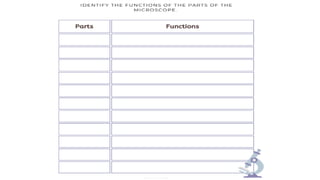

30. Table Completion
Complete table by providing the descriptions of the given terms.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Duis vel libero sagittis,
maximus libero in, scelerisque tellus. Nullam eget ante maximus, placerat nulla.
1. Magnification
2. Resolution
3. Illumination
4. Stage
5. Objective Lens
6. Eyepiece (Ocular)
31. Unlocking Content Area
Vocabulary

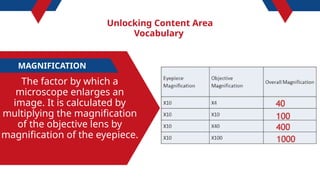

MAGNIFICATION
The factor by which a
microscope enlarges an
image. It is calculated by
multiplying the magnification
of the objective lens by
magnification of the eyepiece.

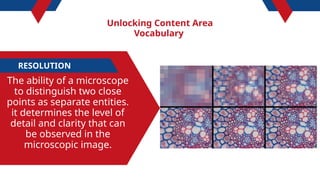

32. Unlocking Content Area
Vocabulary
RESOLUTION
The ability of a microscope
to distinguish two close
points as separate entities.
it determines the level of
detail and clarity that can
be observed in the
microscopic image.

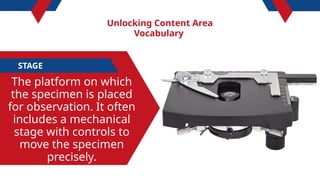

34. Unlocking Content Area
Vocabulary

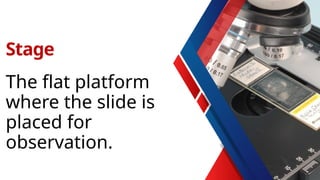

STAGE
The platform on which
the specimen is placed
for observation. It often
includes a mechanical
stage with controls to
move the specimen
precisely.

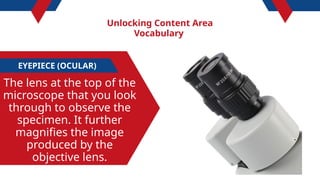

36. Unlocking Content Area
Vocabulary
EYEPIECE (OCULAR)
The lens at the top of the
microscope that you look
through to observe the
specimen. It further
magnifies the image
produced by the
objective lens.

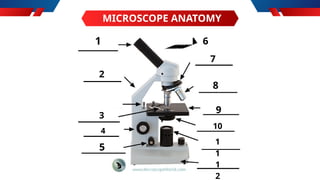

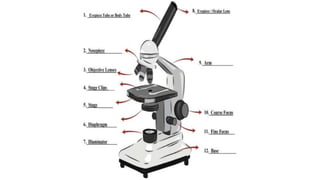

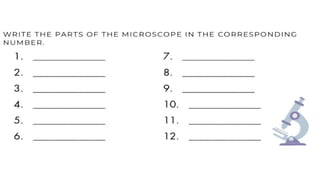

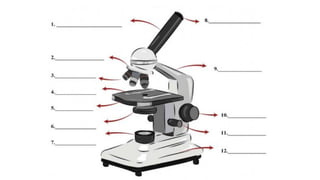

40. Write the parts of the
microscope in the
corresponding
numbers.
Explicitation

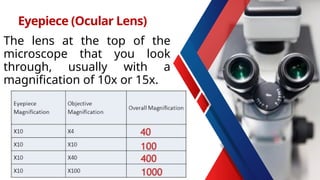

43. The lens at the top of the
microscope that you look
through, usually with a
magnification of 10x or 15x.
Eyepiece (Ocular Lens)

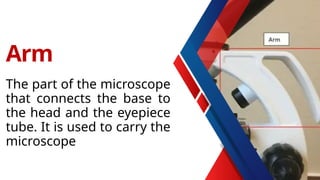

44. The part of the microscope
that connects the base to
the head and the eyepiece
tube. It is used to carry the
microscope
Arm

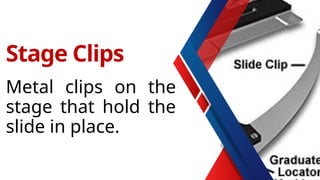

45. Metal clips on the
stage that hold the
slide in place.
Stage Clips

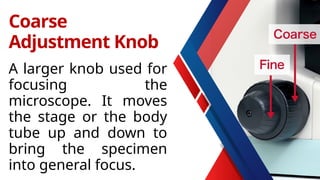

46. A larger knob used for
focusing the
microscope. It moves
the stage or the body
tube up and down to
bring the specimen
into general focus.
Coarse
Adjustment Knob

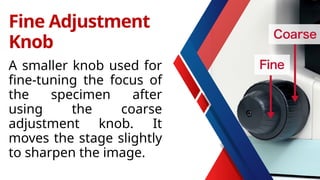

47. A smaller knob used for
fine-tuning the focus of
the specimen after
using the coarse
adjustment knob. It
moves the stage slightly
to sharpen the image.
Fine Adjustment
Knob

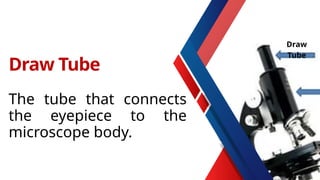

48. The tube that connects
the eyepiece to the
microscope body.
Draw Tube
Draw
Tube

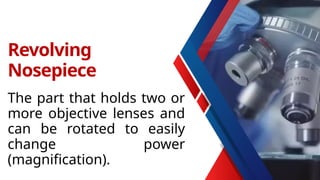

49. The part that holds two or
more objective lenses and
can be rotated to easily
change power
(magnification).
Revolving
Nosepiece

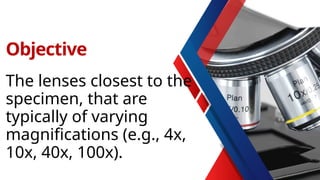

50. The lenses closest to the
specimen, that are
typically of varying
magnifications (e.g., 4x,
10x, 40x, 100x).
Objective

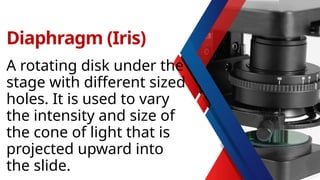

52. A rotating disk under the
stage with different sized
holes. It is used to vary
the intensity and size of
the cone of light that is
projected upward into
the slide.
Diaphragm (Iris)

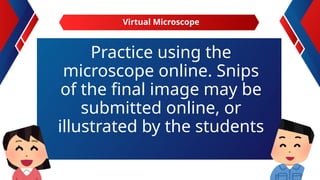

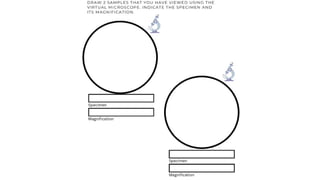

60. Practice using the
microscope online. Snips
of the final image may be
submitted online, or
illustrated by the students
Virtual Microscope
62. If a microscope is unavailable, visit
the virtual microscope website by
BioNetwork at
https://www.ncbionetwor
k.org/educational
resources/elearning/virtu al-
microscope.
Virtual Microscope

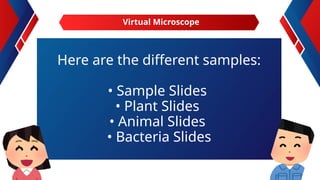

63. Here are the different samples:
? Sample ºÝºÝߣs
? Plant ºÝºÝߣs
? Animal ºÝºÝߣs
? Bacteria ºÝºÝߣs
Virtual Microscope

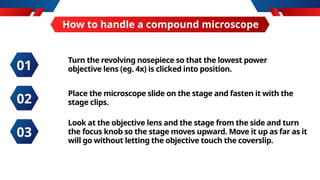

67. How to handle a compound microscope
Turn the revolving nosepiece so that the lowest power
objective lens (eg. 4x) is clicked into position.
Place the microscope slide on the stage and fasten it with the
stage clips.
Look at the objective lens and the stage from the side and turn
the focus knob so the stage moves upward. Move it up as far as it
will go without letting the objective touch the coverslip.
01
02
03

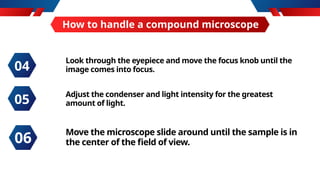

68. How to handle a compound microscope
Look through the eyepiece and move the focus knob until the
image comes into focus.
Adjust the condenser and light intensity for the greatest
amount of light.
04
05
Move the microscope slide around until the sample is in
the center of the field of view.
06
69. How to handle a compound microscope
Use the focus knob to place the sample into focus and readjust
the condenser and light intensity for the clearest image.
When you have a clear image of your sample with the lowest
power objective, you can change to the next objective lenses.
You might need to readjust the sample into focus and/or
readjust the condenser and light intensity. Do not let the
objective lens touch the slide!
07
08
When finished, lower the stage, click the low power lens
into position and remove the slide.
09
71. KWL Chart: Using the graphic
organizer, the students will
answer the L column or what
they have learned about the
given term
Learners¡¯ Takeaways

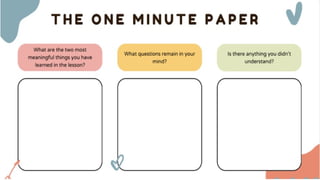

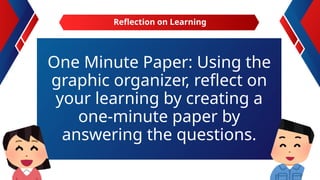

73. One Minute Paper: Using the
graphic organizer, reflect on
your learning by creating a
one-minute paper by
answering the questions.
Reflection on Learning

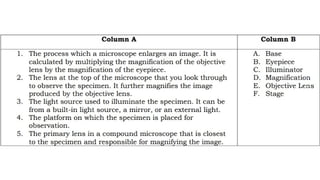

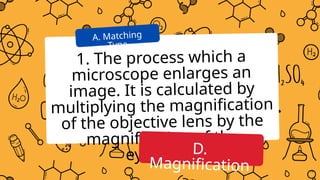

81. 1. The process which a
microscope enlarges an
image. It is calculated by
multiplying the magnification
of the objective lens by the
magnification of the
eyepiece.
A. Matching
Type
D.
Magnification

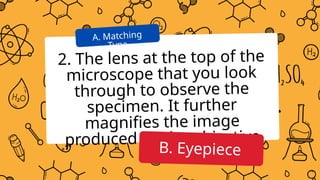

82. 2. The lens at the top of the
microscope that you look
through to observe the
specimen. It further
magnifies the image
produced by the objective
lens.
A. Matching
Type
B. Eyepiece

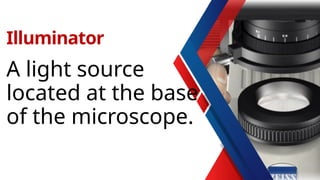

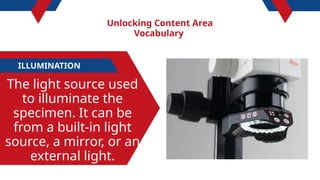

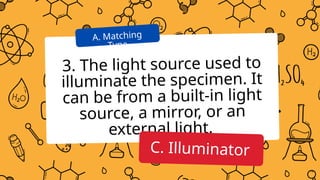

83. 3. The light source used to
illuminate the specimen. It
can be from a built-in light
source, a mirror, or an
external light.
A. Matching
Type
C. Illuminator

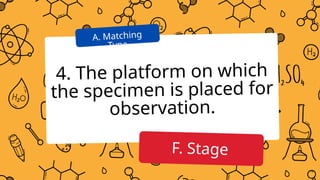

84. 4. The platform on which
the specimen is placed for
observation.
A. Matching
Type
F. Stage

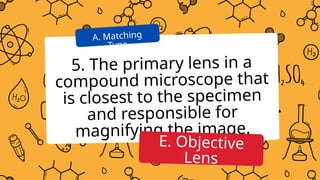

85. 5. The primary lens in a
compound microscope that
is closest to the specimen
and responsible for
magnifying the image.
A. Matching
Type
E. Objective
Lens
