The document addresses issues of output drops on Cisco 2960, 3560, and 3750 switches after enabling Quality of Service (QoS) configurations. It outlines diagnostic steps for identifying affected interfaces, checking QoS settings, and adjusting queue configurations to manage traffic and reduce drops. Recommendations include modifying buffer sizes, thresholds, and scheduling policies to ensure critical traffic is prioritized and handled effectively.
Output drops due to qo s on cisco 2960 3560 3750 switches

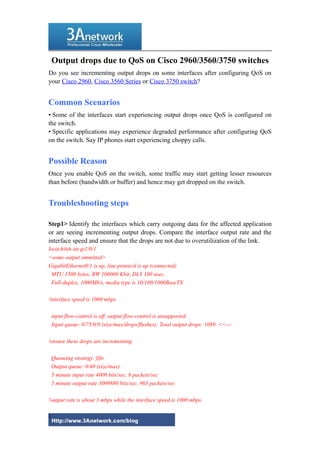

- 1. Output drops due to QoS on Cisco 2960/3560/3750 switches Do you see incrementing output drops on some interfaces after configuring QoS on your Cisco 2960, Cisco 3560 Series or Cisco 3750 switch? Common Scenarios Some of the interfaces start experiencing output drops once QoS is configured on the switch. Specific applications may experience degraded performance after configuring QoS on the switch. Say IP phones start experiencing choppy calls. Possible Reason Once you enable QoS on the switch, some traffic may start getting lesser resources than before (bandwidth or buffer) and hence may get dropped on the switch. Troubleshooting steps Step1> Identify the interfaces which carry outgoing data for the affected application or are seeing incrementing output drops. Compare the interface output rate and the interface speed and ensure that the drops are not due to overutilization of the link. Switch#sh int gi1/0/1 <some output ommitted> GigabitEthernet0/1 is up, line protocol is up (connected) MTU 1500 bytes, BW 100000 Kbit, DLY 100 usec, Full-duplex, 1000Mb/s, media type is 10/100/1000BaseTX !interface speed is 1000 mbps input flow-control is off, output flow-control is unsupported Input queue: 0/75/0/0 (size/max/drops/flushes); Total output drops: 1089 <<--- !ensure these drops are incrementing Queueing strategy: fifo Output queue: 0/40 (size/max) 5 minute input rate 4000 bits/sec, 6 packets/sec 5 minute output rate 3009880 bits/sec, 963 packets/sec !output rate is about 3 mbps while the interface speed is 1000 mbps. 1

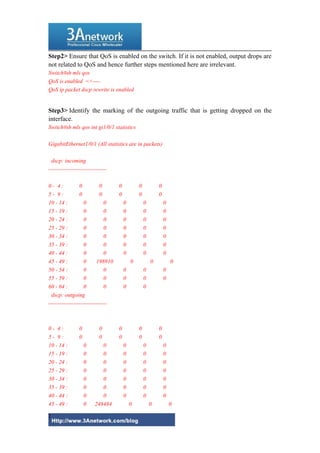

- 2. Step2> Ensure that QoS is enabled on the switch. If it is not enabled, output drops are not related to QoS and hence further steps mentioned here are irrelevant. Switch#sh mls qos QoS is enabled <<---- QoS ip packet dscp rewrite is enabled Step3> Identify the marking of the outgoing traffic that is getting dropped on the interface. Switch#sh mls qos int gi1/0/1 statistics GigabitEthernet1/0/1 (All statistics are in packets) dscp: incoming ------------------------------- 0 - 4 : 0 0 0 0 0 5 - 9 : 0 0 0 0 0 10 - 14 : 0 0 0 0 0 15 - 19 : 0 0 0 0 0 20 - 24 : 0 0 0 0 0 25 - 29 : 0 0 0 0 0 30 - 34 : 0 0 0 0 0 35 - 39 : 0 0 0 0 0 40 - 44 : 0 0 0 0 0 45 - 49 : 0 198910 0 0 0 50 - 54 : 0 0 0 0 0 55 - 59 : 0 0 0 0 0 60 - 64 : 0 0 0 0 dscp: outgoing ------------------------------- 0 - 4 : 0 0 0 0 0 5 - 9 : 0 0 0 0 0 10 - 14 : 0 0 0 0 0 15 - 19 : 0 0 0 0 0 20 - 24 : 0 0 0 0 0 25 - 29 : 0 0 0 0 0 30 - 34 : 0 0 0 0 0 35 - 39 : 0 0 0 0 0 40 - 44 : 0 0 0 0 0 45 - 49 : 0 248484 0 0 0 2

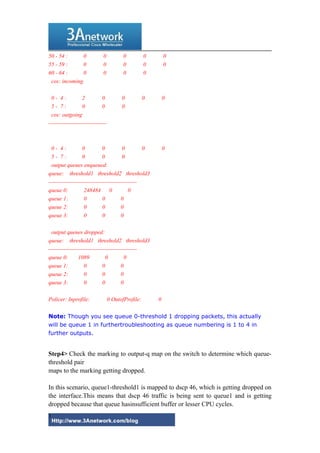

- 3. 50 - 54 : 0 0 0 0 0 55 - 59 : 0 0 0 0 0 60 - 64 : 0 0 0 0 cos: incoming 0 - 4 : 2 0 0 0 0 5 - 7 : 0 0 0 cos: outgoing ------------------------------- 0 - 4 : 0 0 0 0 0 5 - 7 : 0 0 0 output queues enqueued: queue: threshold1 threshold2 threshold3 ----------------------------------------------- queue 0: 248484 0 0 queue 1: 0 0 0 queue 2: 0 0 0 queue 3: 0 0 0 output queues dropped: queue: threshold1 threshold2 threshold3 ----------------------------------------------- queue 0: 1089 0 0 queue 1: 0 0 0 queue 2: 0 0 0 queue 3: 0 0 0 Policer: Inprofile: 0 OutofProfile: 0 Note: Though you see queue 0-threshold 1 dropping packets, this actually will be queue 1 in furthertroubleshooting as queue numbering is 1 to 4 in further outputs. Step4> Check the marking to output-q map on the switch to determine which queue- threshold pair maps to the marking getting dropped. In this scenario, queue1-threshold1 is mapped to dscp 46, which is getting dropped on the interface.This means that dscp 46 traffic is being sent to queue1 and is getting dropped because that queue hasinsufficient buffer or lesser CPU cycles. 3

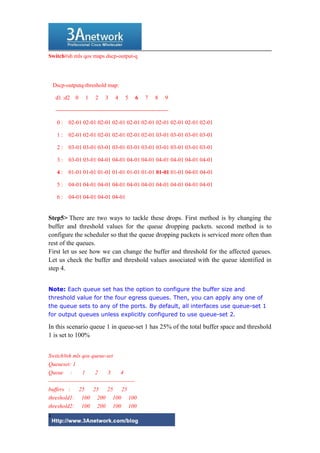

- 4. Switch#sh mls qos maps dscp-output-q Dscp-outputq-threshold map: d1 :d2 0 1 2 3 4 5 6 7 8 9 ------------------------------------------------------------ 0 : 02-01 02-01 02-01 02-01 02-01 02-01 02-01 02-01 02-01 02-01 1 : 02-01 02-01 02-01 02-01 02-01 02-01 03-01 03-01 03-01 03-01 2 : 03-01 03-01 03-01 03-01 03-01 03-01 03-01 03-01 03-01 03-01 3 : 03-01 03-01 04-01 04-01 04-01 04-01 04-01 04-01 04-01 04-01 4 : 01-01 01-01 01-01 01-01 01-01 01-01 01-01 01-01 04-01 04-01 5 : 04-01 04-01 04-01 04-01 04-01 04-01 04-01 04-01 04-01 04-01 6 : 04-01 04-01 04-01 04-01 Step5> There are two ways to tackle these drops. First method is by changing the buffer and threshold values for the queue dropping packets. second method is to configure the scheduler so that the queue dropping packets is serviced more often than rest of the queues. First let us see how we can change the buffer and threshold for the affected queues. Let us check the buffer and threshold values associated with the queue identified in step 4. Note: Each queue set has the option to configure the buffer size and threshold value for the four egress queues. Then, you can apply any one of the queue sets to any of the ports. By default, all interfaces use queue-set 1 for output queues unless explicitly configured to use queue-set 2. In this scenario queue 1 in queue-set 1 has 25% of the total buffer space and threshold 1 is set to 100% Switch#sh mls qos queue-set Queueset: 1 Queue : 1 2 3 4 ---------------------------------------------- buffers : 25 25 25 25 threshold1: 100 200 100 100 threshold2: 100 200 100 100 4

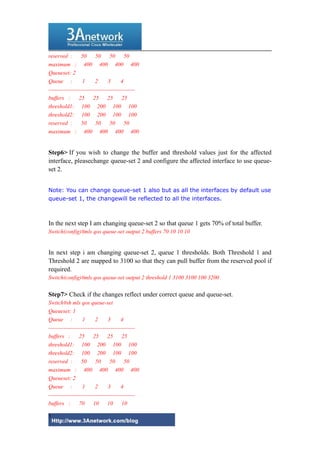

- 5. reserved : 50 50 50 50 maximum : 400 400 400 400 Queueset: 2 Queue : 1 2 3 4 ---------------------------------------------- buffers : 25 25 25 25 threshold1: 100 200 100 100 threshold2: 100 200 100 100 reserved : 50 50 50 50 maximum : 400 400 400 400 Step6> If you wish to change the buffer and threshold values just for the affected interface, pleasechange queue-set 2 and configure the affected interface to use queue- set 2. Note: You can change queue-set 1 also but as all the interfaces by default use queue-set 1, the changewill be reflected to all the interfaces. In the next step I am changing queue-set 2 so that queue 1 gets 70% of total buffer. Switch(config)#mls qos queue-set output 2 buffers 70 10 10 10 In next step i am changing queue-set 2, queue 1 thresholds. Both Threshold 1 and Threshold 2 are mapped to 3100 so that they can pull buffer from the reserved pool if required. Switch(config)#mls qos queue-set output 2 threshold 1 3100 3100 100 3200 Step7> Check if the changes reflect under correct queue and queue-set. Switch#sh mls qos queue-set Queueset: 1 Queue : 1 2 3 4 ---------------------------------------------- buffers : 25 25 25 25 threshold1: 100 200 100 100 threshold2: 100 200 100 100 reserved : 50 50 50 50 maximum : 400 400 400 400 Queueset: 2 Queue : 1 2 3 4 ---------------------------------------------- buffers : 70 10 10 10 5

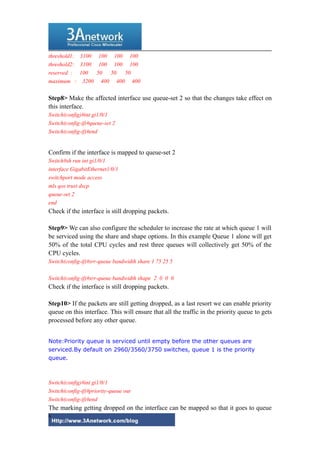

- 6. threshold1: 3100 100 100 100 threshold2: 3100 100 100 100 reserved : 100 50 50 50 maximum : 3200 400 400 400 Step8> Make the affected interface use queue-set 2 so that the changes take effect on this interface. Switch(config)#int gi1/0/1 Switch(config-if)#queue-set 2 Switch(config-if)#end Confirm if the interface is mapped to queue-set 2 Switch#sh run int gi1/0/1 interface GigabitEthernet1/0/1 switchport mode access mls qos trust dscp queue-set 2 end Check if the interface is still dropping packets. Step9> We can also configure the scheduler to increase the rate at which queue 1 will be serviced using the share and shape options. In this example Queue 1 alone will get 50% of the total CPU cycles and rest three queues will collectively get 50% of the CPU cycles. Switch(config-if)#srr-queue bandwidth share 1 75 25 5 Switch(config-if)#srr-queue bandwidth shape 2 0 0 0 Check if the interface is still dropping packets. Step10> If the packets are still getting dropped, as a last resort we can enable priority queue on this interface. This will ensure that all the traffic in the priority queue to gets processed before any other queue. Note:Priority queue is serviced until empty before the other queues are serviced.By default on 2960/3560/3750 switches, queue 1 is the priority queue. Switch(config)#int gi1/0/1 Switch(config-if)#priority-queue out Switch(config-if)#end The marking getting dropped on the interface can be mapped so that it goes to queue 6

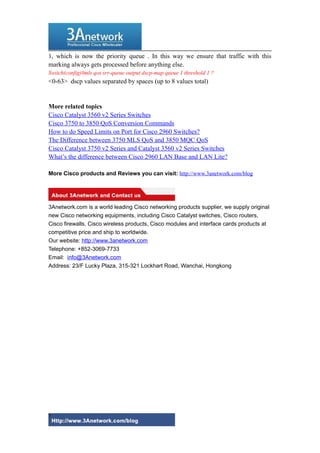

- 7. 1, which is now the priority queue . In this way we ensure that traffic with this marking always gets processed before anything else. Switch(config)#mls qos srr-queue output dscp-map queue 1 threshold 1 ? <0-63> dscp values separated by spaces (up to 8 values total) More related topics Cisco Catalyst 3560 v2 Series Switches Cisco 3750 to 3850 QoS Conversion Commands How to do Speed Limits on Port for Cisco 2960 Switches? The Difference between 3750 MLS QoS and 3850 MQC QoS Cisco Catalyst 3750 v2 Series and Catalyst 3560 v2 Series Switches Whats the difference between Cisco 2960 LAN Base and LAN Lite? More Cisco products and Reviews you can visit: http://www.3anetwork.com/blog 3Anetwork.com is a world leading Cisco networking products supplier, we supply original new Cisco networking equipments, including Cisco Catalyst switches, Cisco routers, Cisco firewalls, Cisco wireless products, Cisco modules and interface cards products at competitive price and ship to worldwide. Our website: http://www.3anetwork.com Telephone: +852-3069-7733 Email: info@3Anetwork.com Address: 23/F Lucky Plaza, 315-321 Lockhart Road, Wanchai, Hongkong 7
