2017 design house vinyl flooring catalog 3-10-17
- 1. WPC VINYL FLOOR VINYL FLOOR Design House 800-558-8700 www.todaysdesignhouse.comDesign House 800-558-8700 www.todaysdesignhouse.com

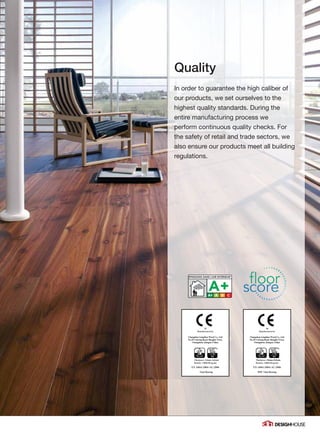

- 2. Quality 15 Changzhou Lingdian Wood Co., Ltd No.25 Cuirong Road, Henglin Town, Changzhou, Jiangsu, China Vinyl flooring 14 Changzhou Lingdian Wood Co., Ltd No.25 Cuirong Road, Henglin Town, Changzhou, Jiangsu, China WPC Vinyl flooring 5.5mm~8.5mm In order to guarantee the high caliber of our products, we set ourselves to the highest quality standards. During the entire manufacturing process we perform continuous quality checks. For the safety of retail and trade sectors, we also ensure our products meet all building regulations.

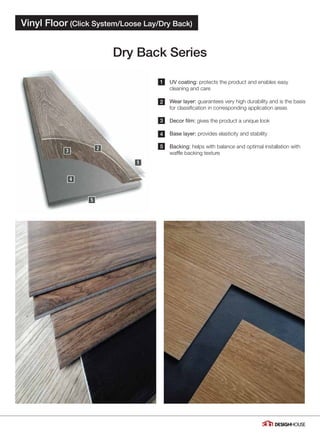

- 3. 1 2 3 4 5 Dry Back Series Vinyl Floor (Click System/Loose Lay/Dry Back) UV coating: protects the product and enables easy cleaning and care Wear layer: guarantees very high durability and is the basis for classification in corresponding application areas Decor film: gives the product a unique look Base layer: provides elasticity and stability Backing: helps with balance and optimal installation with waffle backing texture

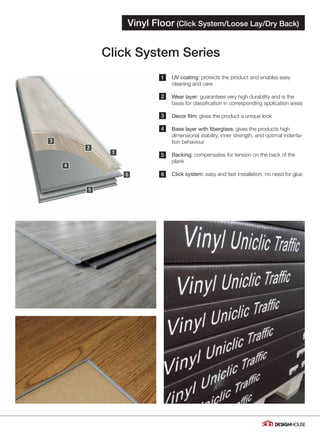

- 4. 1 2 3 4 5 6 Click System Series Vinyl Floor (Click System/Loose Lay/Dry Back) 04 UV coating: protects the product and enables easy cleaning and care Wear layer: guarantees very high durability and is the basis for classification in corresponding application areas Decor film: gives the product a unique look Base layer with fiberglass: gives the products high dimensional stability, inner strength, and optimal indenta- tion behaviour Backing: compensates for tension on the back of the plank Click system: easy and fast installation, no need for glue

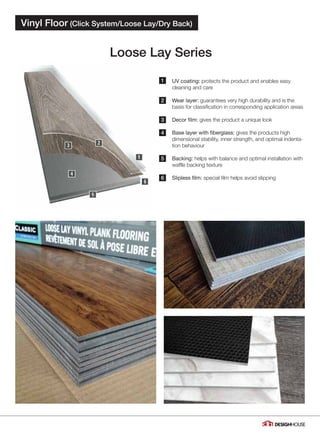

- 5. 1 2 3 4 5 6 Loose Lay Series Vinyl Floor (Click System/Loose Lay/Dry Back) 05 UV coating: protects the product and enables easy cleaning and care Wear layer: guarantees very high durability and is the basis for classification in corresponding application areas Decor film: gives the product a unique look Base layer with fiberglass: gives the products high dimensional stability, inner strength, and optimal indenta- tion behaviour Backing: helps with balance and optimal installation with waffle backing texture Slipless film: special film helps avoid slipping

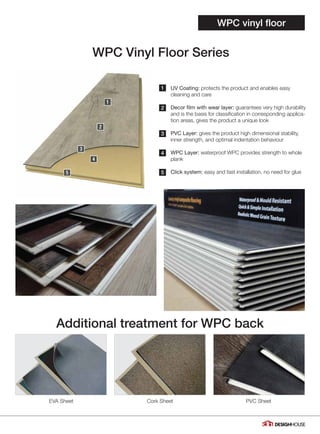

- 6. 1 2 3 4 5 WPC Vinyl Floor Series Additional treatment for WPC back EVA Sheet Cork Sheet PVC Sheet WPC vinyl floor 06 UV Coating: protects the product and enables easy cleaning and care Decor film with wear layer: guarantees very high durability and is the basis for classification in corresponding applica- tion areas, gives the product a unique look PVC Layer: gives the product high dimensional stability, inner strength, and optimal indentation behaviour WPC Layer: waterproof WPC provides strength to whole plank Click system: easy and fast installation, no need for glue

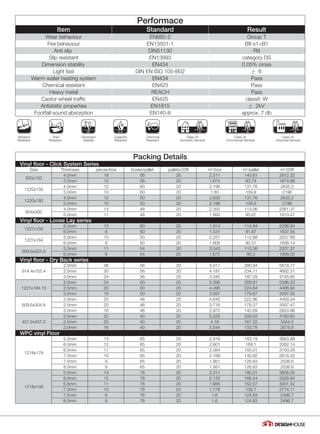

- 7. Packing Details Vinyl floor - Click System Series Size Thickness pieces/box boxes/pallet pallets/20ft m2 /box m2 /pallet m2 /20ft 930x150 4.0mm 18 56 20 2.511 140.61 2812.32 5.0mm 12 56 20 1.674 93.74 1874.88 1220x150 4.0mm 12 60 20 2.196 131.76 2635.2 5.0mm 10 60 20 1.83 109.8 2196 1220x180 4.0mm 12 50 20 2.635 131.76 2635.2 5.0mm 10 50 20 2.196 109.8 2196 604x300 4.0mm 13 48 20 2.355 113.06 2261.37 5.0mm 11 48 20 1.993 95.67 1913.47 Vinyl floor - Loose Lay series 1227x156 5.0mm 10 60 20 1.914 114.84 2296.94 6.0mm 8 60 20 1.531 91.87 1837.55 1227x184 5.0mm 10 50 20 2.257 112.88 2257.68 6.0mm 8 50 20 1.806 90.31 1806.14 609.6x304.8 5.0mm 11 54 20 2.043 110.36 2207.37 6.0mm 9 54 20 1.672 90.3 1806.03 Vinyl floor - Dry Back series 914.4x152.4 2.0mm 36 56 20 5.017 280.94 5618.77 2.5mm 30 56 20 4.181 234.11 4682.31 3.0mm 24 56 20 3.345 187.29 3745.85 1221x184.15 2.0mm 24 50 20 5.396 269.81 5396.33 2.5mm 20 50 20 4.496 224.84 4496.94 3.0mm 16 50 20 3.597 179.87 3597.55 609.6x304.8 2.0mm 25 48 20 4.645 222.96 4459.34 2.5mm 20 48 20 3.716 178.37 3567.47 3.0mm 16 48 20 2.972 142.69 2853.98 457.2x457.2 2.0mm 25 40 20 5.225 209.03 4180.63 2.5mm 20 40 20 4.18 167.22 3344.5 3.0mm 16 40 20 3.344 133.78 2675.6 WPC vinyl Floor 1218x178 5.5mm 13 65 20 2.818 183.19 3663.98 6.0mm 12 65 20 2.601 169.1 3382.14 6.5mm 11 65 20 2.384 155.01 3100.29 7.0mm 10 65 20 2.168 140.92 2818.45 7.5mm 9 65 20 1.951 126.83 2536.6 8.0mm 9 65 20 1.951 126.83 2536.6 1218x146 5.5mm 13 78 20 2.311 180.31 3606.35 6.0mm 12 78 20 2.133 166.44 3328.94 6.5mm 11 78 20 1.956 152.57 3051.52 7.0mm 10 78 20 1.778 138.7 2774.11 7.5mm 9 78 20 1.6 124.83 2496.7 8.0mm 9 78 20 1.6 124.83 2496.7 Performace Item Standard Result Wear behaviour EN660-2 Group T Fire behaviour EN13501-1 Bfl-s1=B1 Anti slip DIN51130 R9 Slip resistant EN13893 category DS Dimension stability EN434 0.05% cross Light fast DIN EN ISO 105-B02 6 Warm-water heating system EN434 Pass Chemical resistant EN423 Pass Heavy metal REACH Pass Castor wheel traffic EN425 classif. W Antistatic properties EN1815 2kV Footfall sound absorption EN140-8 approx. 7 db Class 24 Domestic General Stain Resistant Class 34 Commercial General Dimension Stability Class 42 Industrial General Cigarette Resistant Abrasion Resistant Chemical Resistant 08

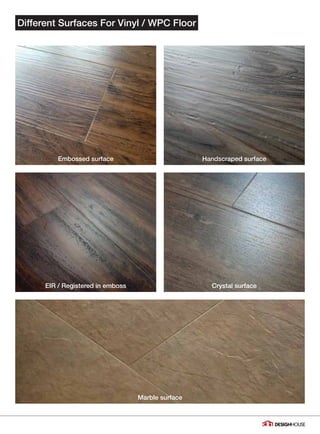

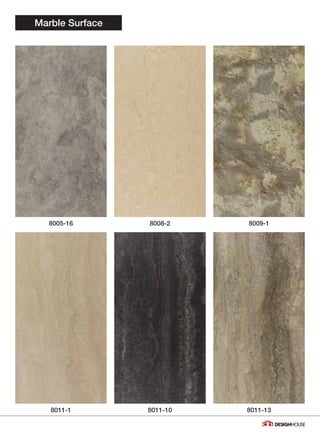

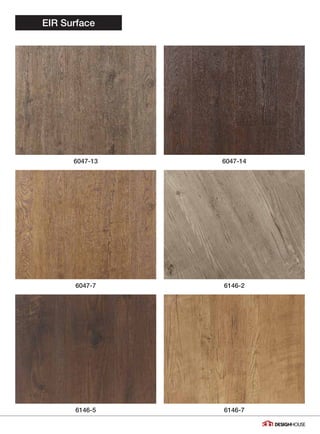

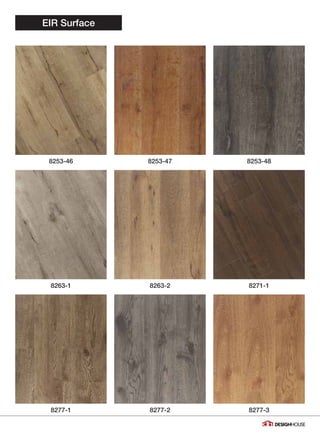

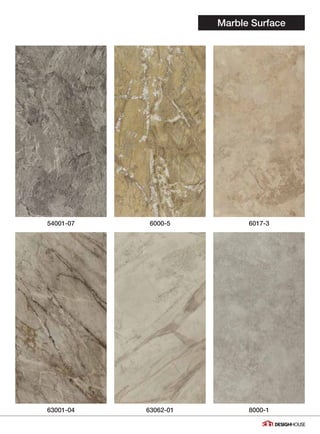

- 8. EIR / Registered in emboss Marble surface Embossed surface Crystal surface Handscraped surface Different Surfaces For Vinyl / WPC Floor 07

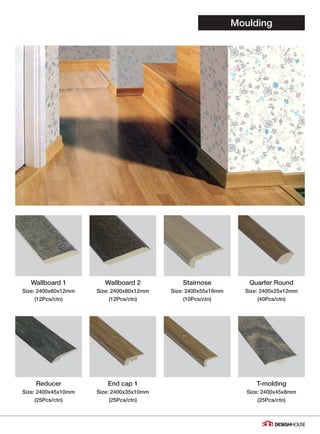

- 28. Moulding Wallboard 1 Size: 2400x60x12mm (12Pcs/ctn) Reducer Size: 2400x45x10mm (25Pcs/ctn) Wallboard 2 Size: 2400x80x12mm (12Pcs/ctn) End cap 1 Size: 2400x35x10mm (25Pcs/ctn) Stairnose Size: 2400x55x18mm (10Pcs/ctn) Quarter Round Size: 2400x25x12mm (40Pcs/ctn) T-molding Size: 2400x45x8mm (25Pcs/ctn) 30
- 29. Design House 800-558-8700 www.todaysdesignhouse.com
