Model Deployment
Alexey Grigorev
Principal Data Scientist — OLX Group
Founder — DataTalks.Club

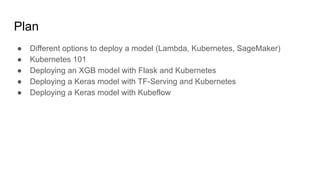

Plan
● Different options to deploy a model (Lambda, Kubernetes, SageMaker)

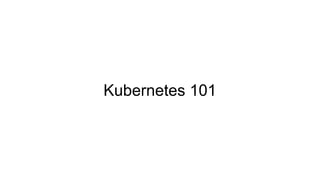

● Kubernetes 101
● Deploying an XGB model with Flask and Kubernetes

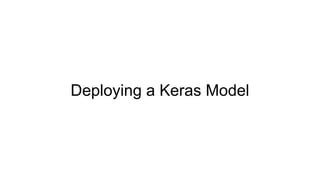

● Deploying a Keras model with TF-Serving and Kubernetes
● Deploying a Keras model with Kubeflow

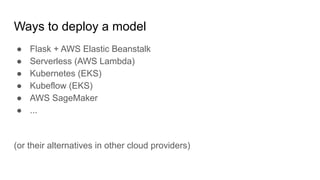

Ways to deploy a model
● Flask + AWS Elastic Beanstalk
● Serverless (AWS Lambda)
● Kubernetes (EKS)
● Kubeflow (EKS)
● AWS SageMaker
● ...
(or their alternatives in other cloud providers)

{

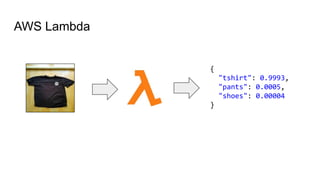

"tshirt": 0.9993,
"pants": 0.0005,
"shoes": 0.00004
}
AWS Lambda

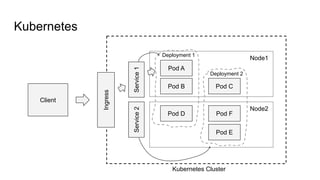

Kubernetes
Ingress
Client
Node1
Node2
Pod A
Pod B Pod C
Pod D
Pod E
Pod F
Service
1
Service
2
Deployment 1
Deployment 2
Kubernetes Cluster

Kubeflow / KFServing
Ingress
Client
Node1
Node2
Pod A
Pod B Pod C
Pod D
Pod E
Pod F
Service
1
Service
2
Deployment 1
Deployment 2
Kubernetes Cluster
InferenceService

SageMaker
Client
Model
Endpoint
AWS SageMaker

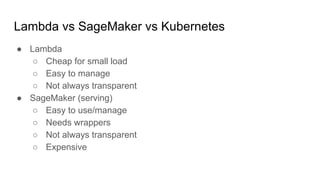

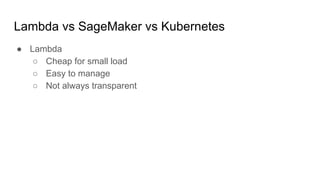

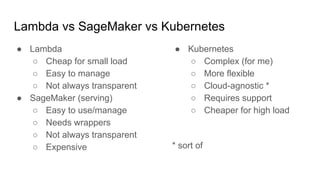

Lambda vs SageMaker vs Kubernetes
● Lambda
○ Cheap for small load
○ Easy to manage
○ Not always transparent

● Lambda
○ Easy to manage
● SageMaker (serving)
○ Easy to use/manage
○ Needs wrappers
○ Expensive

● Lambda
○ Easy to manage
● SageMaker (serving)
○ Easy to use/manage
○ Needs wrappers
○ Expensive
● Kubernetes
○ Complex (for me)
○ More flexible
○ Cloud-agnostic *
○ Requires support
○ Cheaper for high load
* sort of

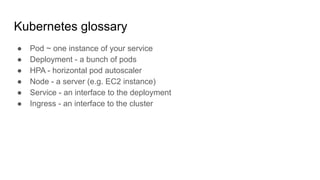

Kubernetes glossary
● Pod ~ one instance of your service
● Deployment - a bunch of pods
● HPA - horizontal pod autoscaler
● Node - a server (e.g. EC2 instance)
● Service - an interface to the deployment
● Ingress - an interface to the cluster

import xgboost as xgb
# load the model from the pickle file
@app.route('/predict', methods=['POST'])
def predict():
data = request.get_json()
result = apply_model(data)
return jsonify(result)
if __name__ == "__main__":
app.run(debug=True, host='0.0.0.0', port=9696)

FROM python:3.7.5-slim
RUN pip install flask gunicorn xgboost
COPY "model.py" "model.py"
EXPOSE 9696
ENTRYPOINT ["gunicorn", "--bind", "0.0.0.0:9696", "model:app"]

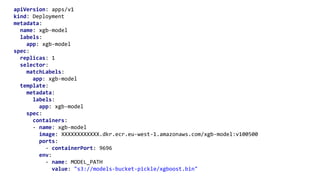

apiVersion: apps/v1
kind: Deployment
metadata:
name: xgb-model
labels:
app: xgb-model
spec:
replicas: 1
selector:
matchLabels:
app: xgb-model
template:
metadata:
labels:
app: xgb-model
spec:
containers:
- name: xgb-model
image: XXXXXXXXXXXX.dkr.ecr.eu-west-1.amazonaws.com/xgb-model:v100500
ports:
- containerPort: 9696
env:
- name: MODEL_PATH
value: "s3://models-bucket-pickle/xgboost.bin"

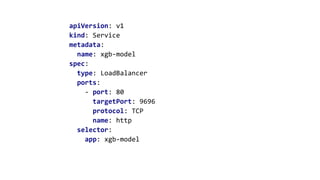

apiVersion: v1
kind: Service
metadata:
name: xgb-model
spec:
type: LoadBalancer
ports:
- port: 80
targetPort: 9696
protocol: TCP
name: http
selector:
app: xgb-model

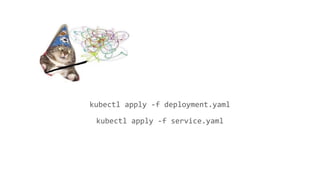

kubectl apply -f deployment.yaml
kubectl apply -f service.yaml

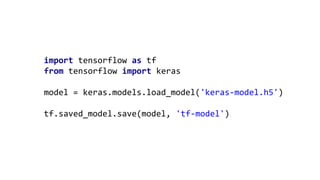

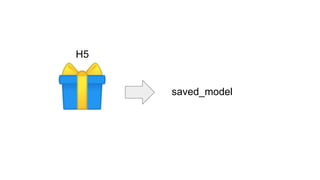

import tensorflow as tf
from tensorflow import keras
model = keras.models.load_model('keras-model.h5')
tf.saved_model.save(model, 'tf-model')

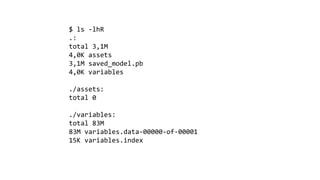

$ ls -lhR
.:
total 3,1M
4,0K assets
3,1M saved_model.pb
4,0K variables
./assets:
total 0
./variables:
total 83M
83M variables.data-00000-of-00001
15K variables.index

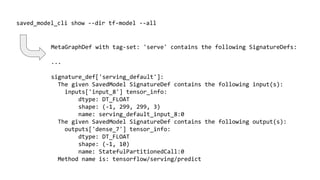

saved_model_cli show --dir tf-model --all
MetaGraphDef with tag-set: 'serve' contains the following SignatureDefs:
...
signature_def['serving_default']:
The given SavedModel SignatureDef contains the following input(s):
inputs['input_8'] tensor_info:
dtype: DT_FLOAT
shape: (-1, 299, 299, 3)
name: serving_default_input_8:0
The given SavedModel SignatureDef contains the following output(s):
outputs['dense_7'] tensor_info:
dtype: DT_FLOAT
shape: (-1, 10)
name: StatefulPartitionedCall:0
Method name is: tensorflow/serving/predict

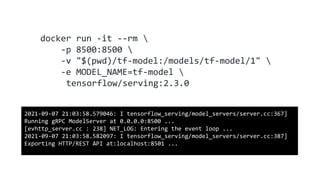

docker run -it --rm
-p 8500:8500
-v "$(pwd)/tf-model:/models/tf-model/1"
-e MODEL_NAME=tf-model
tensorflow/serving:2.3.0
2021-09-07 21:03:58.579046: I tensorflow_serving/model_servers/server.cc:367]
Running gRPC ModelServer at 0.0.0.0:8500 ...
[evhttp_server.cc : 238] NET_LOG: Entering the event loop ...
2021-09-07 21:03:58.582097: I tensorflow_serving/model_servers/server.cc:387]
Exporting HTTP/REST API at:localhost:8501 ...

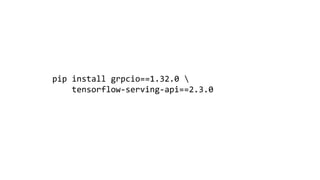

pip install grpcio==1.32.0
tensorflow-serving-api==2.3.0

https://github.com/alexeygrigorev/mlbookcamp-code/blob/master/chapter-09-kubernetes/09-image-preparation.ipynb

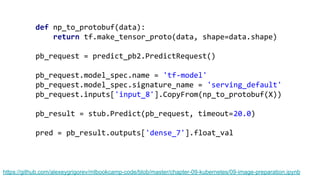

def np_to_protobuf(data):
return tf.make_tensor_proto(data, shape=data.shape)
pb_request = predict_pb2.PredictRequest()
pb_request.model_spec.name = 'tf-model'
pb_request.model_spec.signature_name = 'serving_default'
pb_request.inputs['input_8'].CopyFrom(np_to_protobuf(X))
pb_result = stub.Predict(pb_request, timeout=20.0)
pred = pb_result.outputs['dense_7'].float_val

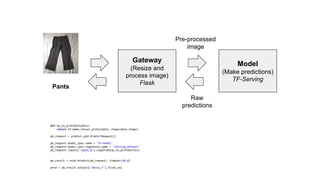

Gateway
(Resize and
process image)
Flask
Model
(Make predictions)
TF-Serving
Pants
Raw
predictions
Pre-processed

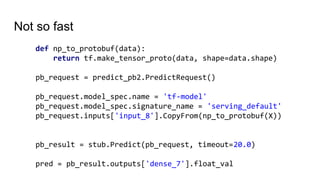

Not so fast
def np_to_protobuf(data):
return tf.make_tensor_proto(data, shape=data.shape)
pb_request = predict_pb2.PredictRequest()
pb_request.model_spec.name = 'tf-model'
pb_request.model_spec.signature_name = 'serving_default'
pb_request.inputs['input_8'].CopyFrom(np_to_protobuf(X))
pb_result = stub.Predict(pb_request, timeout=20.0)
pred = pb_result.outputs['dense_7'].float_val

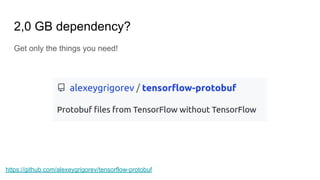

2,0 GB dependency?
Get only the things you need!
https://github.com/alexeygrigorev/tensorflow-protobuf

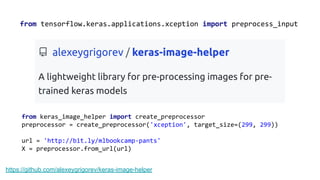

from tensorflow.keras.applications.xception import preprocess_input
https://github.com/alexeygrigorev/keras-image-helper
from keras_image_helper import create_preprocessor
preprocessor = create_preprocessor('xception', target_size=(299, 299))
url = 'http://bit.ly/mlbookcamp-pants'
X = preprocessor.from_url(url)

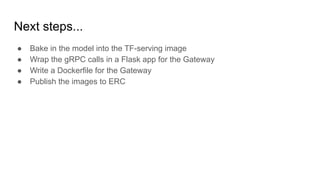

Next steps...
● Bake in the model into the TF-serving image
● Wrap the gRPC calls in a Flask app for the Gateway
● Write a Dockerfile for the Gateway
● Publish the images to ERC

Okay!
We’re ready to deploy to K8S

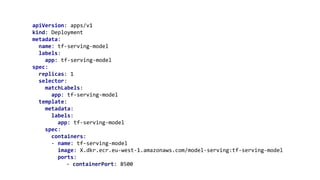

apiVersion: apps/v1
kind: Deployment
metadata:
name: tf-serving-model
labels:
app: tf-serving-model
spec:
replicas: 1
selector:
matchLabels:
template:
metadata:
labels:
spec:
containers:
- name: tf-serving-model
image: X.dkr.ecr.eu-west-1.amazonaws.com/model-serving:tf-serving-model
ports:

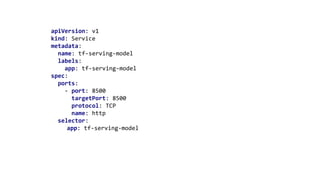

apiVersion: v1
kind: Service
metadata:
name: tf-serving-model
labels:
spec:
ports:
- port: 8500
targetPort: 8500
protocol: TCP
name: http
selector:

kubectl apply -f tf-serving-deployment.yaml
kubectl apply -f tf-serving-service.yaml

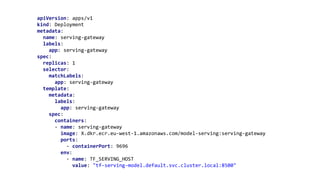

apiVersion: apps/v1
kind: Deployment
metadata:
name: serving-gateway
labels:
app: serving-gateway
spec:
replicas: 1
selector:
matchLabels:
template:
metadata:
labels:
spec:
containers:
- name: serving-gateway
image: X.dkr.ecr.eu-west-1.amazonaws.com/model-serving:serving-gateway
ports:
env:
- name: TF_SERVING_HOST
value: "tf-serving-model.default.svc.cluster.local:8500"

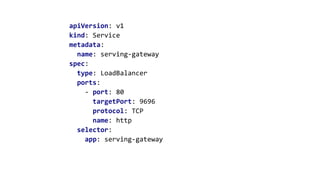

apiVersion: v1
kind: Service
metadata:
name: serving-gateway
spec:
type: LoadBalancer
ports:
- port: 80
targetPort: 9696
protocol: TCP
name: http
selector:

kubectl apply -f gateway-deployment.yaml
kubectl apply -f gateway-service.yaml

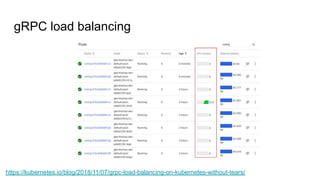

gRPC load balancing
https://kubernetes.io/blog/2018/11/07/grpc-load-balancing-on-kubernetes-without-tears/

Deploying deep learning models with Kubernetes and Kubeflow

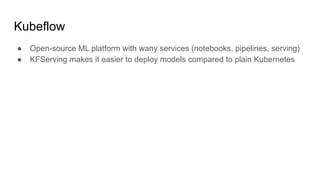

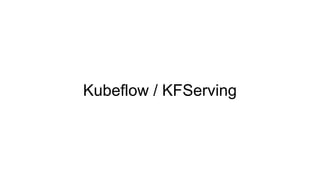

Kubeflow
● Open-source ML platform with wany services (notebooks, pipelines, serving)
● KFServing makes it easier to deploy models compared to plain Kubernetes

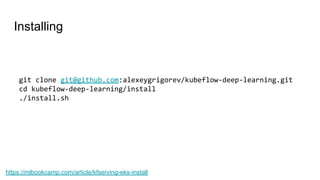

Installing
https://mlbookcamp.com/article/kfserving-eks-install
git clone git@github.com:alexeygrigorev/kubeflow-deep-learning.git
cd kubeflow-deep-learning/install
./install.sh

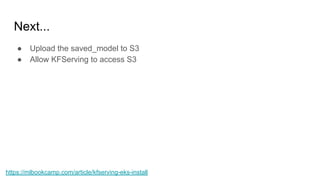

Next...
● Upload the saved_model to S3
● Allow KFServing to access S3
https://mlbookcamp.com/article/kfserving-eks-install

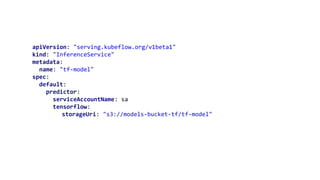

apiVersion: "serving.kubeflow.org/v1beta1"
kind: "InferenceService"
metadata:
name: "tf-model"
spec:
default:
predictor:
serviceAccountName: sa
tensorflow:
storageUri: "s3://models-bucket-tf/tf-model"

kubectl apply -f tf-inference-service.yaml

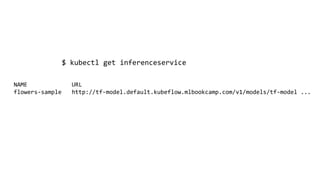

$ kubectl get inferenceservice
NAME URL
flowers-sample http://tf-model.default.kubeflow.mlbookcamp.com/v1/models/tf-model ...

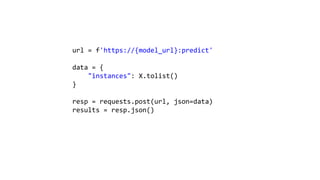

url = f'https://{model_url}:predict'
data = {
"instances": X.tolist()
}
resp = requests.post(url, json=data)
results = resp.json()

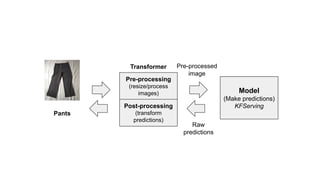

Pre-processing
(resize/process
images)
Post-processing
(transform
predictions)
Transformer
Model
(Make predictions)
KFServing
Pants
Raw
predictions
Pre-processed

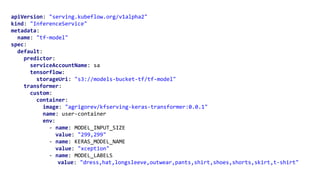

apiVersion: "serving.kubeflow.org/v1alpha2"
kind: "InferenceService"
metadata:
name: "tf-model"
spec:
default:
predictor:
serviceAccountName: sa
tensorflow:
storageUri: "s3://models-bucket-tf/tf-model"
transformer:
custom:
container:
image: "agrigorev/kfserving-keras-transformer:0.0.1"
name: user-container
env:
- name: MODEL_INPUT_SIZE
value: "299,299"
- name: KERAS_MODEL_NAME
value: "xception"
- name: MODEL_LABELS
value: "dress,hat,longsleeve,outwear,pants,shirt,shoes,shorts,skirt,t-shirt"

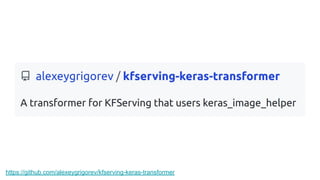

https://github.com/alexeygrigorev/kfserving-keras-transformer

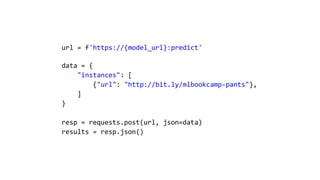

url = f'https://{model_url}:predict'
data = {
"instances": [
{"url": "http://bit.ly/mlbookcamp-pants"},
]
}
resp = requests.post(url, json=data)
results = resp.json()

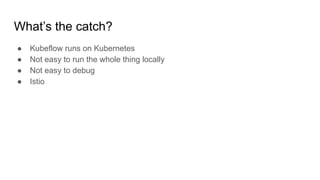

What’s the catch?
● Kubeflow runs on Kubernetes
● Not easy to run the whole thing locally
● Not easy to debug
● Istio

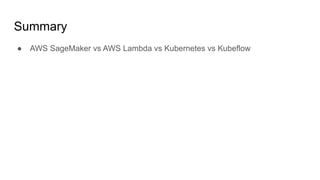

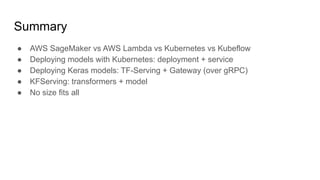

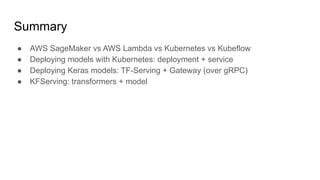

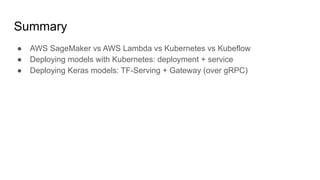

Summary
● AWS SageMaker vs AWS Lambda vs Kubernetes vs Kubeflow

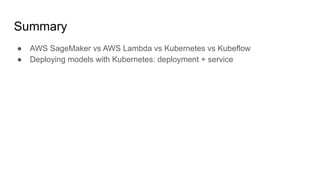

Summary
● Deploying models with Kubernetes: deployment + service

Summary
● Deploying Keras models: TF-Serving + Gateway (over gRPC)

Summary
● KFServing: transformers + model

Summary
● KFServing: transformers + model
● No size fits all

mlbookcamp.com
● Learn Machine Learning by doing
projects
● http://bit.ly/mlbookcamp
● Get 40% off with code “grigorevpc”
Machine Learning
Bookcamp

mlzoomcamp.com
Learn Machine Learning Engineering in 4
months
Machine Learning
Zoomcamp
Zoom

@Al_Grigor
agrigorev
DataTalks.Club
