06Quality assurance is critical in additive
manufacturing (AM) so when an
unexpected result occurs during a
routine build it is important to identify
whether the source is the powder or
the AM machine or process and most
importantly how to correct it.
The importance of timely testing to
establish the cause of unexpected
results is exemplified by an enquiry to
LPW requesting a quality assurance
check on a recently purchased batch
of powder.
The manufacturer was experiencing
problems where a routine production
process began to show changes in the
surface roughness of the finished part.
As the changes in build processing
appeared to coincide with the latest
batch of powder, a natural starting
point was to question the consistency
of the metal powder. The alloy powder
in question was a long established
product and the specification had not
varied significantly across the lifetime
of the product.
LPW’s quality department examined
the powder in question for flow, size
distribution and morphology. This was
analysed alongside a reference sample
from a successful previous production
build from 12 months earlier.
Powder flow was measured using Hall
Flow (ASTM B213) and Carney Flow
(ASTM B964) each powder gave results
within specification, indicating that the
powders did not have fundamentally
different flow characteristics. Size
distribution was measured by Laser
Size Diffraction (ASTM B822), and
morphology was assessed by means
of SEM imaging. The flow and size
distribution results conformed to
both the product specification and
the previous test certificate, and SEM
imaging revealed no anomalies.
Although these results suggested
there was no significant differences
in the powder, the problems were
occurring across multiple machines.
The observed poor part build clearly
required a more in depth root cause
analysis, which required LPW to
develop a DoE, design of experiment
to establish the likely root cause.
Microstructural analysis of
samples of the deposited material
were conducted to gain a better
understanding of any potential
processing issue. Once received, the
samples were mounted, ground and
polished to reveal the cross section.
Figure 1 shows a Scanning Electron
Microscope (SEM) image of the
sample section which shows that the
deposited layer is punctuated with
large pores.
LPW TECHNOLOGY
CASE STUDY 06:
POROSITY IN DEPOSITED MATERIAL
Porosity in
deposited material
LPW TECHNOLOGY LTD
16 Berkeley Court, Manor Park
Runcorn, Cheshire WA7 1TQ
United Kingdom
LPW TECHNOLOGY LTDCONTACT
T: +44 (0) 1928 240 530
E: sales@lpwtechnology.com

One understandable explanation is
that the powder being included in the
deposited layer is porous. The powder
particles are between 20-53 microns
in diameter and measurements of
the pores reveal them to be 30-50
microns across, so are highly unlikely
to be contained stably within a powder
particle.
Since powder porosity would also
not explain poor surface finish,
the machine processing conditions
were carefully investigated. A large
retained sample of a previous batch of
powder which was known to process
satisfactorily was used in order to
ensure a like for like comparison.
After replacing a key component
of the deposition system across all
machines, that build quality was
restored to output products that
passed the stringent quality controls.
It was confirmed that component
deterioration across the machines was
the root cause.
Outcome
Initial flow measurements had
indicated that the root cause of poor
build was unlikely to be the powder,
but it was only by applying in-house
industry expertise in AM processing
and thorough analysis capabilities
of both powder and part, that LPW
was able to deliver confidence and a
holistic processing solution.
LPW TECHNOLOGY
CASE STUDY 06:
POROSITY IN DEPOSITED MATERIAL
LPW TECHNOLOGY LTD
16 Berkeley Court, Manor Park
Runcorn, Cheshire WA7 1TQ
United Kingdom
LPW TECHNOLOGY LTDCONTACT
T: +44 (0) 1928 240 530
E: sales@lpwtechnology.com

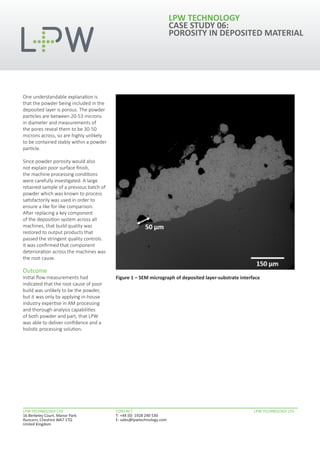

Figure 1 – SEM micrograph of deposited layer-substrate interface
