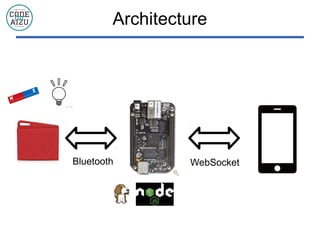

The document discusses using TI SensorTags and a BeagleBone Black to create Internet of Things applications without wiring. It describes using the sensors on the SensorTag, including temperature, light, motion and magnetic sensors, to monitor and visualize the status of a toilet remotely. The proposed architecture involves connecting the SensorTag to a BeagleBone Black via Bluetooth and sending the sensor data over a Bluetooth WebSocket connection. Examples of other potential applications mentioned are a security alarm system and elderly monitoring system. The BeagleBone Black is recommended due to its open source hardware, pre-installed operating system and IDE, and ability to run programs without Unix commands.
IoT without Wiring
- 2. About me ● TOKUNO, Hirokazu ● IT system at Manufacturing site ● 6th year since assigned to IT at age of 39 – Learning a lots to catch up ● Little experience – VBA, JavaScript, Java, Perl, Shell... ● Love to minimize code – Pentaho ETL, Mojolicious, Meteor

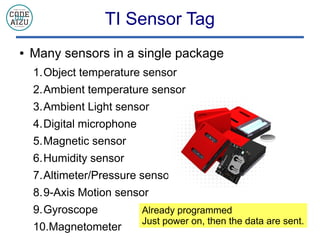

- 3. TI Sensor Tag ● Many sensors in a single package 1.Object temperature sensor 2.Ambient temperature sensor 3.Ambient Light sensor 4.Digital microphone 5.Magnetic sensor 6.Humidity sensor 7.Altimeter/Pressure sensor 8.9-Axis Motion sensor 9.Gyroscope 10.Magnetometer Already programmed Just power on, then the data are sent.

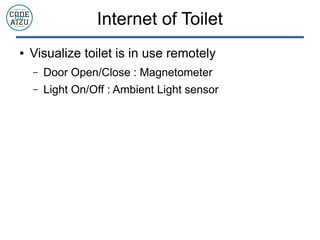

- 4. Internet of Toilet ● Visualize toilet is in use remotely – Door Open/Close : Magnetometer – Light On/Off : Ambient Light sensor

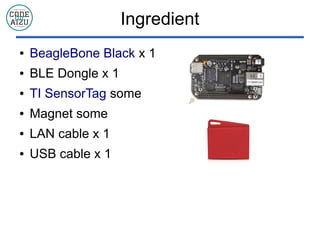

- 5. Ingredient ● BeagleBone Black x 1 ● BLE Dongle x 1 ● TI SensorTag some ● Magnet some ● LAN cable x 1 ● USB cable x 1

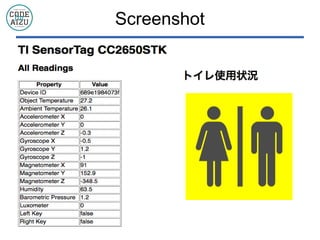

- 7. Screenshot

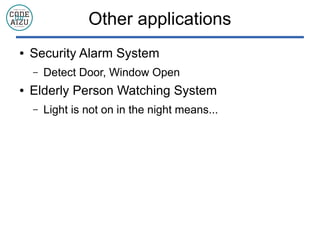

- 8. Other applications ● Security Alarm System – Detect Door, Window Open ● Elderly Person Watching System – Light is not on in the night means...

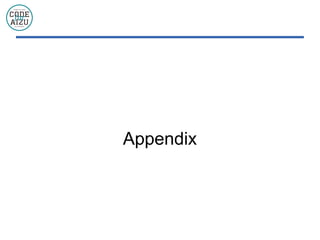

- 9. Appendix

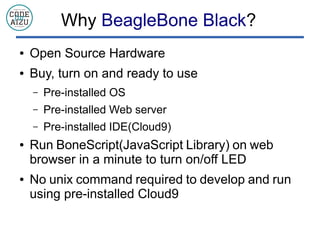

- 10. Why BeagleBone Black? ● Open Source Hardware ● Buy, turn on and ready to use – Pre-installed OS – Pre-installed Web server – Pre-installed IDE(Cloud9) ● Run BoneScript(JavaScript Library) on web browser in a minute to turn on/off LED ● No unix command required to develop and run using pre-installed Cloud9

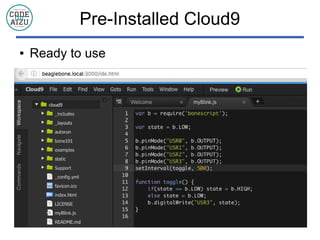

- 11. Pre-Installed Cloud9 ● Ready to use
