El documento presenta especificaciones y precios para grupos electrógenos Taigüer motorizados por Cummins. Incluye detalles sobre modelos, precios (sin IVA), tipos de motor, dimensiones, métodos de refrigeración y características técnicas. Los precios son válidos para pedidos con reserva y se ofrece un a?o de garantía en piezas.

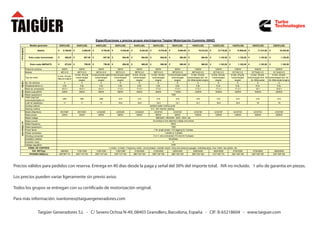

Especificaciones y precios grupos electrógenos Taigüer Motorización Cummins (50HZ)
Modelo generador 20GF(LDE) 30GF(LDE) 40GF(LDE) 50GF(LDE) 64GF(LDE) 80GF(LDE) 90GF(LDE) 100GF(LDE) 120GF(LDE) 140GF(LDE) 160GF(LDE) 200GF(LDE)
EUROS (iva no incluido)

Abierto € 5.760,00 € 5.880,00 € 6.792,00 € 8.028,00 € 8.244,00 € 8.376,00 € 9.984,00 € 10.512,00 € 13.776,00 € 13.980,00 € 17.274,00 € 19.320,00

Extra coste insonorizado € 486,00 € 607,50 € 607,50 € 864,00 € 864,00 € 864,00 € 864,00 € 864,00 € 1.120,50 € 1.120,50 € 1.120,50 € 1.120,50

Extra coste AMF&ATS € 672,00 € 756,00 € 756,00 € 868,00 € 868,00 € 868,00 € 868,00 € 868,00 € 1.162,00 € 1.162,00 € 1.162,00 € 1.162,00

Potencia continua 20KW 30KW 40KW 50KW 64KW 80KW 90KW 100KW 120KW 140KW 160KW 200KW
Modelo 4B3.9-G 4BT3.9-G 4BTA3.9-G 6BT5.9-G 6BT5.9-G 6BT5.9-G 6BTA5.9-G 6BTAA5.9-G 6CTA8.3-G 6CTA8.3-G 6CTAA8.3-G 6LTAA8.9-G
In-line, 4Cycle, In-line,4Cycle,water In-line,4Cycle,water In-line, 4Cycle, In-line, 4Cycle, In-line,4Cycle,water In-line, 4Cycle, In-line, 4Cycle, In-line, 4Cycle, In-line, 4Cycle, In-line, 4Cycle,
In-line, 4Cycle,
Tipo de motor turbocharged turbocharged turbocharged turbocharged turbocharged turbocharged turbocharged and Air- turbocharged turbocharged turbocharged and Air- turbocharged and Air-
Natural engine
engine engine engine engine engine engine Air Aftercooled engine engine engine Air Aftercooled Air Aftercooled engine
DIESEL ENGINE

No. De cilindros 4 4 4 6 6 6 6 6 6 6 6 6
Desplacamiento (L) 3.9L 3.9L 3.9L 5.9L 5.9L 5.9L 5.9L 5.9L 8.3L 8.3L 8.3L 8.3L
Ratio de compresión 16.5:1 16.5:1 16.5:1 17.5:1 17.5:1 17.5:1 17.5:1 17.5:1 17.3:1 17.3:1 18:1 16.6:1
Rated output(KW) 24KW 36KW 50KW 92KW 92KW 92KW 110KW 120KW 163KW 163KW 183KW 220KW
Rated speed(rpm) 1500
100% load fuel
209 209 209 210 210 210 210 210 210 210 210 210
consumption(g/kw.h)
Lube oil capacity(L) 11 11 11 16,4 16,4 16,4 12,1 12,1 16,4 16,4 16 19
Cooling method positive water cooling cycle
Starting method D.C. 24V Electric starting
Model (Stamford) BCI184F BCI184H UCI224D UCI224E UCI224G UCI274C UCI274D UCI274E UCI274F UCI274G UCI274H UCI274K
Rated power 20KW 30KW 40KW 50KW 64KW 80KW 90KW 100KW 120KW 140KW 160KW 200KW
Rated voltage 380/220V, 400/230V, 220V, 230V, etc.
Rated current According to the selected voltage and phase
ALTERNATOR

Rated frequency 50HZ
Rated speed(rpm) 1500
Power factor 1 for single phase / 0.8 lagging for 3-phase
Phase connection 1-phase or 3-phase
Winding connection 3 or 4 -wire connected (12-wire for 3-phase)
Excitation method Brushless
Insulation class H
Voltage regulation AVR
PANEL DE CONTROS V-meter, A-meter, Frequency meter, circuit breaker, transfer switch, temp.and pressure gauges, indicating lamp, hour meter, key starter, etc.
G/N. WET(kg) 980/920 1100/1000 1100/1000 1180/1080 2100/2000 2150/2050 2550/2450 2550/2450 2600/2500 2700/2550 2750/2600 2800/2650
PACKING SIZE(cm) 200*96*110 230*110*130 230*110*140 230*110*140 280*130*165 280*130*165 285*130*165 285*130*165 310*148*170 340*148*180 340*148*180 340*148*180

Precios válidos para pedidos con reserva. Entrega en 40 días desde la paga y se?al del 30% del importe total. IVA no incluido. 1 a?o de garantía en piezas.

Los precios pueden variar ligeramente sin previo aviso.

Todos los grupos se entregan con su certi cado de motorización original.

Para más información: ivantorres@taiguergeneradores.com

Taigüer Generadores S.L - C/ Severo Ochoa N-49, 08403 Granollers, Barcelona, Espa?a - CIF: B-65218604 - www.taiguer.com
