CLAYMORE Series
Specifications & Features
31st
of July, 2012

? 2012 HANJUNG TECH Co., Ltd.
? 2012 HANJUNG TECH Co., Ltd.

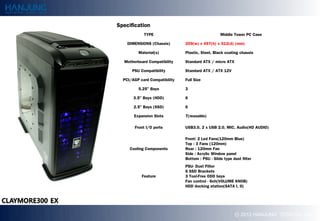

Specification
TYPE Middle Tower PC Case

DIMENSIONS (Chassis) 209(w) x 497(h) x 512(d) (mm)

Material(s) Plastic, Steel, Black coating chassis

Motherboard Compatibility Standard ATX / micro ATX

PSU Compatibility Standard ATX / ATX 12V

PCI/AGP card Compatibility Full Size

5.25" Bays 3

3.5" Bays (HDD) 6

2.5" Bays (SSD) 6

Expansion Slots 7(reusable)

Front I/O ports USB3.0, 2 x USB 2.0, MIC, Audio(HD AUDIO)

Front: 2 Led Fans(120mm Blue)
Top : 3 Fans (120mm)
Cooling Components Rear : 120mm Fan
Side : Acrylic Window panel
Bottom : PSU - 狠狠撸 type dust filter
PSU- Dust Filter
6 SSD Brackets
Feature 3 Tool-Free ODD bays
Fan control - 6ch(VOLUME KNOB)
HDD docking station(SATA I, II)

? 2012 HANJUNG TECH Co., Ltd.

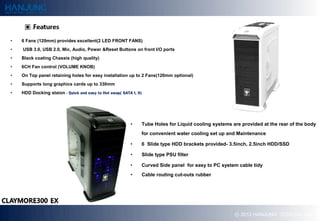

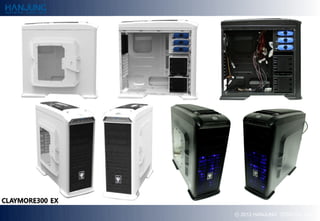

? 6 Fans (120mm) provides excellent(2 LED FRONT FANS)
? USB 3.0, USB 2.0, Mic, Audio, Power &Reset Buttons on front I/O ports
? Black coating Chassis (high quality)
? 6CH Fan control (VOLUME KNOB)
? On Top panel retaining holes for easy installation up to 2 Fans(120mm optional)
? Supports long graphics cards up to 330mm
? HDD Docking staion - Quick and easy to Hot swap( SATA I, II)

? Tube Holes for Liquid cooling systems are provided at the rear of the body
for convenient water cooling set up and Maintenance

? 6 狠狠撸 type HDD brackets provided- 3.5inch, 2.5inch HDD/SSD

? 狠狠撸 type PSU filter

? Curved Side panel for easy to PC system cable tidy
? Cable routing cut-outs rubber

? 2012 HANJUNG TECH Co., Ltd.

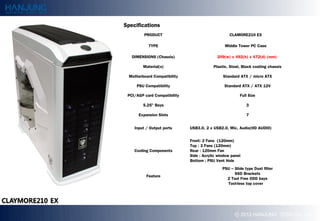

Specifications

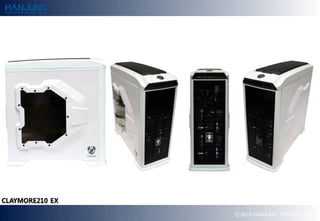

PRODUCT CLAMORE210 EX

TYPE Middle Tower PC Case

DIMENSIONS (Chassis) 209(w) x 492(h) x 472(d) (mm)

Material(s) Plastic, Steel, Black coating chassis

Motherboard Compatibility Standard ATX / micro ATX

PSU Compatibility Standard ATX / ATX 12V

PCI/AGP card Compatibility Full Size

5.25" Bays 3

Expansion Slots 7

Input / Output ports USB3.0, 2 x USB2.0, Mic, Audio(HD AUDIO)

Front: 2 Fans (120mm)
Top : 3 Fans (120mm)
Cooling Components Rear : 120mm Fan
Side : Acrylic window panel
Bottom : PSU Vent Hole
PSU – 狠狠撸 type Dust filter
SSD Brackets
Feature
2 Tool Free ODD bays
Tool-less top cover

? 2012 HANJUNG TECH Co., Ltd.

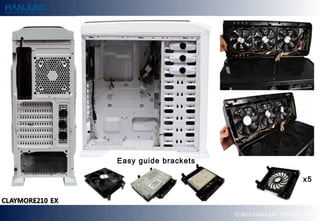

Easy guide brackets

x5

? 2012 HANJUNG TECH Co., Ltd.

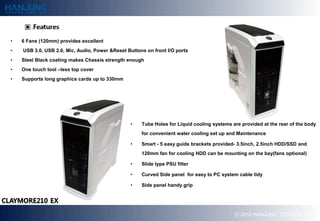

? 6 Fans (120mm) provides excellent
? USB 3.0, USB 2.0, Mic, Audio, Power &Reset Buttons on front I/O ports
? Steel Black coating makes Chassis strength enough
? One touch tool –less top cover
? Supports long graphics cards up to 330mm

? Tube Holes for Liquid cooling systems are provided at the rear of the body
for convenient water cooling set up and Maintenance

? Smart - 5 easy guide brackets provided- 3.5inch, 2.5inch HDD/SSD and
120mm fan for cooling HDD can be mounting on the bay(fans optional)

? 狠狠撸 type PSU filter

? Curved Side panel for easy to PC system cable tidy

? Side panel handy grip

? 2012 HANJUNG TECH Co., Ltd.

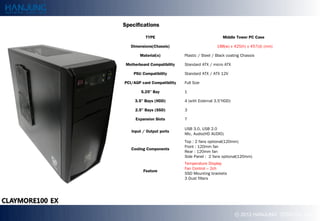

Specifications

TYPE Middle Tower PC Case

Dimensions(Chassis) 188(w) x 425(h) x 457(d) (mm)

Material(s) Plastic / Steel / Black coating Chassis

Motherboard Compatibility Standard ATX / micro ATX

PSU Compatibility Standard ATX / ATX 12V

PCI/AGP card Compatibility Full Size

5.25" Bay 1

3.5" Bays (HDD) 4 (with External 3.5”HDD)

2.5" Bays (SSD) 3

Expansion Slots 7

USB 3.0, USB 2.0
Input / Output ports
Mic, Audio(HD AUDIO)
Top : 2 fans optional(120mm)
Front : 120mm fan
Cooling Components
Rear : 120mm fan
Side Panel : 2 fans optional(120mm)
Temperature Display
Fan Control – 2ch
Feature
SSD Mounting brackets
3 Dust filters

? 2012 HANJUNG TECH Co., Ltd.

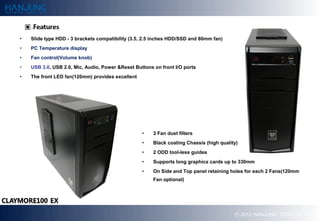

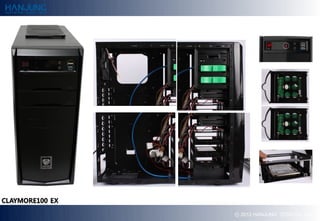

? 狠狠撸 type HDD - 3 brackets compatibility (3.5, 2.5 inches HDD/SSD and 80mm fan)
? PC Temperature display
? Fan control(Volume knob)
? USB 3.0, USB 2.0, Mic, Audio, Power &Reset Buttons on front I/O ports
? The front LED fan(120mm) provides excellent

? 3 Fan dust filters
? Black coating Chassis (high quality)
? 2 ODD tool-less guides
? Supports long graphics cards up to 330mm
? On Side and Top panel retaining holes for each 2 Fans(120mm
Fan optional)

? 2012 HANJUNG TECH Co., Ltd.

Thank You

? 2012 HANJUNG TECH Co., Ltd.

The Claymore300 EX is a mid-tower PC case that can support standard ATX and micro ATX motherboards. It has space for 3 5.25 inch drives, 6 3.5 inch drives, and 6 2.5 inch solid state drives. Cooling includes two front blue LED fans, three top fans, and one rear fan controlled via a 6-channel fan control knob. Additional features include USB 3.0 and 2.0 front ports, tool-free drive bays, and HDD docking station compatibility. The case dimensions are 209mm x 497mm x 512mm.

Claymore300 ex 120619 engHanjung TECH

The Claymore300 EX is a mid-tower PC case that can support standard ATX and micro ATX motherboards. It has space for 3 5.25 inch drives, 6 3.5 inch drives, and 6 2.5 inch solid state drives. Cooling includes 2 front LED fans, 3 top fans, and 1 rear fan that are controlled via a 6-channel fan control knob. Additional features include front I/O ports with USB 3.0, removable hard drive docking station, and liquid cooling component holes.

TR series detailsHanjung TECH

The document provides specifications and features for the TR Series computer cases from HANJUNG TECH Co. It includes specifications for the TR310 EX PLUS model such as dimensions, materials, fan cooling and front I/O ports. Key features highlighted are the dual fan cooling on top, HDD docking station, 8-channel fan control and USB 3.0 support. Additional specification sheets are included for models TR300 EX PLUS and TR200 that provide details on dimensions, drive bays, cooling and front panel ports.

06.Manual Sg80enunpimpam.com

This document provides information about the SG-80 and SG-81 motherboard series, including: - Key features such as support for Intel Pentium 4 CPUs and SATA ports - Layout diagrams showing the placement of connectors and components - Descriptions of connectors, headers, and switches including power connectors, fan headers, CMOS memory clearing header, front panel connectors, USB ports, audio headers, expansion slots, and SATA/IDE connectors.

CeBIT 2012 and HANJUNG TECHMatt KING

This document provides product specifications and features for computer cases, notebooks, and HTPCs from Hanjung Tech between Q1 2012 and Q4 2012. It includes details on models, dimensions, materials, colors, compatible components, bays, ports, and other specifications. Key features highlighted are large fans for cooling, tool-free bays for easy installation, front USB and audio ports, and liquid cooling tube holes. The TRON300 EX and TRON310 EX ATX mid-tower computer cases are among the products described.

Presentacion EnsamblajeAlexzzito

The document outlines the components necessary for building a computer optimized for gaming and movie playback, detailing parts such as the motherboard, CPU, RAM, graphics card, and storage options. It highlights the specifications of each component and features, including cooling systems, enhanced connectivity, and audio capabilities. The estimated cost of assembling this PC ranges from $3,300 to $3,600 USD.

Aewin fanless system sem6333 intel atom d2550_n2600Sirena Cheng

This document summarizes a fanless embedded computing system with an Intel Atom processor. It has HDMI and VGA video outputs, supports up to 4GB of RAM, has space for one 2.5" hard drive and one mSATA SSD. It has multiple network and USB ports as well as audio I/O. The system comes in a compact aluminum case and has a wide input voltage range, making it suitable for industrial applications. It ships with power and mounting accessories.

SeaPort Systems Rugged 4U HPC Workstation - System Data SheetDarin George

O meu computadorJose luis Coutinho

uIBX-230-BTICP America

The uibx-230-bt is an ultra-compact embedded system powered by an Intel? Celeron? N2930 processor, featuring a small form factor with dimensions of 135.6 x 102.8 x 47 mm. It includes a 2.5'' SATA drive bay, 2GB DDR3L memory (expandable to 8GB), and various I/O interfaces such as USB 3.0 and RS-232. This fanless system operates in a wide temperature range and is suitable for space-constrained industrial applications.

Exor epc 1250-datasheetElectromate

The EPC-1250 is a 12.1-inch high speed panel PC with an expansion slot and 120W adapter. It has a 12.1-inch touchscreen display with 800x600 resolution and 400 cd/m2 brightness. It supports Intel Core Duo or Pentium M/Celeron M processors and has dual gigabit Ethernet, audio controller and space for a 2.5-inch HDD and slim CD-ROM. Dimensions are 37.0 x 29.0 x 8.9 cm and it has IP65 front panel protection.

Exor epc 1250_Spec SheetElectromate

Exor epc 1550_Spec SheetElectromate

Exor epc 1550-datasheetElectromate

Wavyinwin

This document describes a Mini ITX/DTX PC chassis. It has an elegant and esthetic design, great expansion capabilities, and a friendly internal structure that can support standard or slim optical disk drives along with 3.5" or 2.5" hard disk drives. The chassis has a 120W internal power supply and supports Mini-ITX and Mini-DTX motherboard formats with low profile expansion card slots. It measures 270 x 112.6 x 264 mm and features an 80 x 80 x 20mm system fan for cooling.

Aewin fanless system sem6335 amd embedded g seriesSirena Cheng

This document summarizes a 1U low profile fanless industrial system featuring an AMD Embedded G-Series SOC. It has HDMI and VGA dual display outputs, supports up to 4GB of DDR3 RAM, and can accommodate both a 2.5" SATA HDD and half-size mSATA SSD. Connectivity includes Intel GbE LAN, 3 COM ports, USB 3.0 and audio ports. It measures 202mm x 200mm x 44mm and has an operating temperature range of 0-40°C. Power input is DC 8-32V.

Asrock G31M-VS Motherboard layout.pptxallancamacho5

This document provides specifications for the G31M-VS motherboard, including its Micro ATX form factor, support for Intel Core 2 and Pentium Dual Core CPUs, Intel G31 and ICH7 chipsets, dual channel DDR2 memory up to 8GB, PCI Express and PCI slots, integrated Intel graphics, 5.1 channel audio, and rear I/O ports. It also lists the motherboard's SATA, power, and fan connectors as well as its 4Mb AMI BIOS features.

P.C motherboardSelf Employer

The document provides information about different types of motherboards including AT, ATX, and NLX motherboards. It discusses the key components and features of motherboards such as the CPU socket, memory slots, expansion slots, and power connectors. The steps for building a PC from individual components are outlined, with an emphasis on proper electrostatic discharge prevention procedures when handling components.

ideapad_330S_14IKB_Shhjjkjhghhvbhjjjpec.pdfMichaelDexterBalanta1

1I386HCH Yeh

The document describes the 1I386H, a super compact wafer input/output single board computer with an Intel Bay Trail dual-core CPU. It measures 55x90mm and has features like 2GB RAM, mSATA storage, VGA output, Gigabit Ethernet, USB ports, and works in temperatures from -20C to 70C. It is targeted towards space-constrained and thermally limited embedded applications. The document also lists optional extension modules that can add more ports and capabilities.

Axiomtek tBOX330 870-FL Spec Sheet Chris Bartram, Digital Displays Specialist

The TBOX330-870-FL is a fanless embedded system featuring a 3rd generation Intel? Core? processor, designed for applications in marine and railway environments. It supports various connectivity options, including multiple LAN, USB, and serial interfaces, and operates within a temperature range of -40°C to +70°C. The system includes rugged features like swappable storage and compliance with various safety standards, making it suitable for harsh operating conditions.

Vostro 220Joseph Arnolda

The document describes Dell's new Vostro 220 mini tower and 220s slim tower desktop computers for small businesses. Key features include customizable hardware and software configurations, reliable performance from Intel processors and graphics options, and services like remote support to simplify IT maintenance. The desktops are designed based on small business customer feedback to be durable, customizable solutions for everyday productivity needs.

DE7000 Media PlayerS & J Enterprises of Las Vegas, LLC

Aewin ics network security appliance cip network management platform_scb6986Sirena Cheng

The SCB-6986 is a din rail fanless system powered by Intel? Tunnel Creek processors, featuring up to 5 GbE ports and a removable 2.5” SATA HDD. It includes various connectivity options such as USB ports and a console port, is compliant with RoHS, FCC, and CE standards, and operates within a wide temperature range. Additionally, it supports up to 2GB of DDR2 memory and provides features for local system management and diagnostics.

Presentacion ensamblajeShaoran Shirahma

This document summarizes the key components for building a high-performance gaming and media PC, including: - A Thermaltake Level 10 GT cabinet with high-airflow fans and extensive cable management features. - An Intel Core i7 processor, Nvidia GeForce GTX 590 graphics card, 8GB of RAM, and 2TB hard drive to handle intensive games and HD media. - Additional components like the Acteck gamepad, Logitech speakers, and SteelSeries keyboard for an immersive multimedia experience. - The total estimated price for this custom-built PC is between $3,300-3,600 USD or 35,000-37,000 Mexican pesos.

Aewin embedded em5300 intel atom_sbcSirena Cheng

This document summarizes the specifications of a 3.5" single board computer (SBC) with an Intel Atom N450, D410, or D510 processor. The SBC features include dual display output via VGA and LVDS, dual gigabit Ethernet, SATA, USB, serial and mini-PCI ports. It has a compact form factor of 146mm x 101mm and is powered by 12V DC input. Optional accessories include an HD audio module and cable. Three models are listed with different onboard Atom processors.

my Windows 7 infoisky guard

英国哈珀亚当斯大学学历认证查询调贬础鲍学费单贬础鲍成绩单复刻皑原版制作taqyed

HAU哈珀亚当斯大学毕业证书多少钱【q薇1954292140】1:1原版哈珀亚当斯大学毕业证+HAU成绩单【q薇1954292140】完美还原海外各大学毕业材料上的工艺：水印，阴影底纹，钢印LOGO烫金烫银，LOGO烫金烫银复合重叠。文字图案浮雕、激光镭射、紫外荧光、温感、复印防伪等防伪工艺。【主营项目】一、工作未确定，回国需先给父母、亲戚朋友看下文凭的情况，办理毕业证|办理文凭: 买大学毕业证|买大学文凭【q薇1954292140】学位证明书如何办理申请？二、回国进私企、外企、自己做生意的情况，这些单位是不查询毕业证真伪的，而且国内没有渠道去查询国外文凭的真假，也不需要提供真实教育部认证。鉴于此，办理哈珀亚当斯大学毕业证|HAU成绩单【q薇1954292140】国外大学毕业证, 文凭办理, 国外文凭办理, 留信网认证三.材料咨询办理、认证咨询办理请加学历顾问【微信:1954292140】毕业证购买指大学文凭购买，毕业证办理和文凭办理。学院文凭定制，学校原版文凭补办，扫描件文凭定做，100%文凭复刻。经常操作的国家有美国毕业证，英国毕业证，澳洲毕业证，加拿大毕业证，以及德国毕业证，法国毕业证、荷兰毕业证、瑞士毕业证、日本毕业证、韩国毕业证、新西兰毕业证、新加坡毕业证、泰国毕业证、马来西亚毕业证等。包括了本科毕业证，硕士毕业证，博士毕业证及高中毕业证。

Max Power products list 2024 compone.pdfjmglpa

More Related Content

Similar to CLAYMORE series details (20)

SeaPort Systems Rugged 4U HPC Workstation - System Data SheetDarin George

O meu computadorJose luis Coutinho

uIBX-230-BTICP America

Exor epc 1250-datasheetElectromate

Exor epc 1250_Spec SheetElectromate

Exor epc 1550_Spec SheetElectromate

Exor epc 1550-datasheetElectromate

Wavyinwin

Aewin fanless system sem6335 amd embedded g seriesSirena Cheng

Asrock G31M-VS Motherboard layout.pptxallancamacho5

P.C motherboardSelf Employer

ideapad_330S_14IKB_Shhjjkjhghhvbhjjjpec.pdfMichaelDexterBalanta1

1I386HCH Yeh

Axiomtek tBOX330 870-FL Spec Sheet Chris Bartram, Digital Displays Specialist

Vostro 220Joseph Arnolda

DE7000 Media PlayerS & J Enterprises of Las Vegas, LLC

Aewin ics network security appliance cip network management platform_scb6986Sirena Cheng

Presentacion ensamblajeShaoran Shirahma

Aewin embedded em5300 intel atom_sbcSirena Cheng

my Windows 7 infoisky guard

SeaPort Systems Rugged 4U HPC Workstation - System Data SheetDarin George

O meu computadorJose luis Coutinho

uIBX-230-BTICP America

Exor epc 1250-datasheetElectromate

Exor epc 1250_Spec SheetElectromate

Exor epc 1550_Spec SheetElectromate

Exor epc 1550-datasheetElectromate

Wavyinwin

Aewin fanless system sem6335 amd embedded g seriesSirena Cheng

Asrock G31M-VS Motherboard layout.pptxallancamacho5

P.C motherboardSelf Employer

ideapad_330S_14IKB_Shhjjkjhghhvbhjjjpec.pdfMichaelDexterBalanta1

1I386HCH Yeh

Axiomtek tBOX330 870-FL Spec Sheet Chris Bartram, Digital Displays Specialist

Vostro 220Joseph Arnolda

DE7000 Media PlayerS & J Enterprises of Las Vegas, LLC

Aewin ics network security appliance cip network management platform_scb6986Sirena Cheng

Presentacion ensamblajeShaoran Shirahma

Aewin embedded em5300 intel atom_sbcSirena Cheng

my Windows 7 infoisky guard

Recently uploaded (19)

英国哈珀亚当斯大学学历认证查询调贬础鲍学费单贬础鲍成绩单复刻皑原版制作taqyed

Max Power products list 2024 compone.pdfjmglpa

ECE_Embeded_Systems_Lecture_Notes of .pdfsudheerkurakula1218

Cryogenic Liquid Nitrogen Containers Introductions3447752272

This article includes an introduction to the structure, model, and features of cryogenic liquid nitrogen containers. Core products: 1. Storage Series Liquid Nitrogen Tanks 2. Laboratory Series Liquid Nitrogen Tanks 3. Animal Husbandry Series Tanks 4. Vapor Phase Cryogenic Storage 5. LN2 Supply Tanks 6. Small Gas Phase Liquid Nitrogen Tanks 7. Biobank Tanks 8. Accessories & Instruments Ideal for Biobanks, research labs, veterinary clinics, industrial facilities, and medical institutions seeking reliable, certified cryogenic storage and transfer solutions. Web: www.cryogenicstoragetank.com

最新版意大利巴里理工大学毕业证（叠础搁滨毕业证书）原版定制taqyea

2025原版巴里理工大学毕业证书pdf电子版【q薇1954292140】意大利毕业证办理BARI巴里理工大学毕业证书多少钱？【q薇1954292140】海外各大学Diploma版本，因为疫情学校推迟发放证书、证书原件丢失补办、没有正常毕业未能认证学历面临就业提供解决办法。当遭遇挂科、旷课导致无法修满学分，或者直接被学校退学，最后无法毕业拿不到毕业证。此时的你一定手足无措，因为留学一场，没有获得毕业证以及学历证明肯定是无法给自己和父母一个交代的。【复刻巴里理工大学成绩单信封,Buy Politecnico di BARI Transcripts】购买日韩成绩单、英国大学成绩单、美国大学成绩单、澳洲大学成绩单、加拿大大学成绩单（q微1954292140）新加坡大学成绩单、新西兰大学成绩单、爱尔兰成绩单、西班牙成绩单、德国成绩单。成绩单的意义主要体现在证明学习能力、评估学术背景、展示综合素质、提高录取率，以及是作为留信认证申请材料的一部分。巴里理工大学成绩单能够体现您的的学习能力，包括巴里理工大学课程成绩、专业能力、研究能力。（q微1954292140）具体来说，成绩报告单通常包含学生的学习技能与习惯、各科成绩以及老师评语等部分，因此，成绩单不仅是学生学术能力的证明，也是评估学生是否适合某个教育项目的重要依据！我们承诺采用的是学校原版纸张（原版纸质、底色、纹路）我们工厂拥有全套进口原装设备，特殊工艺都是采用不同机器制作，仿真度基本可以达到100%，所有成品以及工艺效果都可提前给客户展示，不满意可以根据客户要求进行调整，直到满意为止！【主营项目】一、工作未确定，回国需先给父母、亲戚朋友看下文凭的情况，办理毕业证|办理文凭: 买大学毕业证|买大学文凭【q薇1954292140】巴里理工大学学位证明书如何办理申请？二、回国进私企、外企、自己做生意的情况，这些单位是不查询毕业证真伪的，而且国内没有渠道去查询国外文凭的真假，也不需要提供真实教育部认证。鉴于此，办理意大利成绩单巴里理工大学毕业证【q薇1954292140】国外大学毕业证, 文凭办理, 国外文凭办理, 留信网认证

miiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiirs.pptxChandanKumarMajhi4

Understanding First Loss Default Guarantee (FLDG)Lokesh Agrawal

最新版美国杜比克大学毕业证（鲍顿毕业证书）原版定制taqyea

鉴于此，定制杜比克大学学位证书提升履历【q薇1954292140】原版高仿杜比克大学毕业证(UD毕业证书)可先看成品样本【q薇1954292140】帮您解决在美国杜比克大学未毕业难题，美国毕业证购买，美国文凭购买，【q微1954292140】美国文凭购买，美国文凭定制，美国文凭补办。专业在线定制美国大学文凭，定做美国本科文凭，【q微1954292140】复制美国University of Dubuque completion letter。在线快速补办美国本科毕业证、硕士文凭证书，购买美国学位证、杜比克大学Offer，美国大学文凭在线购买。如果您处于以下几种情况： ◇在校期间，因各种原因未能顺利毕业……拿不到官方毕业证 ◇面对父母的压力，希望尽快拿到； ◇不清楚认证流程以及材料该如何准备； ◇回国时间很长，忘记办理； ◇回国马上就要找工作，办给用人单位看； ◇企事业单位必须要求办理的 ◇需要报考公务员、购买免税车、落转户口 ◇申请留学生创业基金【复刻一套杜比克大学毕业证成绩单信封等材料最强攻略,Buy University of Dubuque Transcripts】购买日韩成绩单、英国大学成绩单、美国大学成绩单、澳洲大学成绩单、加拿大大学成绩单（q微1954292140）新加坡大学成绩单、新西兰大学成绩单、爱尔兰成绩单、西班牙成绩单、德国成绩单。成绩单的意义主要体现在证明学习能力、评估学术背景、展示综合素质、提高录取率，以及是作为留信认证申请材料的一部分。杜比克大学成绩单能够体现您的的学习能力，包括杜比克大学课程成绩、专业能力、研究能力。（q微1954292140）具体来说，成绩报告单通常包含学生的学习技能与习惯、各科成绩以及老师评语等部分，因此，成绩单不仅是学生学术能力的证明，也是评估学生是否适合某个教育项目的重要依据！

Basic Computer system servicing grade 7-12.pptxgrendel3

Computer project for ai and non ai robotshivaniarora32567

DS.pptx for study for a long ghuiiiiijjjlosbandidis55

原版一样(鲍础贬毕业证书)德国海德堡大学毕业证多少钱taqyed

UAH海德堡大学毕业证书多少钱【q薇1954292140】1:1原版海德堡大学毕业证+UAH成绩单【q薇1954292140】完美还原海外各大学毕业材料上的工艺：水印，阴影底纹，钢印LOGO烫金烫银，LOGO烫金烫银复合重叠。文字图案浮雕、激光镭射、紫外荧光、温感、复印防伪等防伪工艺。【主营项目】一、工作未确定，回国需先给父母、亲戚朋友看下文凭的情况，办理毕业证|办理文凭: 买大学毕业证|买大学文凭【q薇1954292140】学位证明书如何办理申请？二、回国进私企、外企、自己做生意的情况，这些单位是不查询毕业证真伪的，而且国内没有渠道去查询国外文凭的真假，也不需要提供真实教育部认证。鉴于此，办理海德堡大学毕业证|UAH成绩单【q薇1954292140】国外大学毕业证, 文凭办理, 国外文凭办理, 留信网认证三.材料咨询办理、认证咨询办理请加学历顾问【微信:1954292140】毕业证购买指大学文凭购买，毕业证办理和文凭办理。学院文凭定制，学校原版文凭补办，扫描件文凭定做，100%文凭复刻。经常操作的国家有美国毕业证，英国毕业证，澳洲毕业证，加拿大毕业证，以及德国毕业证，法国毕业证、荷兰毕业证、瑞士毕业证、日本毕业证、韩国毕业证、新西兰毕业证、新加坡毕业证、泰国毕业证、马来西亚毕业证等。包括了本科毕业证，硕士毕业证，博士毕业证及高中毕业证。

William_Shakespeare_Presentation (2).pptxiriasmariela01

Pathways_to_Silicon_World_Presentation.pptxpralay55

Godrej_Appliances_AC_Catalogue2021_Web_20103315_4339487c20.pdfselvakishore8confide

Questions on Respiratory system..docxnnnmedapatiramakrishnar

ChatGPT_Presentation_Laraib (1) Based on document editing and rlhf experiment...rajveerverma425

AZ-900 Summary with all information thatFadiAlkanani1

Muscular_System_Scaffold_Presentation.pptxManikantan70

英国哈珀亚当斯大学学历认证查询调贬础鲍学费单贬础鲍成绩单复刻皑原版制作taqyed

Max Power products list 2024 compone.pdfjmglpa

ECE_Embeded_Systems_Lecture_Notes of .pdfsudheerkurakula1218

Cryogenic Liquid Nitrogen Containers Introductions3447752272

最新版意大利巴里理工大学毕业证（叠础搁滨毕业证书）原版定制taqyea

miiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiirs.pptxChandanKumarMajhi4

Understanding First Loss Default Guarantee (FLDG)Lokesh Agrawal

最新版美国杜比克大学毕业证（鲍顿毕业证书）原版定制taqyea

Basic Computer system servicing grade 7-12.pptxgrendel3

Computer project for ai and non ai robotshivaniarora32567

DS.pptx for study for a long ghuiiiiijjjlosbandidis55

原版一样(鲍础贬毕业证书)德国海德堡大学毕业证多少钱taqyed

William_Shakespeare_Presentation (2).pptxiriasmariela01

Pathways_to_Silicon_World_Presentation.pptxpralay55

Godrej_Appliances_AC_Catalogue2021_Web_20103315_4339487c20.pdfselvakishore8confide

Questions on Respiratory system..docxnnnmedapatiramakrishnar

ChatGPT_Presentation_Laraib (1) Based on document editing and rlhf experiment...rajveerverma425

AZ-900 Summary with all information thatFadiAlkanani1

Muscular_System_Scaffold_Presentation.pptxManikantan70

CLAYMORE series details

1. CLAYMORE Series Specifications & Features 31st of July, 2012 ? 2012 HANJUNG TECH Co., Ltd. ? 2012 HANJUNG TECH Co., Ltd.

2. Specification TYPE Middle Tower PC Case DIMENSIONS (Chassis) 209(w) x 497(h) x 512(d) (mm) Material(s) Plastic, Steel, Black coating chassis Motherboard Compatibility Standard ATX / micro ATX PSU Compatibility Standard ATX / ATX 12V PCI/AGP card Compatibility Full Size 5.25" Bays 3 3.5" Bays (HDD) 6 2.5" Bays (SSD) 6 Expansion Slots 7(reusable) Front I/O ports USB3.0, 2 x USB 2.0, MIC, Audio(HD AUDIO) Front: 2 Led Fans(120mm Blue) Top : 3 Fans (120mm) Cooling Components Rear : 120mm Fan Side : Acrylic Window panel Bottom : PSU - 狠狠撸 type dust filter PSU- Dust Filter 6 SSD Brackets Feature 3 Tool-Free ODD bays Fan control - 6ch(VOLUME KNOB) HDD docking station(SATA I, II) ? 2012 HANJUNG TECH Co., Ltd.

3. ? 2012 HANJUNG TECH Co., Ltd.

4. ? 2012 HANJUNG TECH Co., Ltd.

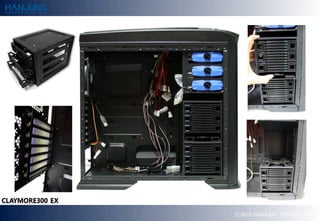

5. ? 6 Fans (120mm) provides excellent(2 LED FRONT FANS) ? USB 3.0, USB 2.0, Mic, Audio, Power &Reset Buttons on front I/O ports ? Black coating Chassis (high quality) ? 6CH Fan control (VOLUME KNOB) ? On Top panel retaining holes for easy installation up to 2 Fans(120mm optional) ? Supports long graphics cards up to 330mm ? HDD Docking staion - Quick and easy to Hot swap( SATA I, II) ? Tube Holes for Liquid cooling systems are provided at the rear of the body for convenient water cooling set up and Maintenance ? 6 狠狠撸 type HDD brackets provided- 3.5inch, 2.5inch HDD/SSD ? 狠狠撸 type PSU filter ? Curved Side panel for easy to PC system cable tidy ? Cable routing cut-outs rubber ? 2012 HANJUNG TECH Co., Ltd.

6. Specifications PRODUCT CLAMORE210 EX TYPE Middle Tower PC Case DIMENSIONS (Chassis) 209(w) x 492(h) x 472(d) (mm) Material(s) Plastic, Steel, Black coating chassis Motherboard Compatibility Standard ATX / micro ATX PSU Compatibility Standard ATX / ATX 12V PCI/AGP card Compatibility Full Size 5.25" Bays 3 Expansion Slots 7 Input / Output ports USB3.0, 2 x USB2.0, Mic, Audio(HD AUDIO) Front: 2 Fans (120mm) Top : 3 Fans (120mm) Cooling Components Rear : 120mm Fan Side : Acrylic window panel Bottom : PSU Vent Hole PSU – 狠狠撸 type Dust filter SSD Brackets Feature 2 Tool Free ODD bays Tool-less top cover ? 2012 HANJUNG TECH Co., Ltd.

7. Easy guide brackets x5 ? 2012 HANJUNG TECH Co., Ltd.

8. ? 2012 HANJUNG TECH Co., Ltd.

9. ? 6 Fans (120mm) provides excellent ? USB 3.0, USB 2.0, Mic, Audio, Power &Reset Buttons on front I/O ports ? Steel Black coating makes Chassis strength enough ? One touch tool –less top cover ? Supports long graphics cards up to 330mm ? Tube Holes for Liquid cooling systems are provided at the rear of the body for convenient water cooling set up and Maintenance ? Smart - 5 easy guide brackets provided- 3.5inch, 2.5inch HDD/SSD and 120mm fan for cooling HDD can be mounting on the bay(fans optional) ? 狠狠撸 type PSU filter ? Curved Side panel for easy to PC system cable tidy ? Side panel handy grip ? 2012 HANJUNG TECH Co., Ltd.

10. Specifications TYPE Middle Tower PC Case Dimensions(Chassis) 188(w) x 425(h) x 457(d) (mm) Material(s) Plastic / Steel / Black coating Chassis Motherboard Compatibility Standard ATX / micro ATX PSU Compatibility Standard ATX / ATX 12V PCI/AGP card Compatibility Full Size 5.25" Bay 1 3.5" Bays (HDD) 4 (with External 3.5”HDD) 2.5" Bays (SSD) 3 Expansion Slots 7 USB 3.0, USB 2.0 Input / Output ports Mic, Audio(HD AUDIO) Top : 2 fans optional(120mm) Front : 120mm fan Cooling Components Rear : 120mm fan Side Panel : 2 fans optional(120mm) Temperature Display Fan Control – 2ch Feature SSD Mounting brackets 3 Dust filters ? 2012 HANJUNG TECH Co., Ltd.

11. ? 2012 HANJUNG TECH Co., Ltd.

12. ? 狠狠撸 type HDD - 3 brackets compatibility (3.5, 2.5 inches HDD/SSD and 80mm fan) ? PC Temperature display ? Fan control(Volume knob) ? USB 3.0, USB 2.0, Mic, Audio, Power &Reset Buttons on front I/O ports ? The front LED fan(120mm) provides excellent ? 3 Fan dust filters ? Black coating Chassis (high quality) ? 2 ODD tool-less guides ? Supports long graphics cards up to 330mm ? On Side and Top panel retaining holes for each 2 Fans(120mm Fan optional) ? 2012 HANJUNG TECH Co., Ltd.

13. Thank You ? 2012 HANJUNG TECH Co., Ltd.

狠狠撸

CLAYMORE series details

Recommended

More Related Content

Similar to CLAYMORE series details (20)

Recently uploaded (19)

CLAYMORE series details
