DTA_On-Beat Power Solution
0 likes139 views
The document describes a portable high power battery solution called the XH-DY-7220 "On-Beat" with a capacity of 620Wh that can discharge at 40A and has three output ports. It also describes the companion PL-7110 battery charger with an input voltage range of 100-240VAC and output of 29.4V/2A with a charging time of 12 hours. Both the battery and charger are compact in size and lightweight for portable use in production applications.
DTA_On-Beat Power Solution
- 1. Daito Technos Asia Pte Ltd Challenge to Deliver Ultimate Solution & Satisfaction

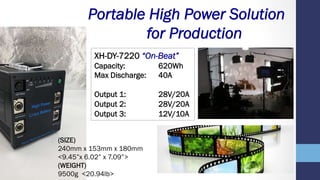

- 2. Portable High Power Solution for Production XH-DY-7220 On-Beat Capacity: 620Wh Max Discharge: 40A Output 1: 28V/20A Output 2: 28V/20A Output 3: 12V/10A (SIZE) 240mm x 153mm x 180mm <9.45x 6.02 x 7.09> (WEIGHT) 9500g <20.94lb>

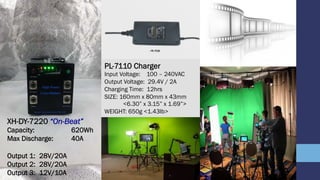

- 3. PL-7110 Charger Input Voltage: 100 C 240VAC Output Voltage: 29.4V / 2A Charging Time: 12hrs SIZE: 160mm x 80mm x 43mm <6.30 x 3.15 x 1.69> WEIGHT: 650g <1.43lb> XH-DY-7220 On-Beat Capacity: 620Wh Max Discharge: 40A Output 1: 28V/20A Output 2: 28V/20A Output 3: 12V/10A
