IMS ENUM and DNS Mechanism
Download as pptx, pdf9 likes6,568 views
This document discusses IMS ENUM and DNS mechanisms for mapping telephone numbers and SIP URLs. It contains the following information: 1. ENUM is defined as the E.164 Number Mapping that provides a system to unify telephone numbers with Internet addressing by mapping E.164 numbers to URIs like SIP. 2. When a UE invites another party using a SIP URL, DNS is used to resolve the URL to an IP address. But for TEL URLs, DNS cannot resolve it so ENUM is used to map the TEL URL to a SIP URL which can then be resolved. 3. If ENUM query for a TEL URL succeeds, the TEL URL is mapped to a SIP URL which
1 of 8
Downloaded 374 times

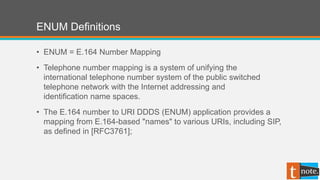

![ENUM Definitions
ENUM = E.164 Number Mapping
Telephone number mapping is a system of unifying the
international telephone number system of the public switched
telephone network with the Internet addressing and
identification name spaces.
The E.164 number to URI DDDS (ENUM) application provides a
mapping from E.164-based "names" to various URIs, including SIP,
as defined in [RFC3761];](https://image.slidesharecdn.com/imsenumanddnsmechanism-140808022535-phpapp01/85/IMS-ENUM-and-DNS-Mechanism-5-320.jpg)
