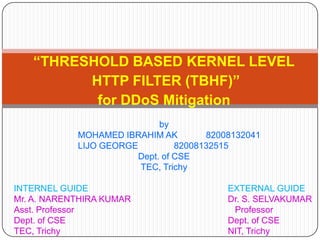

“THRESHOLD BASED KERNEL LEVEL
HTTP FILTER (TBHF)”
for DDoS Mitigation
by
MOHAMED IBRAHIM AK 82008132041
LIJO GEORGE 82008132515
Dept. of CSE
TEC, Trichy

INTERNEL GUIDE EXTERNAL GUIDE
Mr. A. NARENTHIRA KUMAR Dr. S. SELVAKUMAR
Asst. Professor Professor
Dept. of CSE Dept. of CSE
TEC, Trichy NIT, Trichy

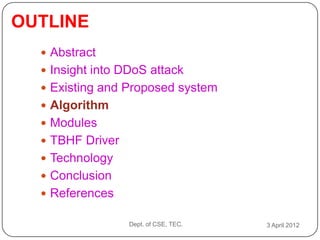

OUTLINE
 Abstract
 Insight into DDoS attack
 Existing and Proposed system
 Algorithm
 Modules
 TBHF Driver
 Technology
 Conclusion
 References

�ݺ�ߣ 2 Dept. of CSE, TEC. 3 April 2012

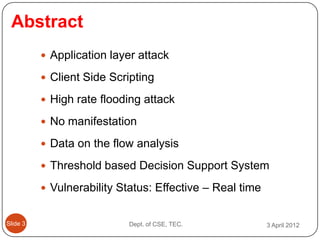

Abstract
 Application layer attack

 Client Side Scripting

 High rate flooding attack

 No manifestation

 Data on the flow analysis

 Threshold based Decision Support System

 Vulnerability Status: Effective – Real time

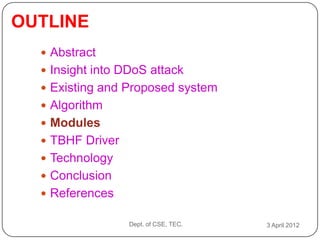

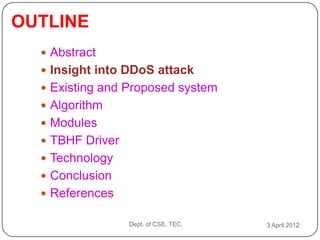

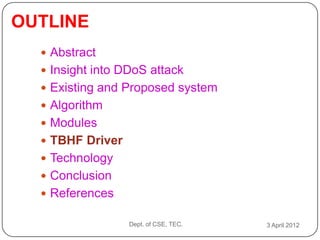

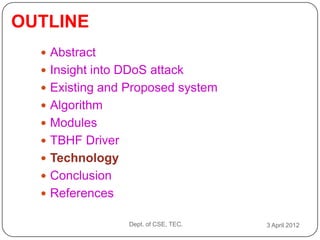

OUTLINE
 Abstract
 Insight into DDoS attack
 Existing and Proposed system
 Algorithm
 Modules
 TBHF Driver
 Technology
 Conclusion
 References

Dept. of CSE, TEC. 3 April 2012

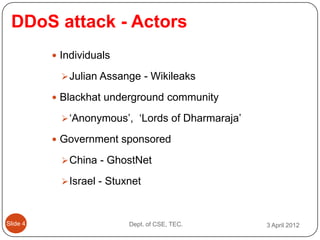

DDoS attack - Actors
 Individuals

 Julian Assange - Wikileaks

 Blackhat underground community

 ‘Anonymous’, ‘Lords of Dharmaraja’

 Government sponsored

 China - GhostNet

 Israel - Stuxnet


DDoS attack - Scenario
 Coordinated attack on a given target system

through many compromised systems.

Attacker

Medium
…
M1 M2 M3 Mn
Compromised
Systems
C C C … C C … C

Target

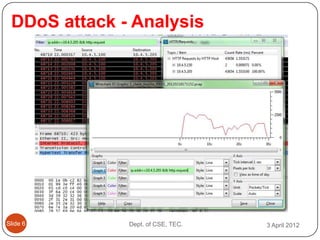

DDoS attack - Analysis

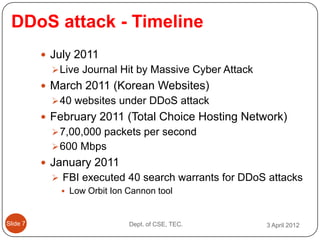

DDoS attack - Timeline
 July 2011
 Live Journal Hit by Massive Cyber Attack
 March 2011 (Korean Websites)
 40 websites under DDoS attack
 February 2011 (Total Choice Hosting Network)
 7,00,000 packets per second
 600 Mbps
 January 2011
 FBI executed 40 search warrants for DDoS attacks
 Low Orbit Ion Cannon tool

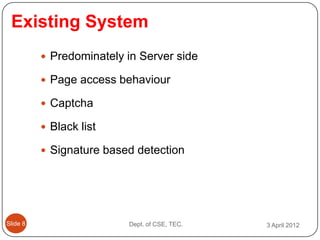

Existing System
 Predominately in Server side

 Page access behaviour

 Captcha

 Black list

 Signature based detection

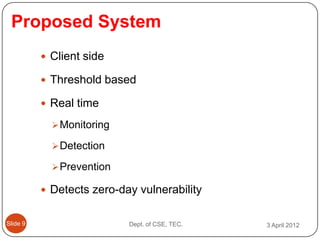

Proposed System
 Client side

 Threshold based

 Real time

 Monitoring

 Detection

 Prevention

 Detects zero-day vulnerability


Algorithm

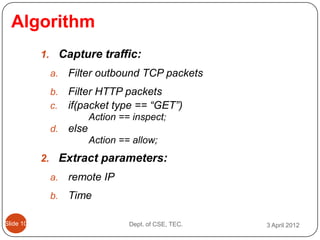

1. Capture traffic:
a. Filter outbound TCP packets
b. Filter HTTP packets
c. if(packet type == “GET”)
Action == inspect;
d. else
Action == allow;
2. Extract parameters:
a. remote IP
b. Time

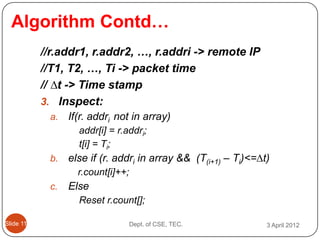

Algorithm Contd…
//r.addr1, r.addr2, …, r.addri -> remote IP
//T1, T2, …, Ti -> packet time
// ∆t -> Time stamp
3. Inspect:
a. If(r. addri not in array)
addr[i] = r.addri;
t[i] = Ti;
b. else if (r. addri in array && (T(i+1) – Ti)<=∆t)
r.count[i]++;
c. Else
Reset r.count[];


Algorithm Contd…

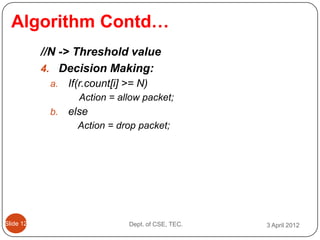

//N -> Threshold value
4. Decision Making:
a. If(r.count[i] >= N)
Action = allow packet;
b. else
Action = drop packet;

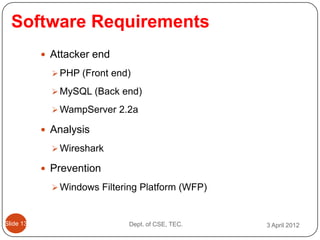

Software Requirements
 Attacker end

 PHP (Front end)

 MySQL (Back end)

 WampServer 2.2a

 Analysis

 Wireshark

 Prevention

 Windows Filtering Platform (WFP)


Modules

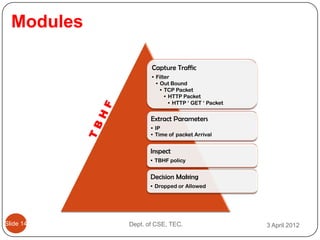

Capture Traffic
• Filter
• Out Bound
• TCP Packet
• HTTP Packet
• HTTP ‘ GET ‘ Packet

Extract Parameters
• IP
• Time of packet Arrival

Inspect
• TBHF policy

Decision Making
• Dropped or Allowed

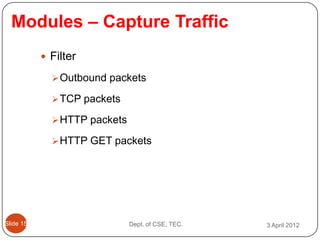

Modules – Capture Traffic
 Filter

 Outbound packets

 TCP packets

 HTTP packets

 HTTP GET packets

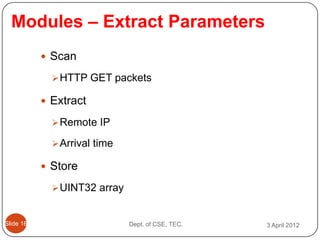

Modules – Extract Parameters
 Scan

 HTTP GET packets

 Extract

 Remote IP

 Arrival time

 Store

 UINT32 array

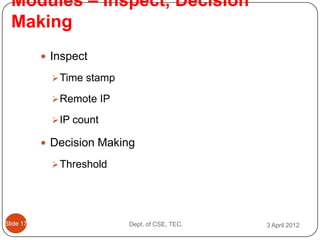

Modules – Inspect, Decision
Making
 Inspect

 Time stamp

 Remote IP

 IP count

 Decision Making

 Threshold

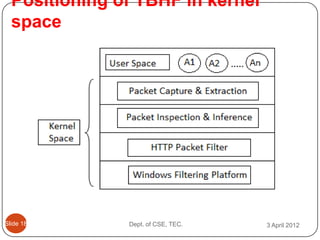

Positioning of TBHF in kernel
space

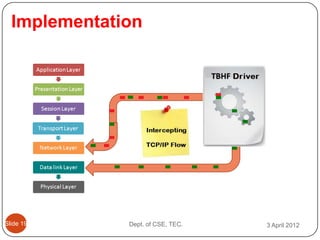

Implementation

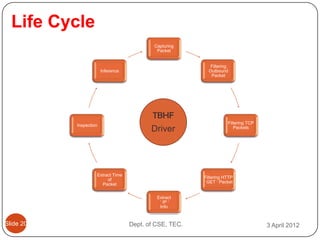

Life Cycle
Capturing
Packet

Filtering
Inference Outbound
Packet

TBHF
Filtering TCP
Inspection
Driver Packets

Extract Time
Filtering HTTP
of
‘ GET ‘ Packet
Packet

Extract
‘ IP ‘
Info

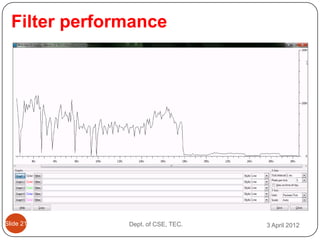

Filter performance


Technology

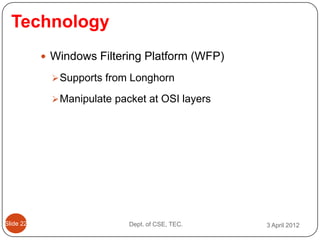

 Windows Filtering Platform (WFP)

 Supports from Longhorn

 Manipulate packet at OSI layers


Conclusion

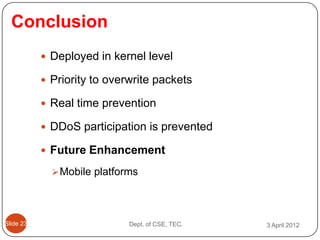

 Deployed in kernel level

 Priority to overwrite packets

 Real time prevention

 DDoS participation is prevented

 Future Enhancement

 Mobile platforms

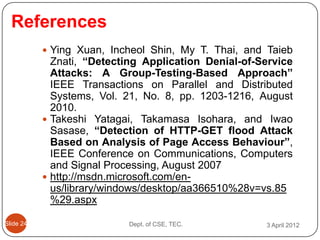

References
 Ying Xuan, Incheol Shin, My T. Thai, and Taieb
Znati, “Detecting Application Denial-of-Service
Attacks: A Group-Testing-Based Approach”
IEEE Transactions on Parallel and Distributed
Systems, Vol. 21, No. 8, pp. 1203-1216, August
2010.
 Takeshi Yatagai, Takamasa Isohara, and Iwao
Sasase, “Detection of HTTP-GET flood Attack
Based on Analysis of Page Access Behaviour”,
IEEE Conference on Communications, Computers
and Signal Processing, August 2007
 http://msdn.microsoft.com/en-
us/library/windows/desktop/aa366510%28v=vs.85
%29.aspx

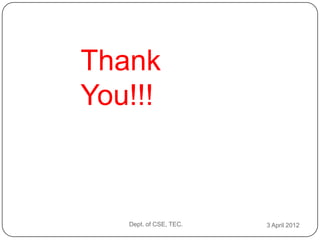

Thank
You!!!

Dept. of CSE, TEC. 3 April 2012
