- 2. Clearwater Systems Corporation is a cleantech water treatment company committed to helping solve the world’s Clearwater Headquarters in most demanding sustainability Middletown, Connecticut: A LEED Silver Building challenges in buildings. 2

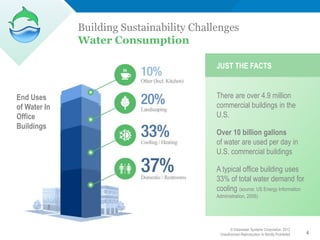

- 4. Building Sustainability Challenges Water Consumption JUST THE FACTS End Uses There are over 4.9 million of Water In commercial buildings in the Office U.S. Buildings Over 10 billion gallons of water are used per day in U.S. commercial buildings A typical office building uses 33% of total water demand for cooling (source: US Energy Information Administration, 2006) © Clearwater Systems Corporation, 2012 Unauthorized Reproduction Is Strictly Prohibited 4

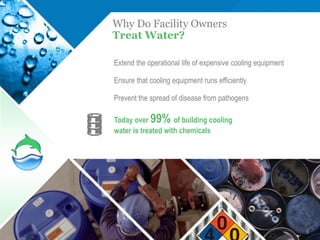

- 5. Why Do Facility Owners Treat Water? Extend the operational life of expensive cooling equipment Ensure that cooling equipment runs efficiently Prevent the spread of disease from pathogens Today over 99% of building cooling water is treated with chemicals 5

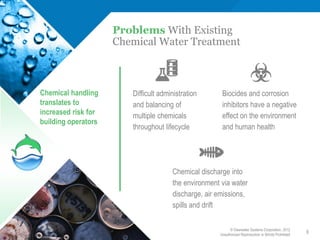

- 6. Problems With Existing Chemical Water Treatment Chemical handling Difficult administration Biocides and corrosion translates to and balancing of inhibitors have a negative increased risk for multiple chemicals effect on the environment building operators throughout lifecycle and human health Chemical discharge into the environment via water discharge, air emissions, spills and drift © Clearwater Systems Corporation, 2012 Unauthorized Reproduction Is Strictly Prohibited 6

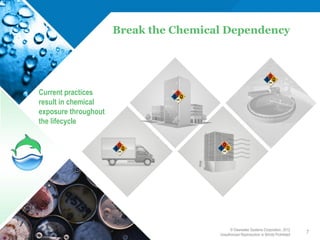

- 7. Break the Chemical Dependency Current practices result in chemical exposure throughout the lifecycle © Clearwater Systems Corporation, 2012 Unauthorized Reproduction Is Strictly Prohibited 7

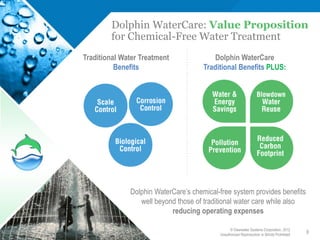

- 8. Dolphin WaterCare: Value Proposition for Chemical-Free Water Treatment Traditional Water Treatment Dolphin WaterCare Benefits Traditional Benefits PLUS: Dolphin WaterCare’s chemical-free system provides benefits well beyond those of traditional water care while also reducing operating expenses © Clearwater Systems Corporation, 2012 Unauthorized Reproduction Is Strictly Prohibited 8
- 9. Economic and Sustainability Benefits with Dolphin WaterCare Cooling Tower Parameters • Successful control of Scale, Corrosion and Bacteria • More than doubled Cycles of Concentration Alcoa World Headquarters Cumulative Economic and Environmental Benefits Pittsburgh, PA • Elimination of 40,000 gallons of hazardous chemicals Installed May 1998 • Saved more than 30 MM gallons of water • Over $1MM in energy and water savings • Significant reduction of Green House Gas emissions 9
- 10. The Dolphin WaterCare Solution

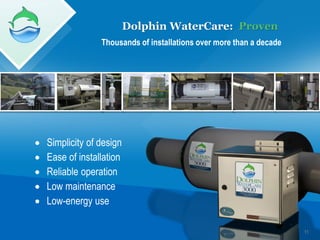

- 11. Dolphin WaterCare: Proven Thousands of installations over more than a decade Simplicity of design Ease of installation Reliable operation Low maintenance Low-energy use 11

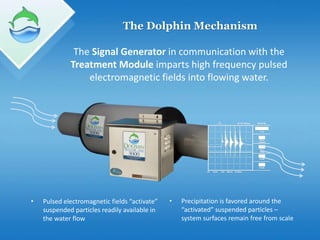

- 12. The Dolphin Mechanism The Signal Generator in communication with the Treatment Module imparts high frequency pulsed electromagnetic fields into flowing water. • Pulsed electromagnetic fields “activate” • Precipitation is favored around the suspended particles readily available in “activated” suspended particles – the water flow system surfaces remain free from scale

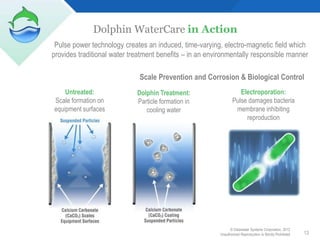

- 13. Dolphin WaterCare in Action Pulse power technology creates an induced, time-varying, electro-magnetic field which provides traditional water treatment benefits – in an environmentally responsible manner Scale Prevention and Corrosion & Biological Control Untreated: Dolphin Treatment: Electroporation: Scale formation on Particle formation in Pulse damages bacteria equipment surfaces cooling water membrane inhibiting reproduction © Clearwater Systems Corporation, 2012 Unauthorized Reproduction Is Strictly Prohibited 13

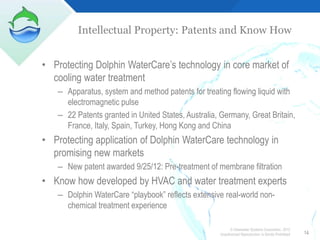

- 14. Intellectual Property: Patents and Know How • Protecting Dolphin WaterCare’s technology in core market of cooling water treatment – Apparatus, system and method patents for treating flowing liquid with electromagnetic pulse – 22 Patents granted in United States, Australia, Germany, Great Britain, France, Italy, Spain, Turkey, Hong Kong and China • Protecting application of Dolphin WaterCare technology in promising new markets – New patent awarded 9/25/12: Pre-treatment of membrane filtration • Know how developed by HVAC and water treatment experts – Dolphin WaterCare “playbook” reflects extensive real-world non- chemical treatment experience © Clearwater Systems Corporation, 2012 Unauthorized Reproduction Is Strictly Prohibited 14
- 15. Recognized and Certified © Clearwater Systems Corporation, 2012 Unauthorized Reproduction Is Strictly Prohibited 15

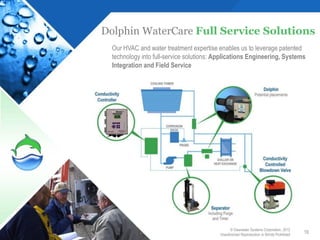

- 16. Dolphin WaterCare Full Service Solutions Our HVAC and water treatment expertise enables us to leverage patented technology into full-service solutions: Applications Engineering, Systems Integration and Field Service © Clearwater Systems Corporation, 2012 Unauthorized Reproduction Is Strictly Prohibited 16
- 17. Field Support & Service Scheduled Service Provided by authorized Dolphin WaterCare technicians to optimize functionality of equipment and water quality Comprehensive service reports document performance Remote monitoring available 17

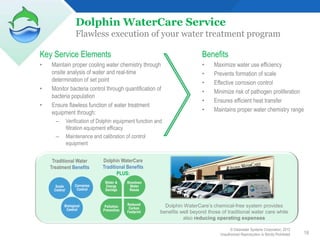

- 18. Dolphin WaterCare Service Flawless execution of your water treatment program Key Service Elements Benefits • Maintain proper cooling water chemistry through • Maximize water use efficiency onsite analysis of water and real-time • Prevents formation of scale determination of set point • Effective corrosion control • Monitor bacteria control through quantification of • Minimize risk of pathogen proliferation bacteria population • Ensures efficient heat transfer • Ensure flawless function of water treatment equipment through: • Maintains proper water chemistry range – Verification of Dolphin equipment function and filtration equipment efficacy – Maintenance and calibration of control equipment Traditional Water Dolphin WaterCare Treatment Benefits Traditional Benefits PLUS: Dolphin WaterCare’s chemical-free system provides benefits well beyond those of traditional water care while also reducing operating expenses © Clearwater Systems Corporation, 2012 Unauthorized Reproduction Is Strictly Prohibited 18
- 19. Field Support & Service Remote Monitoring Option System Operation • Dolphin WaterCare components • Blowdown and make-up water metering • Filtration system Remote Monitoring: • Water efficiency performance peace of mind for building operators Water Quality • pH and conductivity Response Time • Real-time notification Reporting • Regular performance reviews • Sustainability tracking © Clearwater Systems Corporation, 2012 Unauthorized Reproduction Is Strictly Prohibited 19
- 20. Your Benefits

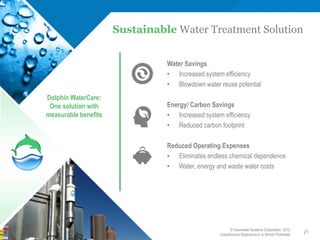

- 21. Sustainable Water Treatment Solution Water Savings • Increased system efficiency • Blowdown water reuse potential Dolphin WaterCare: One solution with Energy/ Carbon Savings measurable benefits • Increased system efficiency • Reduced carbon footprint Reduced Operating Expenses • Eliminates endless chemical dependence • Water, energy and waste water costs © Clearwater Systems Corporation, 2012 Unauthorized Reproduction Is Strictly Prohibited 21

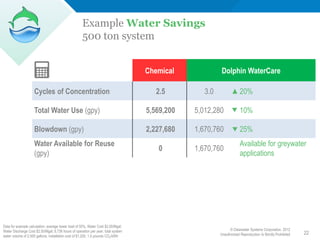

- 22. Example Water Savings 500 ton system Chemical Dolphin WaterCare Cycles of Concentration 2.5 3.0 20% Total Water Use (gpy) 5,569,200 5,012,280 10% Blowdown (gpy) 2,227,680 1,670,760 25% Water Available for Reuse Available for greywater 0 1,670,760 (gpy) applications Data for example calculation: average tower load of 50%, Water Cost $2.00/Mgal; Water Discharge Cost $2.50/Mgal; 8,736 hours of operation per year; total system © Clearwater Systems Corporation, 2012 Unauthorized Reproduction Is Strictly Prohibited 22 water volume of 2,500 gallons, installation cost of $1,200, 1.5 pounds CO2/kWh

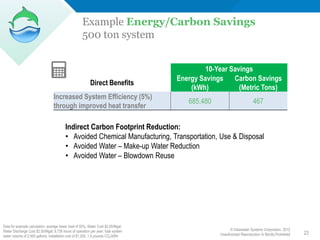

- 23. Example Energy/Carbon Savings 500 ton system 10-Year Savings Energy Savings Carbon Savings Direct Benefits (kWh) (Metric Tons) Increased System Efficiency (5%) 685,480 467 through improved heat transfer Indirect Carbon Footprint Reduction: • Avoided Chemical Manufacturing, Transportation, Use & Disposal • Avoided Water – Make-up Water Reduction • Avoided Water – Blowdown Reuse Data for example calculation: average tower load of 50%, Water Cost $2.00/Mgal; Water Discharge Cost $2.50/Mgal; 8,736 hours of operation per year; total system © Clearwater Systems Corporation, 2012 Unauthorized Reproduction Is Strictly Prohibited 23 water volume of 2,500 gallons, installation cost of $1,200, 1.5 pounds CO2/kWh

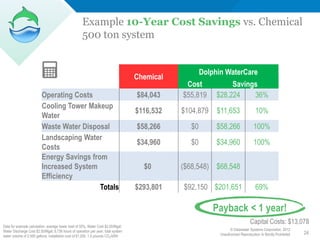

- 24. Example 10-Year Cost Savings vs. Chemical 500 ton system Dolphin WaterCare Chemical Cost Savings Operating Costs $84,043 $55,819 $28,224 36% Cooling Tower Makeup $116,532 $104,879 $11,653 10% Water Waste Water Disposal $58,266 $0 $58,266 100% Landscaping Water $34,960 $0 $34,960 100% Costs Energy Savings from Increased System $0 ($68,548) $68,548 Efficiency Totals $293,801 $92,150 $201,651 69% Payback < 1 year! Capital Costs: $13,078 Data for example calculation: average tower load of 50%, Water Cost $2.00/Mgal; Water Discharge Cost $2.50/Mgal; 8,736 hours of operation per year; total system © Clearwater Systems Corporation, 2012 Unauthorized Reproduction Is Strictly Prohibited 24 water volume of 2,500 gallons, installation cost of $1,200, 1.5 pounds CO2/kWh
- 25. Current Customers Include © Clearwater Systems Corporation, 2012 Unauthorized Reproduction Is Strictly Prohibited 25
- 26. Key Contributor to over 350 LEED Projects SoCal Gas Energy Resource Center, Downey, CA, LEED EBOM. 30% water use savings Constitution Center, Washington, DC, LEED NC Silver. 18% water savings Eaton Data Center, Louisville, KY (Project Bluegrass) LEED Gold, 11 million gallons of blowdown for water reuse. © Clearwater Systems Corporation, 2012 Unauthorized Reproduction Is Strictly Prohibited 26
- 27. Why Dolphin WaterCare? Safe and effective alternative to chemicals Simple system adaptation Economically beneficial Sustainable solution Because we all live downstream™ 27
