Drawing scientific diagram
4 likes4,263 views
This document outlines 10 rules for drawing clear scientific diagrams. It states that scientific diagrams are used in lab reports to show experimental setups and need to be easy to understand. The rules include using a sharp pencil, ruler for straight lines, single firm lines, simple 2D representations, labeling equipment with straight lines, drawing equipment in correct proportions, showing touching equipment actually touching, and using available space efficiently. Following these rules helps ensure diagrams can be understood by other scientists.
1 of 12
Downloaded 78 times
Ad
Recommended
Module 1 performing mensuration and calculation info sheet 2
Module 1 performing mensuration and calculation info sheet 2lgalima23
油
This document discusses measuring tools used for precision work. It describes various types of measuring tools including T-squares, triangles, rulers, triangular scales, protractors, and tape rulers. T-squares are used for drawing horizontal lines up to 48 inches. Triangles are used for vertical and oblique lines and come in 45 and 30x60 sizes. Rulers measure sizes up to 6 or 12 inches. Triangular scales reproduce dimensions at full size or reduced/enlarged. Protractors measure angles other than 45 and 30 degrees. Tape rulers accurately measure curved surfaces up to 300 feet. The document concludes with tips for proper care and maintenance of drafting measuring tools.Smooth muscle by quratulain mughal
Smooth muscle by quratulain mughalQURATULAIN MUGHAL
油
This document discusses the characteristics and functions of smooth muscle. Smooth muscle is classified as non-striated involuntary muscle that tapers at both ends. Individual smooth muscle fibers can range from 6mm to 500mm in length depending on their location in the body. Each fiber contains a single nucleus, sarcoplasm with contractile filaments of actin and myosin, mitochondria and other organelles. Smooth muscle is innervated by the autonomic nervous system and is responsible for functions like childbirth, urination, blood flow, digestion, and breathing.5.a.nervous tissue
5.a.nervous tissuePoonam Singh
油
This document provides an overview of nervous tissue, including:
- The nervous system is classified as the central nervous system (CNS) and peripheral nervous system (PNS). The CNS consists of the brain and spinal cord, while the PNS includes nerves and ganglia.
- Nervous tissue contains two main cell types: neurons, which transmit nerve impulses, and neuroglia, which provide structural and functional support to neurons. Neuroglia include oligodendrocytes and astrocytes in the CNS, and Schwann cells and satellite cells in the PNS.
- Neurons contain a cell body, dendrites for receiving signals, and an axon for transmitting signalsTissues Proj
Tissues Projguest1b441b
油
The document discusses the main types of tissues in the body. There are four primary tissue types - epithelial, connective, muscle and nerve tissue. Epithelial tissues cover surfaces and glands, and are classified as simple or stratified. Connective tissues are found throughout the body and include fibrous, adipose, cartilage and bone tissues. Muscle tissues contain muscle cells and contract to cause movement. Nerve tissues transmit electrical signals throughout the body.MAPEH (ARTS) MODULE 1 OR WEEK 1 GRADE 8
MAPEH (ARTS) MODULE 1 OR WEEK 1 GRADE 8HOME
油
This document provides information about arts and crafts traditions in several Southeast Asian countries. It discusses the traditional colors, materials, and motifs used in Indonesian batik making. It also describes shadow puppetry (wayang kulit) as a traditional Indonesian performing art. The document notes that Malaysian batik is commonly found on the east coast of Malaysia and shows Javanese influences. It provides brief overviews of art traditions in other Southeast Asian countries as well.Risk assessment tub
Risk assessment tubPriestley College Warrington
油
This risk assessment form summarizes potential hazards in the hot tub area of an address. It identifies chairs, loose cables, electrical equipment near the pool, bags, and a small space as hazards. Existing controls are gaps under tables for chairs, wires behind the hot tub, keeping electrical equipment and bags away from the pool, and limiting the number of people near the tub. Recommended additional actions include completely moving chairs, using cable tidies, and only allowing a limited number of people near the tub.2008 tissue organization
2008 tissue organizationBrian Caserto
油
The document discusses the four basic tissues of the body: epithelial, connective, muscle and nerve tissue. It provides details on the histology and functions of each tissue type, including the different cell types that compose them. Key points covered include the different classifications of epithelia based on cell shape and layering, as well as the structure and roles of the main connective tissue components like collagen fibers.Scientific drawings
Scientific drawingsgiordepasamba
油
The document discusses drawing scientific apparatus and diagrams. It provides symbols for common laboratory equipment like beakers, Bunsen burners, clamps stands and more. It instructs the reader to use the symbols to draw diagrams of three setups: 1) a beaker half-filled with water on a tripod being heated by a Bunsen burner, 2) an irregular object in a displacement can with a beaker to collect water, and 3) a conical flask half-filled with water on a clamp stand with a thermometer to measure temperature.Drawing scientific diagram
Drawing scientific diagramcristalbeam
油
This document outlines 10 rules for drawing clear scientific diagrams. It states that scientific diagrams are used in lab reports to show experimental setups and need to be easy to understand. The rules include using a sharp pencil and ruler, single firm lines instead of sketchy lines, simple two-dimensional representations, accurately proportioned and labeled equipment, and utilizing available space. Following these guidelines helps ensure diagrams can be interpreted by other scientists.Lab apparatus
Lab apparatusFitriani Sondari
油
1. Digital balances allow for precise mass measurements and are important for experiments requiring exact amounts of substances. They must be placed on a stable, flat surface and containers must be tared to remove their mass from calculations.
2. Beakers and Erlenmeyer flasks are used to hold liquids and solids. Beakers have a pour spout and are used for mixing and transferring chemicals. Flasks can hold reactions or liquid samples and catch filtrates.
3. Burettes held in clamps and stands allow for accurate liquid measurements and dispensing. They are filled and used with a beaker or flask underneath to deliver specific volumes of reagents.Laboratory equipment
Laboratory equipmentSilvia Choi
油
This document describes common laboratory equipment used for containing, transferring, measuring, heating, and holding substances. It discusses beakers, conical flasks, test tubes, petri dishes, watch glasses, spatulas, droppers, scales, measuring cylinders, thermometers, boss heads, clamps, test tube racks, test tube holders, retort stands, gauze mats, tripods, heat proof mats, Bunsen burners, tongs, clay triangles, evaporating dishes, crucibles, stirring rods, safety glasses, rubber stoppers, funnels, and filter paper. Each piece of equipment has a specific purpose, such as mixing, storing, weighing, or heating substances in a laboratory.Laboratory Equipment
Laboratory EquipmentAntonio Jes炭s Romero
油
This document lists and defines common pieces of laboratory equipment used in science experiments, including Erlenmeyer flasks, beakers, pipettes, funnels, burners, balances, and other tools for measuring, heating, filtering, and testing chemical substances. It provides both the Spanish and English names for over 20 basic lab devices to familiarize students with the equipment they will use in their science studies.1.4 Laboratory Equipment: Names & Uses
1.4 Laboratory Equipment: Names & UsesCheryl Bausman
油
This document provides descriptions and proper uses of common laboratory equipment used in chemistry labs. It describes various pieces of glassware like beakers, erlenmeyer flasks, test tubes, and funnels that are used to contain liquids and solids. It also outlines equipment for heating substances like burners, crucibles, and ring stands. Other tools described include balances, pipettes, clamps, and spatulas for accurately manipulating and transferring chemicals. Safety precautions are noted for several pieces of equipment.Lab equipment
Lab equipmentOhMiss
油
This document describes various pieces of lab equipment including beakers, Erlenmeyer flasks, volumetric flasks, graduated cylinders, test tubes, tongs, test tube holders, test tube brushes, scoopulas, thermometers, forceps, medicine droppers, test tube racks, stirring rods, Bunsen burners, retort stands, C-clamps, burettes, wire mesh, clay triangles, crucibles, funnels, filter paper, mortar and pestles, spot plates, evaporating dishes, Petri dishes, and watch glasses. Each item is briefly described in terms of its common laboratory uses and characteristics.Heating with bunsen burner
Heating with bunsen burnermbrucewilson
油
The document provides instructions for safely setting up and using a Bunsen burner. It describes how to light the burner by turning on the gas and waving a lit splint over the chimney. It also explains that there are two flame types - a blue heating flame and a yellow safety flame - and instructs students to use each flame to heat water and compare how long it takes to boil.Science laboratory rules
Science laboratory rulesSilvia Choi
油
The document outlines rules for safety in a science laboratory, including moving carefully, exercising care and common sense, only using gas taps and electrical switches during experiments, reporting any accidents or issues immediately, cleaning and drying benches after experiments, cleaning and returning all apparatus to their proper locations, keeping sinks clean, only entering preparation rooms under supervision, and washing hands after every experiment.Integrated Science M1 Tools used in Science
Integrated Science M1 Tools used in ScienceeLearningJa
油
The document provides an overview of using a Bunsen burner in science experiments. It describes the parts of a Bunsen burner, including the air hole, chimney, collar, tubing, and gas tap. It explains how to safely light and use a Bunsen burner, producing either a luminous or non-luminous flame depending on the oxygen supply. When heating substances, an object should be placed at the top of the blue inner cone for strong heating or moved through the outer cone for gentle heating. Proper safety precautions must always be followed when using an open flame in the laboratory.Lab Safety - Rules and Symbols
Lab Safety - Rules and SymbolsGreg Scrivin
油
The document outlines safety rules and symbols for a science lab. It emphasizes that safety is the top priority and everyone is responsible for following the rules. General safety guidelines include being responsible, following instructions, no food/drink, and notifying the teacher of any accidents. A signed safety contract is required. Safety symbols depict proper eye, skin, clothing protection and safety procedures for hazards like flames, chemicals, broken glass and more. Students are quizzed on safety and what to do in an emergency.Steps to Lighting a Bunsen Burner 2012
Steps to Lighting a Bunsen Burner 2012tskinnersbec
油
1. The document provides instructions for setting up and using a Bunsen burner safely and effectively. Key parts that should be checked include the burner tubing, main gas valve, barrel, and needle valve.
2. To light the burner, turn on the gas and create a spark above the barrel. Adjust the flame using the barrel to control air and needle valve to control fuel, aiming for a silent blue flame.
3. A properly adjusted flame will be blue with the inner tip touching the item to be heated. Always turn off the gas when finished by closing the main valve completely.Topic 1 Lab Equipment
Topic 1 Lab Equipmentprojecteciencies
油
The document provides instructions for a lab activity introducing lab equipment and hazard symbols. Students are asked to complete an online lab equipment identification activity. They then play a matching game to learn equipment names. Students also define hazard symbols like corrosive, flammable, and irritant. They are instructed to identify the hazard symbols for chemicals like sulfuric acid and ethanol. For homework, students choose correct lab equipment answers and complete quizzes on equipment and hazard symbols.Scientificdrawings (lab equipment)
Scientificdrawings (lab equipment)Reem Bakr
油
This document provides diagrams and descriptions of common scientific apparatus used in experiments. It includes diagrams of a beaker, Bunsen burner, tripod and gauze, conical flask, funnel and filter paper, measuring cylinder, crucible with lid, watch glass, test tube, and clamp and stand. Students are asked to use these diagrams to draw diagrams of experiments, including a beaker half-filled with water on a tripod being heated by a Bunsen burner, an irregular object in a eureka can with a beaker at the spout to collect water, and a conical flask half-filled with water being supported on a clamp stand with a thermometer inside to measure temperature.Quiz over lab equipment and safety Mr. Hutto's Chemistry Class
Quiz over lab equipment and safety Mr. Hutto's Chemistry Classcat17cat1
油
This chemistry study guide covers lab equipment and safety for an upcoming quiz. It lists various pieces of common lab equipment like beakers, flasks, test tubes, Bunsen burners, and items used for measuring and transferring chemicals. The document also includes a short safety reminder and notes that the safety questions on the quiz should be straightforward.Bunsen burner and Glass Manipulation
Bunsen burner and Glass ManipulationLiwayway Memije-Cruz
油
The document provides an overview of bunsen burners, their parts, and safe usage, emphasizing the importance of safety precautions in laboratory settings. It also discusses glass manipulation techniques, particularly the use of glass bends for various laboratory operations. Key questions related to bunsen burner usage and glass bending practices are included for further understanding.Bio drawings
Bio drawingsChristina Drumm
油
The document provides guidance on how to make effective biological drawings from microscope observations. It emphasizes that drawings should be neat, accurately reflect what is seen through the microscope, and include important details and labels. Specific tips include avoiding crowded drawings, titling drawings with the specimen and magnification, labeling known structures with straight lines that do not cross, keeping labels vertical when possible, and drawing only what is observed rather than embellishing. The document also analyzes an example student drawing, identifying six errors such as crossed and angled lines, inaccurate cell shapes, missing magnification, angled labels, and an unlabeled line. Students are assigned to make an improved drawing of the same microscope image.Introduction to science
Introduction to scienceGrace Leong
油
The document introduces science and discusses the importance of science in daily life. It also covers scientific attitudes, the scientific method, laboratory safety rules, common laboratory equipment and how to use a Bunsen burner properly. Safety is emphasized when working in the laboratory.Science laboratory equipment
Science laboratory equipmentLauriz Aclan
油
Science laboratory equipment can be classified into categories based on material and includes glasswares, porcelainwares, and other accessories. Glasswares are used for holding, heating, and storing liquids and include items like beakers, flasks, test tubes, and funnels. Porcelainwares contain heat-resistant materials like crucibles and evaporating dishes. Other equipment supports experiments through set-ups for heating, microscopy, distillation, and titration.Laboratory apparatus
Laboratory apparatusAlyssa Vicera
油
The document lists and describes various pieces of common laboratory equipment, including beakers, test tubes, Florence flasks, Erlenmeyer flasks, graduated cylinders, funnels, watch glasses, evaporating dishes, crucibles, reagent bottles, Bunsen burners, iron clamps, iron stands, iron rings, test tube holders, test tube brushes, wire gauges, tripods, spatulas, stirring rods, mortar and pestles, medicine droppers, test tube racks, laboratory thermometers, microscopes, triple beam balances, pipettes, burettes, platform balances, analytical balances, alcohol lamps, aspirators, tongs, volumetric flasks, and spring balances.More Related Content
Viewers also liked (19)
Drawing scientific diagram
Drawing scientific diagramcristalbeam
油
This document outlines 10 rules for drawing clear scientific diagrams. It states that scientific diagrams are used in lab reports to show experimental setups and need to be easy to understand. The rules include using a sharp pencil and ruler, single firm lines instead of sketchy lines, simple two-dimensional representations, accurately proportioned and labeled equipment, and utilizing available space. Following these guidelines helps ensure diagrams can be interpreted by other scientists.Lab apparatus
Lab apparatusFitriani Sondari
油
1. Digital balances allow for precise mass measurements and are important for experiments requiring exact amounts of substances. They must be placed on a stable, flat surface and containers must be tared to remove their mass from calculations.
2. Beakers and Erlenmeyer flasks are used to hold liquids and solids. Beakers have a pour spout and are used for mixing and transferring chemicals. Flasks can hold reactions or liquid samples and catch filtrates.
3. Burettes held in clamps and stands allow for accurate liquid measurements and dispensing. They are filled and used with a beaker or flask underneath to deliver specific volumes of reagents.Laboratory equipment
Laboratory equipmentSilvia Choi
油
This document describes common laboratory equipment used for containing, transferring, measuring, heating, and holding substances. It discusses beakers, conical flasks, test tubes, petri dishes, watch glasses, spatulas, droppers, scales, measuring cylinders, thermometers, boss heads, clamps, test tube racks, test tube holders, retort stands, gauze mats, tripods, heat proof mats, Bunsen burners, tongs, clay triangles, evaporating dishes, crucibles, stirring rods, safety glasses, rubber stoppers, funnels, and filter paper. Each piece of equipment has a specific purpose, such as mixing, storing, weighing, or heating substances in a laboratory.Laboratory Equipment
Laboratory EquipmentAntonio Jes炭s Romero
油
This document lists and defines common pieces of laboratory equipment used in science experiments, including Erlenmeyer flasks, beakers, pipettes, funnels, burners, balances, and other tools for measuring, heating, filtering, and testing chemical substances. It provides both the Spanish and English names for over 20 basic lab devices to familiarize students with the equipment they will use in their science studies.1.4 Laboratory Equipment: Names & Uses
1.4 Laboratory Equipment: Names & UsesCheryl Bausman
油
This document provides descriptions and proper uses of common laboratory equipment used in chemistry labs. It describes various pieces of glassware like beakers, erlenmeyer flasks, test tubes, and funnels that are used to contain liquids and solids. It also outlines equipment for heating substances like burners, crucibles, and ring stands. Other tools described include balances, pipettes, clamps, and spatulas for accurately manipulating and transferring chemicals. Safety precautions are noted for several pieces of equipment.Lab equipment
Lab equipmentOhMiss
油
This document describes various pieces of lab equipment including beakers, Erlenmeyer flasks, volumetric flasks, graduated cylinders, test tubes, tongs, test tube holders, test tube brushes, scoopulas, thermometers, forceps, medicine droppers, test tube racks, stirring rods, Bunsen burners, retort stands, C-clamps, burettes, wire mesh, clay triangles, crucibles, funnels, filter paper, mortar and pestles, spot plates, evaporating dishes, Petri dishes, and watch glasses. Each item is briefly described in terms of its common laboratory uses and characteristics.Heating with bunsen burner
Heating with bunsen burnermbrucewilson
油
The document provides instructions for safely setting up and using a Bunsen burner. It describes how to light the burner by turning on the gas and waving a lit splint over the chimney. It also explains that there are two flame types - a blue heating flame and a yellow safety flame - and instructs students to use each flame to heat water and compare how long it takes to boil.Science laboratory rules
Science laboratory rulesSilvia Choi
油
The document outlines rules for safety in a science laboratory, including moving carefully, exercising care and common sense, only using gas taps and electrical switches during experiments, reporting any accidents or issues immediately, cleaning and drying benches after experiments, cleaning and returning all apparatus to their proper locations, keeping sinks clean, only entering preparation rooms under supervision, and washing hands after every experiment.Integrated Science M1 Tools used in Science
Integrated Science M1 Tools used in ScienceeLearningJa
油
The document provides an overview of using a Bunsen burner in science experiments. It describes the parts of a Bunsen burner, including the air hole, chimney, collar, tubing, and gas tap. It explains how to safely light and use a Bunsen burner, producing either a luminous or non-luminous flame depending on the oxygen supply. When heating substances, an object should be placed at the top of the blue inner cone for strong heating or moved through the outer cone for gentle heating. Proper safety precautions must always be followed when using an open flame in the laboratory.Lab Safety - Rules and Symbols
Lab Safety - Rules and SymbolsGreg Scrivin
油
The document outlines safety rules and symbols for a science lab. It emphasizes that safety is the top priority and everyone is responsible for following the rules. General safety guidelines include being responsible, following instructions, no food/drink, and notifying the teacher of any accidents. A signed safety contract is required. Safety symbols depict proper eye, skin, clothing protection and safety procedures for hazards like flames, chemicals, broken glass and more. Students are quizzed on safety and what to do in an emergency.Steps to Lighting a Bunsen Burner 2012
Steps to Lighting a Bunsen Burner 2012tskinnersbec
油
1. The document provides instructions for setting up and using a Bunsen burner safely and effectively. Key parts that should be checked include the burner tubing, main gas valve, barrel, and needle valve.
2. To light the burner, turn on the gas and create a spark above the barrel. Adjust the flame using the barrel to control air and needle valve to control fuel, aiming for a silent blue flame.
3. A properly adjusted flame will be blue with the inner tip touching the item to be heated. Always turn off the gas when finished by closing the main valve completely.Topic 1 Lab Equipment
Topic 1 Lab Equipmentprojecteciencies
油
The document provides instructions for a lab activity introducing lab equipment and hazard symbols. Students are asked to complete an online lab equipment identification activity. They then play a matching game to learn equipment names. Students also define hazard symbols like corrosive, flammable, and irritant. They are instructed to identify the hazard symbols for chemicals like sulfuric acid and ethanol. For homework, students choose correct lab equipment answers and complete quizzes on equipment and hazard symbols.Scientificdrawings (lab equipment)
Scientificdrawings (lab equipment)Reem Bakr
油
This document provides diagrams and descriptions of common scientific apparatus used in experiments. It includes diagrams of a beaker, Bunsen burner, tripod and gauze, conical flask, funnel and filter paper, measuring cylinder, crucible with lid, watch glass, test tube, and clamp and stand. Students are asked to use these diagrams to draw diagrams of experiments, including a beaker half-filled with water on a tripod being heated by a Bunsen burner, an irregular object in a eureka can with a beaker at the spout to collect water, and a conical flask half-filled with water being supported on a clamp stand with a thermometer inside to measure temperature.Quiz over lab equipment and safety Mr. Hutto's Chemistry Class
Quiz over lab equipment and safety Mr. Hutto's Chemistry Classcat17cat1
油
This chemistry study guide covers lab equipment and safety for an upcoming quiz. It lists various pieces of common lab equipment like beakers, flasks, test tubes, Bunsen burners, and items used for measuring and transferring chemicals. The document also includes a short safety reminder and notes that the safety questions on the quiz should be straightforward.Bunsen burner and Glass Manipulation
Bunsen burner and Glass ManipulationLiwayway Memije-Cruz
油
The document provides an overview of bunsen burners, their parts, and safe usage, emphasizing the importance of safety precautions in laboratory settings. It also discusses glass manipulation techniques, particularly the use of glass bends for various laboratory operations. Key questions related to bunsen burner usage and glass bending practices are included for further understanding.Bio drawings
Bio drawingsChristina Drumm
油
The document provides guidance on how to make effective biological drawings from microscope observations. It emphasizes that drawings should be neat, accurately reflect what is seen through the microscope, and include important details and labels. Specific tips include avoiding crowded drawings, titling drawings with the specimen and magnification, labeling known structures with straight lines that do not cross, keeping labels vertical when possible, and drawing only what is observed rather than embellishing. The document also analyzes an example student drawing, identifying six errors such as crossed and angled lines, inaccurate cell shapes, missing magnification, angled labels, and an unlabeled line. Students are assigned to make an improved drawing of the same microscope image.Introduction to science
Introduction to scienceGrace Leong
油
The document introduces science and discusses the importance of science in daily life. It also covers scientific attitudes, the scientific method, laboratory safety rules, common laboratory equipment and how to use a Bunsen burner properly. Safety is emphasized when working in the laboratory.Science laboratory equipment
Science laboratory equipmentLauriz Aclan
油
Science laboratory equipment can be classified into categories based on material and includes glasswares, porcelainwares, and other accessories. Glasswares are used for holding, heating, and storing liquids and include items like beakers, flasks, test tubes, and funnels. Porcelainwares contain heat-resistant materials like crucibles and evaporating dishes. Other equipment supports experiments through set-ups for heating, microscopy, distillation, and titration.Laboratory apparatus
Laboratory apparatusAlyssa Vicera
油
The document lists and describes various pieces of common laboratory equipment, including beakers, test tubes, Florence flasks, Erlenmeyer flasks, graduated cylinders, funnels, watch glasses, evaporating dishes, crucibles, reagent bottles, Bunsen burners, iron clamps, iron stands, iron rings, test tube holders, test tube brushes, wire gauges, tripods, spatulas, stirring rods, mortar and pestles, medicine droppers, test tube racks, laboratory thermometers, microscopes, triple beam balances, pipettes, burettes, platform balances, analytical balances, alcohol lamps, aspirators, tongs, volumetric flasks, and spring balances.Drawing scientific diagram

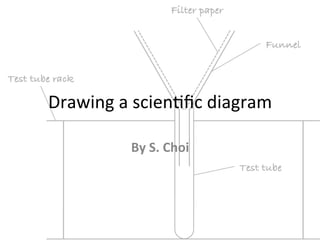

- 1. Drawing 油a 油scien,鍖c 油diagram 油 By 油S. 油Choi 油

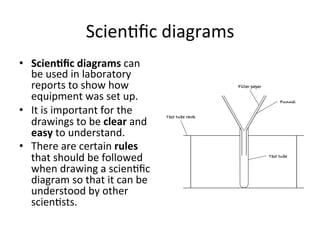

- 2. Scien,鍖c 油diagrams 油 ≒ Scien-鍖c 油diagrams 油can 油 be 油used 油in 油laboratory 油 reports 油to 油show 油how 油 equipment 油was 油set 油up. 油 ≒ It 油is 油important 油for 油the 油 drawings 油to 油be 油clear 油and 油 easy 油to 油understand. 油 ≒ There 油are 油certain 油rules 油 that 油should 油be 油followed 油 when 油drawing 油a 油scien,鍖c 油 diagram 油so 油that 油it 油can 油be 油 understood 油by 油other 油 scien,sts. 油
- 3. Rule 油1 油 油Always 油use 油a 油sharp 油pencil 油 油 油 油 油 油 油
- 4. Rule 油2 油 油Draw 油all 油straight 油lines 油using 油a 油 ruler 油
- 5. Rule 油3 油 油Draw 油using 油single 油鍖rm 油lines 油 NOT 油jagged 油sketchy 油lines 油 油 油

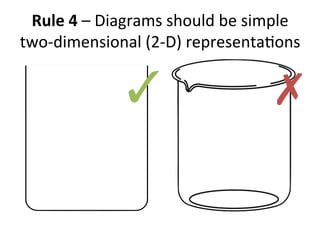

- 6. Rule 油4 油 油Diagrams 油should 油be 油simple 油 two-足dimensional 油(2-足D) 油representa,ons 油 油 油 油

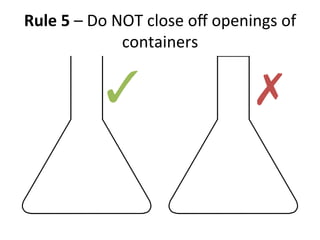

- 7. Rule 油5 油 油Do 油NOT 油close 油o鍖 油openings 油of 油 containers 油 油 油
- 8. Rule 油6 油 油Do 油NOT 油use 油shading 油or 油 colouring 油 油 油

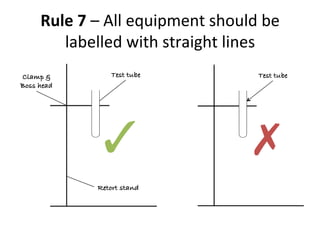

- 9. Rule 油7 油 油All 油equipment 油should 油be 油 labelled 油with 油straight 油lines 油 油 油

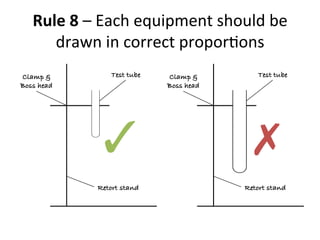

- 10. Rule 油8 油 油Each 油equipment 油should 油be 油 drawn 油in 油correct 油propor,ons 油 油 油

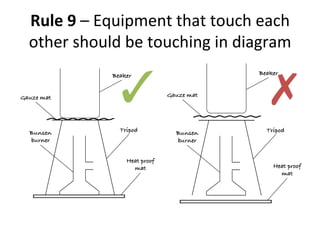

- 11. Rule 油9 油 油Equipment 油that 油touch 油each 油 other 油should 油be 油touching 油in 油diagram 油 油 油

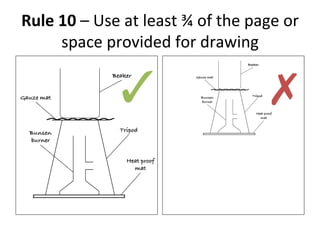

- 12. Rule 油10 油 油Use 油at 油least 油他 油of 油the 油page 油or 油 space 油provided 油for 油drawing 油 油 油
