![SSPC-AB 2
May 1, 1996
Editorial Revisions November 1, 2004
4-7
1. Scope
1.1 Thisspeci鍖cationcoverstherequirementsforcleanli-
ness of recycled ferrous metallic blast cleaning abrasives used
for the removal of coatings, paints, scale, rust and other foreign
matter from steel or other surfaces.
1.2 Requirements are given for lab and 鍖eld testing of
recycled ferrous metallic abrasives work mix.
1.3 Recycled ferrous metallic abrasives are intended for
use in 鍖eld or shop abrasive blast cleaning of steel or other
surfaces.
2. Description
2.1 FERROUSMETALLICABRASIVES: Ferrousmetal-
licabrasivesareusedforblastcleaningsteelandothersurfaces.
The inherent value of ferrous metallic abrasives is their ability
to be recycled many times. The recycled abrasive must be
cleaned to remove abrasive 鍖nes and debris, including paint,
rust, mill scale, and other contaminants generated during the
blast cleaning of steel or other surfaces.
2.2 RECYCLED ABRASIVE WORK MIX: The work mix
develops during blast cleaning and recycling and is composed
of new abrasive additions and recycled abrasive. The new
abrasive being added may consist of shot, grit, or a mix of shot
and grit.
3. Reference Standards
3.1 The latest issue, revision, or amendment of the refer-
enced standards in effect on the date of invitation to bid shall
govern, unless otherwise speci鍖ed.
3.2 If there is a con鍖ict between the requirements of
any of the cited referenced standards and this speci鍖cation,
the requirements of this speci鍖cation shall prevail.
3.4 AMERICANSOCIETYFORTESTINGANDMATERI-
ALS (ASTM) STANDARDS:
D 3335 Standard Test Method for Low Concentra-
tions of Lead, Cadmium, and Cobalt in Paint
by Atomic Absorption Spectroscopy
D 4940 Standard Test Method for Conductimetric
Analysis of Water Soluble Ionic Contami-
nantion in Blasting Abrasives
E 11 Standard Speci鍖cation for Wire Cloth and
Sieves for Testing Purposes
4. Requirements for Recycled Work Mix Abra-
sives
4.1 NON-ABRASIVE RESIDUE: Using the procedure
de鍖ned in Section 5.1, the non-abrasive residue shall not ex-
ceed 1% by weight of the work mix sample taken for testing.
4.2 LEAD CONTENT: The maximum lead content of the
work mix shall be 0.1% by weight (1000 ppm) when tested in
accordance with Section 5.2.
4.3 WATER-SOLUBLECONTAMINANTS:Theconduc-
tivity of the abrasive shall not exceed 1000 micromhos/cm (see
Note 9.1).
4.4 OIL CONTENT: The abrasive sample in water shall
show no presence of oil, either on the surface of the water
or as an emulsion in the water when examined visually after
standing for 10 minutes.
4.5 FAILURE TO MEET REQUIREMENTS: Should the
recycledferrousmetallicabrasivefailtomeettherequirements
of Sections 4.1, 4.2, 4.3, or 4.4, it must be recleaned until it
meets these requirements.
5. Testing Procedure
5.1 PROCEDURE FOR DETERMINING NON-ABRA-
SIVE RESIDUE IN WORK MIX
5.1.1 Collect a minimum of three representative samples
(approximately 450 grams [1 lb] each) of the work mix. The
three samples shall be collected at three different times during
each reclamation cycle, or during an 8-hour period.
5.1.2 Combine the samples collected as described
in Section 5.1.1 and split into approximately 115 g (1/4 lb)
samples.
5.1.3 Add approximately 115 g (1/4 pound) to a 203 mm
(8-inch) diameter #100 sieve, per ASTM E 11, and screen the
abrasive for one minute.
5.1.4Spreadthescreenedportion(>#100sieveperASTM
E 11) over a clean surface of approximately 0.1 m2
(1 ft2
).
SSPC: The Society for Protective Coatings
ABRASIVE SPECIFICATION NO. 2
Cleanliness of Recycled Ferrous Metallic Abrasives](https://image.slidesharecdn.com/115830225-sspc-ab-2-150709092255-lva1-app6891/85/115830225-sspc-ab-2-1-320.jpg)
More Related Content
Similar to 115830225 sspc-ab-2 (16)
Recently uploaded (20)
115830225 sspc-ab-2
- 1. SSPC-AB 2 May 1, 1996 Editorial Revisions November 1, 2004 4-7 1. Scope 1.1 Thisspeci鍖cationcoverstherequirementsforcleanli- ness of recycled ferrous metallic blast cleaning abrasives used for the removal of coatings, paints, scale, rust and other foreign matter from steel or other surfaces. 1.2 Requirements are given for lab and 鍖eld testing of recycled ferrous metallic abrasives work mix. 1.3 Recycled ferrous metallic abrasives are intended for use in 鍖eld or shop abrasive blast cleaning of steel or other surfaces. 2. Description 2.1 FERROUSMETALLICABRASIVES: Ferrousmetal- licabrasivesareusedforblastcleaningsteelandothersurfaces. The inherent value of ferrous metallic abrasives is their ability to be recycled many times. The recycled abrasive must be cleaned to remove abrasive 鍖nes and debris, including paint, rust, mill scale, and other contaminants generated during the blast cleaning of steel or other surfaces. 2.2 RECYCLED ABRASIVE WORK MIX: The work mix develops during blast cleaning and recycling and is composed of new abrasive additions and recycled abrasive. The new abrasive being added may consist of shot, grit, or a mix of shot and grit. 3. Reference Standards 3.1 The latest issue, revision, or amendment of the refer- enced standards in effect on the date of invitation to bid shall govern, unless otherwise speci鍖ed. 3.2 If there is a con鍖ict between the requirements of any of the cited referenced standards and this speci鍖cation, the requirements of this speci鍖cation shall prevail. 3.4 AMERICANSOCIETYFORTESTINGANDMATERI- ALS (ASTM) STANDARDS: D 3335 Standard Test Method for Low Concentra- tions of Lead, Cadmium, and Cobalt in Paint by Atomic Absorption Spectroscopy D 4940 Standard Test Method for Conductimetric Analysis of Water Soluble Ionic Contami- nantion in Blasting Abrasives E 11 Standard Speci鍖cation for Wire Cloth and Sieves for Testing Purposes 4. Requirements for Recycled Work Mix Abra- sives 4.1 NON-ABRASIVE RESIDUE: Using the procedure de鍖ned in Section 5.1, the non-abrasive residue shall not ex- ceed 1% by weight of the work mix sample taken for testing. 4.2 LEAD CONTENT: The maximum lead content of the work mix shall be 0.1% by weight (1000 ppm) when tested in accordance with Section 5.2. 4.3 WATER-SOLUBLECONTAMINANTS:Theconduc- tivity of the abrasive shall not exceed 1000 micromhos/cm (see Note 9.1). 4.4 OIL CONTENT: The abrasive sample in water shall show no presence of oil, either on the surface of the water or as an emulsion in the water when examined visually after standing for 10 minutes. 4.5 FAILURE TO MEET REQUIREMENTS: Should the recycledferrousmetallicabrasivefailtomeettherequirements of Sections 4.1, 4.2, 4.3, or 4.4, it must be recleaned until it meets these requirements. 5. Testing Procedure 5.1 PROCEDURE FOR DETERMINING NON-ABRA- SIVE RESIDUE IN WORK MIX 5.1.1 Collect a minimum of three representative samples (approximately 450 grams [1 lb] each) of the work mix. The three samples shall be collected at three different times during each reclamation cycle, or during an 8-hour period. 5.1.2 Combine the samples collected as described in Section 5.1.1 and split into approximately 115 g (1/4 lb) samples. 5.1.3 Add approximately 115 g (1/4 pound) to a 203 mm (8-inch) diameter #100 sieve, per ASTM E 11, and screen the abrasive for one minute. 5.1.4Spreadthescreenedportion(>#100sieveperASTM E 11) over a clean surface of approximately 0.1 m2 (1 ft2 ). SSPC: The Society for Protective Coatings ABRASIVE SPECIFICATION NO. 2 Cleanliness of Recycled Ferrous Metallic Abrasives

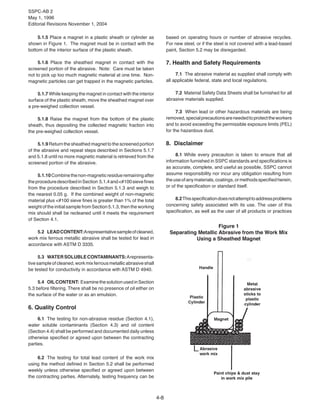

- 2. SSPC-AB 2 May 1, 1996 Editorial Revisions November 1, 2004 4-8 5.1.5 Place a magnet in a plastic sheath or cylinder as shown in Figure 1. The magnet must be in contact with the bottom of the interior surface of the plastic sheath. 5.1.6 Place the sheathed magnet in contact with the screened portion of the abrasive. Note: Care must be taken not to pick up too much magnetic material at one time. Non- magnetic particles can get trapped in the magnetic particles. 5.1.7 While keeping the magnet in contact with the interior surface of the plastic sheath, move the sheathed magnet over a pre-weighed collection vessel. 5.1.8 Raise the magnet from the bottom of the plastic sheath, thus depositing the collected magnetic fraction into the pre-weighed collection vessel. 5.1.9 Return the sheathed magnet to the screened portion of the abrasive and repeat steps described in Sections 5.1.7 and 5.1.8 until no more magnetic material is retrieved from the screened portion of the abrasive. 5.1.10Combinethenon-magneticresidueremainingafter theproceduredescribedinSection 5.1.4and<#100sieve鍖nes from the procedure described in Section 5.1.3 and weigh to the nearest 0.05 g. If the combined weight of non-magnetic material plus <#100 sieve 鍖nes is greater than 1% of the total weightoftheinitialsamplefromSection5.1.3,thentheworking mix should shall be recleaned until it meets the requirement of Section 4.1. 5.2 LEADCONTENT:Arepresentativesampleofcleaned, work mix ferrous metallic abrasive shall be tested for lead in accordance with ASTM D 3335. 5.3 WATERSOLUBLECONTAMINANTS:Arepresenta- tivesampleofcleaned,workmixferrousmetallicabrasiveshall be tested for conductivity in accordance with ASTM D 4940. 5.4 OILCONTENT: ExaminethesolutionusedinSection 5.3 before 鍖ltering. There shall be no presence of oil either on the surface of the water or as an emulsion. 6. Quality Control 6.1 The testing for non-abrasive residue (Section 4.1), water soluble contaminants (Section 4.3) and oil content (Section 4.4) shall be performed and documented daily unless otherwise speci鍖ed or agreed upon between the contracting parties. 6.2 The testing for total lead content of the work mix using the method de鍖ned in Section 5.2 shall be performed weekly unless otherwise speci鍖ed or agreed upon between the contracting parties. Alternately, testing frequency can be based on operating hours or number of abrasive recycles. For new steel, or if the steel is not covered with a lead-based paint, Section 5.2 may be disregarded. 7. Health and Safety Requirements 7.1 The abrasive material as supplied shall comply with all applicable federal, state and local regulations. 7.2 Material Safety Data Sheets shall be furnished for all abrasive materials supplied. 7.3 When lead or other hazardous materials are being removed,specialprecautionsareneededtoprotecttheworkers and to avoid exceeding the permissible exposure limits (PEL) for the hazardous dust. 8. Disclaimer 8.1 While every precaution is taken to ensure that all information furnished in SSPC standards and speci鍖cations is as accurate, complete, and useful as possible, SSPC cannot assume responsibility nor incur any obligation resulting from theuseofanymaterials,coatings,ormethodsspeci鍖edherein, or of the speci鍖cation or standard itself. 8.2Thisspeci鍖cationdoesnotattempttoaddressproblems concerning safety associated with its use. The user of this speci鍖cation, as well as the user of all products or practices Figure 1 Separating Metallic Abrasive from the Work Mix Using a Sheathed Magnet
- 3. SSPC-AB 2 May 1, 1996 Editorial Revisions November 1, 2004 4-9 described herein, is responsible for instituting appropriate health and safety practices and for ensuring compliance with all governmental regulations. 9. Notes Notes are not requirements of this speci鍖cation. 9.1 The limitation for abrasive conductivity is based on pressure immersion testing and accelerated outdoor exposure tests performed by SSPC and the National Shipbuilding Re- search Program. 9.2 Because spent abrasives may contain hazardous paint and other foreign matter, disposal of abrasives shall be performed in compliance with all applicable federal, state, and local regulations.
