The program loads the values 02H and 04H from memory locations NUM1 and NUM2 respectively, adds them together using AL and BL registers, performs decimal adjustment on the result and stores the value back in memory at location RESULT. It then terminates the program by calling interrupt 21H.
1 of 1
Download to read offline

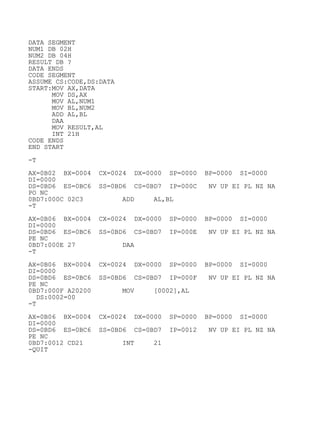

![DATA SEGMENT
NUM1 DB 02H
NUM2 DB 04H
RESULT DB ?
DATA ENDS
CODE SEGMENT
ASSUME CS:CODE,DS:DATA
START:MOV AX,DATA
MOV DS,AX
MOV AL,NUM1
MOV BL,NUM2
ADD AL,BL
DAA
MOV RESULT,AL
INT 21H
CODE ENDS
END START
-T
AX=0B02 BX=0004 CX=0024 DX=0000 SP=0000 BP=0000 SI=0000
DI=0000
DS=0BD6 ES=0BC6 SS=0BD6 CS=0BD7 IP=000C NV UP EI PL NZ NA
PO NC
0BD7:000C 02C3 ADD AL,BL
-T
AX=0B06 BX=0004 CX=0024 DX=0000 SP=0000 BP=0000 SI=0000
DI=0000
DS=0BD6 ES=0BC6 SS=0BD6 CS=0BD7 IP=000E NV UP EI PL NZ NA
PE NC
0BD7:000E 27 DAA
-T
AX=0B06 BX=0004 CX=0024 DX=0000 SP=0000 BP=0000 SI=0000
DI=0000
DS=0BD6 ES=0BC6 SS=0BD6 CS=0BD7 IP=000F NV UP EI PL NZ NA
PE NC
0BD7:000F A20200 MOV [0002],AL
DS:0002=00
-T
AX=0B06 BX=0004 CX=0024 DX=0000 SP=0000 BP=0000 SI=0000
DI=0000
DS=0BD6 ES=0BC6 SS=0BD6 CS=0BD7 IP=0012 NV UP EI PL NZ NA
PE NC
0BD7:0012 CD21 INT 21
-QUIT](https://image.slidesharecdn.com/22-140701044913-phpapp01/85/22-1-320.jpg)
