This document provides specifications for the BUC C-BAND 3100XPT 10W NON-INVERTED intelligent satellite transmitter made by Norsat. It lists key technical specifications such as output frequency range, input/output power levels, gain stability, phase noise, temperature range, dimensions, and how to order. It also includes a diagram of the mechanical configuration and information on power requirements.

1 of 1
Download to read offline

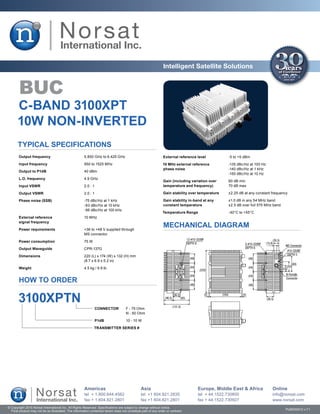

Intelligent Satellite Solutions BUC C-BAND 3100XPT 10W NON-INVERTED Typical Specifications Output frequency 5.850 GHz to 6.425 GHz External reference level -5 to +5 dBm Input frequency 950 to 1525 MHz 10 MHz external reference -135 dBc/Hz at 100 Hz phase noise -140 dBc/Hz at 1 kHz Output to P1dB 40 dBm -150 dBc/Hz at 10 Hz L.O. frequency 4.9 GHz Gain (including variation over 60 dB min Input VSWR 2.0 : 1 temperature and frequency) 70 dB max Output VSWR 2.0 : 1 Gain stability over temperature ±2.25 dB at any constant frequency Phase noise (SSB) -75 dBc/Hz at 1 kHz Gain stability in-band at any ±1.0 dB in any 54 MHz band -83 dBc/Hz at 10 kHz constant temperature ±2.5 dB over full 575 MHz band -96 dBc/Hz at 100 kHz Temperature Range -40°C to +55°C External reference 10 MHz signal frequency Power requirements +36 to +48 V supplied through MECHANICAL DIAGRAM MS connector Power consumption 75 W Output Waveguide CPR-137G Dimensions 220 (L) x 174 (W) x 132 (H) mm (8.7 x 6.9 x 5.2 in) Weight 4.5 kg / 9.9 lb HOW TO ORDER 3100XPTN CONNECTOR F - 75 Ohm N - 50 Ohm P1dB 10 - 10 W TRANSMITTER SERIES # Americas Asia Europe, Middle East & Africa Online tel + 1.800.644.4562 tel +1 604.821.2835 tel + 44.1522.730800 info@norsat.com fax + 1.604.821.2801 fax +1 604.821.2801 fax + 44.1522.730927 www.norsat.com © Copyright 2010 Norsat International Inc. All Rights Reserved. Specifications are subject to change without notice. Final product may not be as illustrated. The information contained herein does not constitute part of any order or contract PUB000012 v.7.1
