The document describes an electrical power theft detection and wireless meter reading system. The system uses wireless data transmission between digital energy meters and a pole-mounted receiver to detect discrepancies between the power sent on a distribution line and the power consumed by loads on that line, indicating potential theft. It also allows for wireless meter reading to save utility companies time compared to manual readings. If the power measured at the pole exceeds the load consumption by a certain tolerance, factoring in line losses, the system signals that theft has occurred on that line.
![ISSN: 2319-8753
International Journal of Innovative Research in Science, Engineering and Technology
Vol. 2, Issue 4, April 2013
Copyright to IJIRSET www.ijirset.com 1115
It would provide a digital record in case of any judicial dispute.
To maximize the profit margin of power utility company.
III. PROPOSED SYSTEM
A. Power Theft Detection
L1, L2 Single phase loads
M1, M2 Digital energy meters
P Pole based system (installed on a distribution pole)

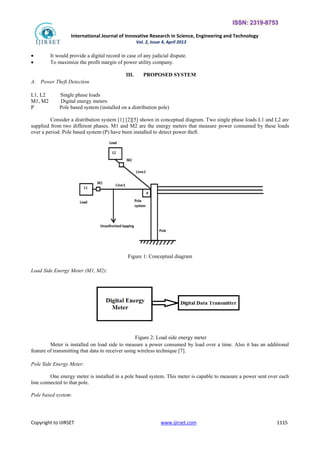

Consider a distribution system [1] [2][5] shown in conceptual diagram. Two single phase loads L1 and L2 are
supplied from two different phases. M1 and M2 are the energy meters that measure power consumed by these loads
over a period. Pole based system (P) have been installed to detect power theft.
Figure 1: Conceptual diagram
Load Side Energy Meter (M1, M2):
Figure 2: Load side energy meter
Meter is installed on load side to measure a power consumed by load over a time. Also it has an additional
feature of transmitting that data to receiver using wireless technique [7].
Pole Side Energy Meter:
One energy meter is installed in a pole based system. This meter is capable to measure a power sent over each
line connected to that pole.
Pole based system:](https://image.slidesharecdn.com/35electricalpower-150709175737-lva1-app6891/85/35-electrical-power-2-320.jpg)
![ISSN: 2319-8753
International Journal of Innovative Research in Science, Engineering and Technology
Vol. 2, Issue 4, April 2013
Copyright to IJIRSET www.ijirset.com 1119

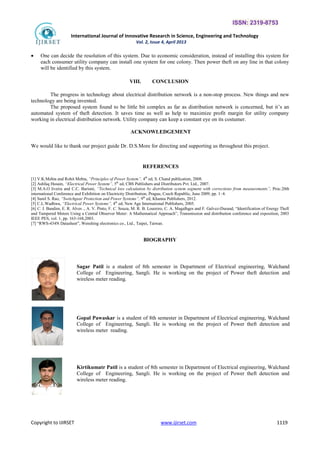

One can decide the resolution of this system. Due to economic consideration, instead of installing this system for
each consumer utility company can install one system for one colony. Then power theft on any line in that colony
will be identified by this system.
VIII. CONCLUSION
The progress in technology about electrical distribution network is a non-stop process. New things and new
technology are being invented.
The proposed system found to be little bit complex as far as distribution network is concerned, but its an
automated system of theft detection. It saves time as well as help to maximize profit margin for utility company
working in electrical distribution network. Utility company can keep a constant eye on its costumer.
ACKNOWLEDGEMENT
We would like to thank our project guide Dr. D.S.More for directing and supporting us throughout this project.
REFERENCES
[1] V.K.Mehta and Rohit Mehta, Principles of Power System, 4th
ed, S. Chand publication, 2008.
[2] Ashfaq Husain, Electrical Power System, 5th
ed, CBS Publishers and Distributors Pvt. Ltd., 2007.
[3] M.A.O liveira and C.C. Barioni, Technical loss calculation by distribution system segment with corrections from measurements, Proc.20th
international Conference and Exhibition on Electricity Distribution, Prague, Czech Republic, June 2009, pp. 14.
[4] Sunil S. Rao, Switchgear Protection and Power Systems, 9th
ed, Khanna Publishers, 2012.
[5] C.L.Wadhwa, Electrical Power Systems, 4th
ed, New Age International Publishers, 2005.
[6] C. J. Bandim, E. R. Alves ., A. V. Pinto, F. C. Souza, M. R. B. Loureiro, C. A. Magalhges and F. Galvez-Durand, Identification of Energy Theft
and Tampered Meters Using a Central Observer Meter: A Mathematical Approach, Transmission and distribution conference and exposition, 2003
IEEE PES, vol. 1, pp. 163-168,2003.
[7] RWS-434N Datasheet, Wenshing electronics co., Ltd., Taipei, Taiwan.
BIOGRAPHY
Sagar Patil is a student of 8th semester in Department of Electrical engineering, Walchand
College of Engineering, Sangli. He is working on the project of Power theft detection and
wireless meter reading.
Gopal Pawaskar is a student of 8th semester in Department of Electrical engineering, Walchand
College of Engineering, Sangli. He is working on the project of Power theft detection and
wireless meter reading.
Kirtikumatr Patil is a student of 8th semester in Department of Electrical engineering, Walchand
College of Engineering, Sangli. He is working on the project of Power theft detection and
wireless meter reading.](https://image.slidesharecdn.com/35electricalpower-150709175737-lva1-app6891/85/35-electrical-power-6-320.jpg)
35 electrical power

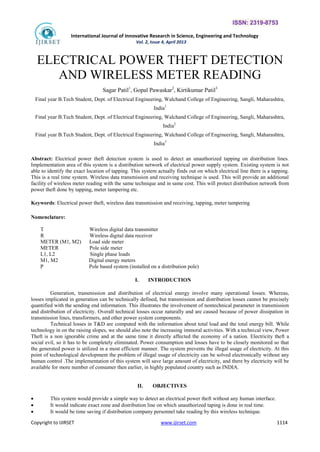

- 1. ISSN: 2319-8753 International Journal of Innovative Research in Science, Engineering and Technology Vol. 2, Issue 4, April 2013 Copyright to IJIRSET www.ijirset.com 1114 ELECTRICAL POWER THEFT DETECTION AND WIRELESS METER READING Sagar Patil1 , Gopal Pawaskar2 , Kirtikumar Patil3 Final year B.Tech Student, Dept. of Electrical Engineering, Walchand College of Engineering, Sangli, Maharashtra, India1 Final year B.Tech Student, Dept. of Electrical Engineering, Walchand College of Engineering, Sangli, Maharashtra, India2 Final year B.Tech Student, Dept. of Electrical Engineering, Walchand College of Engineering, Sangli, Maharashtra, India3 Abstract: Electrical power theft detection system is used to detect an unauthorized tapping on distribution lines. Implementation area of this system is a distribution network of electrical power supply system. Existing system is not able to identify the exact location of tapping. This system actually finds out on which electrical line there is a tapping. This is a real time system. Wireless data transmission and receiving technique is used. This will provide an additional facility of wireless meter reading with the same technique and in same cost. This will protect distribution network from power theft done by tapping, meter tampering etc. Keywords: Electrical power theft, wireless data transmission and receiving, tapping, meter tampering Nomenclature: T Wireless digital data transmitter R Wireless digital data receiver METER (M1, M2) Load side meter METER Pole side meter L1, L2 Single phase loads M1, M2 Digital energy meters P Pole based system (installed on a distribution pole) I. INTRODUCTION Generation, transmission and distribution of electrical energy involve many operational losses. Whereas, losses implicated in generation can be technically defined, but transmission and distribution losses cannot be precisely quantified with the sending end information. This illustrates the involvement of nontechnical parameter in transmission and distribution of electricity. Overall technical losses occur naturally and are caused because of power dissipation in transmission lines, transformers, and other power system components. Technical losses in T&D are computed with the information about total load and the total energy bill. While technology in on the raising slopes, we should also note the increasing immoral activities. With a technical view, Power Theft is a non ignorable crime and at the same time it directly affected the economy of a nation. Electricity theft a social evil, so it has to be completely eliminated. Power consumption and losses have to be closely monitored so that the generated power is utilized in a most efficient manner. The system prevents the illegal usage of electricity. At this point of technological development the problem of illegal usage of electricity can be solved electronically without any human control .The implementation of this system will save large amount of electricity, and there by electricity will be available for more number of consumer then earlier, in highly populated country such as INDIA. II. OBJECTIVES This system would provide a simple way to detect an electrical power theft without any human interface. It would indicate exact zone and distribution line on which unauthorized taping is done in real time. It would be time saving if distribution company personnel take reading by this wireless technique.
- 2. ISSN: 2319-8753 International Journal of Innovative Research in Science, Engineering and Technology Vol. 2, Issue 4, April 2013 Copyright to IJIRSET www.ijirset.com 1115 It would provide a digital record in case of any judicial dispute. To maximize the profit margin of power utility company. III. PROPOSED SYSTEM A. Power Theft Detection L1, L2 Single phase loads M1, M2 Digital energy meters P Pole based system (installed on a distribution pole) Consider a distribution system [1] [2][5] shown in conceptual diagram. Two single phase loads L1 and L2 are supplied from two different phases. M1 and M2 are the energy meters that measure power consumed by these loads over a period. Pole based system (P) have been installed to detect power theft. Figure 1: Conceptual diagram Load Side Energy Meter (M1, M2): Figure 2: Load side energy meter Meter is installed on load side to measure a power consumed by load over a time. Also it has an additional feature of transmitting that data to receiver using wireless technique [7]. Pole Side Energy Meter: One energy meter is installed in a pole based system. This meter is capable to measure a power sent over each line connected to that pole. Pole based system:

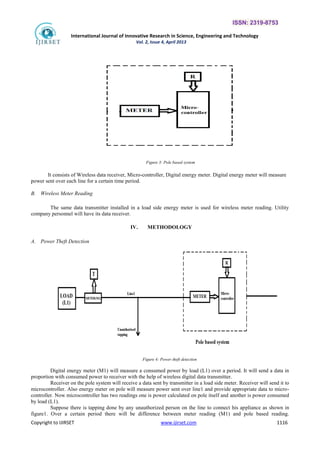

- 3. ISSN: 2319-8753 International Journal of Innovative Research in Science, Engineering and Technology Vol. 2, Issue 4, April 2013 Copyright to IJIRSET www.ijirset.com 1116 Figure 3: Pole based system It consists of Wireless data receiver, Micro-controller, Digital energy meter. Digital energy meter will measure power sent over each line for a certain time period. B. Wireless Meter Reading The same data transmitter installed in a load side energy meter is used for wireless meter reading. Utility company personnel will have its data receiver. IV. METHODOLOGY A. Power Theft Detection Figure 4: Power theft detection Digital energy meter (M1) will measure a consumed power by load (L1) over a period. It will send a data in proportion with consumed power to receiver with the help of wireless digital data transmitter. Receiver on the pole system will receive a data sent by transmitter in a load side meter. Receiver will send it to microcontroller. Also energy meter on pole will measure power sent over line1 and provide appropriate data to micro- controller. Now microcontroller has two readings one is power calculated on pole itself and another is power consumed by load (L1). Suppose there is tapping done by any unauthorized person on the line to connect his appliance as shown in figure1. Over a certain period there will be difference between meter reading (M1) and pole based reading.

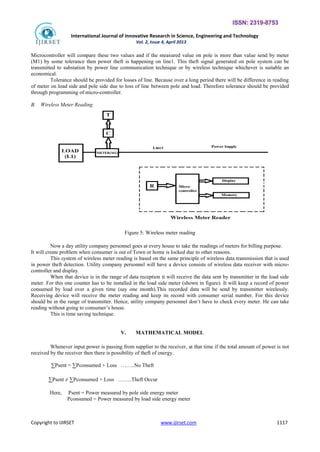

- 4. ISSN: 2319-8753 International Journal of Innovative Research in Science, Engineering and Technology Vol. 2, Issue 4, April 2013 Copyright to IJIRSET www.ijirset.com 1117 Microcontroller will compare these two values and if the measured value on pole is more than value send by meter (M1) by some tolerance then power theft is happening on line1. This theft signal generated on pole system can be transmitted to substation by power line communication technique or by wireless technique whichever is suitable an economical. Tolerance should be provided for losses of line. Because over a long period there will be difference in reading of meter on load side and pole side due to loss of line between pole and load. Therefore tolerance should be provided through programming of micro-controller. B. Wireless Meter Reading Figure 5: Wireless meter reading Now a day utility company personnel goes at every house to take the readings of meters for billing purpose. It will create problem when consumer is out of Town or home is locked due to other reasons. This system of wireless meter reading is based on the same principle of wireless data transmission that is used in power theft detection. Utility company personnel will have a device consists of wireless data receiver with micro- controller and display. When that device is in the range of data reception it will receive the data sent by transmitter in the load side meter. For this one counter has to be installed in the load side meter (shown in figure). It will keep a record of power consumed by load over a given time (say one month).This recorded data will be send by transmitter wirelessly. Receiving device will receive the meter reading and keep its record with consumer serial number. For this device should be in the range of transmitter. Hence, utility company personnel dont have to check every meter. He can take reading without going to consumers house. This is time saving technique. V. MATHEMATICAL MODEL Whenever input power is passing from supplier to the receiver, at that time if the total amount of power is not received by the receiver then there is possibility of theft of energy. Psent = Pconsumed + Loss ..No Theft Psent Pconsumed + Loss ..Theft Occur Here, Psent = Power measured by pole side energy meter Pconsumed = Power measured by load side energy meter

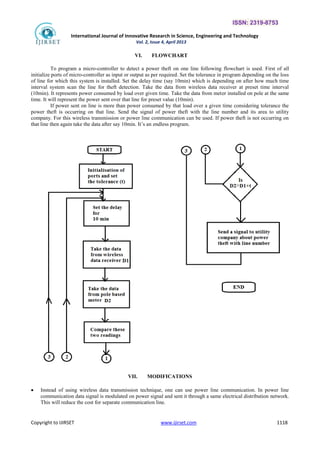

- 5. ISSN: 2319-8753 International Journal of Innovative Research in Science, Engineering and Technology Vol. 2, Issue 4, April 2013 Copyright to IJIRSET www.ijirset.com 1118 VI. FLOWCHART To program a micro-controller to detect a power theft on one line following flowchart is used. First of all initialize ports of micro-controller as input or output as per required. Set the tolerance in program depending on the loss of line for which this system is installed. Set the delay time (say 10min) which is depending on after how much time interval system scan the line for theft detection. Take the data from wireless data receiver at preset time interval (10min). It represents power consumed by load over given time. Take the data from meter installed on pole at the same time. It will represent the power sent over that line for preset value (10min). If power sent on line is more than power consumed by that load over a given time considering tolerance the power theft is occurring on that line. Send the signal of power theft with the line number and its area to utility company. For this wireless transmission or power line communication can be used. If power theft is not occurring on that line then again take the data after say 10min. Its an endless program. VII. MODIFICATIONS Instead of using wireless data transmission technique, one can use power line communication. In power line communication data signal is modulated on power signal and sent it through a same electrical distribution network. This will reduce the cost for separate communication line.
