4 recursion details
Download as ppt, pdf0 likes362 views
The document discusses recursion and binary search algorithms. It provides examples of using recursion to implement a binary search method. The method takes a list and key as parameters and recursively searches halves of the list to find the position of the key. Helper methods are used to encapsulate the recursive calls and base cases. The document also compares recursion to iteration, showing how recursion uses memory overhead by pushing method frames on a stack for each call.
![Use helper method
? Given int[] list and int key
? You are asked to return
¨C the position of key in the array if matched or
¨C -1 if not matched
? What additional information do you need to
apply the algorithm above?
3](https://image.slidesharecdn.com/4recursiondetails-130324221905-phpapp02/85/4-recursion-details-3-320.jpg)
![/** Use binary search to find the key in the list */
public static int recursiveBinarySearch(int[] list, int key) {
int low = 0;
int high = list.length - 1;
return recursiveBinarySearch(list, key, low, high); // use helper method
}// recursiveBinarySearch method
/** Use binary search to find the key in the list between list[low] and list[high] */
public static int recursiveBinarySearch(int[] list, int key, int low, int high)
{
if (low > high) // The list has been exhausted without a match
return -1;
int mid = (low + high) / 2;
if (key < list[mid])
return recursiveBinarySearch(list, key, low, mid - 1);
else if (key == list[mid])
return mid;
else
return recursiveBinarySearch(list, key, mid + 1, high);
}// recursiveBinarySearch method
4](https://image.slidesharecdn.com/4recursiondetails-130324221905-phpapp02/85/4-recursion-details-4-320.jpg)
![What is the difference between:
public static int recursiveBinarySearch(
int[] list, int key){ . . . }
and
public static int recursiveBinarySearch(
int[] list, int key, int low, int high) { . . . }
The first method calls the second method.
Is it recursive call?
5](https://image.slidesharecdn.com/4recursiondetails-130324221905-phpapp02/85/4-recursion-details-5-320.jpg)
4 recursion details
- 1. More on Recursion More techniques 1

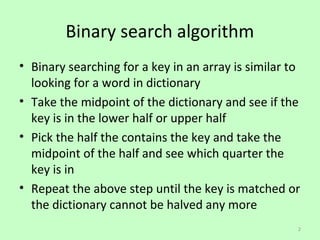

- 2. Binary search algorithm ? Binary searching for a key in an array is similar to looking for a word in dictionary ? Take the midpoint of the dictionary and see if the key is in the lower half or upper half ? Pick the half the contains the key and take the midpoint of the half and see which quarter the key is in ? Repeat the above step until the key is matched or the dictionary cannot be halved any more 2

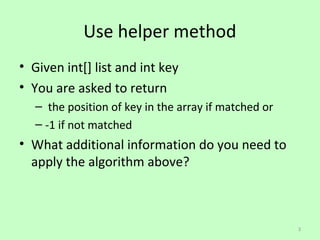

- 3. Use helper method ? Given int[] list and int key ? You are asked to return ¨C the position of key in the array if matched or ¨C -1 if not matched ? What additional information do you need to apply the algorithm above? 3

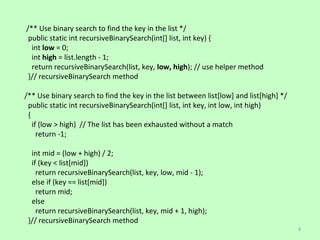

- 4. /** Use binary search to find the key in the list */ public static int recursiveBinarySearch(int[] list, int key) { int low = 0; int high = list.length - 1; return recursiveBinarySearch(list, key, low, high); // use helper method }// recursiveBinarySearch method /** Use binary search to find the key in the list between list[low] and list[high] */ public static int recursiveBinarySearch(int[] list, int key, int low, int high) { if (low > high) // The list has been exhausted without a match return -1; int mid = (low + high) / 2; if (key < list[mid]) return recursiveBinarySearch(list, key, low, mid - 1); else if (key == list[mid]) return mid; else return recursiveBinarySearch(list, key, mid + 1, high); }// recursiveBinarySearch method 4

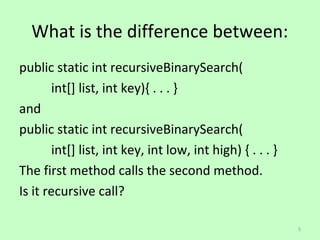

- 5. What is the difference between: public static int recursiveBinarySearch( int[] list, int key){ . . . } and public static int recursiveBinarySearch( int[] list, int key, int low, int high) { . . . } The first method calls the second method. Is it recursive call? 5
- 6. Recursion versus iteration Iteration Recursion ? Uses for or while loop for ? Recursion achieves repetition but no recursion repetition without a loop ? Price paid: memory overhead and run time (Every time a method is called, some space in memory must be reserved or allocated to store the method¡¯s local ? Why use recursion? variables and formal parameters, if any) 6

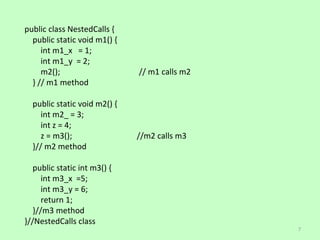

- 7. public class NestedCalls { public static void m1() { int m1_x = 1; int m1_y = 2; m2(); // m1 calls m2 } // m1 method public static void m2() { int m2_ = 3; int z = 4; z = m3(); //m2 calls m3 }// m2 method public static int m3() { int m3_x =5; int m3_y = 6; return 1; }//m3 method }//NestedCalls class 7

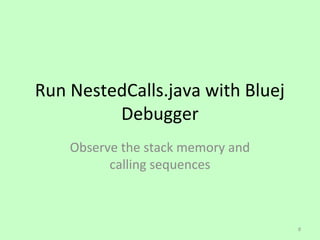

- 8. Run NestedCalls.java with Bluej Debugger Observe the stack memory and calling sequences 8

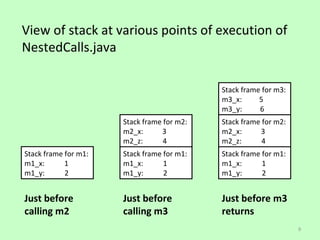

- 9. View of stack at various points of execution of NestedCalls.java Stack frame for m3: m3_x: 5 m3_y: 6 Stack frame for m2: Stack frame for m2: m2_x: 3 m2_x: 3 m2_z: 4 m2_z: 4 Stack frame for m1: Stack frame for m1: Stack frame for m1: m1_x: 1 m1_x: 1 m1_x: 1 m1_y: 2 m1_y: 2 m1_y: 2 Just before Just before Just before m3 calling m2 calling m3 returns 9

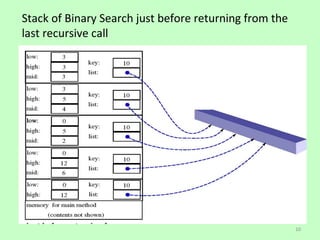

- 10. Stack of Binary Search just before returning from the last recursive call 10

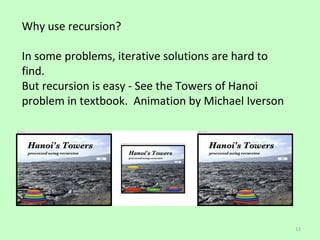

- 11. Why use recursion? In some problems, iterative solutions are hard to find. But recursion is easy - See the Towers of Hanoi problem in textbook. Animation by Michael Iverson 11

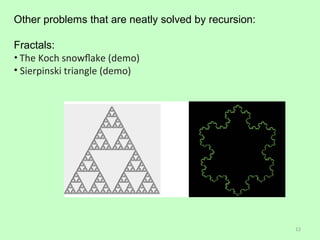

- 12. Other problems that are neatly solved by recursion: Fractals: ? The Koch snow?ake (demo) ? Sierpinski triangle (demo) 12
