This document discusses digital logic gates and integrated circuits. It covers the following topics: 1. Classification of integrated circuits (ICs) from small to large scale based on the number of transistors including SSI, MSI, LSI, VLSI, SLSI, ULSI. 2. Types of logic gates - AND, OR, NOT. It provides examples of TTL and CMOS gate ICs for each type. 3. The universality of NAND and NOR gates in that they can be used to implement other logic functions like AND, OR. 4. Examples of implementing logic functions using NAND and NOR gates and Sum of Products (SoP) or Product of Sums (
5.1 logkom

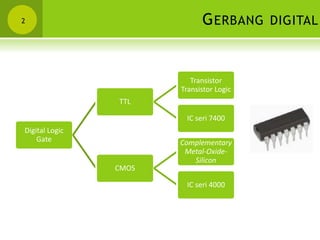

- 2. GERBANG DIGITAL2 Digital Logic Gate TTL Transistor Transistor Logic IC seri 7400 CMOS Complementary Metal-Oxide- Silicon IC seri 4000

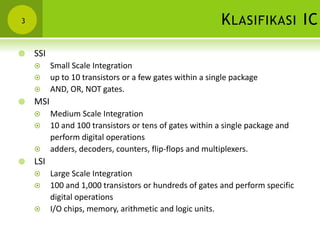

- 3. KLASIFIKASI IC3 SSI Small Scale Integration up to 10 transistors or a few gates within a single package AND, OR, NOT gates. MSI Medium Scale Integration 10 and 100 transistors or tens of gates within a single package and perform digital operations adders, decoders, counters, flip-flops and multiplexers. LSI Large Scale Integration 100 and 1,000 transistors or hundreds of gates and perform specific digital operations I/O chips, memory, arithmetic and logic units.

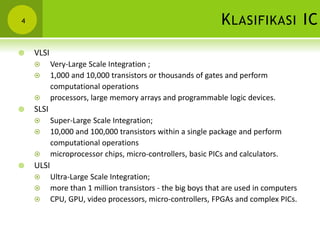

- 4. KLASIFIKASI IC4 VLSI Very-Large Scale Integration ; 1,000 and 10,000 transistors or thousands of gates and perform computational operations processors, large memory arrays and programmable logic devices. SLSI Super-Large Scale Integration; 10,000 and 100,000 transistors within a single package and perform computational operations microprocessor chips, micro-controllers, basic PICs and calculators. ULSI Ultra-Large Scale Integration; more than 1 million transistors - the big boys that are used in computers CPU, GPU, video processors, micro-controllers, FPGAs and complex PICs.

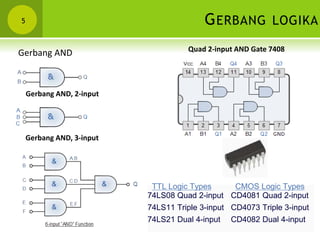

- 5. GERBANG LOGIKA5 Gerbang AND Gerbang AND, 2-input Gerbang AND, 3-input TTL Logic Types 74LS08 Quad 2-input 74LS11 Triple 3-input 74LS21 Dual 4-input CMOS Logic Types CD4081 Quad 2-input CD4073 Triple 3-input CD4082 Dual 4-input Quad 2-input AND Gate 7408

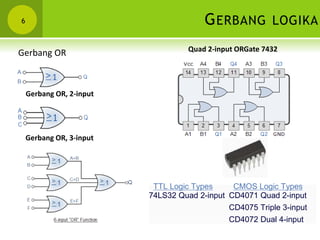

- 6. GERBANG LOGIKA6 Gerbang OR Gerbang OR, 2-input Gerbang OR, 3-input Quad 2-input ORGate 7432 TTL Logic Types 74LS32 Quad 2-input CMOS Logic Types CD4071 Quad 2-input CD4075 Triple 3-input CD4072 Dual 4-input

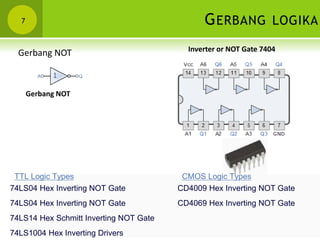

- 7. GERBANG LOGIKA7 Gerbang NOT Gerbang NOT Inverter or NOT Gate 7404 TTL Logic Types 74LS04 Hex Inverting NOT Gate 74LS04 Hex Inverting NOT Gate 74LS14 Hex Schmitt Inverting NOT Gate 74LS1004 Hex Inverting Drivers CMOS Logic Types CD4009 Hex Inverting NOT Gate CD4069 Hex Inverting NOT Gate

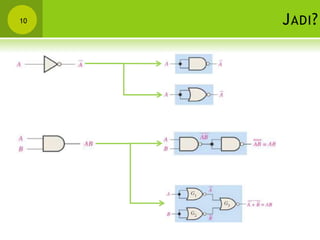

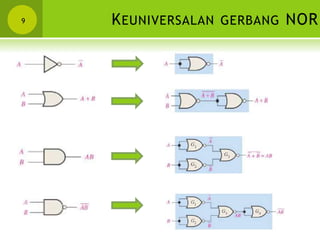

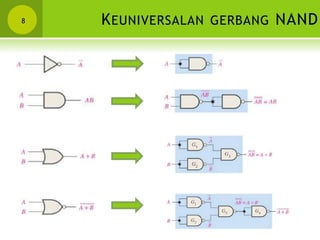

- 10. JADI?10

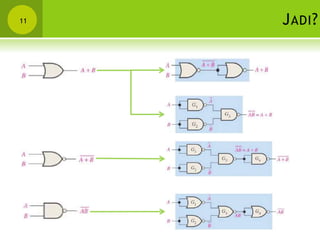

- 11. JADI?11

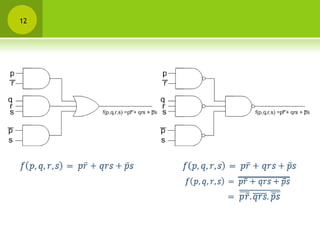

- 12. 12

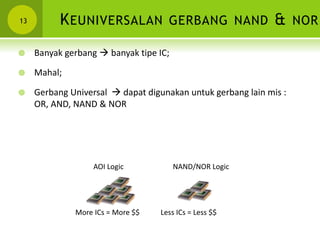

- 13. KEUNIVERSALAN GERBANG NAND & NOR13 Banyak gerbang banyak tipe IC; Mahal; Gerbang Universal dapat digunakan untuk gerbang lain mis : OR, AND, NAND & NOR AOI Logic NAND/NOR Logic More ICs = More $$ Less ICs = Less $$

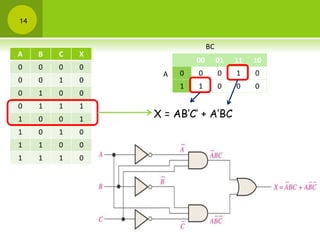

- 14. 14 00 01 11 10 0 0 0 1 0 1 1 0 0 0 A BC X = ABC + ABC A B C X 0 0 0 0 0 0 1 0 0 1 0 0 0 1 1 1 1 0 0 1 1 0 1 0 1 1 0 0 1 1 1 0

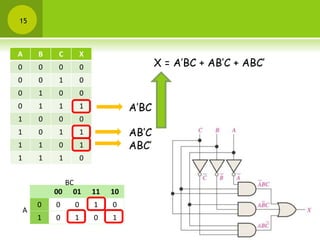

- 15. 15 A B C X 0 0 0 0 0 0 1 0 0 1 0 0 0 1 1 1 1 0 0 0 1 0 1 1 1 1 0 1 1 1 1 0 X = ABC + ABC + ABC ABC ABC ABC 00 01 11 10 0 0 0 1 0 1 0 1 0 1 A BC

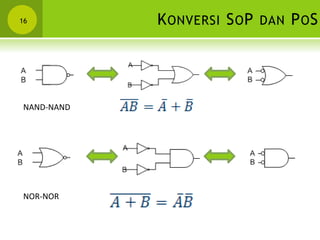

- 16. KONVERSI SOP DAN POS16 NAND-NAND NOR-NOR

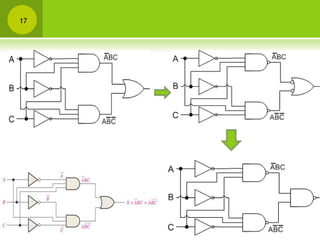

- 17. 17

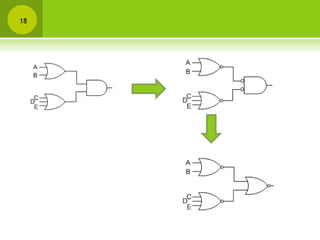

- 18. 18

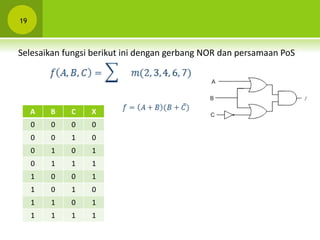

- 19. 19 Selesaikan fungsi berikut ini dengan gerbang NOR dan persamaan PoS A B C X 0 0 0 0 0 0 1 0 0 1 0 1 0 1 1 1 1 0 0 1 1 0 1 0 1 1 0 1 1 1 1 1

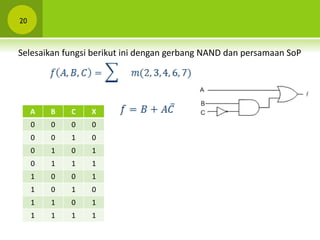

- 20. 20 Selesaikan fungsi berikut ini dengan gerbang NAND dan persamaan SoP A B C X 0 0 0 0 0 0 1 0 0 1 0 1 0 1 1 1 1 0 0 1 1 0 1 0 1 1 0 1 1 1 1 1

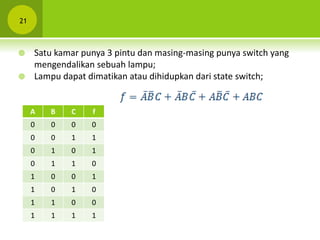

- 21. 21 Satu kamar punya 3 pintu dan masing-masing punya switch yang mengendalikan sebuah lampu; Lampu dapat dimatikan atau dihidupkan dari state switch; A B C f 0 0 0 0 0 0 1 1 0 1 0 1 0 1 1 0 1 0 0 1 1 0 1 0 1 1 0 0 1 1 1 1

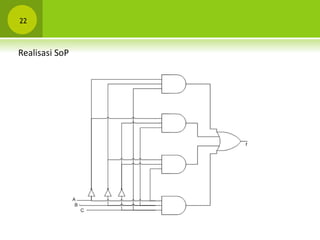

- 22. 22 Realisasi SoP

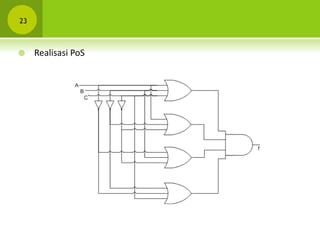

- 23. 23 Realisasi PoS

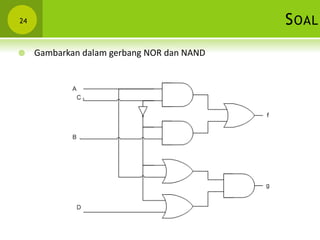

- 24. SOAL24 Gambarkan dalam gerbang NOR dan NAND

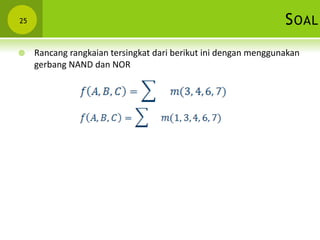

- 25. SOAL25 Rancang rangkaian tersingkat dari berikut ini dengan menggunakan gerbang NAND dan NOR
