STI 7515A Data Sheet
0 likes115 views
These polycarbonate housings are waterproof enclosures for mounting access control equipment to walls or pedestals. They come in two depths and include mounting hardware. The housings protect devices from water and temperatures from -40 to 250属F with a three-year breakage warranty on the polycarbonate material. They can be used for access control systems, electrical connections, and more.
STI 7515A Data Sheet
- 1. POLYCARBONATE PROTECTION For more information, call 1-800-888-4784 (4STI) or visit www.sti-usa.com KEY features General Information 揃 Helps solve installation problems for a variety of access control equipment. 揃 Three year guarantee against breakage of polycarbonate in normal use. Design 揃 STI-7515 has four mounting tabs allowing it to be installed on a wall. 揃 STI-7516 is designed to be installed on a mounting pedestal and includes adapter plate (SUB-318). Construction 揃 NEMA 4. 揃 Housings are water resistant to provide added protection for these important devices. Installation 揃 Mounting hardware is included. 揃 Typical working properties of polycarbonate are -40属 to 250属F (-40属 to 121属C). Options 揃 Available in two depths. STI access control housings Product Overview These waterproof, multipurpose sealed housings mount to either a wall or pedestal and are ideal for a variety of access control equipment. Molded of thick polycarbonate material which is backed by a three year guarantee against breakage in normal use. Housings are available in two depths. Back box A provides 4.25 inches of depth and back box F provides 2.0 inches of depth. HOW THEY WORK The STI-7515 has four mounting tabs allowing it to be installed on a wall. It can be used as a multipurpose electrical enclosure, connection box, etc. The STI-7516 can be installed to a mounting pedestal and is ideal for a gate entry, call switch or any electrical device configuration. STI-7515F STI-7516A

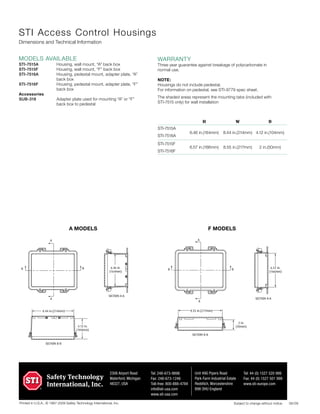

- 2. Printed in U.S.A., 息 1987-2009 Safety Technology International, Inc. 2306 Airport Road Waterford, Michigan 48327, USA Tel: 248-673-9898 Fax: 248-673-1246 Toll-free: 800-888-4784 info@sti-usa.com www.sti-usa.com Unit 49G Pipers Road Park Farm Industrial Estate Redditch, Worcestershire B98 OHU England Tel: 44 (0) 1527 520 999 Fax: 44 (0) 1527 501 999 www.sti-europe.com 06/09Subject to change without notice. warranty Three year guarantee against breakage of polycarbonate in normal use. NOTE: Housings do not include pedestal. For information on pedestal, see STI-9779 spec sheet. The shaded areas represent the mounting tabs (included with STI-7515 only) for wall installation STI Access Control Housings Dimensions and Technical Information modelS available STI-7515A Housing, wall mount, A back box STI-7515F Housing, wall mount, F back box STI-7516A Housing, pedestal mount, adapter plate, A back box STI-7516F Housing, pedestal mount, adapter plate, F back box Accessories SUB-318 Adapter plate used for mounting A or F back box to pedestal 8.44 in.(214mm) 4.12 in. (104mm) SECTION B-B 8.44 in.(214mm) 4.12 in. (104mm) SECTION B-B A A B B 6.46 in. (164mm) SECTION A-A 8.44 in.(214mm) 4.12 in. (104mm) SECTION B-B A A B B 6.46 in. (164mm) SECTION A-A 8.55 in.(217mm) 8.55 in.(217mm) 2 in. (50mm) SECTION B-B A A B B SECTION A-A 6.57 in. (166mm) A MODELS F MODELS H W D 6.46 in.(164mm) 8.44 in.(214mm) 4.12 in.(104mm) 6.57 in.(166mm) 8.55 in.(217mm) 2 in.(50mm) STI-7515A STI-7516A STI-7515F STI-7516F
