The document provides instructions for setting up and calibrating the EZ-Steer Assisted Steering System that works with the CFX-750 touchscreen display. It includes setting up options like maximum angle, engage/disengage distances, override sensitivity, and more. Vehicle measurements also need to be entered like wheelbase, antenna height and offset. The calibration wizard guides the user through entering vehicle measurements, T2 roll calibration, and EZ-Steer system calibration to complete the setup.
GUIA RAPIDA EZSTEER PARA CFX

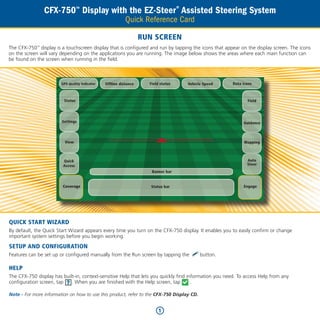

- 1. CFX-750™ Display with the EZ-Steer® Assisted Steering System Quick Reference Card RUN SCREEN The CFX-750 display is a touchscreen display that is configured and run by tapping the icons that appear on the display screen. The icons ™ on the screen will vary depending on the applications you are running. The image below shows the areas where each main function can be found on the screen when running in the field. GPS qualtiy indicator Offline distance Field status Vehicle Speed Data icons Status Field Settings Guidance View Mapping Quick Auto Access Steer Banner bar Coverage Status bar Engage QUICK START WIZARD By default, the Quick Start Wizard appears every time you turn on the CFX-750 display. It enables you to easily confirm or change important system settings before you begin working. SETUP AND CONFIGURATION Features can be set up or configured manually from the Run screen by tapping the button. HELP The CFX-750 display has built-in, context-sensitive Help that lets you quickly find information you need. To access Help from any configuration screen, tap . When you are finished with the Help screen, tap . Note - For more information on how to use this product, refer to the CFX-750 Display CD. 1

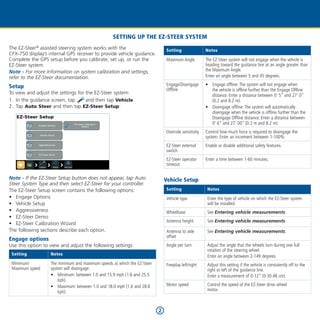

- 2. Setting up the EZ-Steer system The EZ-Steer assisted steering system works with the ® Setting Notes CFX-750 display’s internal GPS receiver to provide vehicle guidance. Complete the GPS setup before you calibrate, set up, or run the Maximum Angle The EZ-Steer system will not engage when the vehicle is EZ-Steer system. heading toward the guidance line at an angle greater than Note - For more information on system calibration and settings, the Maximum Angle. refer to the EZ-Steer documentation. Enter an angle between 5 and 45 degrees. Setup Engage/Disengage • Engage offline: The system will not engage when Offline the vehicle is offline further than the Engage Offline To view and adjust the settings for the EZ-Steer system: distance. Enter a distance between 0’ 5” and 27’ 0” 1. In the guidance screen, tap and then tap Vehicle. (0.2 and 8.2 m). 2. Tap Auto Steer and then tap EZ-Steer Setup: • Disengage offline: The system will automatically disengage when the vehicle is offline further than the Disengage Offline distance. Enter a distance between 0’ 6” and 27’ 00” (0.2 m and 8.2 m). Override sensitivity Control how much force is required to disengage the system. Enter an increment between 1-100% EZ-Steer external Enable or disable additional safety features. switch EZ-Steer operator Enter a time between 1-60 minutes. timeout Note - If the EZ-Steer Setup button does not appear, tap Auto Vehicle Setup Steer System Type and then select EZ-Steer for your controller. The EZ-Steer Setup screen contains the following options: Setting Notes • Engage Options Vehicle type Enter the type of vehicle on which the EZ-Steer system • Vehicle Setup will be installed. • Aggressiveness Wheelbase See Entering vehicle measurements. • EZ-Steer Demo Antenna height See Entering vehicle measurements. • EZ-Steer Calibration Wizard The following sections describe each option. Antenna to axle See Entering vehicle measurements. offset Engage options Use this option to view and adjust the following settings: Angle per turn Adjust the angle that the wheels turn during one full rotation of the steering wheel. Setting Notes Enter an angle between 2-149 degrees. Minimum/ The minimum and maximum speeds at which the EZ-Steer Freeplay left/right Adjust this setting if the vehicle is consistently off to the Maximum speed system will disengage: right or left of the guidance line. • Minimum: between 1.0 and 15.9 mph (1.6 and 25.5 Enter a measurement of 0-12” (0-30.48 cm). kph). • Maximum: between 1.0 and 18.0 mph (1.6 and 28.8 Motor speed Control the speed of the EZ-Steer drive wheel kph). motor. 2
- 3. Setting Notes Aggressiveness Setting Notes Motor direction is Select yes or no. reversed Online aggressiveness Control how aggressively the EZ-Steer system corrects Sprayer steering Account for time lags with vehicle steering. Enter a value deviations from the guidance line. delay between 0.1-1.5. Enter a value between 50-150%. Swather steering Account for time lags with vehicle steering. Enter a value Approach Control how fast the EZ-Steer system steers the delay between 0.1-1.5. aggressiveness vehicle onto the guidance line. Enter a value between 50-150%. calibrating the EZ-Steer system Before you begin to use the display you must calibrate the EZ-Steer 3. In the EZ-Steer Setup screen, tap EZ-Steer Calibration system. To do this, complete the Quick Start Wizard that appears Wizard. The wizard guides you through the following the first time that you use the display. processes: To view and adjust the settings for the EZ-Steer system: –– Entering your vehicle measurements 1. In the guidance screen, tap and then tap Vehicle. –– T2 roll calibration 2. Tap Auto Steer and then tap EZ-Steer Setup: –– EZ-Steer calibration Note - To complete the above processes, you must have GPS connected. Entering vehicle measurements For optimum guidance, you must take accurate vehicle measurements and enter them into the display. Note - Do not enter calibration numbers from EZ-Guide Plus or EZ-Steer T2 systems. This may cause very poor vehicle control, including swerves and/or large oscillations. To streamline the calibration process, you may want to take the vehicle measurements and record them for entry later on. The techniques for taking vehicle measurements are described below; to learn about implement measurements, see the User Guide. Before you take the measurements, position your vehicle as Note - If the EZ-Steer Setup button does not appear, tap Auto follows: Steer System Type and then select EZ-Steer for your controller. • Park the vehicle on level ground. 3
- 4. • Make sure that the vehicle is straight, with the centerline of the • Turn the vehicle around and ensure the wheels are over the body parallel to the wheels. positions marked in the previous step. • Remain stationary while the system calculates the roll offset. Take the vehicle measurements: This takes approximately 20 seconds. To measure Measure from the ... EZ-Steer calibration Wheelbase Center (the axle) of the front wheel to the center of the back In this step you must drive and engage on a straight AB line in a wheel. clear field: Note that the wheelbase measurement for: 1. Begin driving and tap . • Tracked vehicles, is exactly half of the length of the track 2. Drive 160 feet and then tap . • Articulated 4WD vehicles, is half of the distance between A series of calibration screens will allow you to adjust any the center of the front and rear wheels. settings as necessary. Antenna Ground to the top of the GPS antenna. height Antenna to Center (the axle) of the front or rear wheel to the top of the axle offset GPS antenna. Note - Make sure that you take this measurement to within 7.6 cm (3 in.) as an incorrect distance may result in poor steering performance. Take the measurement from the antenna to the correct point of your vehicle, as follows: • Rear axle: MFWD, Sprayer, Floater, Truck • Front axle: 4wd tractor, Combine • Track center: Tracked tractor If the antenna is: Note - This image represents an ideal offline distance. • in front of the axle, enter a Forward distance • behind the axle, enter a Behind distance Angle per Turn: Adjust the angle the wheels turn during one full rotation of the steering wheel. Approach Aggressiveness: Control how fast the system steers the T2 roll calibration vehicle onto the current guidance line. Calibrating the T2 roll sensor enables the display to calibrate terrain Online Aggressiveness: Control how aggressively the system compensation in the EZ-Steer controller. This step requires you to: corrects deviations from the current guidance line. • Enter an accurate value for controller orientation. Freeplay Offset: Adjust the steering if the vehicle has a greater • Park the vehicle and mark the inside of both sets of wheels. freeplay offset in one direction or the other. • Remain stationary while the system calculates the roll offset. Override Sensitivity: Control how much force is required to This takes approximately 20 seconds. disengage the system. 4

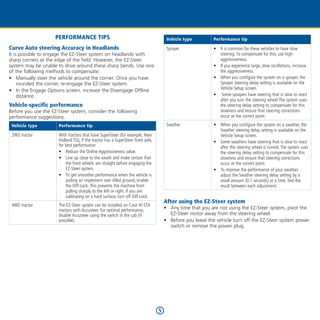

- 5. Performance Tips Vehicle type Performance tip Curve Auto steering Accuracy in Headlands Sprayer • It is common for these vehicles to have slow It is possible to engage the EZ-Steer system on headlands with steering. To compensate for this, use high sharp corners at the edge of the field. However, the EZ-Steer aggressiveness. system may be unable to drive around these sharp bends. Use one • If you experience large, slow oscillations, increase of the following methods to compensate: the aggressiveness. • Manually steer the vehicle around the corner. Once you have • When you configure the system on a sprayer, the rounded the corner, re-engage the EZ-Steer system. Sprayer steering delay setting is available on the • In the Engage Options screen, increase the Disengage Offline Vehicle Setup screen. distance. • Some sprayers have steering that is slow to react after you turn the steering wheel.The system uses Vehicle-specific performance the steering delay setting to compensate for this Before you use the EZ-Steer system, consider the following slowness and ensure that steering corrections performance suggestions. occur at the correct point. Vehicle type Performance tip Swather • When you configure the system on a swather, the Swather steering delay setting is available on the 2WD tractor With tractors that have SuperSteer (for example, New Vehicle Setup screen. Holland TG), if the tractor has a SuperSteer front axle, • Some swathers have steering that is slow to react for best performance: after the steering wheel is turned. The system uses • Reduce the Online Aggressiveness value. the steering delay setting to compensate for this • Line up close to the swath and make certain that slowness and ensure that steering corrections the front wheels are straight before engaging the occur at the correct point. EZ-Steer system. • To improve the performance of your swather, • To get smoother performance when the vehicle is adjust the Swather steering delay setting by a pulling an implement over tilled ground, enable small amount (0.1 seconds) at a time. Test the the Diff-Lock. This prevents the machine from result between each adjustment. pulling sharply to the left or right. If you are calibrating on a hard surface, turn off Diff-Lock. After using the EZ-Steer system 4WD tractor The EZ-Steer system can be installed on Case IH STX tractors with Accusteer. For optimal performance, • Any time that you are not using the EZ-Steer system, pivot the disable Accusteer using the switch in the cab (if EZ-Steer motor away from the steering wheel. possible). • Before you leave the vehicle turn off the EZ-Steer system power switch or remove the power plug. 5

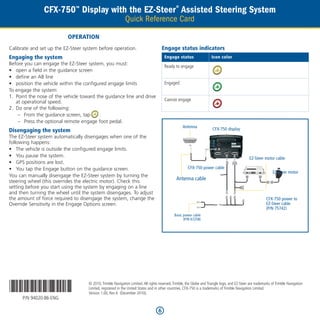

- 6. CFX-750™ Display with the EZ-Steer® Assisted Steering System Quick Reference Card Operation Calibrate and set up the EZ-Steer system before operation. Engage status indicators Engaging the system Engage status Icon color Before you can engage the EZ-Steer system, you must: Ready to engage • open a field in the guidance screen • define an AB line • position the vehicle within the configured engage limits Engaged To engage the system: 1. Point the nose of the vehicle toward the guidance line and drive at operational speed. Cannot engage 2. Do one of the following: –– From the guidance screen, tap . –– Press the optional remote engage foot pedal. Antenna Disengaging the system CFX-750 display The EZ-Steer system automatically disengages when one of the following happens: • The vehicle is outside the configured engage limits. • You pause the system. EZ-Steer motor cable • GPS positions are lost. • You tap the Engage button on the guidance screen. CFX-750 power cable EZ-Steer motor You can manually disengage the EZ-Steer system by turning the steering wheel (this overrides the electric motor). Check this Antenna cable setting before you start using the system by engaging on a line and then turning the wheel until the system disengages. To adjust the amount of force required to disengage the system, change the CFX-750 power to Override Sensitivity in the Engage Options screen. EZ-Steer cable (P/N 75742) Basic power cable (P/N 67258) *94020-86* P/N 94020-86-ENG © 2010. Trimble Navigation Limited. All rights reserved. Trimble, the Globe and Triangle logo, and EZ-Steer are trademarks of Trimble Navigation Limited, registered in the United States and in other countries. CFX-750 is a trademarks of Trimble Navigation Limited. Version 1.00, Rev A (December 2010). 6
