Addtherm tabela de resistencia ntc 10 k 3950 (1)
- 1. 5=10000立 TOLERANCE:賊1% B25/50=3950K TOLERANCE:賊1% TEMP() RESISTANCE(立) RESISST-TOL(%) TEMP-TOL() MIN CENTER MAX R R T T -55 965025.000 997466.000 1030894.000 3.351 -3.252 1.116 -1.083 -54 896851.000 926658.000 957360.000 3.313 -3.216 1.096 -1.064 -53 833889.000 861289.000 889500.000 3.275 -3.181 1.077 -1.046 -52 775716.000 800914.000 826847.000 3.237 -3.146 1.057 -1.027 -51 721942.000 745124.000 768973.000 3.200 -3.111 1.038 -1.009 -50 672212.000 693548.000 715489.000 3.163 -3.076 1.019 -0.991 -49 626199.000 645845.000 666040.000 3.126 -3.041 1.001 -0.973 -48 583608.000 601704.000 620299.000 3.090 -3.007 0.982 -0.956 -47 544164.000 560840.000 577969.000 3.054 -2.973 0.964 -0.939 -46 507620.000 522993.000 538778.000 3.018 -2.939 0.947 -0.922 -45 473747.000 487925.000 502477.000 2.982 -2.905 0.929 -0.905 -44 442334.000 455415.000 468836.000 2.946 -2.872 0.912 -0.889 -43 413192.000 425265.000 437647.000 2.911 -2.839 0.895 -0.873 -42 386142.000 397290.000 408719.000 2.876 -2.805 0.878 -0.857 -41 361024.000 371321.000 381874.000 2.841 -2.773 0.862 -0.841 -40 337690.000 347205.000 356953.000 2.807 -2.740 0.846 -0.826 -39 316003.000 324799.000 333806.000 2.773 -2.708 0.830 -0.810 -38 295838.000 303972.000 312298.000 2.739 -2.675 0.814 -0.795 -37 277081.000 284605.000 292304.000 2.705 -2.643 0.799 -0.780 -36 259625.000 266588.000 273710.000 2.671 -2.611 0.783 -0.766 -35 243373.000 249818.000 256409.000 2.638 -2.580 0.768 -0.751 -34 228235.000 234204.000 240306.000 2.605 -2.548 0.754 -0.737 -33 214129.000 219659.000 225310.000 2.572 -2.517 0.739 -0.723 -32 200980.000 206105.000 211339.000 2.539 -2.486 0.725 -0.710 -31 188717.000 193468.000 198318.000 2.507 -2.455 0.711 -0.696 -30 177275.000 181681.000 186178.000 2.475 -2.424 0.697 -0.683 -29 166596.000 170683.000 174853.000 2.443 -2.394 0.683 -0.670 -28 156624.000 160416.000 164284.000 2.411 -2.364 0.670 -0.657 -27 147308.000 150829.000 154418.000 2.379 -2.334 0.656 -0.644 -26 138602.000 141871.000 145203.000 2.348 -2.304 0.643 -0.631 -25 130463.000 133500.000 136593.000 2.317 -2.274 0.631 -0.619 -24 122850.000 125672.000 128545.000 2.286 -2.244 0.618 -0.607 -23 115727.000 118350.000 121019.000 2.255 -2.215 0.605 -0.595 -22 109060.000 111498.000 113979.000 2.225 -2.186 0.593 -0.583 -21 102817.000 105084.000 107390.000 2.194 -2.157 0.581 -0.571 -20 96968.200 99077.300 101222.000 2.164 -2.128 0.569 -0.560 -19 91487.000 93449.600 95444.600 2.134 -2.100 0.557 -0.548 MIN CENTER MAX R R T T -18 86348.300 88175.000 90031.300 2.105 -2.071 0.546 -0.537 -17 81528.900 83229.600 84957.200 2.075 -2.043 0.535 -0.526 -16 77007.100 78590.900 80199.300 2.046 -2.015 0.523 -0.515 -15 72763.000 74238.400 75736.100 2.017 -1.987 0.512 -0.505

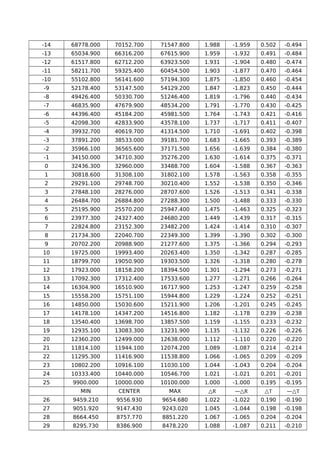

- 2. -14 68778.000 70152.700 71547.800 1.988 -1.959 0.502 -0.494 -13 65034.900 66316.200 67615.900 1.959 -1.932 0.491 -0.484 -12 61517.800 62712.200 63923.500 1.931 -1.904 0.480 -0.474 -11 58211.700 59325.400 60454.500 1.903 -1.877 0.470 -0.464 -10 55102.800 56141.600 57194.300 1.875 -1.850 0.460 -0.454 -9 52178.400 53147.500 54129.200 1.847 -1.823 0.450 -0.444 -8 49426.400 50330.700 51246.400 1.819 -1.796 0.440 -0.434 -7 46835.900 47679.900 48534.200 1.791 -1.770 0.430 -0.425 -6 44396.400 45184.200 45981.500 1.764 -1.743 0.421 -0.416 -5 42098.300 42833.900 43578.100 1.737 -1.717 0.411 -0.407 -4 39932.700 40619.700 41314.500 1.710 -1.691 0.402 -0.398 -3 37891.200 38533.000 39181.700 1.683 -1.665 0.393 -0.389 -2 35966.100 36565.600 37171.500 1.656 -1.639 0.384 -0.380 -1 34150.000 34710.300 35276.200 1.630 -1.614 0.375 -0.371 0 32436.300 32960.000 33488.700 1.604 -1.588 0.367 -0.363 1 30818.600 31308.100 31802.100 1.578 -1.563 0.358 -0.355 2 29291.100 29748.700 30210.400 1.552 -1.538 0.350 -0.346 3 27848.100 28276.000 28707.600 1.526 -1.513 0.341 -0.338 4 26484.700 26884.800 27288.300 1.500 -1.488 0.333 -0.330 5 25195.900 25570.200 25947.400 1.475 -1.463 0.325 -0.323 6 23977.300 24327.400 24680.200 1.449 -1.439 0.317 -0.315 7 22824.800 23152.300 23482.200 1.424 -1.414 0.310 -0.307 8 21734.300 22040.700 22349.300 1.399 -1.390 0.302 -0.300 9 20702.200 20988.900 21277.600 1.375 -1.366 0.294 -0.293 10 19725.000 19993.400 20263.400 1.350 -1.342 0.287 -0.285 11 18799.700 19050.900 19303.500 1.326 -1.318 0.280 -0.278 12 17923.000 18158.200 18394.500 1.301 -1.294 0.273 -0.271 13 17092.300 17312.400 17533.600 1.277 -1.271 0.266 -0.264 14 16304.900 16510.900 16717.900 1.253 -1.247 0.259 -0.258 15 15558.200 15751.100 15944.800 1.229 -1.224 0.252 -0.251 16 14850.000 15030.600 15211.900 1.206 -1.201 0.245 -0.245 17 14178.100 14347.200 14516.800 1.182 -1.178 0.239 -0.238 18 13540.400 13698.700 13857.500 1.159 -1.155 0.233 -0.232 19 12935.100 13083.300 13231.900 1.135 -1.132 0.226 -0.226 20 12360.200 12499.000 12638.000 1.112 -1.110 0.220 -0.220 21 11814.100 11944.100 12074.200 1.089 -1.087 0.214 -0.214 22 11295.300 11416.900 11538.800 1.066 -1.065 0.209 -0.209 23 10802.200 10916.100 11030.100 1.044 -1.043 0.204 -0.204 24 10333.400 10440.000 10546.700 1.021 -1.021 0.201 -0.201 25 9900.000 10000.000 10100.000 1.000 -1.000 0.195 -0.195 MIN CENTER MAX R R T T 26 9459.210 9556.930 9654.680 1.022 -1.022 0.190 -0.190 27 9051.920 9147.430 9243.020 1.045 -1.044 0.198 -0.198 28 8664.450 8757.770 8851.220 1.067 -1.065 0.204 -0.204 29 8295.730 8386.900 8478.220 1.088 -1.087 0.211 -0.210

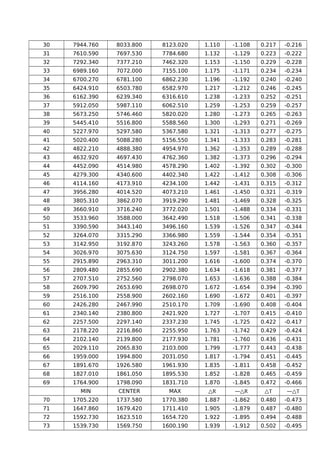

- 3. 30 7944.760 8033.800 8123.020 1.110 -1.108 0.217 -0.216 31 7610.590 7697.530 7784.680 1.132 -1.129 0.223 -0.222 32 7292.340 7377.210 7462.320 1.153 -1.150 0.229 -0.228 33 6989.160 7072.000 7155.100 1.175 -1.171 0.234 -0.234 34 6700.270 6781.100 6862.230 1.196 -1.192 0.240 -0.240 35 6424.910 6503.780 6582.970 1.217 -1.212 0.246 -0.245 36 6162.390 6239.340 6316.610 1.238 -1.233 0.252 -0.251 37 5912.050 5987.110 6062.510 1.259 -1.253 0.259 -0.257 38 5673.250 5746.460 5820.020 1.280 -1.273 0.265 -0.263 39 5445.410 5516.800 5588.560 1.300 -1.293 0.271 -0.269 40 5227.970 5297.580 5367.580 1.321 -1.313 0.277 -0.275 41 5020.400 5088.280 5156.550 1.341 -1.333 0.283 -0.281 42 4822.210 4888.380 4954.970 1.362 -1.353 0.289 -0.288 43 4632.920 4697.430 4762.360 1.382 -1.373 0.296 -0.294 44 4452.090 4514.980 4578.290 1.402 -1.392 0.302 -0.300 45 4279.300 4340.600 4402.340 1.422 -1.412 0.308 -0.306 46 4114.160 4173.910 4234.100 1.442 -1.431 0.315 -0.312 47 3956.280 4014.520 4073.210 1.461 -1.450 0.321 -0.319 48 3805.310 3862.070 3919.290 1.481 -1.469 0.328 -0.325 49 3660.910 3716.240 3772.020 1.501 -1.488 0.334 -0.331 50 3533.960 3588.000 3642.490 1.518 -1.506 0.341 -0.338 51 3390.590 3443.140 3496.160 1.539 -1.526 0.347 -0.344 52 3264.070 3315.290 3366.980 1.559 -1.544 0.354 -0.351 53 3142.950 3192.870 3243.260 1.578 -1.563 0.360 -0.357 54 3026.970 3075.630 3124.750 1.597 -1.581 0.367 -0.364 55 2915.890 2963.310 3011.200 1.616 -1.600 0.374 -0.370 56 2809.480 2855.690 2902.380 1.634 -1.618 0.381 -0.377 57 2707.510 2752.560 2798.070 1.653 -1.636 0.388 -0.384 58 2609.790 2653.690 2698.070 1.672 -1.654 0.394 -0.390 59 2516.100 2558.900 2602.160 1.690 -1.672 0.401 -0.397 60 2426.280 2467.990 2510.170 1.709 -1.690 0.408 -0.404 61 2340.140 2380.800 2421.920 1.727 -1.707 0.415 -0.410 62 2257.500 2297.140 2337.230 1.745 -1.725 0.422 -0.417 63 2178.220 2216.860 2255.950 1.763 -1.742 0.429 -0.424 64 2102.140 2139.800 2177.930 1.781 -1.760 0.436 -0.431 65 2029.110 2065.830 2103.000 1.799 -1.777 0.443 -0.438 66 1959.000 1994.800 2031.050 1.817 -1.794 0.451 -0.445 67 1891.670 1926.580 1961.930 1.835 -1.811 0.458 -0.452 68 1827.010 1861.050 1895.530 1.852 -1.828 0.465 -0.459 69 1764.900 1798.090 1831.710 1.870 -1.845 0.472 -0.466 MIN CENTER MAX R R T T 70 1705.220 1737.580 1770.380 1.887 -1.862 0.480 -0.473 71 1647.860 1679.420 1711.410 1.905 -1.879 0.487 -0.480 72 1592.730 1623.510 1654.720 1.922 -1.895 0.494 -0.488 73 1539.730 1569.750 1600.190 1.939 -1.912 0.502 -0.495
- 4. 74 1488.760 1518.040 1547.740 1.956 -1.928 0.509 -0.502 75 1439.740 1468.300 1497.280 1.973 -1.945 0.517 -0.509 76 1392.590 1420.450 1448.720 1.990 -1.961 0.525 -0.517 77 1347.220 1374.390 1401.980 2.007 -1.977 0.532 -0.524 78 1303.550 1330.070 1356.990 2.023 -1.993 0.540 -0.532 79 1261.530 1287.400 1313.670 2.040 -2.009 0.547 -0.539 80 1221.070 1246.320 1271.960 2.057 -2.025 0.555 -0.547 81 1182.120 1206.750 1231.780 2.073 -2.041 0.563 -0.554 82 1144.610 1168.640 1193.070 2.089 -2.056 0.571 -0.562 83 1108.470 1131.930 1155.770 2.106 -2.072 0.579 -0.569 84 1073.660 1096.550 1119.830 2.122 -2.088 0.586 -0.577 85 1042.600 1065.000 1087.760 2.137 -2.102 0.595 -0.585 86 1007.780 1029.600 1051.780 2.154 -2.118 0.602 -0.592 87 976.626 997.924 1019.580 2.170 -2.134 0.610 -0.600 88 946.583 967.376 988.528 2.186 -2.149 0.618 -0.608 89 917.613 937.916 958.571 2.202 -2.164 0.626 -0.616 90 889.675 909.498 929.671 2.217 -2.179 0.635 -0.624 91 862.725 882.083 901.786 2.233 -2.194 0.643 -0.631 92 836.725 855.630 874.875 2.249 -2.209 0.651 -0.639 93 811.637 830.101 848.900 2.264 -2.224 0.659 -0.647 94 787.425 805.459 823.825 2.280 -2.239 0.667 -0.655 95 764.054 781.670 799.613 2.295 -2.253 0.676 -0.663 96 741.491 758.701 776.232 2.310 -2.268 0.684 -0.672 97 719.706 736.519 753.649 2.325 -2.282 0.693 -0.680 98 698.667 715.094 731.834 2.340 -2.297 0.701 -0.688 99 678.346 694.397 710.757 2.356 -2.311 0.709 -0.696 100 658.714 674.400 690.389 2.370 -2.325 0.718 -0.704 101 639.746 655.075 670.704 2.385 -2.340 0.727 -0.713 102 621.417 636.398 651.676 2.400 -2.354 0.735 -0.721 103 603.701 618.345 633.280 2.415 -2.368 0.744 -0.729 104 586.576 600.890 615.492 2.430 -2.382 0.752 -0.738 105 570.019 584.013 598.290 2.444 -2.396 0.761 -0.746 106 554.009 567.690 581.651 2.459 -2.409 0.770 -0.754 107 538.526 551.902 565.554 2.473 -2.423 0.779 -0.763 108 523.550 536.629 549.981 2.487 -2.437 0.788 -0.771 109 509.062 521.852 534.910 2.502 -2.450 0.796 -0.780 110 495.043 507.552 520.325 2.516 -2.464 0.805 -0.789 111 481.478 493.712 506.207 2.530 -2.478 0.814 -0.797 112 468.349 480.316 492.539 2.544 -2.491 0.823 -0.806 113 455.640 467.346 479.305 2.558 -2.504 0.832 -0.815 MIN CENTER MAX R R T T 114 443.336 454.788 466.489 2.572 -2.518 0.841 -0.823 115 431.423 442.627 454.076 2.586 -2.531 0.850 -0.832 116 419.886 430.848 442.053 2.600 -2.544 0.860 -0.841 117 408.711 419.438 430.404 2.614 -2.557 0.869 -0.850

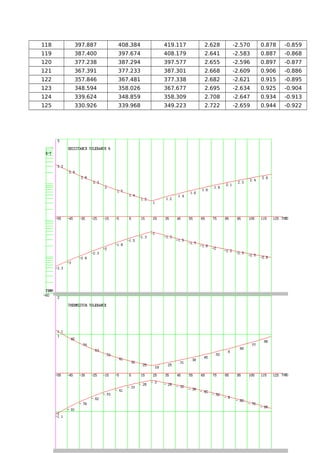

- 5. 118 397.887 408.384 419.117 2.628 -2.570 0.878 -0.859 119 387.400 397.674 408.179 2.641 -2.583 0.887 -0.868 120 377.238 387.294 397.577 2.655 -2.596 0.897 -0.877 121 367.391 377.233 387.301 2.668 -2.609 0.906 -0.886 122 357.846 367.481 377.338 2.682 -2.621 0.915 -0.895 123 348.594 358.026 367.677 2.695 -2.634 0.925 -0.904 124 339.624 348.859 358.309 2.708 -2.647 0.934 -0.913 125 330.926 339.968 349.223 2.722 -2.659 0.944 -0.922
