Advance pipe stress analysis
0 likes277 views
This post graduate diploma focuses on advanced pipe stress analysis through both theoretical and practical application. The course is composed of two parts, the first discussing fundamentals of pipe stress analysis and the second focusing on using the CAESAR II software to build piping models and interpret outputs. Topics covered include stress theory, piping codes, load cases, support design, and modeling practices. Upon completion, piping engineers will be able to independently perform stress analysis, design, layout, and construction according to international codes.
Advance pipe stress analysis
- 1. Post Graduate Diploma in 'ADVANCED PIPE STRESS ANALYSIS' This Course is composed of two parts: The first part discusses the fundamentals of Advance Pipe Stress Analysis with an emphasis on piping systems. The second part focuses on the practical application of piping stress analysis using computer programs "CAESAR II" to build piping system models and interpret the output. Eligibility: Fresh/ Experienced - Diploma Degree in Mechanical/Chemical Engineering with Piping Knowledge. Key Point of Syllabus Introduction to: Basic stress concept Role of Stress Engineer Detailed Study of : Basic stress strain theory Concept of stress range Code of compliance for ASME B31.3 Different type & functions of pipe supply Design system for sustain, expansion & occasional loading Preparing stress critical line list Stress system formation Column- Heat exchanger model. WRC ¨C 107 analysis Theory of load case generation/PSV force calculation / Slug force Rupture disk calculation/ Support span calculation Nomograph Pipe rack analysis Brief Study of : Use of vendor data in design Various documents required for plant design Basic Information on welding, its testing and inspection Preparation of : Critical systems viz.: Compressor; Pump; Column etc CAESAR : Verview of Caesar II version 5.0 softwaret Basic of spring/expansion joints Modeling procedure in CAESAR Modeling practice (Demo Version)

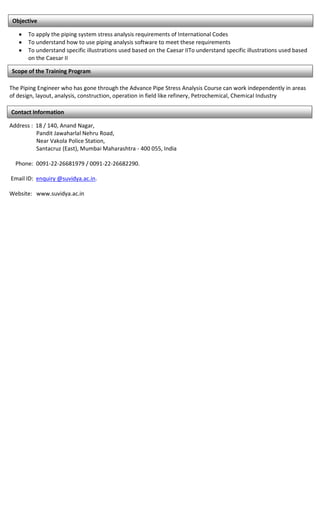

- 2. Objective To apply the piping system stress analysis requirements of International Codes To understand how to use piping analysis software to meet these requirements To understand specific illustrations used based on the Caesar IITo understand specific illustrations used based on the Caesar II Scope of the Training Program The Piping Engineer who has gone through the Advance Pipe Stress Analysis Course can work independently in areas of design, layout, analysis, construction, operation in field like refinery, Petrochemical, Chemical Industry Contact Information Address : 18 / 140, Anand Nagar, Pandit Jawaharlal Nehru Road, Near Vakola Police Station, Santacruz (East), Mumbai Maharashtra - 400 055, India Phone: 0091-22-26681979 / 0091-22-26682290. Email ID: enquiry @suvidya.ac.in. Website: www.suvidya.ac.in
