Presented by Danish Yousuf
Roll.No. 18054110021
B.Pharm 4th year
Department of pharmaceutical sciences
University of kashmir

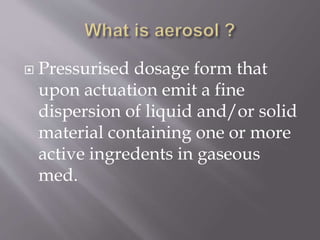

 Pressurised dosage form that
upon actuation emit a fine
dispersion of liquid and/or solid
material containing one or more
active ingredents in gaseous
med.

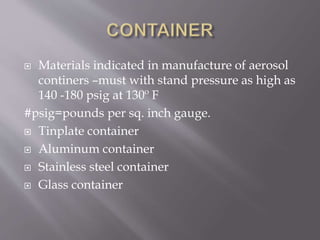

 Materials indicated in manufacture of aerosol
continers –must with stand pressure as high as
140 -180 psig at 130º F
#psig=pounds per sq. inch gauge.
 Tinplate container
 Aluminum container
 Stainless steel container
 Glass container

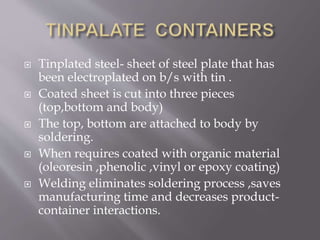

 Tinplated steel- sheet of steel plate that has
been electroplated on b/s with tin .
 Coated sheet is cut into three pieces
(top,bottom and body)
 The top, bottom are attached to body by
soldering.
 When requires coated with organic material
(oleoresin ,phenolic ,vinyl or epoxy coating)
 Welding eliminates soldering process ,saves
manufacturing time and decreases product-
container interactions.

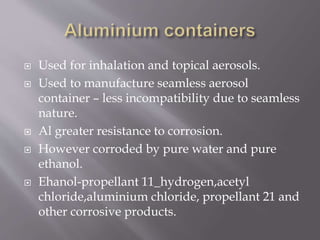

 Used for inhalation and topical aerosols.
 Used to manufacture seamless aerosol
container – less incompatibility due to seamless
nature.
 Al greater resistance to corrosion.
 However corroded by pure water and pure
ethanol.
 Ehanol-propellant 11_hydrogen,acetyl
chloride,aluminium chloride, propellant 21 and
other corrosive products.

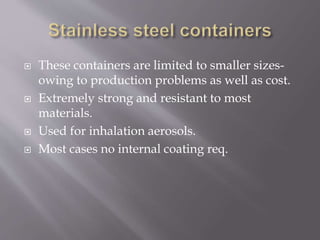

 These containers are limited to smaller sizes-
owing to production problems as well as cost.
 Extremely strong and resistant to most
materials.
 Used for inhalation aerosols.
 Most cases no internal coating req.

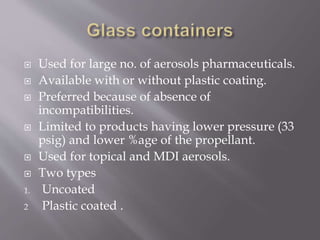

 Used for large no. of aerosols pharmaceuticals.
 Available with or without plastic coating.
 Preferred because of absence of
incompatibilities.
 Limited to products having lower pressure (33
psig) and lower %age of the propellant.
 Used for topical and MDI aerosols.
 Two types
1. Uncoated
2 Plastic coated .

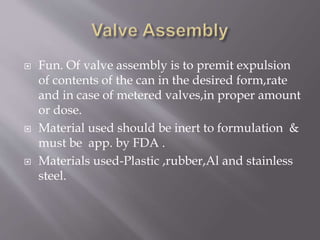

 Fun. Of valve assembly is to premit expulsion
of contents of the can in the desired form,rate
and in case of metered valves,in proper amount
or dose.
 Material used should be inert to formulation &
must be app. by FDA .
 Materials used-Plastic ,rubber,Al and stainless
steel.

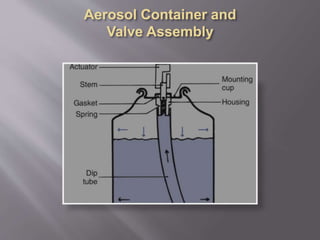

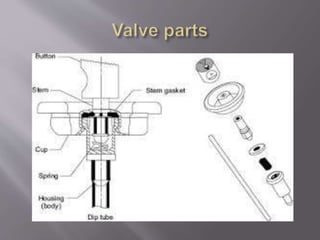

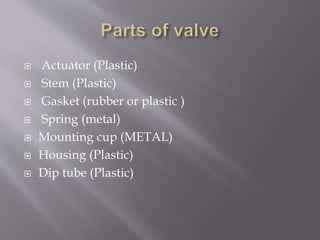

 Actuator (Plastic)
 Stem (Plastic)
 Gasket (rubber or plastic )
 Spring (metal)
 Mounting cup (METAL)
 Housing (Plastic)
 Dip tube (Plastic)
