Analyzing Population Structure using CNV

In this example, we analyzed the population structure using copy number variation data from the
HapMap samples (PMID 19812545). There were 313 samples and over 5000 CNV (copy number
variations) regions. The samples comprised of��European, African or East Asian ancestry. A dot text ﬁle
containing samples as rows and CNV regions as columns were fed into Iris and an automated
topological analysis�� was performed on the data set. Using a primary and secondary PCA lens and a
correlation metric, we were able to separate samples according to their ancestry using��CNV regions into
discrete networks.

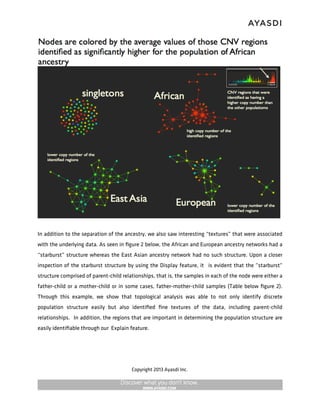

To understand what CNV regions best discriminate these population networks, we can use our
statistical feature Explain to identify those CNV regions. CNV regions that diﬀerentiate the population
of African, European and East Asian ancestries are found in the Tables 1a,b and c. Using the feature
Data Field (Average), we colored the nodes by the values of those CNV regions identiﬁed as being high
in the African ancestry.

Copyright 2013 Ayasdi Inc.

In addition to the separation of the ancestry, we also saw interesting “textures” that were associated
with the underlying data. As seen in ﬁgure 2 below, the African and European ancestry networks had a
“starburst” structure whereas the�� East Asian ancestry network had no such structure. Upon a closer

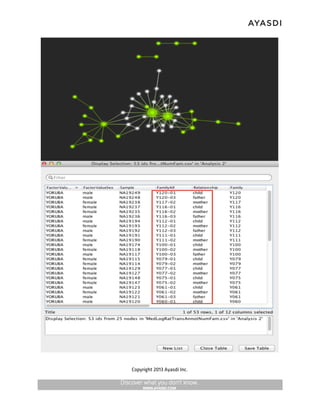

inspection of the starburst structure by using the Display feature, it �� is evident that the�� ”starburst”
structure comprised of parent-child relationships, that is, the samples in each of the node were either a
father-child or a mother-child or in some cases, father-mother-child samples (Table below ﬁgure 2).
Through this example, we show that topological analysis was able to not only identify discrete
population structure easily but also identiﬁed ﬁne textures of the data, including parent-child
relationships. ��In addition, the regions that are important in determining the population structure are
easily identiﬁable through our Explain feature.

Copyright 2013 Ayasdi Inc.
