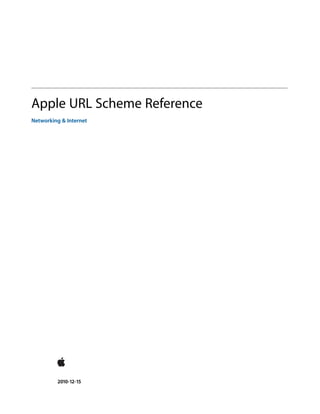

Apple URL Scheme Reference
Networking & Internet

2010-12-15

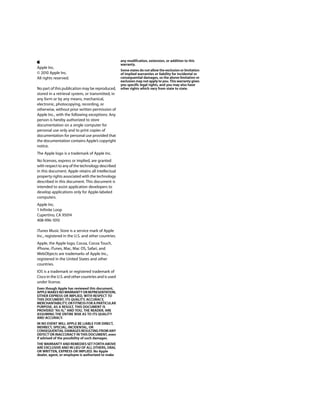

any modification, extension, or addition to this
warranty.
Apple Inc.
Some states do not allow the exclusion or limitation
© 2010 Apple Inc. of implied warranties or liability for incidental or
All rights reserved. consequential damages, so the above limitation or
exclusion may not apply to you. This warranty gives
you specific legal rights, and you may also have
No part of this publication may be reproduced, other rights which vary from state to state.
stored in a retrieval system, or transmitted, in
any form or by any means, mechanical,
electronic, photocopying, recording, or
otherwise, without prior written permission of
Apple Inc., with the following exceptions: Any
person is hereby authorized to store
documentation on a single computer for
personal use only and to print copies of
documentation for personal use provided that
the documentation contains Apple’s copyright
notice.
The Apple logo is a trademark of Apple Inc.
No licenses, express or implied, are granted
with respect to any of the technology described
in this document. Apple retains all intellectual
property rights associated with the technology
described in this document. This document is
intended to assist application developers to
develop applications only for Apple-labeled
computers.
Apple Inc.
1 Infinite Loop
Cupertino, CA 95014
408-996-1010

iTunes Music Store is a service mark of Apple
Inc., registered in the U.S. and other countries.
Apple, the Apple logo, Cocoa, Cocoa Touch,
iPhone, iTunes, Mac, Mac OS, Safari, and
WebObjects are trademarks of Apple Inc.,
registered in the United States and other
countries.
IOS is a trademark or registered trademark of
Cisco in the U.S. and other countries and is used
under license.
Even though Apple has reviewed this document,
APPLE MAKES NO WARRANTY OR REPRESENTATION,
EITHER EXPRESS OR IMPLIED, WITH RESPECT TO
THIS DOCUMENT, ITS QUALITY, ACCURACY,
MERCHANTABILITY, OR FITNESS FOR A PARTICULAR
PURPOSE. AS A RESULT, THIS DOCUMENT IS
PROVIDED “AS IS,” AND YOU, THE READER, ARE
ASSUMING THE ENTIRE RISK AS TO ITS QUALITY
AND ACCURACY.
IN NO EVENT WILL APPLE BE LIABLE FOR DIRECT,
INDIRECT, SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES RESULTING FROM ANY
DEFECT OR INACCURACY IN THIS DOCUMENT, even
if advised of the possibility of such damages.
THE WARRANTY AND REMEDIES SET FORTH ABOVE
ARE EXCLUSIVE AND IN LIEU OF ALL OTHERS, ORAL
OR WRITTEN, EXPRESS OR IMPLIED. No Apple
dealer, agent, or employee is authorized to make

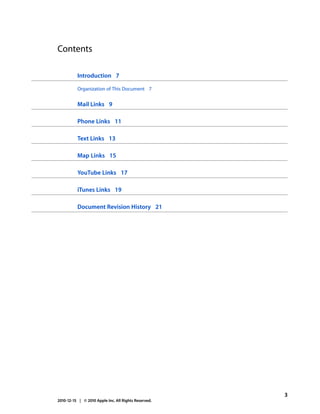

Contents

Introduction 7

Organization of This Document 7

Mail Links 9

Phone Links 11

Text Links 13

Map Links 15

YouTube Links 17

iTunes Links 19

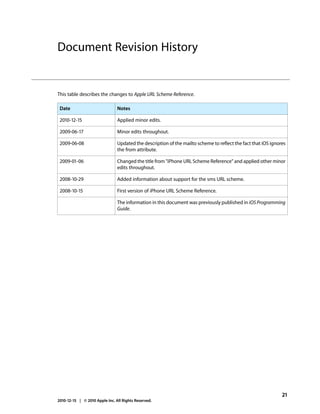

Document Revision History 21

3
2010-12-15 | © 2010 Apple Inc. All Rights Reserved.

4

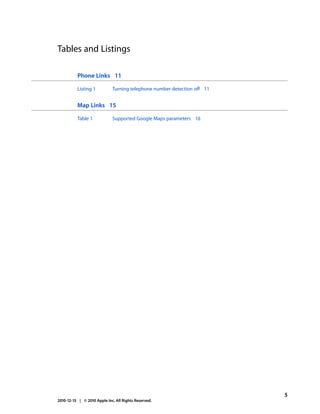

Tables and Listings

Phone Links 11

Listing 1 Turning telephone number detection off 11

Map Links 15

Table 1 Supported Google Maps parameters 16

5

6

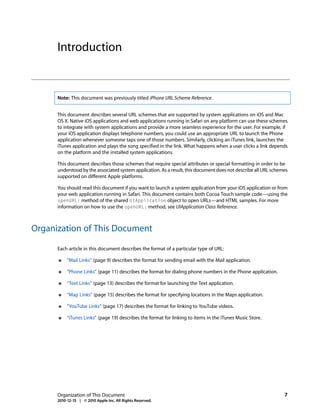

Introduction

Note: This document was previously titled iPhone URL Scheme Reference.

This document describes several URL schemes that are supported by system applications on iOS and Mac
OS X. Native iOS applications and web applications running in Safari on any platform can use these schemes
to integrate with system applications and provide a more seamless experience for the user. For example, if
your iOS application displays telephone numbers, you could use an appropriate URL to launch the Phone
application whenever someone taps one of those numbers. Similarly, clicking an iTunes link, launches the
iTunes application and plays the song specified in the link. What happens when a user clicks a link depends
on the platform and the installed system applications.

This document describes those schemes that require special attributes or special formatting in order to be
understood by the associated system application. As a result, this document does not describe all URL schemes
supported on different Apple platforms.

You should read this document if you want to launch a system application from your iOS application or from
your web application running in Safari. This document contains both Cocoa Touch sample code—using the
openURL: method of the shared UIApplication object to open URLs—and HTML samples. For more
information on how to use the openURL: method, see UIApplication Class Reference.

Organization of This Document

Each article in this document describes the format of a particular type of URL:

● “Mail Links” (page 9) describes the format for sending email with the Mail application.

● “Phone Links” (page 11) describes the format for dialing phone numbers in the Phone application.

● “Text Links” (page 13) describes the format for launching the Text application.

● “Map Links” (page 15) describes the format for specifying locations in the Maps application.

● “YouTube Links” (page 17) describes the format for linking to YouTube videos.

● “iTunes Links” (page 19) describes the format for linking to items in the iTunes Music Store.

Organization of This Document 7

Introduction

8 Organization of This Document

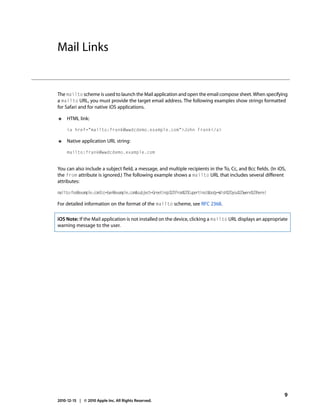

Mail Links

The mailto scheme is used to launch the Mail application and open the email compose sheet. When specifying
a mailto URL, you must provide the target email address. The following examples show strings formatted
for Safari and for native iOS applications.

● HTML link:

<a href="mailto:frank@wwdcdemo.example.com">John Frank</a>

● Native application URL string:

mailto:frank@wwdcdemo.example.com

You can also include a subject field, a message, and multiple recipients in the To, Cc, and Bcc fields. (In iOS,
the from attribute is ignored.) The following example shows a mailto URL that includes several different
attributes:

mailto:foo@example.com?cc=bar@example.com&subject=Greetings%20from%20Cupertino!&body=Wish%20you%20were%20here!

For detailed information on the format of the mailto scheme, see RFC 2368.

iOS Note: If the Mail application is not installed on the device, clicking a mailto URL displays an appropriate
warning message to the user.

9

Mail Links

10

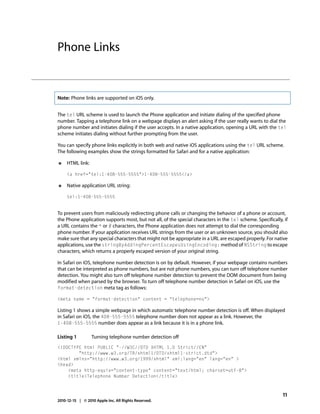

Phone Links

Note: Phone links are supported on iOS only.

The tel URL scheme is used to launch the Phone application and initiate dialing of the specified phone
number. Tapping a telephone link on a webpage displays an alert asking if the user really wants to dial the
phone number and initiates dialing if the user accepts. In a native application, opening a URL with the tel
scheme initiates dialing without further prompting from the user.

You can specify phone links explicitly in both web and native iOS applications using the tel URL scheme.
The following examples show the strings formatted for Safari and for a native application:

● HTML link:

<a href="tel:1-408-555-5555">1-408-555-5555</a>


tel:1-408-555-5555

To prevent users from maliciously redirecting phone calls or changing the behavior of a phone or account,
the Phone application supports most, but not all, of the special characters in the tel scheme. Specifically, if
a URL contains the * or # characters, the Phone application does not attempt to dial the corresponding
phone number. If your application receives URL strings from the user or an unknown source, you should also
make sure that any special characters that might not be appropriate in a URL are escaped properly. For native
applications, use the stringByAddingPercentEscapesUsingEncoding: method of NSString to escape
characters, which returns a properly escaped version of your original string.

In Safari on iOS, telephone number detection is on by default. However, if your webpage contains numbers
that can be interpreted as phone numbers, but are not phone numbers, you can turn off telephone number
detection. You might also turn off telephone number detection to prevent the DOM document from being
modified when parsed by the browser. To turn off telephone number detection in Safari on iOS, use the
format-detection meta tag as follows:

<meta name = "format-detection" content = "telephone=no">

Listing 1 shows a simple webpage in which automatic telephone number detection is off. When displayed
in Safari on iOS, the 408-555-5555 telephone number does not appear as a link. However, the
1-408-555-5555 number does appear as a link because it is in a phone link.

Listing 1 Turning telephone number detection off
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd">
<html xmlns="http://www.w3.org/1999/xhtml" xml:lang="en" lang="en" >
<head>
<meta http-equiv="content-type" content="text/html; charset=utf-8">
<title>Telephone Number Detection</title>

11

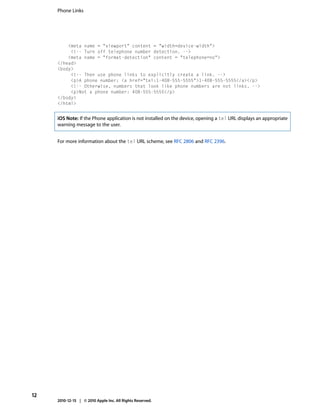

Phone Links

<meta name = "viewport" content = "width=device-width">

<meta name = "format-detection" content = "telephone=no">
</head>
<body>

<p>A phone number: <a href="tel:1-408-555-5555">1-408-555-5555</a></p>

<p>Not a phone number: 408-555-5555</p>
</body>
</html>

iOS Note: If the Phone application is not installed on the device, opening a tel URL displays an appropriate

For more information about the tel URL scheme, see RFC 2806 and RFC 2396.

12

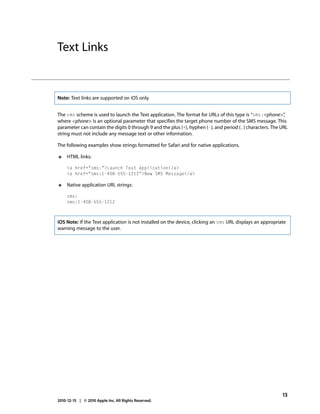

Text Links

Note: Text links are supported on iOS only.

The sms scheme is used to launch the Text application. The format for URLs of this type is “sms:<phone>” ,
where <phone> is an optional parameter that specifies the target phone number of the SMS message. This
parameter can contain the digits 0 through 9 and the plus (+), hyphen (-), and period (.) characters. The URL
string must not include any message text or other information.

The following examples show strings formatted for Safari and for native applications.

● HTML links:

<a href="sms:">Launch Text Application</a>
<a href="sms:1-408-555-1212">New SMS Message</a>

● Native application URL strings:

sms:
sms:1-408-555-1212

iOS Note: If the Text application is not installed on the device, clicking an sms URL displays an appropriate

13

Text Links

14

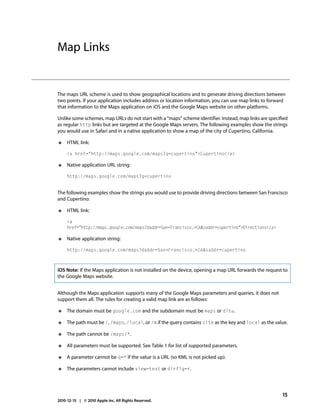

Map Links

The maps URL scheme is used to show geographical locations and to generate driving directions between
two points. If your application includes address or location information, you can use map links to forward
that information to the Maps application on iOS and the Google Maps website on other platforms.

Unlike some schemes, map URLs do not start with a “maps” scheme identifier. Instead, map links are specified
as regular http links but are targeted at the Google Maps servers. The following examples show the strings
you would use in Safari and in a native application to show a map of the city of Cupertino, California.

● HTML link:

<a href="http://maps.google.com/maps?q=cupertino">Cupertino</a>


http://maps.google.com/maps?q=cupertino

The following examples show the strings you would use to provide driving directions between San Francisco
and Cupertino:

● HTML link:

<a
href="http://maps.google.com/maps?daddr=San+Francisco,+CA&saddr=cupertino">Directions</a>

● Native application string:

http://maps.google.com/maps?daddr=San+Francisco,+CA&saddr=cupertino

iOS Note: If the Maps application is not installed on the device, opening a map URL forwards the request to
the Google Maps website.

Although the Maps application supports many of the Google Maps parameters and queries, it does not
support them all. The rules for creating a valid map link are as follows:

● The domain must be google.com and the subdomain must be maps or ditu.

● The path must be /, /maps, /local, or /m if the query contains site as the key and local as the value.

● The path cannot be /maps/*.

● All parameters must be supported. See Table 1 for list of supported parameters.

● A parameter cannot be q=* if the value is a URL (so KML is not picked up).

● The parameters cannot include view=text or dirflg=r.

15

Map Links

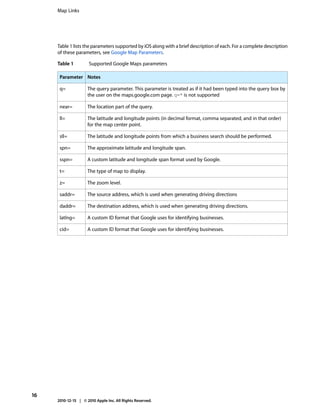

Table 1 lists the parameters supported by iOS along with a brief description of each. For a complete description
of these parameters, see Google Map Parameters.

Table 1 Supported Google Maps parameters

Parameter Notes

q= The query parameter. This parameter is treated as if it had been typed into the query box by
the user on the maps.google.com page. q=* is not supported

near= The location part of the query.

ll= The latitude and longitude points (in decimal format, comma separated, and in that order)
for the map center point.

sll= The latitude and longitude points from which a business search should be performed.

spn= The approximate latitude and longitude span.

sspn= A custom latitude and longitude span format used by Google.

t= The type of map to display.

z= The zoom level.

saddr= The source address, which is used when generating driving directions

daddr= The destination address, which is used when generating driving directions.

latlng= A custom ID format that Google uses for identifying businesses.

cid= A custom ID format that Google uses for identifying businesses.

16

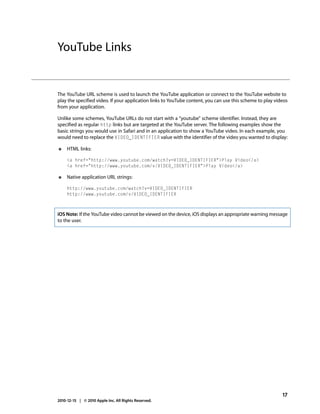

YouTube Links

The YouTube URL scheme is used to launch the YouTube application or connect to the YouTube website to
play the specified video. If your application links to YouTube content, you can use this scheme to play videos
from your application.

Unlike some schemes, YouTube URLs do not start with a “youtube” scheme identifier. Instead, they are
specified as regular http links but are targeted at the YouTube server. The following examples show the
basic strings you would use in Safari and in an application to show a YouTube video. In each example, you
would need to replace the VIDEO_IDENTIFIER value with the identifier of the video you wanted to display:

● HTML links:

<a href="http://www.youtube.com/watch?v=VIDEO_IDENTIFIER">Play Video</a>
<a href="http://www.youtube.com/v/VIDEO_IDENTIFIER">Play Video</a>

● Native application URL strings:

http://www.youtube.com/watch?v=VIDEO_IDENTIFIER
http://www.youtube.com/v/VIDEO_IDENTIFIER

iOS Note: If the YouTube video cannot be viewed on the device, iOS displays an appropriate warning message
to the user.

17

YouTube Links

18

iTunes Links

The iTunes URL scheme is used to link to content on the iTunes Music Store. The iTunes URL format is
complicated to construct, so you create it using an online tool called iTunes Link Maker. The tool allows you
to select a country destination and media type, and then search by song, album, or artist. After you select
the item you want to link to, it generates the corresponding URL.

The following examples show the strings you would use in Safari and in a native iOS application to link to a
song on the iTunes Music Store. The HTML example includes the complete link returned by the iTunes Link
Maker tool, which includes a link to any appropriate artwork for the target link.

● HTML link:

<a
href="http://phobos.apple.com/WebObjects/MZStore.woa/wa/viewAlbum?i=156093464&id=156093462&s=143441">
<img height="15" width="61" alt="Randy Newman - Toy Story
- You've Got a Friend In Me"
src=/slideshow/apple-url-scheme-reference/13738030/"http:/ax.phobos.apple.com.edgesuite.net/images/
badgeitunes61x15dark.gif"></img>
</a>


http://phobos.apple.com/WebObjects/MZStore.woa/wa/viewAlbum?i=156093464&id=156093462&s=143441

For more information on creating iTunes links, see iTunes Link Maker FAQ. That webpage contains a link to
the iTunes Link Maker tool.

19

iTunes Links

20

Document Revision History

This table describes the changes to Apple URL Scheme Reference.

Date Notes

2010-12-15 Applied minor edits.

2009-06-17 Minor edits throughout.

2009-06-08 Updated the description of the mailto scheme to reflect the fact that iOS ignores
the from attribute.

2009-01-06 Changed the title from "iPhone URL Scheme Reference" and applied other minor
edits throughout.

2008-10-29 Added information about support for the sms URL scheme.

2008-10-15 First version of iPhone URL Scheme Reference.

The information in this document was previously published in iOS Programming
Guide.

21

Document Revision History

22

�ݺ�ߣ

Apple url scheme reference

Recommended

More Related Content

Similar to Apple url scheme reference (20)

Recently uploaded (20)

Apple url scheme reference
