Armature reaction

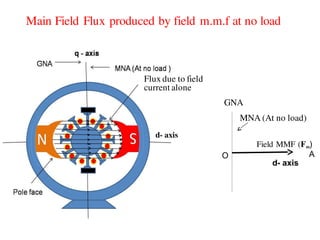

- 1. Field MMF (Fm) A d- axis O Flux due to field current alone GNA MNA (At no load) Main Field Flux produced by field m.m.f at no load d- axis

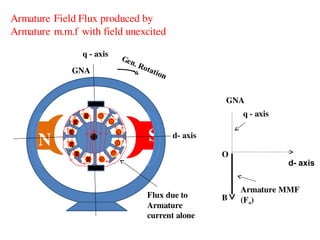

- 2. N S O d- axis Armature MMF (Fa) q - axis GNA BFlux due to Armature current alone d- axis Armature Field Flux produced by Armature m.m.f with field unexcited q - axis GNA

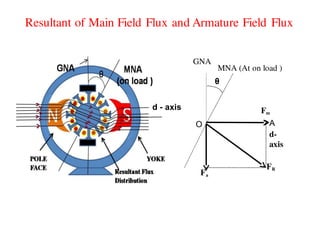

- 3. d - axis Fa m A d- axis F GNA MNA (At on load ) O FR θ Resultant of Main Field Flux and Armature Field Flux

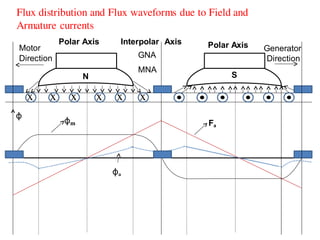

- 4. Generator Direction x x x x x x N S Polar Axis Interpolar Axis GNA MNA Polar AxisMotor Direction Bm Fa Ba ϕ Flux distribution and Flux waveforms due to Field and Armature currents ϕm ϕa

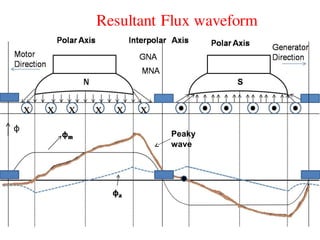

- 5. Peaky wave Mmf & B Resultant Flux waveform ϕ

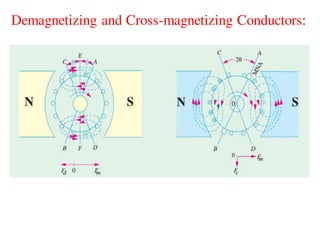

- 6. Demagnetizing and Cross-magnetizing Conductors:

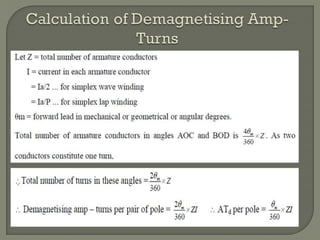

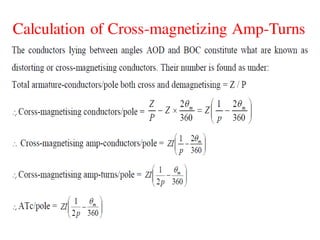

- 8. Calculation of Cross-magnetizing Amp-Turns
