engine
- 1. MAKTAB KEJURUTERAAN JEFRI BOLKIAH

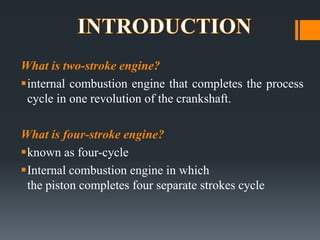

- 4. What is two-stroke engine? ?internal combustion engine that completes the process cycle in one revolution of the crankshaft. What is four-stroke engine? ?known as four-cycle ?Internal combustion engine in which the piston completes four separate strokes cycle

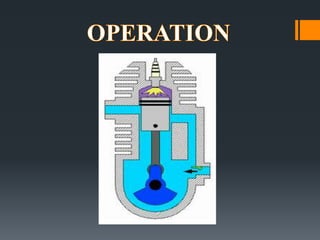

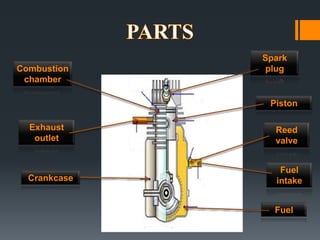

- 6. Spark Combustion plug chamber Piston Exhaust Reed outlet valve Fuel Crankcase intake Fuel

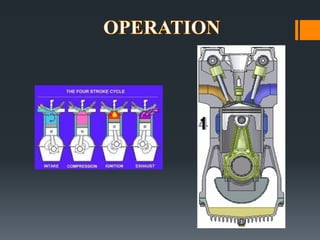

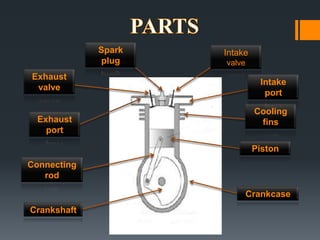

- 9. Spark Intake plug valve Exhaust Intake valve port Cooling Exhaust fins port Piston Connecting rod Crankcase Crankshaft
- 11. ?Do not have valves, simplifying their construction. ?Fire once every revolution. ?Lighter, and cost less to manufacture. ?Potential for about twice the power in the same size

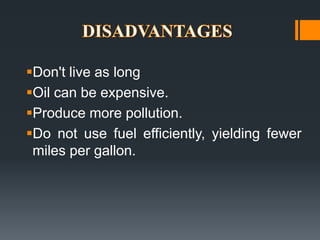

- 12. ?Don't live as long ?Oil can be expensive. ?Produce more pollution. ?Do not use fuel efficiently, yielding fewer miles per gallon.
Editor's Notes
- #5: Internal combustion engine in which the?piston?completes four separate strokes cycle which include:-Intake CompressionPower exhaust
- #8: "Stroke" refers to the movement of the piston in the engine.2 Stroke means one stroke in each direction.??A 2 stoke engine will have a compression stroke followed by an explosion of the compressed fuel.
- #11: One compression stroke and one exhaust stoke.Distributor that supplies a spark to the cylinder only when its piston is near TDC on the fuel compression stroke.TDC (Top dead center)
- #12: Two-stroke engines fire once every revolution.?(four-stroke engines fire once every other revolution).Potential for about twice the power in the same size because there are twice as many power strokes per revolution.
