B636 Project storyboard
•
0 likes•134 views
This document provides a monthly project storyboard for the B636 Phase 1 project from June 2016. It consists of over 30 photos documenting the progression of construction from the initial site work and building structure through interior construction and installation of production equipment. The final photos show the completed expanded facility with finished mechanical and process systems in place.
B636 Project storyboard
- 1. June 2016 B636 Phase 1 Project Storyboard

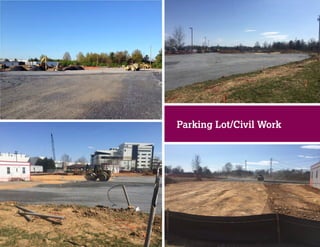

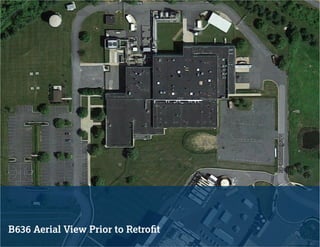

- 2. B636 Aerial View Prior to Retrofit

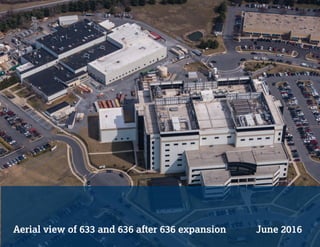

- 3. Aerial view of 633 and 636 after 636 expansion June 2016

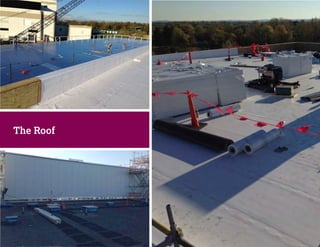

- 11. The Roof

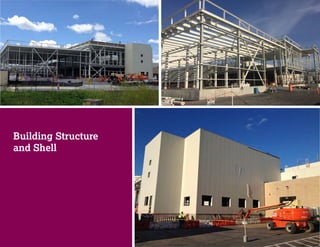

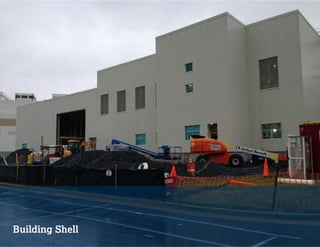

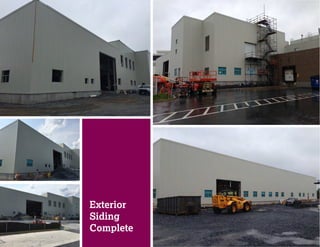

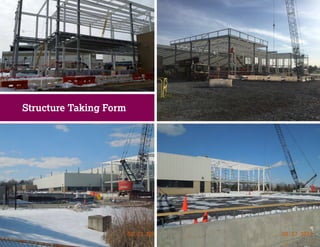

- 14. Building Shell

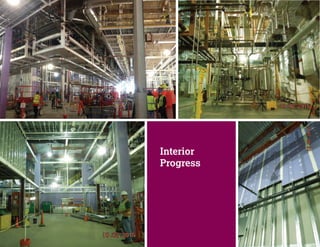

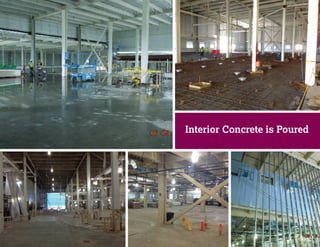

- 17. Interior Concrete is Poured

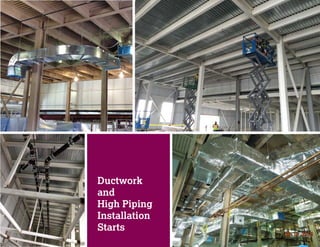

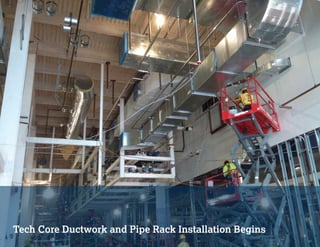

- 18. Tech Core Ductwork and Pipe Rack Installation Begins

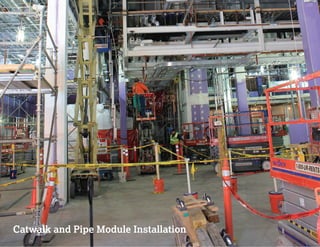

- 23. Catwalk and Pipe Module Installation

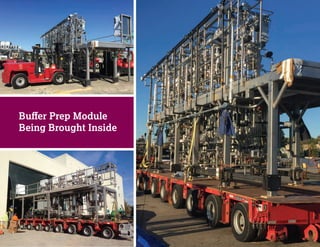

- 25. Buffer Prep Module Being Brought Inside

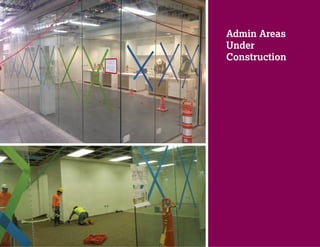

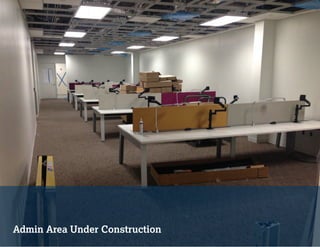

- 27. Admin Area Under Construction

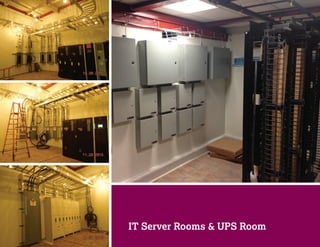

- 30. IT Server Rooms & UPS Room

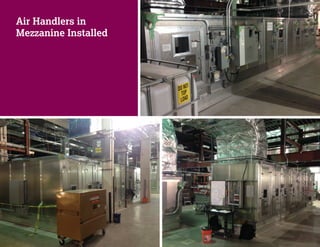

- 31. Air Handlers in Mezzanine Installed

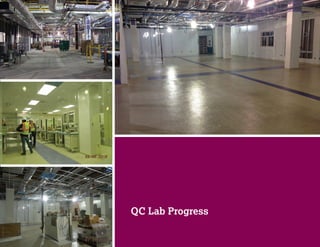

- 32. QC Lab Progress

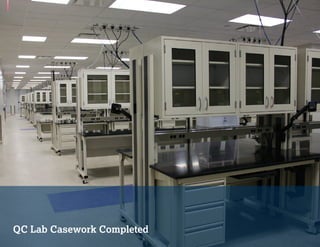

- 33. QC Lab Casework Completed

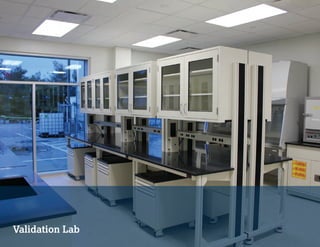

- 34. Validation Lab

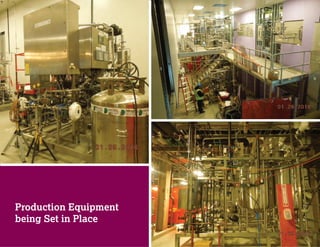

- 35. Production Equipment being Set in Place

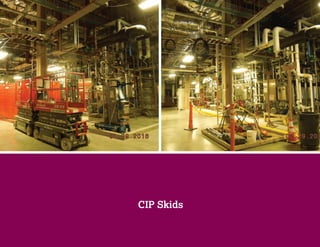

- 36. CIP Skids

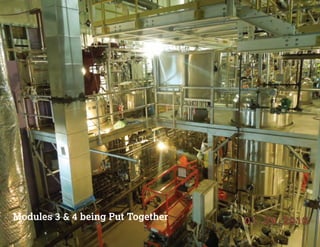

- 37. Modules 3 & 4 being Put Together

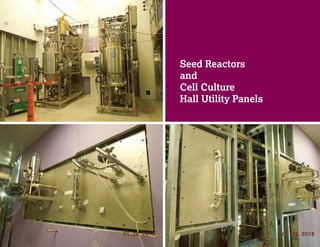

- 38. Seed Reactors and Cell Culture Hall Utility Panels

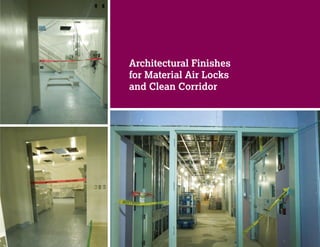

- 41. Architectural Finishes for Material Air Locks and Clean Corridor

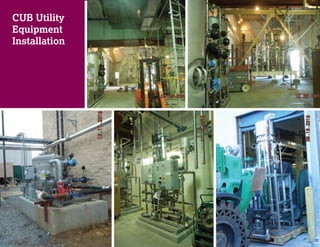

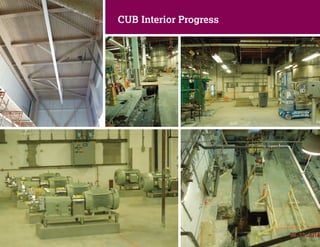

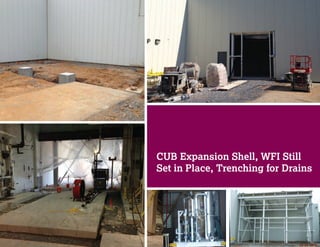

- 43. CUB Expansion Shell, WFI Still Set in Place, Trenching for Drains

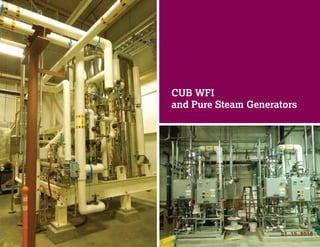

- 46. CUB WFI and Pure Steam Generators

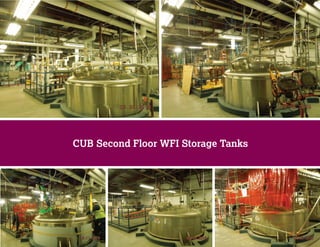

- 47. CUB Second Floor WFI Storage Tanks

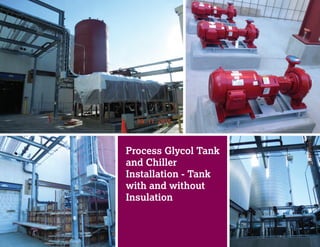

- 49. Process Glycol Tank and Chiller Installation - Tank with and without Insulation

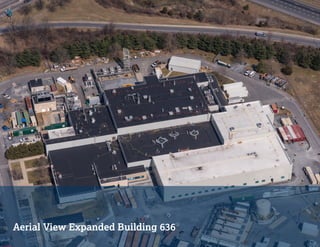

- 50. Aerial View Expanded Building 636

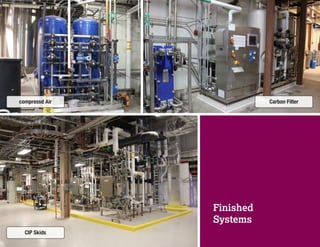

- 51. Finished Systems compressd Air Carbon Filter CIP Skids

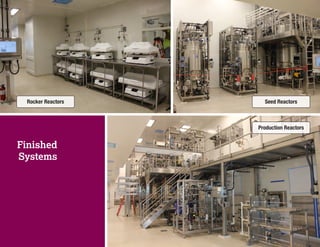

- 52. Finished Systems Rocker Reactors Seed Reactors Production Reactors

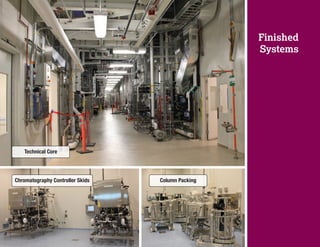

- 53. Finished Systems Technical Core Column PackingChromatography Controller Skids
