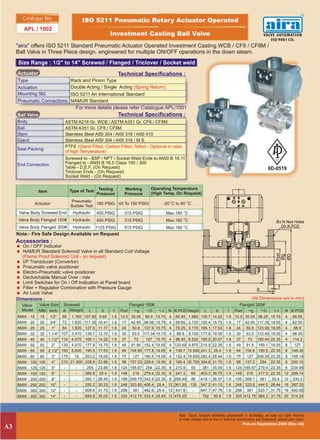

- 1. Catalogue No. ISO 5211 Pneumatic Rotary Actuator Operated APL / 1002 Investment Casting Ball Valve "aira" offers ISO 5211 Standard Pneumatic Actuator Operated Investment Casting WCB / CF8 / CF8M / Ball Valve in Three Piece design. engineered for multiple ON/OFF operations in the down steam. Size Range : 1/2" to 14" Screwed / Flanged / Triclover / Socket weld Actuator Technical Specifications : Type Rack and Pinion Type Actuation Double Acting / Single Acting (Spring Return) Mounting Std. ISO 5211 An International Standard Pneumatic Connections NAMUR Standard For more details please refer Catalogue APL/1001 Ball Valve Technical Specifications : Body ASTM A216 Gr. WCB / ASTM A351 Gr. CF8 / CF8M Ball ASTM A351 Gr. CF8 / CF8M Stem Stainless Steel AISI 304 / AISI 316 / AISI 410 Gland Stainless Steel AISI 304 / AISI 316 / M.S. PTFE (Gland Filled, Carbon Filled, Teflon - Optional in case Seat Packing of high Temperature) Screwed to - BSP / NPT / Socket Weld Ends to ANSI B 16.11 End Connection Flanged to - ANSI B 16.5 Class 150 / 300 Table - D,E,F, (On Request) Triclover Ends - (On Request) Socket Weld - (On Request) Testing Working Operating Temperature Item Type of Test Pressure Pressure (High Temp. On Request) Pneumatic Actuator 180 PSIG 45 To 150 PSIG -20 OC to 80 OC Bubble Test Valve Body Screwed End Hydraulic 450 PSIG 315 PSIG Max.180 OC Valve Body Flanged 150# Hydraulic 450 PSIG 315 PSIG Max.180 OC J.N Nos Holes Valve Body Flanged 300# Hydraulic 1125 PSIG 815 PSIG Max.180 OC On K:PCD Note:- Fire Safe Design Available on Request Accessories : = On / OFF Indicator = NAMUR Standard Solenoid Valve in all Standard Coil Voltage Port D g (Flame Proof Solenoid Coil - on request) = I/P Transducer (Convertor) = Pneumatic valve positioner = Electro-Pneumatic valve positioner = Declutchable Manual Over - ride = Limit Switches for On / Off Indication at Panel board A = Filter + Regulator Combination with Pressure Gauge f L b = Air Lock Valve Dimensions : (All Dimensions are in mm) Valve Valve Size Screwed Flanged 150# Flanged 300# Model MM Inch A Weight L b f Port Eg ED EJ N K:PCD Weight L b f Port Eg ED EJ N K:PCD BMW - 15 15 1/2" 68 1.160 107.95 9.65 1.6 12.5 35.05 88.9 15.75 4 60.45 1.960 139.7 14.22 1.6 12.5 35.05 98.25 15.75 4 66.55 BMW - 20 20 3/4" 72 1.620 117.35 10.41 1.6 17 42.95 98.56 15.75 4 69.85 2.720 152.4 15.75 1.6 17 42.95 117.35 19.05 4 82.55 BMW - 25 25 1" 84 1.920 127.0 11.17 1.6 24 50.8 107.9 15.75 4 79.25 3.170 165.1 17.53 1.6 24 50.8 123.95 19.05 4 88.9 BMW - 32 32 1.1/4" 107 3.470 139.7 12.70 1.6 30 63.5 117.34 15.75 4 88.9 5.150 177.8 19.05 1.6 30 63.5 133.45 19.05 4 98.55 BMW - 40 40 1.1/2" 119 4.070 165.1 14.22 1.6 37 73 127 15.75 4 98.55 6.520 190.5 20.57 1.6 37 73 155.44 22.35 4 114.3 BMW - 50 50 2" 130 4.970 177.8 15.75 1.6 49 91.95 152.4 19.05 4 120.65 8.870 215.9 22.35 1.6 49 91.9 165.1 19.05 8 127 BMW - 65 65 2.1/2" 155 8.600 190.5 17.53 1.6 64 104.65 177.8 19.05 4 139.7 13.550 241.3 25.4 1.6 64 104.6 190.5 22.35 8 149.35 BMW - 80 80 3" 175 14 203.2 19.05 1.6 75 127 190.5 19.05 4 152.4 19.650 282.4 28.44 1.6 75 127 209.55 22.35 8 168.14 BMW - 100 100 4" 210 21.900 228.6 23.88 1.6 98 157.23 228.6 19.05 8 190.4 30.750 304.8 31.75 1.6 98 157.2 254 22.35 8 200.15 BMW - 125 125 5" - - 254 23.88 1.6 124 185.67 254 22.35 8 215.9 55 381 35.05 1.6 124 185.67 279.4 22.35 8 234.95 BMW - 150 150 6" - - 266.8 25.4 1.6 148 216 279.4 22.35 8 241.3 65 403.3 36.75 1.6 148 216 317.5 22.35 12 269.74 BMW - 200 200 8" - - 292.1 28.45 1.6 198 269.75 342.9 22.35 8 298.45 86 419.1 36.57 1.6 195 269.7 381 25.4 12 330.2 BMW - 250 250 10" - - 330.2 30.23 1.6 248 323.85 406.4 25.4 12 361.95 135 547.2 41.15 1.6 248 323.8 444.5 28.44 16 387.35 BMW - 300 300 12" - - 609.6 31.75 1.6 298 381 482.6 25.4 12 431.8 - 647.7 47.75 1.6 298 381 520.7 31.75 16 450.85 BMW - 350 350 14" - - 685.8 35.05 1.6 335 412.75 533.4 28.45 12 476.25 - 762 50.8 1.6 335 412.75 584.2 31.75 20 514.35 Pub.on:September,2009 (Rev.-06) A3
