Bandwidth, Throughput, IOPS, and FLOPS The Delicate Balance Bill Menger, Dan Wieder, Dave Glover – ConocoPhillips March 5, 2009

Outline The Problem – Provide enough computer to keep your customers happy (at low cost) The Solution – Estimating needs and looking at options The Kickoff – Never exactly works like you thought The Tuning – Bring it into the Groove one way or the other The Task – Get ‘er done! The Finale – Evaluating the good, the bad, the ugly, and the beautiful

The Problem We all have tasks to do in “not enough time” Solve your customer’s problems with an eye to the future Don’t box yourself into a corner (if you can help it).

Dave’s Definition of a Supercomputer A supercomputer is a computer that is only one order of magnitude slower than what scientists and engineers need to solve their current problems. This definition is timeless and assures me job security. Dave Glover

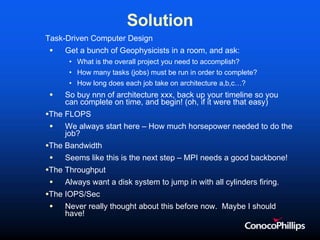

Solution Task-Driven Computer Design Get a bunch of Geophysicists in a room, and ask: What is the overall project you need to accomplish? How many tasks (jobs) must be run in order to complete? How long does each job take on architecture a,b,c…? So buy nnn of architecture xxx, back up your timeline so you can complete on time, and begin! (oh, if it were that easy) The FLOPS We always start here – How much horsepower needed to do the job? The Bandwidth Seems like this is the next step – MPI needs a good backbone! The Throughput Always want a disk system to jump in with all cylinders firing. The IOPS/Sec Never really thought about this before now. Maybe I should have!

Task Driven Design – Case Study We get what we need… no more, no less The Need: 2 iterations 30,000 jobs/iteration ~200 cpu-hours/job 12MM cpu-hours in 50 days

Task Driven Design – Case Study A solution Run each job on 8 cores to get jobs down to 1 day Make it easy to load/unload data for jobs with global parallel file system Put enough memory into each computer to hold the job Keep enough local disk to store intermediate results Buy enough computers to make it happen

Options Intel/AMD/Cell Infiniband/GigE/10GigE/Myrinet/Special NFS disk/Directly connected Disk (local client software) Specialty hardware

Considerations Fit within current network infrastructure Think about my Reservoir Engineer and CFD customers What about future algorithms/approaches?

The Chosen Design 1250 Dual Socket, Quad-core AMD Opterons 10GigE card in each node with iWarp Global Parallel Direct-connected disk system (client modules on each node) 10GigE interconnect everywhere

Ideal Network Configuration compute compute compute compute 1Gbit Misc Switch Edge switch Edge switch Edge switch Edge switch storage storage storage Core Switch Core Switch 10Gbit Central Switch 10Gbit Central Switch 10Gbit Central Switch 10Gbit Central Switch

1250 Rackable nodes, dual socket quad core AMD Opteron 2.3Ghz, 32Gbytes DRAM 1250 Neteffect(Intel) 10Gbit cards with iWarp low-latency software 42 Force-10 5210 -- 10Gbit 48 port edge switches 2 Foundry MLX-8 core switches (16 10 Gbit ports each) 4 Foundry MLX-32 core switches (128 10Gig ports each) 16 shelves Panasas Storage The Chosen Components

160 Terabytes of usable storage 160 Gbits connectivity to storage 2.5Gbit full bisection bandwidth <10usec latency 46 Teraflops estimated capability 400Kwatts total power draw when running Linpack 24 Racks including management nodes, switches, and storage The Specs

The Kickoff Jobs ran (as modified) in 12 hours. Good! 10 Gig Network cards not available for all nodes. Used 1Gig to nodes, 10 Gig from edge switches to core, and 10 Gig to disks. 1 data space on disk (huge file system)

A small gotcha Commercial software for processing logs back to common area lots of small-file initialization for each job always initiates MPI so many jobs hitting user’s login files all at once. Output file format (javaseis) Nice structured sparse format, good I/O for the actual data very small i/o to common area associated with file updates.

14:00 – 22:00 Disk MBytes/Sec

14:00 – 22:00 Disk I/O Ops/sec

16:30 – 17:00 Disk Mbytes/Sec

16:30 – 17:00 Disk I/O Ops/Sec

Consequences Start up 1000 jobs in the commercial system, and watch it take 5 seconds per job to enter the queue. That’s 1.4 hours! Jobs all reading at once, lots of i/o contention on /home and another directory On completion, jobs all writing small-block i/o in the common area, all at the same time. (requires read-modify-write for each operation)

Getting into the Groove First, we decided to stagger jobs. Let the auto-job builder add in a delay within each job, the delay means the jobs will start and sleep for linearly increasing times, causing a nice, steady, I/O pattern. Subsequent jobs are simply queued and the staggered effect persists. Secondly, we added a smaller data directory to house the common area. Now we have two file systems, one for large-block I/O and one for small.

Execution Jobs ran well, I/O held to a maintainable level 1Gbit network sufficed Finished ahead of schedule

The good, bad, ugly, and beautiful Good The job got done Bad Frantic startup problems with commercial system, Disk solution Ugly Realizing we undersized the IOPS Beautiful System is ready for more work with “forwardly upgradable” network at the core.

Lessons Learned Don’t scrimp on ANY of the following Network Infrastructure (10+Gbits/s <10nsec latency) I/O Bandwidth (>2500Mbytes/sec) Memory (>= 4Gbytes/core) I/O Ops/second (>100,000 iops) Vendor software is out of your control (deal with it)
