Unique Industrial Handlers Pvt. Ltd. has presented proposed changes to the technical parameters of bogie turn tables, based on their extensive history with Indian Railways since 1986. The document outlines installation details and modifications for improved efficiency, such as the installation of a compact geared motor and updates to drainage systems. Additionally, it highlights the need to confirm several details regarding water levels, height restrictions, and locations for control panels.
Bogie turn table (amin)

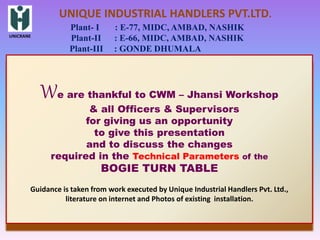

- 1. UNICRANE UNIQUE INDUSTRIAL HANDLERS PVT.LTD. Plant- I : E-77, MIDC, AMBAD, NASHIK Plant-II : E-66, MIDC, AMBAD, NASHIK Plant-III : GONDE DHUMALA We are thankful to CWM Jhansi Workshop & all Officers & Supervisors for giving us an opportunity to give this presentation and to discuss the changes required in the Technical Parameters of the BOGIE TURN TABLE Guidance is taken from work executed by Unique Industrial Handlers Pvt. Ltd., literature on internet and Photos of existing installation.

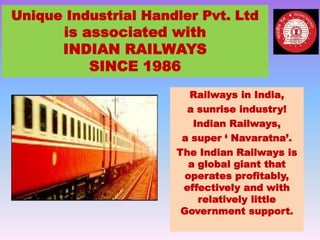

- 2. Unique Industrial Handler Pvt. Ltd is associated with INDIAN RAILWAYS SINCE 1986 Railways in India, a sunrise industry! Indian Railways, a super Navaratna. The Indian Railways is a global giant that operates profitably, effectively and with relatively little Government support.
- 3. STANDARD EMU / DMU COACH TURN TABLE UNIQUE INDUSTRIAL HANDLERS PVT.LTD.
- 4. STANDARD LOCO TURN TABLE UNDER INSTALLATION AT SMS RAILS MALAYSIA UNIQUE INDUSTRIAL HANDLERS PVT.LTD.
- 5. UNIQUE INDUSTRIAL HANDLERS PVT.LTD. PROPOSED STANDARD BOGIE TURN TABLE
- 6. UNIQUE INDUSTRIAL HANDLERS PVT.LTD. DRIVE SYSTEM FOR PROPOSED FOR BOGIE TURN TABLE DRIVE SYSTEM ON EXISTING BOGIE TURN TABLE
- 7. UNIQUE INDUSTRIAL HANDLERS PVT.LTD. DRIVE SYSTEM FOR PROPOSED FOR BOGIE TURN TABLE DRIVE SYSTEM FOR UNIQUE PROPOSED BOGIE TURN TABLE

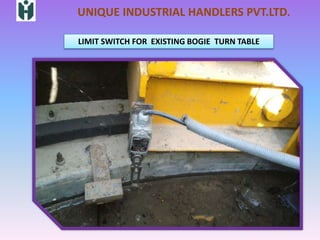

- 8. UNIQUE INDUSTRIAL HANDLERS PVT.LTD. LIMIT SWITCH FOR EXISTING BOGIE TURN TABLE

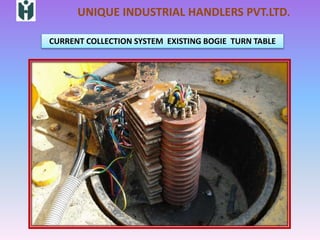

- 9. UNIQUE INDUSTRIAL HANDLERS PVT.LTD. CURRENT COLLECTION SYSTEM EXISTING BOGIE TURN TABLE
- 10. UNIQUE INDUSTRIAL HANDLERS PVT.LTD. CENTRAL PIVOT ON EXISTING BOGIE TURN TABLE 8 NOS. ROLLERS PROVIDED TO KEEP THE TURN TABLE IN POSTION.
- 11. UNIQUE INDUSTRIAL HANDLERS PVT.LTD. CHANGES PROPOSED FOR BOGIE TURN TABLE

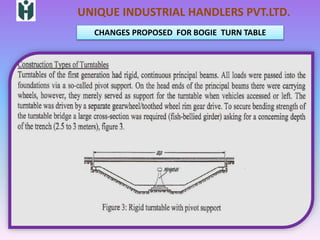

- 12. UNIQUE INDUSTRIAL HANDLERS PVT.LTD. CHANGES PROPOSED FOR BOGIE TURN TABLE

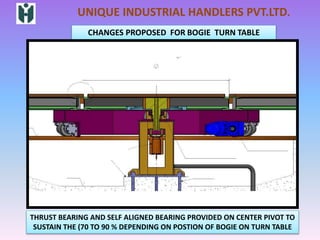

- 13. UNIQUE INDUSTRIAL HANDLERS PVT.LTD. CHANGES PROPOSED FOR BOGIE TURN TABLE THRUST BEARING AND SELF ALIGNED BEARING PROVIDED ON CENTER PIVOT TO SUSTAIN THE (70 TO 90 % DEPENDING ON POSTION OF BOGIE ON TURN TABLE

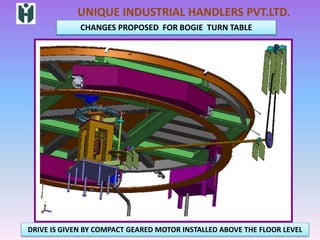

- 14. UNIQUE INDUSTRIAL HANDLERS PVT.LTD. CHANGES PROPOSED FOR BOGIE TURN TABLE DRIVE IS GIVEN BY COMPACT GEARED MOTOR INSTALLED ABOVE THE FLOOR LEVEL
- 15. UNIQUE INDUSTRIAL HANDLERS PVT.LTD. PROJECTIONS ABOVE FLOOR LEVEL CONTROL PANEL & COMPACT GEARED MOTOR WILL BE INSTALLED ABOVE THE FLOOR LEVEL
- 16. UNICRANE UNIQUE INDUSTRIAL HANDLERS PVT.LTD. B R I E F We need to confirm following after discussion: 1) WATER LEVEL DURING HEAVY RAIN IN THE AREA WILL NOT EXCEED + 50 MM 2) SUGGESTION IF ANY FOR WATER DISCHARGE SYSTEM - PUMP WILL BE LOCATED INSIDE THE PIT. 3) DRAWING FOR EXISTING DRAINAGE SYSTEM REQUIRED TO WATER TANKS TO CONNECT THE WATER DRAINED TO EXISTING SYTEM. 4) HEIGHT RESTRICTION IF ANY FOR INSTALLATION OF COMPACT GEARED MOTOR. 5) LOCATIONS OF CONTROL PANELS TO PLAN THE CABLES REQUIRED & LOCATION OF LIMIT SWITCHES / MANUAL LOCKS PREFERENCE IF ANY. 6) ANY OTHER POINTS AS RAISED DURING DISCUSSION.

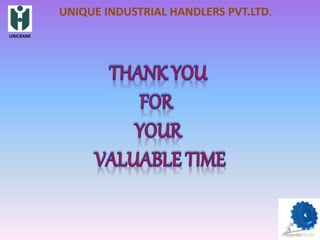

- 17. UNICRANE UNIQUE INDUSTRIAL HANDLERS PVT.LTD.
