- 1. 6810/12.02 RIVTAC速 The innovative high-speed joining process

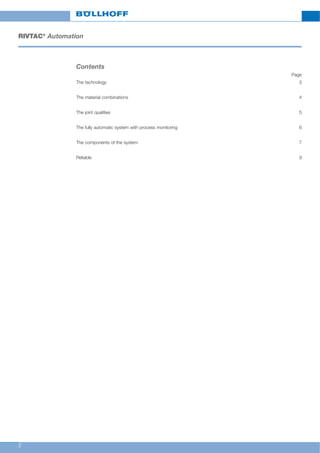

- 2. 2 RIVTAC速 Automation Contents Page The technology 3 The material combinations 4 The joint qualities 5 The fully automatic system with process monitoring 6 The components of the system 7 Reliable 9

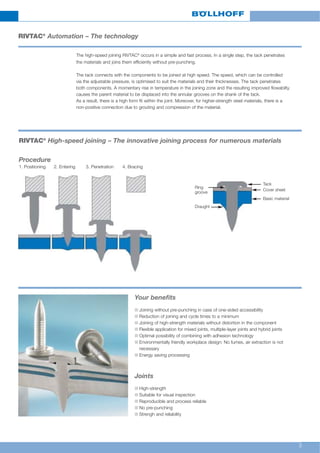

- 3. 3 RIVTAC速 Automation The technology The high-speed joining RIVTAC速 occurs in a simple and fast process. In a single step, the tack penetrates the materials and joins them efficiently without pre-punching. The tack connects with the components to be joined at high speed. The speed, which can be controlled via the adjustable pressure, is optimised to suit the materials and their thicknesses. The tack penetrates both components. A momentary rise in temperature in the joining zone and the resulting improved flowabilty, causes the parent material to be displaced into the annular grooves on the shank of the tack. As a result, there is a high form fit within the joint. Moreover, for higher-strength steel materials, there is a non-positive connection due to grouting and compression of the material. n Joining without pre-punching in case of one-sided accessibility n Reduction of joining and cycle times to a minimum n Joining of high-strength materials without distortion in the component n Flexible application for mixed joints, multiple-layer joints and hybrid joints n Optimal possibility of combining with adhesion technology n Environmentally friendly workplace design: No fumes, air extraction is not necessary n Energy saving processing Your benefits n High-strength n Suitable for visual inspection n Reproducible and process reliable n No pre-punching n Strengh and reliability Joints RIVTAC速 High-speed joining The innovative joining process for numerous materials Procedure 1. Positioning 2. Entering 3. Penetration 4. Bracing Ring groove Draught Tack Cover sheet Basic material

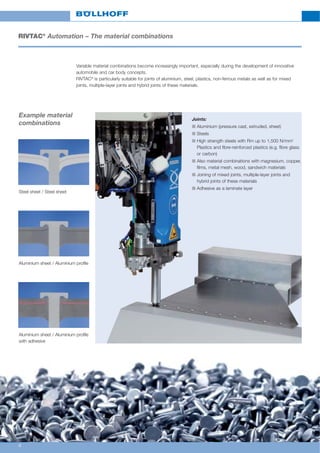

- 4. 4 RIVTAC速 Automation The material combinations Variable material combinations become increasingly important, especially during the development of innovative automobile and car body concepts. RIVTAC速 is particularly suitable for joints of aluminium, steel, plastics, non-ferrous metals as well as for mixed joints, multiple-layer joints and hybrid joints of these materials. Example material combinations Steel sheet / Steel sheet Aluminium sheet / Aluminium profile Aluminium sheet / Aluminium profile with adhesive Joints: n Aluminium (pressure cast, extruded, sheet) n Steels n High strength steels with Rm up to 1,500 N/mm2 Plastics and fibre-reinforced plastics (e.g. fibre glass or carbon) n Also material combinations with magnesium, copper, films, metal mesh, wood, sandwich materials n Joining of mixed joints, multiple-layer joints and hybrid joints of these materials n Adhesive as a laminate layer

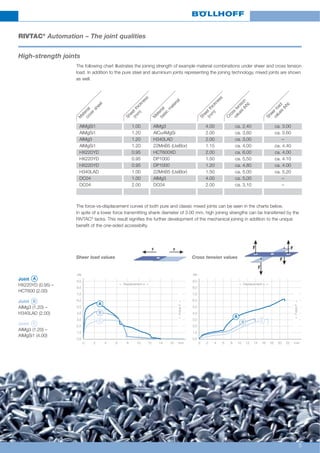

- 5. 5 RIVTAC速 Automation The joint qualities High-strength joints The following chart illustrates the joining strength of example material combinations under sheer and cross tension load. In addition to the pure steel and aluminium joints representing the joining technology, mixed joints are shown as well. The force-vs-displacement curves of both pure and classic mixed joints can be seen in the charts below. In spite of a lower force transmitting shank diameter of 3.00 mm, high joining strengths can be transferred by the RIVTAC速 tacks. This result signifies the further development of the mechanical joining in addition to the unique benefit of the one-sided accessibilty. AlMgSi1 1.00 AlMg3 4.00 ca. 2,40 ca. 3.00 AlMgSi1 1.20 AlCu4MgSi 2.00 ca. 3,60 ca. 3.60 AlMg3 1.20 H340LAD 2.00 ca. 3,00 AlMgSi1 1.20 22MnB5 (UsiBor) 1.15 ca. 4,00 ca. 4.40 HX220YD 0.95 HCT600XD 2.00 ca. 6,00 ca. 4.00 HX220YD 0.95 DP1000 1.50 ca. 5,50 ca. 4.10 HX220YD 0.95 DP1000 1.20 ca. 4,80 ca. 4.00 H340LAD 1.00 22MnB5 (UsiBor) 1.50 ca. 5,00 ca. 5.20 DC04 1.00 AlMg3 4.00 ca. 5,00 DC04 2.00 DC04 2.00 ca. 3,10 M aterial coversheet Sheetthickness (m m ) M aterial basic m aterial Sheetthickness (m m ) Sheerload values (kN) Cross tension values (kN) kN 9,0 8,0 7,0 6,0 5,0 4,0 3,0 2,0 1,0 0,0 0 2 4 6 8 10 12 14 16 mm Joint HX220YD (0.95) HCT600 (2.00) Joint AIMg3 (1.20) H340LAD (2.00) Joint AIMg3 (1.20) AIMgSi1 (4.00) Sheer load values kN 9,0 8,0 7,0 6,0 5,0 4,0 3,0 2,0 1,0 0,0 0 2 4 6 8 10 12 14 22 mm16 18 20 Cross tension values B B A A C B A C C < Displacement s >< Displacement s > <ForceF> <ForceF>

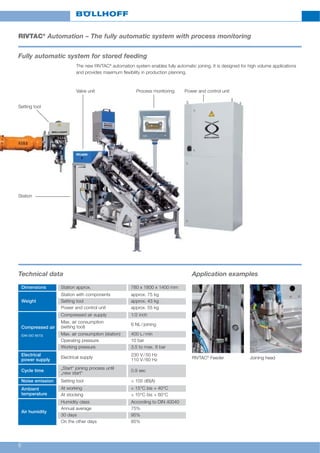

- 6. 6 Technical data Application examples RIVTAC速 Automation The fully automatic system with process monitoring Fully automatic system for stored feeding The new RIVTAC速 automation system enables fully automatic joining. It is designed for high volume applications and provides maximum flexibility in production planning. Setting tool Station RIVTAC速 Feeder Valve unit Process monitoring Power and control unit Joining head Dimensions Station approx. 780 x 1800 x 1400 mm Weight Station with components approx. 75 kg Setting tool approx. 43 kg Power and control unit approx. 55 kg Compressed air (DIN ISO 8573) Compressed air supply 1/2 inch Max. air consumption (setting tool) 6 NL/joining Max. air consumption (station) 400 L/min Operating pressure 10 bar Working pressure 3.5 to max. 8 bar Electrical power supply Electrical supply 230 V/50 Hz 110 V/60 Hz Cycle time Start joining process until new start 0.9 sec Noise emission Setting tool > 105 dB(A) Ambient temperature At working + 15属C bis + 40属C At stocking + 10属C bis + 60属C Air humidity Humidity class According to DIN 40040 Annual average 75% 30 days 95% On the other days 85%

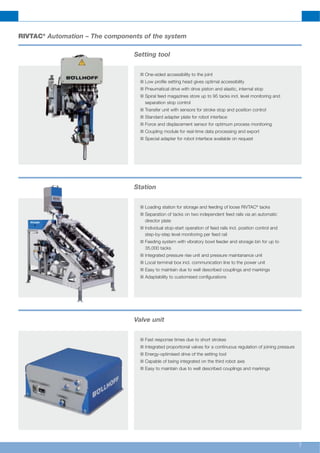

- 7. 7 Setting tool n One-sided accessibility to the joint n Low profile setting head gives optimal accessibility n Pneumatical drive with drive piston and elastic, internal stop n Spiral feed magazines store up to 95 tacks incl. level monitoring and separation stop control n Transfer unit with sensors for stroke stop and position control n Standard adapter plate for robot interface n Force and displacement sensor for optimum process monitoring n Coupling module for real-time data processing and export n Special adapter for robot interface available on request Station n Loading station for storage and feeding of loose RIVTAC速 tacks n Separation of tacks on two independent feed rails via an automatic director plate n Individual stop-start operation of feed rails incl. position control and step-by-step level monitoring per feed rail n Feeding system with vibratory bowl feeder and storage bin for up to 35,000 tacks n Integrated pressure rise unit and pressure maintanance unit n Local terminal box incl. communication line to the power unit n Easy to maintain due to well described couplings and markings n Adaptability to customised configurations Valve unit n Fast response times due to short strokes n Integrated proportional valves for a continuous regulation of joining pressure n Energy-optimised drive of the setting tool n Capable of being integrated on the third robot axis n Easy to maintain due to well described couplings and markings RIVTAC速 Automation The components of the system

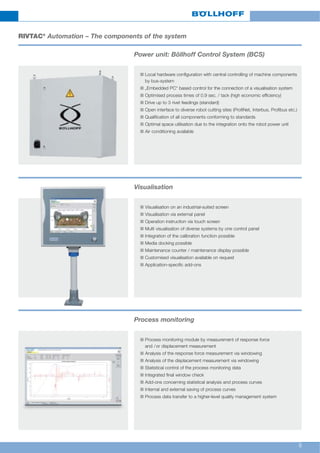

- 8. 8 Power unit: B旦llhoff Control System (BCS) n Local hardware configuration with central controlling of machine components by bus-system n Embedded PC based control for the connection of a visualisation system n Optimised process times of 0.9 sec. / tack (high economic efficiency) n Drive up to 3 rivet feedings (standard) n Open interface to diverse robot cutting sites (ProfiNet, Interbus, Profibus etc.) n Qualification of all components conforming to standards n Optimal space utilisation due to the integration onto the robot power unit n Air conditioning available Visualisation n Visualisation on an industrial-suited screen n Visualisation via external panel n Operation instruction via touch screen n Multi visualisation of diverse systems by one control panel n Integration of the calibration function possible n Media docking possible n Maintenance counter / maintenance display possible n Customised visualisation available on request n Application-specific add-ons Process monitoring n Process monitoring module by measurement of response force and /or displacement measurement n Analysis of the response force measurement via windowing n Analysis of the displacement measurement via windowing n Statistical control of the process monitoring data n Integrated final window check n Add-ons concerning statistical analysis and process curves n Internal and external saving of process curves n Process data transfer to a higher-level quality management system RIVTAC速 Automation The components of the system

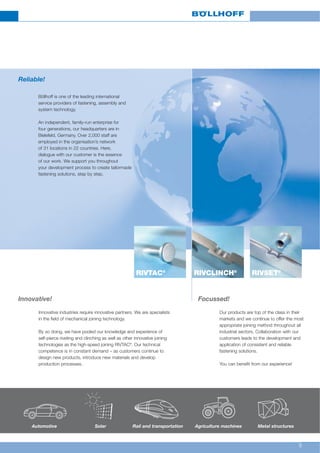

- 9. 9 RIVSET速 RIVCLINCH速 RIVTAC速 Innovative! Focussed! Innovative industries require innovative partners. We are specialists in the field of mechanical joining technology. By so doing, we have pooled our knowledge and experience of self-pierce riveting and clinching as well as other innovative joining technologies as the high-speed joining RIVTAC速 . Our technical competence is in constant demand as customers continue to design new products, introduce new materials and develop production processes. Our products are top of the class in their markets and we continue to offer the most appropriate joining method throughout all industrial sectors. Collaboration with our customers leads to the development and application of consistent and reliable fastening solutions. You can benefit from our experience! Reliable! B旦llhoff is one of the leading international service providers of fastening, assembly and system technology. An independent, family-run enterprise for four generations, our headquarters are in Bielefeld, Germany. Over 2,000 staff are employed in the organisations network of 31 locations in 22 countries. Here, dialogue with our customer is the essence of our work. We support you throughout your development process to create tailormade fastening solutions, step by step. Solar Metal structuresRail and transportation Agriculture machinesAutomotive

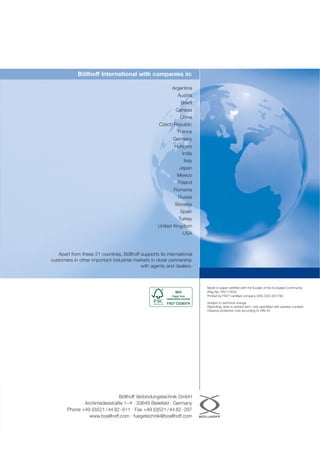

- 10. B旦llhoff International with companies in: Argentina Austria Brazil Canada China Czech Republic France Germany Hungary India Italy Japan Mexico Poland Romania Russia Slovakia Spain Turkey United Kingdom USA Apart from these 21 countries, B旦llhoff supports its international customers in other important industrial markets in close partnership with agents and dealers. B旦llhoff Verbindungstechnik GmbH Archimedesstrae 14 揃 33649 Bielefeld 揃 Germany Phone +49 (0)521/44 82-611 揃 Fax +49 (0)521/44 82-297 www.boellhoff.com 揃 fuegetechnik@boellhoff.com Made of paper certified with the Ecolab of the European Community (Reg No. FR/11/003). Printed by FSC速 -certified company GFA-COC-001790. Subject to technical change. Reprinting, even in extract form, only permitted with express consent. Observe protective note according to DIN 34.
