The document provides technical specifications for a book scanning system. It can scan books up to 25cm thick and 30kg in weight. The system uses a CCD sensor with 40-200 million pixels and a Rodenstock Rodagon lens. It has a minimum focus depth of 13cm and can scan at resolutions up to 440dpi. The cycle time is 3.24 seconds per scan. Additional features include a motorized book cradle and glass plate, and software for processing scans.
Book2net Flash [en]
- 1. Technical Specifications Input media size: 611 x 916,4 mm / 24 x 36 inch book2net flash Sensor: CCD area sensor, 40 - 200 million pixel Sensor dimension: 40 MP sensor: 54,78 mm (diagonal), 7304 x 5478 pixels 50 MP sensor: 61,30 mm (diagonal), 8176 x 6132 pixels Shutter: Rotary disc shutter (life expectancy 300,000,000 cycles) Lens: Rodenstock Rodagon Focus depth: Minimum 13cm / 5 inch Optical resolution: 200 / 400* dpi, 220 / 440* dpi *related to exposure and sensor type Cycle time: 3.24 seconds per shot Light source: Power LEDs 80 VA Book cradle: Motorized layout table for books with a spine up to 25 cm and a weight up to 30kg Glass plate: Scratch resistant glass plate with pressure sensors Operating modes: speed, color, resolution, perfect Software: Book Expert with workflow-based image processing including: Automatic page recognition Automated page splitting Manual page selection and splitting Automated deskewing Rotation Several filters Changing of resolution Conversion from colour to greyscale / greyscale to binary Saving in several file formats Printing System requirements: Microsoft Windows XP Professional (32bit) with SP2, or better Memory: min. 2GB, Hard disc: min. 200 GB Image file formats: 24-bit: TIFF RAW, LZW, JPEG (monolithic, striped, tiled), PDF Deflate, JPEG, JFIF (JPEG), JPEG 2000 Spec. Part1, Spec. Part2, Windows Bitmap 8-bit: TIFF RAW, LZW, JPEG, PackBits (monolithic, striped, tiled), PDF Deflate, JPEG, JFIF (JPEG), JPEG 2000 Spec. Part1, Spec. Part2, Windows Bitmap, RLE8 2-bit: TIFF RAW, LZW, Huffman, G4 CCITT (monolithic, striped, tiled), PDF G4 CCITT, JEDMICS C4, Image Machines TG4, CALS Raster Type 1, Windows Bitmap Multipage: TIFF, PDF PC interface: USB 2.0 Type B / enhanced transfer mode up to 51 MB/sec Power supply: 100V to 240V, supply frequency from 47Hz to 63Hz, with ground wire Fuses: Twice in the AC power socket, 3,15 Ampere M semi time-lag Power consumption, (incl. embedded controller): Operation peak: 138 VA, average: <60 VA, stand-by: 50 VA Dimension (W x D x H): Width: 990 mm, Depth: 990 mm (without monitor holder), Height: 2100 to 2350 dependent on operating level Weight: 100 kg Operating environment: Tilt - resistant, vibration - free, level surface, no direct sunlight In operation: 10属C - 38属C, relative humidity: 15% - 85% (not condensing) Storage: 0属C - 48属C, 15% - 85% relative humidity (not condensing) Subject to change without notice www.book2net.net info@book2net.net

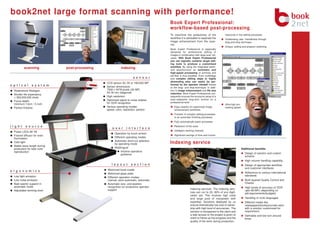

- 2. book2net large format scanning with performance! Book Expert Professional: workflow-based post-processing To maximize the productivity of the resources in the editing processes workflow it is advisable to seperate the Outstanding user- friendliness through image enhancement from the scan- drag-and-drop technique ner. Unique: polling and program switching Book Expert Professional is especially designed for professional editing of images in combination with large scan vol- umes. With Book Expert Professional you can logically combine single edit- ing tools to produce a customized workflow. By using the integrated batch- scanning post-processing indexing and spoolfunction an automatic and high-speed processing of archives and job-files is thus possible. Even multistage sensor and complex editing steps or highly demanding jobs can easily be per- CCD sensor 40, 50 or 160/200 MP optical system formed by the operator himself thanks Sensor dimensions: to the drag- and drop-technique. In addi- Rodenstock Rodagon 7304 x 5478 pixels (40 MP) tion to image enhancement and file size 54,78 mm (diagonal) reduction, Book Expert Professional con- Shutter life expectancy > 300,000,000 shots High resolution sequently ensures the economic setup of a Optimized signal to noise relation scan-respective long-term archive on a Focus depth: professional level minimum 13cm / 5 inch for OCR recognition Ultra-high pro- Perfect linearity Various operating modes: Easy creation of customized image cessing speed speed, color, resolution, perfect enhancement workflows Transfer of complex editing processes to an automatic finishing processes Fully automatically batch processes light source Reduction of file sizes user interface Power LEDs 80 VA Intelligent working modules Operation by touch screen Fresnel diffusor for even Significant savings of time and human illumination Different operating modes Automatic short-cut selection Cold light by operating mode Indexing service Stable wave length during production for best color Multilingual Additional benefits: reproduction Intuitive operators guidance Design of solution and custom schema High volume handling capability layout section Design of appropriate workflow and customer interfaces ergonomics Motorized book cradle Motorized glass plate Adherence to various international Low light emission standards Different operation modes: Low noise emission manual, semi-automatic, automatic Multi layered Quality Control and Best opertor support in Automatic size- and position Checks automatic mode recognition for productive operator High levels of accuracy of OCR support Indexing services- The indexing serv- Adjustabel working level upto 99.99% (depending on ices can run to 20- 80% of any digiti- job/requirements/budgets) zation job. This involves high costs and large pool of manpower with Handling of multi languages expertise. Solutions deployed by us Different media like ensure dramatically low cost of owner- newspapers/books/journals each ship with high level of accuracies. The with a solution customized for solution is transparent to the client and requirement a web access to the project is given to Definable and low turn around client to follow up the progress and the times quality of the work during production.
