Cfg to pda equivalnce 3
Download as pptx, pdf0 likes64 views
The document summarizes how to construct a context-free grammar G that generates the same language as a given finite state automaton. It explains that if the transition function of the automaton replaces the stack symbol X with a string like YZ when reading input a, then the grammar must generate productions that erase Y and Z in sequence. It also notes that if the transition replaces X with a string of k symbols, the grammar must generate a family of productions with k-1 intermediate states.
1 of 7
Download to read offline

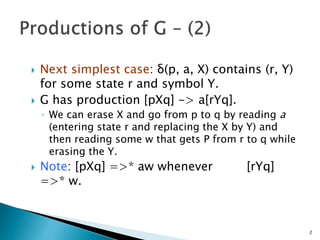

![Next simplest case: 隆(p, a, X) contains (r, Y)
for some state r and symbol Y.
G has production [pXq] -> a[rYq].
We can erase X and go from p to q by reading a
(entering state r and replacing the X by Y) and
then reading some w that gets P from r to q while
erasing the Y.
Note: [pXq] =>* aw whenever [rYq]
=>* w.
2](https://image.slidesharecdn.com/cfgtopdaequivalnce3-190130105154/85/Cfg-to-pda-equivalnce-3-2-320.jpg)

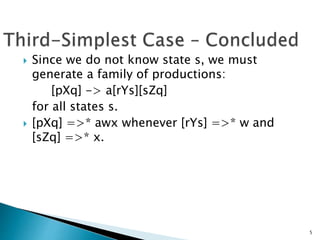

![Since we do not know state s, we must
generate a family of productions:
[pXq] -> a[rYs][sZq]
for all states s.
[pXq] =>* awx whenever [rYs] =>* w and
[sZq] =>* x.
5](https://image.slidesharecdn.com/cfgtopdaequivalnce3-190130105154/85/Cfg-to-pda-equivalnce-3-5-320.jpg)

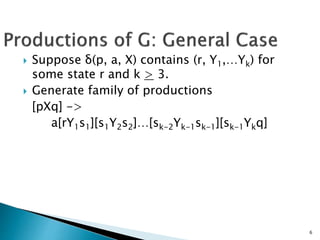

![Suppose 隆(p, a, X) contains (r, Y1,Yk) for
some state r and k > 3.
Generate family of productions
[pXq] ->
a[rY1s1][s1Y2s2][sk-2Yk-1sk-1][sk-1Ykq]
6](https://image.slidesharecdn.com/cfgtopdaequivalnce3-190130105154/85/Cfg-to-pda-equivalnce-3-6-320.jpg)

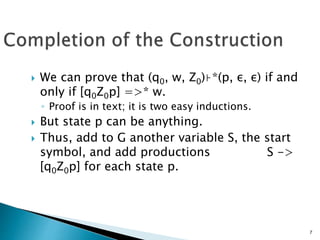

![We can prove that (q0, w, Z0)*(p, 竜, 竜) if and
only if [q0Z0p] =>* w.
Proof is in text; it is two easy inductions.
But state p can be anything.
Thus, add to G another variable S, the start
symbol, and add productions S ->
[q0Z0p] for each state p.
7](https://image.slidesharecdn.com/cfgtopdaequivalnce3-190130105154/85/Cfg-to-pda-equivalnce-3-7-320.jpg)
Ad
Recommended
Rough sets and fuzzy rough sets in Decision Making
Rough sets and fuzzy rough sets in Decision MakingDrATAMILARASIMCA
油
The document discusses the applications of rough sets and fuzzy rough sets in decision making, highlighting their role in knowledge discovery, data analysis, and handling uncertain knowledge. It details the properties of equivalence relations, rough set theory, and how to formulate decision rules from data tables, leading to the use of these concepts in accident prediction scenarios. Additionally, it introduces fuzzy sets, their membership functions, and the implications of these mathematical tools for decision-making processes.CA unit 1 ic and digital functions
CA unit 1 ic and digital functionsProf. Dr. K. Adisesha
油
The document discusses computer architecture and digital logic circuits. It begins by defining a digital computer as a system that performs computational tasks using binary numbers. It describes the two main components of a computer as hardware and software. It then defines computer architecture as the set of rules and methods that describe the functionality, organization, and implementation of computer systems. The document discusses the two main types of computer architecture: Von Neumann and Harvard architectures. It provides details on each architecture and their differences. Finally, it discusses Boolean algebra and its role in designing logic circuits for computer systems.Monadic second-order logic
Monadic second-order logicokuraofvegetable
油
This document summarizes a presentation given on April 21, 2020. It discusses models of words, trees and graphs, first-order logic, monadic second-order logic, and the relationship between automata and monadic second-order logic on finite words and trees. Specifically, it summarizes theorems showing that languages of finite words/trees are recognizable by finite automata if and only if they are definable in monadic second-order logic. Conversion between automata and logical formulas is also effective.2.2.ppt.SC
2.2.ppt.SCAMIT KUMAR
油
The document discusses fuzzy sets and rough sets. It explains that fuzzy sets allow partial membership, where an element can belong to a set to a degree between 0 and 1, while in classical sets an element either fully belongs or does not belong. Rough sets address vagueness through boundary regions rather than partial membership. Rough sets are defined using topological operations on lower and upper approximations. Indiscernibility relations are also discussed, where indiscernible elements cannot be distinguished based on available attributes.Day 1 examples
Day 1 examplesjchartiersjsd
油
This document discusses differentiation rules for finding derivatives of various types of functions including linear functions, constant functions, power functions, constant times a function, sums of functions, and differences of functions. It provides examples of finding the derivatives of f(x)=x, f(x)=5, f(x)=x^4, f(x)=2x^4, and functions that are sums and differences of multiple terms like g(x)=1/2x^5 - 2x^3 + 1/2x^2 - 7 and h(x)=x^3 + 2x-2 - x^1/2.Longest Common Subsequence
Longest Common SubsequenceSyeda
油
This document discusses the longest common subsequence problem. It defines a longest common subsequence as a sequence that appears in the same relative order in two strings, but not necessarily contiguously. It presents an example longest common subsequence of length 4 between two strings of lengths 6 and 7. It describes a dynamic programming algorithm that runs in O(mn) time, where m and n are the lengths of the input strings, to find the longest common subsequence.Diagonalization and eigen
Diagonalization and eigenParesh Parmar
油
This document discusses diagonalization of matrices and its applications. It explains that a matrix M is diagonalizable if we can find an invertible matrix P such that P^-1MP is a diagonal matrix. Diagonalizable matrices can be raised to high powers easily. It then provides an example of a diagonalizable matrix and discusses how to determine the eigenvalues and eigenvectors needed to diagonalize a matrix. The eigenvectors provide the columns of the matrix P that diagonalizes the original matrix.Longest Common Subsequence
Longest Common SubsequenceKrishma Parekh
油
The document explains the concepts of subsequences, common subsequences, and the longest common subsequence (LCS) problem in sequences. It details a naive approach to finding the LCS along with an optimal dynamic programming solution, which offers a more efficient algorithm with a complexity of O(mn). An example is provided to illustrate the algorithm for computing the LCS.Pda
PdaDr. ABHISHEK K PANDEY
油
This document discusses a nondeterministic pushdown automaton (P) that can recognize the language of a context-free grammar (G). It explains that P guesses a leftmost derivation of the input string w by nondeterministically choosing production rules. If P reaches an empty stack having consumed the entire input w, then w is in the language of G. The document proves that P reaching a configuration (q, x, 留) if and only if the start symbol S derives to w留 in G using leftmost derivations.Pda
PdaDr. ABHISHEK K PANDEY
油
This document discusses a nondeterministic pushdown automaton (P) that can recognize the language of a context-free grammar (G). P simulates a leftmost derivation in G by nondeterministically choosing production rules. The document proves that P will consume its entire input if and only if the input string is in the language of G by induction on the number of steps taken by P.Toc CFG cfl properties
Toc CFG cfl propertiesMd. Mehedi Hasan Shawon
油
The document discusses properties of context-free languages, including ways to simplify context-free grammars (CFGs) through eliminating useless symbols, epsilon productions, and unit productions. It also covers the Chomsky normal form, which specifies that a CFG can be converted so that all productions are either of the form A->BC or A->a. Context-free languages are closed under operations like union, concatenation, and substitution.Declare Your Language: Constraint Resolution 2
Declare Your Language: Constraint Resolution 2Eelco Visser
油
1) The document discusses unification and the union-find algorithm for efficiently solving unification problems.
2) Unification involves resolving constraints between terms to find a substitution that makes the terms equal. This can have exponential time and space complexity.
3) The union-find algorithm uses set representatives and linking to maintain disjoint sets in near-constant time complexity, improving on naive recursive algorithms.
4) An example shows how union-find can be applied to fully unify a complex expression by progressively linking variables and subterms between the two sides.AUTOMATA AUTOMATA Automata8Chapter7.pptx
AUTOMATA AUTOMATA Automata8Chapter7.pptxArjayBalberan1
油
The document covers properties of context-free languages, including simplification methods for context-free grammars (CFGs) such as eliminating useless symbols, epsilon-productions, and unit productions. It also discusses algorithms for identifying and removing these features, and touches on normal forms for CFGs, particularly Chomsky Normal Form (CNF). Additionally, it introduces the pumping lemma for context-free languages as a tool for proving certain languages are not context-free.Nondeterministic Finite Automata AFN.pdf
Nondeterministic Finite Automata AFN.pdfSergioUlisesRojasAla
油
This document discusses nondeterministic finite automata (NFAs) and how they can be converted into equivalent deterministic finite automata (DFAs) through a process called subset construction. It provides examples of NFAs, including one modeling moves on a chessboard, and walks through the subset construction process to convert the chessboard NFA into an equivalent DFA. The document also discusses NFAs with epsilon transitions and how they are equivalent in power to ordinary NFAs without epsilon transitions.Logic design basics
Logic design basicsharishnn
油
Boolean algebra uses three basic logic functions - AND, OR, and NOT - to represent any Boolean function. Logic functions can be minimized using techniques like Karnaugh maps and Quine-McCluskey minimization to reduce their complexity. Sequential logic circuits contain memory elements like flip-flops that can be either synchronous, using a clock, or asynchronous. Common flip-flop types include the RS, D, and JK flip-flops.This is a presentation on the parsing.pptx
This is a presentation on the parsing.pptxcsehithaldia
油
The document provides an overview of LR parsing techniques, contrasting top-down and bottom-up approaches, and detailing the concepts of shift-reduce parsing and action/goto tables. It explains the process of constructing parsers, including configuration sets and handling conflicts, and discusses the types of grammars suitable for LR parsing such as LR(0) and SLR(1). Additionally, it covers the importance of viable prefixes and the pruning of handles in parsing without ambiguity.Normal Forms for CFG's.pdf
Normal Forms for CFG's.pdfAmanda Reznor
油
1. The document discusses several normal forms for context-free grammars (CFGs), including eliminating useless variables, removing epsilon productions, removing unit productions, and Chomsky normal form.
2. It provides algorithms and proofs for transforming a CFG into these normal forms, such as identifying nullable and epsilon-deriving variables, and breaking productions into chains of length 2.
3. The key steps to put a CFG for a context-free language L minus the empty string into Chomsky normal form are: clean the grammar, add variables for terminals, and break productions longer than length 2 into chains of length 2 productions. Proofs ensure the transformations preserve the language.Intro To Agda
Intro To AgdaLarry Diehl
油
This document provides an introduction to the Agda programming language through examples of its key features including:
1) Built-in support for natural numbers and inductive data types.
2) Notation for unicode symbols, records, indexed types, and propositional equality.
3) Support for parametric and indexed polymorphism, termination checking, and intuitionistic logic.
4) Examples of programming with dependent types including views, inverse functions, and proof of Socrates' mortality.Deterministic finite automata
Deterministic finite automata Muhammad Love Kian
油
The document defines deterministic finite automata (DFAs) and describes their key components: states, symbols, transition function, start state, and accepting states. It provides examples of how to represent DFAs using transition tables and diagrams. The document also discusses extending the transition function to strings, minimizing DFAs, representing DFAs functionally, automatic theorem proving using DFAs, and the product and complement operations on DFAs.Mid semexam | Theory of Computation | Akash Anand | MTH 401A | IIT Kanpur
Mid semexam | Theory of Computation | Akash Anand | MTH 401A | IIT KanpurVivekananda Samiti
油
This document contains the details of an exam for an undergraduate course on the theory of computation. The exam consists of 5 questions testing students' knowledge of formal languages and automata. Question 1 has 5 true/false statements to verify about language properties. Question 2 defines string reversal and proves an identity. Question 3 proves a language of prime-length strings is not regular. Question 4 minimizes a finite state machine. Question 5 involves writing a context-free grammar and pushdown automaton for a specified language.Theory of Automata and formal languages Unit 3
Theory of Automata and formal languages Unit 3Abhimanyu Mishra
油
This document discusses context-free grammars and their normal forms. It defines a context-free grammar and provides an example. It also discusses BNF notation, leftmost and rightmost derivations, ambiguity in CFGs, and various normal forms for CFGs including Chomsky normal form and Greibach normal form. Algorithms are provided for removing useless symbols, unit productions, null productions, and converting a CFG to these normal forms. Examples are included to demonstrate solving problems related to these topics.Chomsky Normal Form
Chomsky Normal FormJasmine Peniel
油
This document discusses the process of converting a context-free grammar (CFG) into Chomsky normal form (CNF) in multiple steps. It first recalls the definition of CNF and the theorem that every context-free language minus the empty string has a CFG in CNF. It then outlines the steps to convert a CFG to CNF: 1) remove epsilon productions, 2) remove unit rules, 3) break productions with more than two variables into chains of productions with two variables, and 4) ensure all productions are in the forms A->BC or A->a. The document provides two examples showing the full conversion process.B sc cs i bo-de u-ii logic gates
B sc cs i bo-de u-ii logic gatesRai University
油
This document provides an overview of logic gates, Boolean algebra, and digital circuits. It defines basic logic gates like AND, OR, and NOT. It introduces Boolean algebra concepts such as binary variables, algebraic manipulation using laws and theorems, and canonical forms. Standard logic implementations including sum of products, product of sums, and universal gates using NAND and NOR are discussed. De Morgan's theorems and their application to logic gate equivalents are also covered.Minimizing boolean
Minimizing booleanbelcy d mathews
油
This document discusses minimizing Boolean logic and switching theory. It reviews Boolean algebra and canonical forms such as sum of products and product of sums. It discusses how to convert between representations like truth tables and Boolean expressions. Techniques for simplifying Boolean expressions are covered, including De Morgan's laws, the uniting theorem, and Karnaugh maps. Karnaugh maps allow visualizing simplifications by covering adjacent ones with larger cubes or subcubes. Don't cares can also be exploited to simplify expressions. An example design of a two-bit comparator is presented.Minimizing boolean
Minimizing booleanbelcy d mathews
油
The document discusses minimizing Boolean logic and switching theory. It reviews Boolean algebra and canonical forms such as sum of products and product of sums. It also covers manipulating Boolean expressions using techniques like De Morgan's laws. Karnaugh maps are introduced as a way to visualize Boolean functions and apply concepts like the uniting theorem to simplify expressions. Examples are provided to demonstrate how to minimize logic using Karnaugh maps and don't care conditions. digital logic circuits, digital component
digital logic circuits, digital componentRai University
油
This document provides an overview of digital logic circuits and data representation. It defines basic Boolean algebra concepts like binary operators, truth tables, and theorems. It also covers standard forms for representing Boolean functions like sum of products and product of sums. Finally, it discusses logic gates, multiple input gates, and De Morgan's theorem as it applies to gate transformations.Theory of Computation Unit 4
Theory of Computation Unit 4Jena Catherine Bel D
油
The document discusses properties of context-free languages. It covers several topics:
1. Simplification of context-free grammars through removal of null productions, unit productions, and useless symbols.
2. Chomsky normal form, which restricts grammar rules to be of the form A BC or A a.
3. Turing machines, including their components, transition function, instantaneous descriptions, and examples of languages recognized by Turing machines.
4. Programming techniques for Turing machines like using state information, multiple tracks, and subroutines.Dfa h11
Dfa h11Rajendran
油
This document defines deterministic finite automata (DFAs) and discusses their components, representations, operations, and properties. A DFA consists of a finite set of states, a finite alphabet, a transition function, a start state, and a set of accepting/final states. DFAs can be represented by transition tables or diagrams. The product and complement operations on DFAs are defined, and it is shown that these preserve regularity of languages. The accessible and minimal parts of a DFA are also discussed.Digital to digital
Digital to digitalDr. ABHISHEK K PANDEY
油
This document discusses digital-to-digital conversion and different line coding schemes used to convert digital data into digital signals for transmission. It explains that digital data stored internally as binary is converted to a discrete digital signal. There are three main types of line coding - unipolar, polar, and bipolar encoding. Polar encoding includes schemes like NRZ, RZ, Manchester, and Differential Manchester which use different voltage levels and transitions to represent binary data between bits. Line coding is necessary for all digital communications to transmit data in digital form.Digital to analog
Digital to analog Dr. ABHISHEK K PANDEY
油
This document discusses different digital modulation techniques used to convert digital data to analog signals for transmission, including amplitude shift keying (ASK), frequency shift keying (FSK), and phase shift keying (PSK). ASK encodes data by changing the amplitude of a carrier signal, FSK changes the frequency, and PSK varies the phase shift. PSK has advantages over ASK as it is more robust and less vulnerable to noise that affects signal amplitude.More Related Content
Similar to Cfg to pda equivalnce 3 (20)
Pda
PdaDr. ABHISHEK K PANDEY
油
This document discusses a nondeterministic pushdown automaton (P) that can recognize the language of a context-free grammar (G). It explains that P guesses a leftmost derivation of the input string w by nondeterministically choosing production rules. If P reaches an empty stack having consumed the entire input w, then w is in the language of G. The document proves that P reaching a configuration (q, x, 留) if and only if the start symbol S derives to w留 in G using leftmost derivations.Pda
PdaDr. ABHISHEK K PANDEY
油
This document discusses a nondeterministic pushdown automaton (P) that can recognize the language of a context-free grammar (G). P simulates a leftmost derivation in G by nondeterministically choosing production rules. The document proves that P will consume its entire input if and only if the input string is in the language of G by induction on the number of steps taken by P.Toc CFG cfl properties
Toc CFG cfl propertiesMd. Mehedi Hasan Shawon
油
The document discusses properties of context-free languages, including ways to simplify context-free grammars (CFGs) through eliminating useless symbols, epsilon productions, and unit productions. It also covers the Chomsky normal form, which specifies that a CFG can be converted so that all productions are either of the form A->BC or A->a. Context-free languages are closed under operations like union, concatenation, and substitution.Declare Your Language: Constraint Resolution 2
Declare Your Language: Constraint Resolution 2Eelco Visser
油
1) The document discusses unification and the union-find algorithm for efficiently solving unification problems.
2) Unification involves resolving constraints between terms to find a substitution that makes the terms equal. This can have exponential time and space complexity.
3) The union-find algorithm uses set representatives and linking to maintain disjoint sets in near-constant time complexity, improving on naive recursive algorithms.
4) An example shows how union-find can be applied to fully unify a complex expression by progressively linking variables and subterms between the two sides.AUTOMATA AUTOMATA Automata8Chapter7.pptx
AUTOMATA AUTOMATA Automata8Chapter7.pptxArjayBalberan1
油
The document covers properties of context-free languages, including simplification methods for context-free grammars (CFGs) such as eliminating useless symbols, epsilon-productions, and unit productions. It also discusses algorithms for identifying and removing these features, and touches on normal forms for CFGs, particularly Chomsky Normal Form (CNF). Additionally, it introduces the pumping lemma for context-free languages as a tool for proving certain languages are not context-free.Nondeterministic Finite Automata AFN.pdf
Nondeterministic Finite Automata AFN.pdfSergioUlisesRojasAla
油
This document discusses nondeterministic finite automata (NFAs) and how they can be converted into equivalent deterministic finite automata (DFAs) through a process called subset construction. It provides examples of NFAs, including one modeling moves on a chessboard, and walks through the subset construction process to convert the chessboard NFA into an equivalent DFA. The document also discusses NFAs with epsilon transitions and how they are equivalent in power to ordinary NFAs without epsilon transitions.Logic design basics
Logic design basicsharishnn
油
Boolean algebra uses three basic logic functions - AND, OR, and NOT - to represent any Boolean function. Logic functions can be minimized using techniques like Karnaugh maps and Quine-McCluskey minimization to reduce their complexity. Sequential logic circuits contain memory elements like flip-flops that can be either synchronous, using a clock, or asynchronous. Common flip-flop types include the RS, D, and JK flip-flops.This is a presentation on the parsing.pptx
This is a presentation on the parsing.pptxcsehithaldia
油
The document provides an overview of LR parsing techniques, contrasting top-down and bottom-up approaches, and detailing the concepts of shift-reduce parsing and action/goto tables. It explains the process of constructing parsers, including configuration sets and handling conflicts, and discusses the types of grammars suitable for LR parsing such as LR(0) and SLR(1). Additionally, it covers the importance of viable prefixes and the pruning of handles in parsing without ambiguity.Normal Forms for CFG's.pdf
Normal Forms for CFG's.pdfAmanda Reznor
油
1. The document discusses several normal forms for context-free grammars (CFGs), including eliminating useless variables, removing epsilon productions, removing unit productions, and Chomsky normal form.
2. It provides algorithms and proofs for transforming a CFG into these normal forms, such as identifying nullable and epsilon-deriving variables, and breaking productions into chains of length 2.
3. The key steps to put a CFG for a context-free language L minus the empty string into Chomsky normal form are: clean the grammar, add variables for terminals, and break productions longer than length 2 into chains of length 2 productions. Proofs ensure the transformations preserve the language.Intro To Agda
Intro To AgdaLarry Diehl
油
This document provides an introduction to the Agda programming language through examples of its key features including:
1) Built-in support for natural numbers and inductive data types.
2) Notation for unicode symbols, records, indexed types, and propositional equality.
3) Support for parametric and indexed polymorphism, termination checking, and intuitionistic logic.
4) Examples of programming with dependent types including views, inverse functions, and proof of Socrates' mortality.Deterministic finite automata
Deterministic finite automata Muhammad Love Kian
油
The document defines deterministic finite automata (DFAs) and describes their key components: states, symbols, transition function, start state, and accepting states. It provides examples of how to represent DFAs using transition tables and diagrams. The document also discusses extending the transition function to strings, minimizing DFAs, representing DFAs functionally, automatic theorem proving using DFAs, and the product and complement operations on DFAs.Mid semexam | Theory of Computation | Akash Anand | MTH 401A | IIT Kanpur
Mid semexam | Theory of Computation | Akash Anand | MTH 401A | IIT KanpurVivekananda Samiti
油
This document contains the details of an exam for an undergraduate course on the theory of computation. The exam consists of 5 questions testing students' knowledge of formal languages and automata. Question 1 has 5 true/false statements to verify about language properties. Question 2 defines string reversal and proves an identity. Question 3 proves a language of prime-length strings is not regular. Question 4 minimizes a finite state machine. Question 5 involves writing a context-free grammar and pushdown automaton for a specified language.Theory of Automata and formal languages Unit 3
Theory of Automata and formal languages Unit 3Abhimanyu Mishra
油
This document discusses context-free grammars and their normal forms. It defines a context-free grammar and provides an example. It also discusses BNF notation, leftmost and rightmost derivations, ambiguity in CFGs, and various normal forms for CFGs including Chomsky normal form and Greibach normal form. Algorithms are provided for removing useless symbols, unit productions, null productions, and converting a CFG to these normal forms. Examples are included to demonstrate solving problems related to these topics.Chomsky Normal Form
Chomsky Normal FormJasmine Peniel
油
This document discusses the process of converting a context-free grammar (CFG) into Chomsky normal form (CNF) in multiple steps. It first recalls the definition of CNF and the theorem that every context-free language minus the empty string has a CFG in CNF. It then outlines the steps to convert a CFG to CNF: 1) remove epsilon productions, 2) remove unit rules, 3) break productions with more than two variables into chains of productions with two variables, and 4) ensure all productions are in the forms A->BC or A->a. The document provides two examples showing the full conversion process.B sc cs i bo-de u-ii logic gates
B sc cs i bo-de u-ii logic gatesRai University
油
This document provides an overview of logic gates, Boolean algebra, and digital circuits. It defines basic logic gates like AND, OR, and NOT. It introduces Boolean algebra concepts such as binary variables, algebraic manipulation using laws and theorems, and canonical forms. Standard logic implementations including sum of products, product of sums, and universal gates using NAND and NOR are discussed. De Morgan's theorems and their application to logic gate equivalents are also covered.Minimizing boolean
Minimizing booleanbelcy d mathews
油
This document discusses minimizing Boolean logic and switching theory. It reviews Boolean algebra and canonical forms such as sum of products and product of sums. It discusses how to convert between representations like truth tables and Boolean expressions. Techniques for simplifying Boolean expressions are covered, including De Morgan's laws, the uniting theorem, and Karnaugh maps. Karnaugh maps allow visualizing simplifications by covering adjacent ones with larger cubes or subcubes. Don't cares can also be exploited to simplify expressions. An example design of a two-bit comparator is presented.Minimizing boolean
Minimizing booleanbelcy d mathews
油
The document discusses minimizing Boolean logic and switching theory. It reviews Boolean algebra and canonical forms such as sum of products and product of sums. It also covers manipulating Boolean expressions using techniques like De Morgan's laws. Karnaugh maps are introduced as a way to visualize Boolean functions and apply concepts like the uniting theorem to simplify expressions. Examples are provided to demonstrate how to minimize logic using Karnaugh maps and don't care conditions. digital logic circuits, digital component
digital logic circuits, digital componentRai University
油
This document provides an overview of digital logic circuits and data representation. It defines basic Boolean algebra concepts like binary operators, truth tables, and theorems. It also covers standard forms for representing Boolean functions like sum of products and product of sums. Finally, it discusses logic gates, multiple input gates, and De Morgan's theorem as it applies to gate transformations.Theory of Computation Unit 4
Theory of Computation Unit 4Jena Catherine Bel D
油
The document discusses properties of context-free languages. It covers several topics:
1. Simplification of context-free grammars through removal of null productions, unit productions, and useless symbols.
2. Chomsky normal form, which restricts grammar rules to be of the form A BC or A a.
3. Turing machines, including their components, transition function, instantaneous descriptions, and examples of languages recognized by Turing machines.
4. Programming techniques for Turing machines like using state information, multiple tracks, and subroutines.Dfa h11
Dfa h11Rajendran
油
This document defines deterministic finite automata (DFAs) and discusses their components, representations, operations, and properties. A DFA consists of a finite set of states, a finite alphabet, a transition function, a start state, and a set of accepting/final states. DFAs can be represented by transition tables or diagrams. The product and complement operations on DFAs are defined, and it is shown that these preserve regularity of languages. The accessible and minimal parts of a DFA are also discussed.More from Dr. ABHISHEK K PANDEY (20)
Digital to digital
Digital to digitalDr. ABHISHEK K PANDEY
油
This document discusses digital-to-digital conversion and different line coding schemes used to convert digital data into digital signals for transmission. It explains that digital data stored internally as binary is converted to a discrete digital signal. There are three main types of line coding - unipolar, polar, and bipolar encoding. Polar encoding includes schemes like NRZ, RZ, Manchester, and Differential Manchester which use different voltage levels and transitions to represent binary data between bits. Line coding is necessary for all digital communications to transmit data in digital form.Digital to analog
Digital to analog Dr. ABHISHEK K PANDEY
油
This document discusses different digital modulation techniques used to convert digital data to analog signals for transmission, including amplitude shift keying (ASK), frequency shift keying (FSK), and phase shift keying (PSK). ASK encodes data by changing the amplitude of a carrier signal, FSK changes the frequency, and PSK varies the phase shift. PSK has advantages over ASK as it is more robust and less vulnerable to noise that affects signal amplitude.Analog to analog
Analog to analogDr. ABHISHEK K PANDEY
油
This document discusses different types of analog modulation techniques. It defines analog modulation as modifying analog signals to represent analog data when bandpass transmission is used. It describes amplitude modulation (AM) as varying the amplitude of a carrier wave based on the amplitude of the signal being modulated. Frequency modulation (FM) varies the frequency of the carrier wave according to the modulating signal while keeping the amplitude and phase constant. Phase modulation (PM) varies the phase of the carrier wave based on the modulating signal, keeping the amplitude and frequency constant.Wcdma interface sakshi
Wcdma interface sakshiDr. ABHISHEK K PANDEY
油
WCDMA is a 3G mobile wireless technology that offers higher data rates than CDMA. It can handle bandwidth-intensive applications like video and image transmission required for mobile internet services. WCDMA was adopted as a global standard by the IMT-2000 to create a standard for real-time multimedia services and international roaming. WCDMA is now the leading 3G wireless standard worldwide.Utran architecture(rashmi)
Utran architecture(rashmi)Dr. ABHISHEK K PANDEY
油
The document discusses the UMTS Terrestrial Radio Access Network (UTRAN) which connects mobile devices to telephone networks and the internet. It contains Node B base stations and Radio Network Controllers that make up the radio access network. There are physical, transport, and logical channels that deal with different information flows and tasks between the network and terminals. The document outlines the lu, Uu, lub, and lur interfaces that connect internally and externally to other network entities like the core network and between RNCs and Node Bs. It notes that high uplink data transmission speed from the UE to base stations is important for high connectivity speeds compared to downlink transmission speed from base stations to the UE.Umts
UmtsDr. ABHISHEK K PANDEY
油
This document appears to be a letter or report from Prof. Neeraj Bhargava and Abhishek Kumar from the Department of Computer Science at the School of Engineering & System Sciences at MDS University in Ajmer, Rajasthan, India. It contains their names, department, and university information along with numbered sections and a concluding thank you message.Osi modal
Osi modalDr. ABHISHEK K PANDEY
油
This document discusses the Open Systems Interconnection (OSI) model, which defines seven layers for network communication. It describes the functions of each layer, including the physical layer for transmitting bits, the data link layer for transmitting frames, the network layer for delivering packets from source to destination, the transport layer for process-to-process delivery, the session layer for establishing and synchronizing interactions, the presentation layer for syntax and semantics, and the application layer for user interfaces and services.Network topologies(chetan)
Network topologies(chetan)Dr. ABHISHEK K PANDEY
油
The document discusses different network topologies including bus, ring, star, mesh, and hybrid. The bus topology uses a single cable to interconnect all nodes in a peer-to-peer fashion. The ring topology connects each workstation to its nearest neighbors in a unidirectional fashion around the ring using a token. The star topology has connections radiating from a central point to allow independent access by networked devices. The mesh topology connects every device to another via a channel. A hybrid topology combines two or more of these topologies and is scalable but also costly.Multiplexing II
Multiplexing IIDr. ABHISHEK K PANDEY
油
This document discusses multiplexing, which is a method of combining multiple analog or digital signals into one signal over a shared medium. It allows for the scarce resource of the communication channel to be shared. There are several types of multiplexing discussed, including frequency-division multiplexing, time-division multiplexing, and space-division multiplexing. Frequency-division multiplexing separates signals by sending them in distinct frequency ranges over a single medium. Time-division multiplexing separates signals by sequencing bits or bytes from each stream in turn very quickly. Space-division multiplexing uses separate point-to-point conductors for each channel.Est umts speech cells
Est umts speech cellsDr. ABHISHEK K PANDEY
油
This document appears to be contact information for two individuals, Prof. Neeraj Bhargava and Abhishek Kumar, who work in the Department of Computer Science at the School of Engineering & System Sciences at MDS University in Ajmer, Rajasthan, India.Digital to analog piyush sen
Digital to analog piyush senDr. ABHISHEK K PANDEY
油
This document discusses different digital modulation techniques used to convert digital data to analog signals for transmission, including amplitude shift keying (ASK), frequency shift keying (FSK), and phase shift keying (PSK). ASK encodes data by changing the amplitude of a carrier signal, FSK changes the frequency, and PSK varies the phase shift. PSK has a higher bandwidth requirement than ASK but is more robust to noise since it is not as vulnerable to changes in signal amplitude.Adc
AdcDr. ABHISHEK K PANDEY
油
This document appears to be contact information for two individuals, Prof. Neeraj Bhargava and Abhishek Kumar, who work in the Department of Computer Science at the School of Engineering & System Sciences at MDS University in Ajmer, Rajasthan, India.Reguler grammar cfg
Reguler grammar cfgDr. ABHISHEK K PANDEY
油
1. The document defines a set of functions by specifying an initial set and rules for generating new functions from the initial set. The initial set includes identity and projection functions on integers. New functions can be generated by adding 1 or assigning a constant.
2. If a function F can be computed by a Turing machine, then F is recursive. Conversely, if a function F is recursive (part of the defined set), then a Turing machine can be defined to compute F.
3. A grammar G consists of symbols divided into final and auxiliary symbols, production rules that replace strings of symbols, a starting auxiliary symbol, and a language of final symbol strings generated by starting with the starting symbol and applying the productionRegular languag regular set
Regular languag regular setDr. ABHISHEK K PANDEY
油
Regular languages are languages that can be generated by applying operations like concatenation, union, and kleene closure a finite number of times. They can be recognized by finite automata. The document provides examples of regular expressions and the regular languages they define, such as:
(a) a followed by 0 or more b defines the language {a, ab, abb, abbb, ...}
(b) any number of vowels followed by any number of consonants defines the language {竜, a, aou, aiou, b, abcd, ...}
It also proves that the union and intersection of two regular sets is also a regular set by providing examples of regular expressions for the union and intersection ofRegular expression for dfa
Regular expression for dfaDr. ABHISHEK K PANDEY
油
The document discusses finite automata and regular expressions, noting that finite automata recognize string patterns while regular expressions generate them. It provides examples of operands in regular expressions like characters, variables, epsilon, and null. The document goes on to state that it will discuss converting finite automata to regular grammars. As an example, it defines a regular grammar R(G) for a given DFA, specifying the variables, alphabet, and production rules to generate the language recognized by the DFA.Pumping lemma
Pumping lemmaDr. ABHISHEK K PANDEY
油
This document discusses the pumping lemma and its application to proving that a specific language is not regular. It states that for any infinite regular language L, there exists an integer m such that any string w in L of length at least m can be written as the concatenation of three strings where the length of the middle string is bounded and the concatenation of the strings is also in L. It then presents a language consisting of strings of a's of length at least 3 and aims to show this language is not regular by assuming for contradiction that it is regular and applying the pumping lemma.Pumping lemma numerical
Pumping lemma numericalDr. ABHISHEK K PANDEY
油
The document applies the pumping lemma to a language L to show that L is not regular. It chooses a string w in L of length at least m, where m is the pumping length. It then shows that w can be pumped to generate strings both in and not in L, resulting in a contradiction. This contradiction means the assumption that L is regular is false, so L must be non-regular.Pumping lemma for cfg
Pumping lemma for cfgDr. ABHISHEK K PANDEY
油
1. The document discusses properties of context-free grammars (CFGs) and context-free languages (CFLs).
2. It introduces the pumping lemma for CFLs, which states that for any string x in a CFL L longer than a constant K, x can be decomposed into uvwyz such that vy is not empty and for any i, uv^i w y^i z is in L.
3. It then strengthens the pumping lemma by adding the condition that the length of vwy must be less than K.Power of authomata
Power of authomataDr. ABHISHEK K PANDEY
油
This document provides an overview of fundamental mathematical concepts including sets, functions, relations, and graphs. It discusses different types of automata like finite automata, pushdown automata, and Turing machines, with Turing machines having the most computational power. It also covers set representations, operations on sets like union and intersection, and using Venn diagrams to visualize relationships between sets.Pda1
Pda1Dr. ABHISHEK K PANDEY
油
This document discusses pushdown automata, which are abstract machines that can recognize context-free languages. It is authored by Prof. Neeraj Bhargava and Abhishek Kumar from the Department of Computer Science at the School of Engineering & System Sciences at MDS University in Ajmer, Rajasthan, India. The document covers notational conventions for pushdown automata.Ad
Recently uploaded (20)
Call For Papers - 17th International Conference on Wireless & Mobile Networks...
Call For Papers - 17th International Conference on Wireless & Mobile Networks...hosseinihamid192023
油
17th International Conference on Wireless & Mobile Networks (WiMoNe 2025) will provide
an excellent international forum for sharing knowledge and results in theory, methodology and
applications of Wireless & Mobile computing Environment. Current information age is witnessing
a dramatic use of digital and electronic devices in the workplace and beyond. Wireless, Mobile
Networks & its applications had received a significant and sustained research interest in terms of
designing and deploying large scale and high performance computational applications in real life.
The aim of the conference is to provide a platform to the researchers and practitioners from both
academia as well as industry to meet and share cutting-edge development in the field.Cadastral Maps
Cadastral MapsGoogle
油
Preparation of cadastral maps based by Engineer Dungo Tizazu from Dire Dawa University Introduction to Python Programming Language
Introduction to Python Programming Languagemerlinjohnsy
油
This PPT covers features, applications, variable, data types and statements in PythonTally.ERP 9 at a Glance.book - Tally Solutions .pdf
Tally.ERP 9 at a Glance.book - Tally Solutions .pdfShabista Imam
油
Tally.ERP 9 at a Glance.book, a fully completed guidance to learn tally erp 9.0Complete guidance book of Asp.Net Web API
Complete guidance book of Asp.Net Web APIShabista Imam
油
Unlock the full potential of modern web development with the Complete Guidance Book of ASP.NET Web APIyour all-in-one resource for mastering RESTful services using Microsofts powerful ASP.NET Core framework. This book takes you on a step-by-step journey from beginner to expert, covering everything from routing and controllers to security, performance optimization, and real-world architecture.How to Un-Obsolete Your Legacy Keypad Design
How to Un-Obsolete Your Legacy Keypad DesignEpec Engineered Technologies
油
For any number of circumstances, obsolescence risk is ever present in the electronics industry. This is especially true for human-to-machine interface hardware, such as keypads, touchscreens, front panels, bezels, etc. This industry is known for its high mix and low-volume builds, critical design requirements, and high costs to requalify hardware. Because of these reasons, many programs will face end-of-life challenges both at the component level as well as at the supplier level.
Redesigns and qualifications can take months or even years, so proactively managing this risk is the best way to deter this. If an LED is obsolete or a switch vendor has gone out of business, there are options to proceed.
In this webinar, we cover options to redesign and reverse engineer legacy keypad and touchscreen designs.
For more information on our HMI solutions, visit https://www.epectec.com/user-interfaces.
Rapid Prototyping for XR: Lecture 1 Introduction to Prototyping
Rapid Prototyping for XR: Lecture 1 Introduction to PrototypingMark Billinghurst
油
Lecture 1 of a course on Rapid Prototyping for XR taught by Mark Billinghurst at Oulu University on June 9th, 2025. This lecture presents an Introduction to Prototyping. Structured Programming with C++ :: Kjell Backman
Structured Programming with C++ :: Kjell BackmanShabista Imam
油
Step into the world of high-performance programming with the Complete Guidance Book of C++ Programminga definitive resource for mastering one of the most powerful and versatile languages in computer science.
Whether you're a beginner looking to learn the fundamentals or an intermediate developer aiming to sharpen your skills, this book walks you through C++ from the ground up. You'll start with basics like variables, control structures, and functions, then progress to object-oriented programming (OOP), memory management, file handling, templates, and the Standard Template Library (STL).May 2025: Top 10 Read Articles in Data Mining & Knowledge Management Process
May 2025: Top 10 Read Articles in Data Mining & Knowledge Management ProcessIJDKP
油
Data mining and knowledge discovery in databases have been attracting a significant amount of research, industry, and media attention of late. There is an urgent need for a new generation of computational theories and tools to assist researchers in extracting useful information from the rapidly growing volumes of digital data.
This Journal provides a forum for researchers who address this issue and to present their work in a peer-reviewed open access forum. Authors are solicited to contribute to the Journal by submitting articles that illustrate research results, projects, surveying works and industrial experiences that describe significant advances in the following areas, but are not limited to these topics only.FUNDAMENTALS OF COMPUTER ORGANIZATION AND ARCHITECTURE
FUNDAMENTALS OF COMPUTER ORGANIZATION AND ARCHITECTUREShabista Imam
油
FUNDAMENTALS OF COMPUTER ORGANIZATION AND ARCHITECTURE
By : Mostafa Abd-El-Barr & Hesham El-Rewini:: wiley
A complete guidance bookRapid Prototyping for XR: Lecture 2 - Low Fidelity Prototyping.
Rapid Prototyping for XR: Lecture 2 - Low Fidelity Prototyping.Mark Billinghurst
油
This is lecture 2 on the Rapid Prototyping for XR course taught by Mark Billingurst on June 10th 2025. This lecture is about Low Fidelity Prototyping.Deep Learning for Image Processing on 16 June 2025 MITS.pptx
Deep Learning for Image Processing on 16 June 2025 MITS.pptxresming1
油
This covers how image processing or the field of computer vision has advanced with the advent of neural network architectures ranging from LeNet to Vision transformers. It covers how deep neural network architectures have developed step-by-step from the popular CNNs to ViTs. CNNs and its variants along with their features are described. Vision transformers are introduced and compared with CNNs. It also shows how an image is processed to be given as input to the vision transformer. It give the applications of computer vision.Fatality due to Falls at Working at Height
Fatality due to Falls at Working at Heightssuserb8994f
油
It is related to fatality due to falls at working at heightCall For Papers - 17th International Conference on Wireless & Mobile Networks...
Call For Papers - 17th International Conference on Wireless & Mobile Networks...hosseinihamid192023
油
Ad
Cfg to pda equivalnce 3
- 1. Prof.Neeraj Bhargava Abhishek Kumar Department of Computer Science School of Engineering & System Sciences, MDS, University Ajmer, Rajasthan, India 1
- 2. Next simplest case: 隆(p, a, X) contains (r, Y) for some state r and symbol Y. G has production [pXq] -> a[rYq]. We can erase X and go from p to q by reading a (entering state r and replacing the X by Y) and then reading some w that gets P from r to q while erasing the Y. Note: [pXq] =>* aw whenever [rYq] =>* w. 2

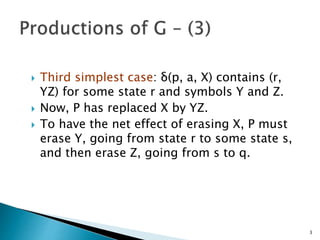

- 3. Third simplest case: 隆(p, a, X) contains (r, YZ) for some state r and symbols Y and Z. Now, P has replaced X by YZ. To have the net effect of erasing X, P must erase Y, going from state r to some state s, and then erase Z, going from s to q. 3

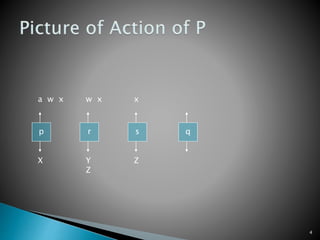

- 4. 4 p X a w x r Y Z w x s Z x q
- 5. Since we do not know state s, we must generate a family of productions: [pXq] -> a[rYs][sZq] for all states s. [pXq] =>* awx whenever [rYs] =>* w and [sZq] =>* x. 5
- 6. Suppose 隆(p, a, X) contains (r, Y1,Yk) for some state r and k > 3. Generate family of productions [pXq] -> a[rY1s1][s1Y2s2][sk-2Yk-1sk-1][sk-1Ykq] 6
- 7. We can prove that (q0, w, Z0)*(p, 竜, 竜) if and only if [q0Z0p] =>* w. Proof is in text; it is two easy inductions. But state p can be anything. Thus, add to G another variable S, the start symbol, and add productions S -> [q0Z0p] for each state p. 7
