CNC Machine Wiring Diagram For Fadal Pendant
0 likes17 views
Reduce installation and wiring time with a complete wiring diagram for the Fadal pendant, covering all instructions. For any questions or doubts, feel free to share your concerns at parts@itscnc.com. ITSCNC is here to assist you in making the installation process as efficient and seamless as possible.
CNC Machine Wiring Diagram For Fadal Pendant

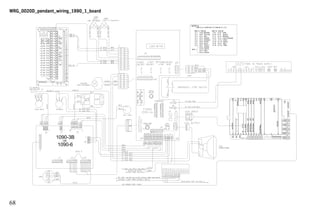

- 2. 68 WRG_0020D_pendant_wiring_1990_1_board 1990-1A J1 (16PIN IDC) TO 1090-3B J11, J12 1990-1A 1090-3B 1990-1A 1090-3B J1-1 J12-6 BROWN J1-9 J11-8 PINK J1-2 J12-5 YELLOW J1-10 J11-5 BLACK J1-3 J12-1 RED J1-11 J11-9 BROWN J1-4 J12-4 GREEN J1-12 J11-4 LIGHT BROWN J1-5 J12-3 ORANGE J1-13 J11-11 GREY J1-6 J12-8 WHITE J1-14 J11-10 WHITE J1-7 J12-2 BLUE J1-15 J11-6 RED J1-8 J12-7 VIOLET J1-16 J11-12 PINK J12-9 GREEN J12-10 WHITE J12-11 RED J12-12 BLACK NOTE A MPG 1090-3B OR 1090-6

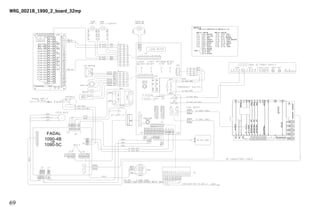

- 3. 69 WRG_0021B_1990_2_board_32mp MPG NOTE A 1090-5C OR FADAL 1090-4B 1990-1A J1 (16PIN IDC) TO 1090-3B J11, J12 1990-1A 1090-3B 1990-1A 1090-3B J1-1 J12-6 BROWN J1-9 J11-8 PINK J1-2 J12-5 YELLOW J1-10 J11-5 BLACK J1-3 J12-1 RED J1-11 J11-9 BROWN J1-4 J12-4 GREEN J1-12 J11-4 LIGHT BROWN J1-5 J12-3 ORANGE J1-13 J11-11 GREY J1-6 J12-8 WHITE J1-14 J11-10 WHITE J1-7 J12-2 BLUE J1-15 J11-6 RED J1-8 J12-7 VIOLET J1-16 J11-12 PINK J12-9 GREEN J12-10 WHITE J12-11 RED J12-12 BLACK
- 4. 70 WRG_0025B_pendant_wiring_1990_1_board_color_vga 1090-3B FADAL 1920-1 OR 1090-6 NOTE A MPG 1990-1 J1 (16PIN IDC) TO 1090-3 or 1090-6 J11, J12 1990-1A 1090-3B 1990-1A 1090-3B J1-1 J12-6 BROWN J1-9 J11-8 PINK J1-2 J12-5 YELLOW J1-10 J11-5 BLACK J1-3 J12-1 RED J1-11 J11-9 BROWN J1-4 J12-4 GREEN J1-12 J11-4 LIGHT BROWN J1-5 J12-3 ORANGE J1-13 J11-11 GREY J1-6 J12-8 WHITE J1-14 J11-10 WHITE J1-7 J12-2 BLUE J1-15 J11-6 RED J1-8 J12-7 VIOLET J1-16 J11-12 PINK J12-9 GREEN J12-10 WHITE J12-11 RED J12-12 BLACK

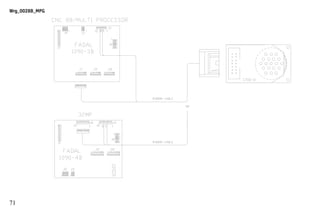

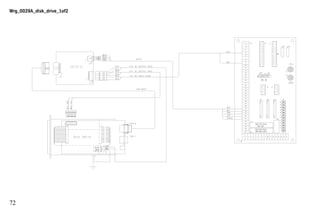

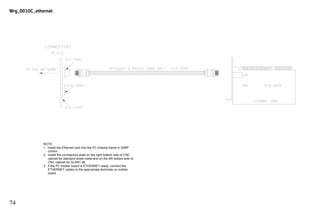

- 8. 74 Wrg_0010C_ethernet NOTE: 1. Install the Ethernet card into the PC chassis frame in 32MP control. 2. Install the conntactors plate on the right bottom side of CNC cabinet for standard sheet metal and on the left bottom side of CNC cabinet for SLANT 98. 3. If the PC mother board is ETHERNET ready, connect the ETHERNET cables to the appropriate terminals on mother board.

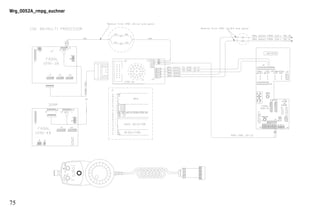

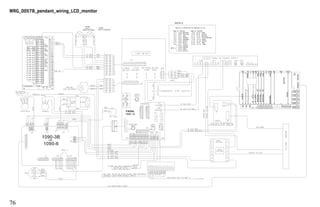

- 10. 76 WRG_0057B_pendant_wiring_LCD_monitor 1090-3B FADAL 1990-1A OR 1090-6 NOTE A MPG 1990-1A J1 (16PIN IDC) TO 1090-3B J11, J12 1990-1A 1090-3B 1990-1A 1090-3B J1-1 J12-6 BROWN J1-9 J11-8 PINK J1-2 J12-5 YELLOW J1-10 J11-5 BLACK J1-3 J12-1 RED J1-11 J11-9 BROWN J1-4 J12-4 GREEN J1-12 J11-4 LIGHT BROWN J1-5 J12-3 ORANGE J1-13 J11-11 GREY J1-6 J12-8 WHITE J1-14 J11-10 WHITE J1-7 J12-2 BLUE J1-15 J11-6 RED J1-8 J12-7 VIOLET J1-16 J11-12 PINK J12-9 GREEN J12-10 WHITE J12-11 RED J12-12 BLACK WORK LIGHT 2 (optional) WORK LIGHT 1 (EMC OPTIONAL)
