Summary of the Class:
Good module decomposition
is indicated through high cohesion of
the individual modules and low
coupling of the modules with each
other. Here we define what
cohesion and coupling is.

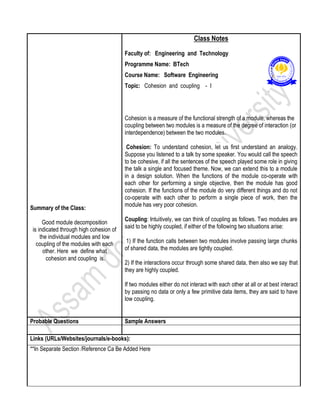

Class Notes
Faculty of: Engineering and Technology
Programme Name: BTech
Course Name: Software Engineering
Topic: Cohesion and coupling - I
Cohesion is a measure of the functional strength of a module, whereas the
coupling between two modules is a measure of the degree of interaction (or
interdependence) between the two modules.
Cohesion: To understand cohesion, let us first understand an analogy.
Suppose you listened to a talk by some speaker. You would call the speech
to be cohesive, if all the sentences of the speech played some role in giving
the talk a single and focused theme. Now, we can extend this to a module
in a design solution. When the functions of the module co-operate with
each other for performing a single objective, then the module has good
cohesion. If the functions of the module do very different things and do not
co-operate with each other to perform a single piece of work, then the
module has very poor cohesion.
Coupling: Intuitively, we can think of coupling as follows. Two modules are
said to be highly coupled, if either of the following two situations arise:
1) If the function calls between two modules involve passing large chunks
of shared data, the modules are tightly coupled.
2) If the interactions occur through some shared data, then also we say that
they are highly coupled.
If two modules either do not interact with each other at all or at best interact
by passing no data or only a few primitive data items, they are said to have
low coupling.
Probable Questions Sample Answers
Links (URLs/Websites/journals/e-books):
**In Separate Section /Reference Ca Be Added Here

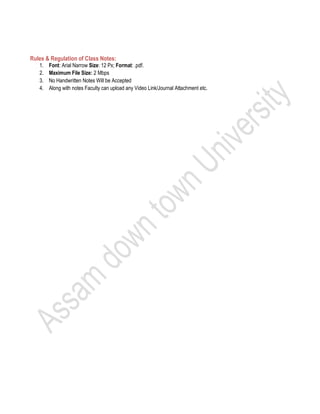

Rules & Regulation of Class Notes:
1. Font: Arial Narrow Size: 12 Px; Format: .pdf.
2. Maximum File Size: 2 Mbps
3. No Handwritten Notes Will be Accepted
4. Along with notes Faculty can upload any Video Link/Journal Attachment etc.
