This document provides product details and specifications for a Commscope-Andrew AL5DF-PS 7-16 DIN Female Positive Stop connector. It includes information on how to purchase the product, same-day shipping, warranty, and repair services available from Launch 3 Telecom. The document also provides detailed specifications for the connector, including electrical and mechanical specifications, environmental specifications, and regulatory compliance.
Commscope-Andrew AL5DF-PS

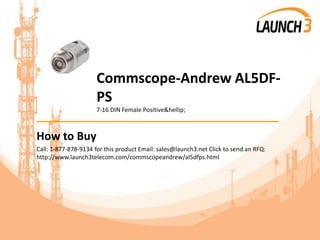

- 2. Commscope-Andrew AL5DF- PS 7-16 DIN Female Positive… _______________________________________ How to Buy Call: 1-877-878-9134 for this product Email: sales@launch3.net Click to send an RFQ: http://www.launch3telecom.com/commscopeandrew/al5dfps.html

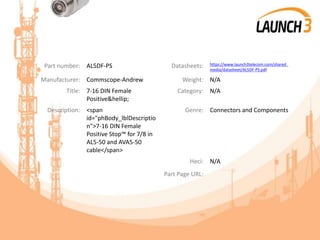

- 3. Part number: AL5DF-PS Datasheets: https://www.launch3telecom.com/shared_ media/datasheet/AL5DF-PS.pdf Manufacturer: Commscope-Andrew Weight: N/A Title: 7-16 DIN Female Positive… Category: N/A Description: <span id="phBody_lblDescriptio n">7-16 DIN Female Positive Stop™ for 7/8 in AL5-50 and AVA5-50 cable</span> Genre: Connectors and Components Heci: N/A Part Page URL:

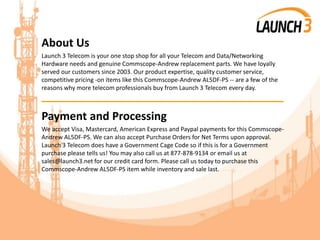

- 4. About Us Launch 3 Telecom is your one stop shop for all your Telecom and Data/Networking Hardware needs and genuine Commscope-Andrew replacement parts. We have loyally served our customers since 2003. Our product expertise, quality customer service, competitive pricing -on items like this Commscope-Andrew AL5DF-PS -- are a few of the reasons why more telecom professionals buy from Launch 3 Telecom every day. _______________________________________ Payment and Processing We accept Visa, Mastercard, American Express and Paypal payments for this Commscope- Andrew AL5DF-PS. We can also accept Purchase Orders for Net Terms upon approval. Launch 3 Telecom does have a Government Cage Code so if this is for a Government purchase please tells us! You may also call us at 877-878-9134 or email us at sales@launch3.net for our credit card form. Please call us today to purchase this Commscope-Andrew AL5DF-PS item while inventory and sale last.

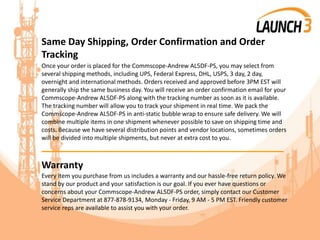

- 5. Same Day Shipping, Order Confirmation and Order Tracking Once your order is placed for the Commscope-Andrew AL5DF-PS, you may select from several shipping methods, including UPS, Federal Express, DHL, USPS, 3 day, 2 day, overnight and international methods. Orders received and approved before 3PM EST will generally ship the same business day. You will receive an order confirmation email for your Commscope-Andrew AL5DF-PS along with the tracking number as soon as it is available. The tracking number will allow you to track your shipment in real time. We pack the Commscope-Andrew AL5DF-PS in anti-static bubble wrap to ensure safe delivery. We will combine multiple items in one shipment whenever possible to save on shipping time and costs. Because we have several distribution points and vendor locations, sometimes orders will be divided into multiple shipments, but never at extra cost to you. _______________________________________ Warranty Every item you purchase from us includes a warranty and our hassle-free return policy. We stand by our product and your satisfaction is our goal. If you ever have questions or concerns about your Commscope-Andrew AL5DF-PS order, simply contact our Customer Service Department at 877-878-9134, Monday - Friday, 9 AM - 5 PM EST. Friendly customer service reps are available to assist you with your order.

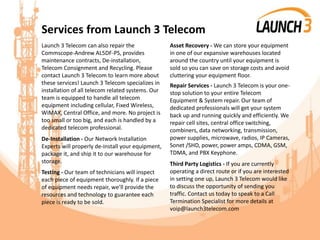

- 6. Services from Launch 3 Telecom Launch 3 Telecom can also repair the Commscope-Andrew AL5DF-PS, provides maintenance contracts, De-installation, Telecom Consignment and Recycling. Please contact Launch 3 Telecom to learn more about these services! Launch 3 Telecom specializes in installation of all telecom related systems. Our team is equipped to handle all telecom equipment including cellular, Fixed Wireless, WiMAX, Central Office, and more. No project is too small or too big, and each is handled by a dedicated telecom professional. De-Installation - Our Network Installation Experts will properly de-install your equipment, package it, and ship it to our warehouse for storage. Testing - Our team of technicians will inspect each piece of equipment thoroughly. If a piece of equipment needs repair, we’ll provide the resources and technology to guarantee each piece is ready to be sold. Asset Recovery - We can store your equipment in one of our expansive warehouses located around the country until your equipment is sold so you can save on storage costs and avoid cluttering your equipment floor. Repair Services - Launch 3 Telecom is your one- stop solution to your entire Telecom Equipment & System repair. Our team of dedicated professionals will get your system back up and running quickly and efficiently. We repair cell sites, central office switching, combiners, data networking, transmission, power supplies, microwave, radios, IP Cameras, Sonet /SHD, power, power amps, CDMA, GSM, TDMA, and PBX Keyphone. Third Party Logistics - If you are currently operating a direct route or if you are interested in setting one up, Launch 3 Telecom would like to discuss the opportunity of sending you traffic. Contact us today to speak to a Call Termination Specialist for more details at voip@launch3telecom.com

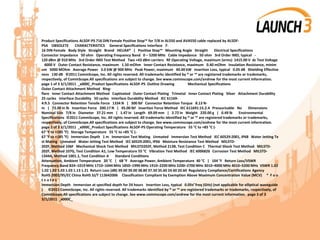

- 7. Product Specifications AL5DF-PS 716 DIN Female Positive Stop™ for 7/8 in AL550 and AVA550 cable replaced by AL5DF- PSA OBSOLETE CHARACTERISTICS General Specifications Interface 7- 16 DIN Female Body Style Straight Brand HELIAX® | Positive Stop™ Mounting Angle Straight Electrical Specifications Connector Impedance 50 ohm Operating Frequency Band 0 – 5200 MHz Cable Impedance 50 ohm 3rd Order IMD, typical - 120 dBm @ 910 MHz 3rd Order IMD Test Method Two +43 dBm carriers RF Operating Voltage, maximum (vrms) 1415.00 V dc Test Voltage 4000 V Outer Contact Resistance, maximum 1.50 mOhm Inner Contact Resistance, maximum 0.40 mOhm Insulation Resistance, minim um 5000 MOhm Average Power 3.0 kW @ 900 MHz Peak Power, maximum 40.00 kW Insertion Loss, typical 0.05 dB Shielding Effective ness 130 dB ©2011 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope.All specifications are subject to change. See www.commscope.com/andrew for the most current information. page 1 of 3 3/1/2011 _x000C_Product Specifications AL5DF-PS Outline Drawing Mechanical Specifications Outer Contact Attachment Method Ring- flare Inner Contact Attachment Method Captivated Outer Contact Plating Trimetal Inner Contact Plating Silver Attachment Durability 25 cycles Interface Durability 50 cycles Interface Durability Method IEC 61169- 4:9.5 Connector Retention Tensile Force 1334 N | 300 lbf Connector Retention Torque 8.13 N- m | 72.00 in lb Insertion Force 200.17 N | 45.00 lbf Insertion Force Method IEC 611691:15.2.4 Pressurizable No Dimensions Nominal Size 7/8 in Diameter 37.21 mm | 1.47 in Length 69.09 mm | 2.72 in Weight 220.00 g | 0.49 lb Environmental Specifications ©2011 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope.All specifications are subject to change. See www.commscope.com/andrew for the most current information. page 2 of 3 3/1/2011 _x000C_Product Specifications AL5DF-PS Operating Temperature 55 °C to +85 °C (- 67 °F to +185 °F) Storage Temperature 55 °C to +85 °C (- 67 °F to +185 °F) Immersion Depth 1 m Immersion Test Mating Unmated Immersion Test Method IEC 60529:2001, IP68 Water Jetting Te st Mating Unmated Water Jetting Test Method IEC 60529:2001, IP66 Moisture Resistance Test Method MILSTD- 202F, Method 106F Mechanical Shock Test Method MILSTD202F, Method 213B, Test Condition C Thermal Shock Test Method MILSTD- 202F, Method 107G, Test Condition A1, Low Temperature 55 °C Vibration Test Method IEC 6006826 Corrosion Test Method MILSTD- 1344A, Method 1001.1, Test Condition A Standard Conditions Attenuation, Ambient Temperature 20 °C | 68 °F Average Power, Ambient Temperature 40 °C | 104 °F Return Loss/VSWR Frequency Band 824–1019 MHz 1710–1044 MHz 1850–1990 MHz 1910–2200 MHz 2200–2700 MHz 3010–4000 MHz 4010–5200 MHz VSWR 1.02 1.02 1.02 1.03 1.03 1.13 1.21 Return Loss (dB) 39.00 39.00 38.80 37.50 35.60 24.60 20.60 Regulatory Compliance/Certifications Agency RoHS 2002/95/EC China RoHS SJ/T 113642006 Classification Compliant by Exemption Above Maximum Concentration Value (MCV) * F o o t n o t e s Immersion Depth Immersion at specified depth for 24 hours Insertion Loss, typical 0.05√¯freq (GHz) (not applicable for elliptical waveguide ) ©2011 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope.All specifications are subject to change. See www.commscope.com/andrew for the most current information. page 3 of 3 3/1/2011 _x000C_
