1) Complex numbers can be represented as ordered pairs of real numbers on a 2D plane, with the x-axis representing the in-phase (I) component and the y-axis representing the quadrature (Q) component. 2) A complex sinusoid rotating on this plane at an angular velocity of 2πF represents a signal with frequency F, where F is the rate of change of the signal's phase over time. 3) Such a complex sinusoid can be decomposed into its I and Q components, which are real sinusoids 90 degrees out of phase with each other, with the I component in phase with cosine.

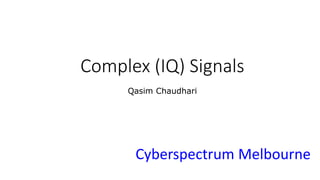

Complex (IQ) Signals
Qasim Chaudhari
Cyberspectrum Melbourne

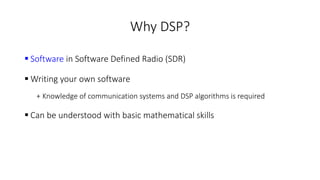

Why DSP?
 Software in Software Defined Radio (SDR)
 Writing your own software
+ Knowledge of communication systems and DSP algorithms is required
 Can be understood with basic mathematical skills

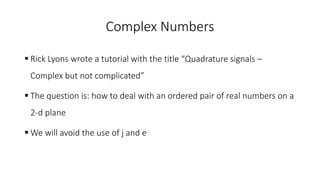

Complex Numbers
 Rick Lyons wrote a tutorial with the title “Quadrature signals –
Complex but not complicated”
 The question is: how to deal with an ordered pair of real numbers on a
2-d plane
 We will avoid the use of j and e

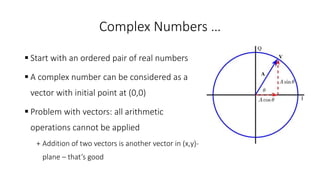

Complex Numbers …
 Start with an ordered pair of real numbers
 A complex number can be considered as a
vector with initial point at (0,0)
 Problem with vectors: all arithmetic
operations cannot be applied
+ Addition of two vectors is another vector in (x,y)-
plane – that’s good

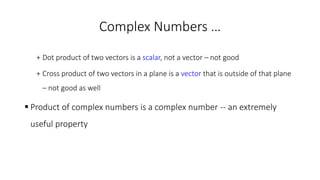

Complex Numbers …
+ Dot product of two vectors is a scalar, not a vector – not good
+ Cross product of two vectors in a plane is a vector that is outside of that plane
– not good as well
 Product of complex numbers is a complex number -- an extremely
useful property

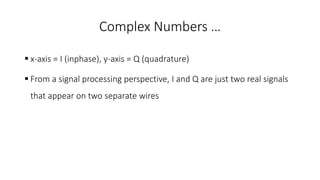

Complex Numbers …
 x-axis = I (inphase), y-axis = Q (quadrature)
 From a signal processing perspective, I and Q are just two real signals
that appear on two separate wires

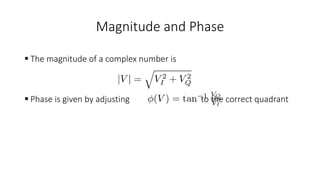

Magnitude and Phase
 The magnitude of a complex number is
 Phase is given by adjusting to the correct quadrant

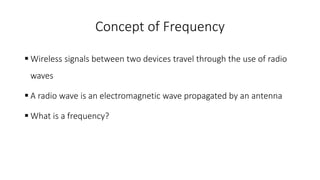

Concept of Frequency
 Wireless signals between two devices travel through the use of radio
waves
 A radio wave is an electromagnetic wave propagated by an antenna
 What is a frequency?

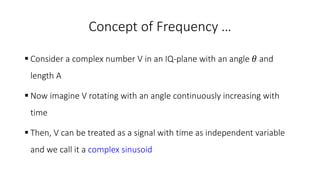

Concept of Frequency …
 Consider a complex number V in an IQ-plane with an angle 𝜃 and
length A
 Now imagine V rotating with an angle continuously increasing with
time
 Then, V can be treated as a signal with time as independent variable
and we call it a complex sinusoid

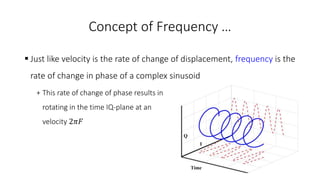

Concept of Frequency …
 Just like velocity is the rate of change of displacement, frequency is the
rate of change in phase of a complex sinusoid
+ This rate of change of phase results in V
rotating in the time IQ-plane at an angular
velocity 2𝜋𝐹

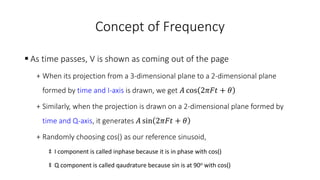

Concept of Frequency
 As time passes, V is shown as coming out of the page
+ When its projection from a 3-dimensional plane to a 2-dimensional plane
formed by time and I-axis is drawn, we get 𝐴 cos 2𝜋𝐹𝑡 + 𝜃
+ Similarly, when the projection is drawn on a 2-dimensional plane formed by
time and Q-axis, it generates 𝐴 sin 2𝜋𝐹𝑡 + 𝜃
+ Randomly choosing cos() as our reference sinusoid,
‡ I component is called inphase because it is in phase with cos()
‡ Q component is called qaudrature because sin is at 90o with cos()

Concept of Frequency …

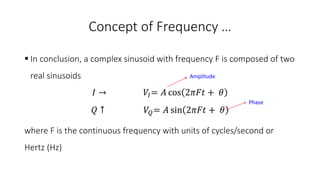

 In conclusion, a complex sinusoid with frequency F is composed of two
real sinusoids
𝐼 → 𝑉𝐼= 𝐴 cos 2𝜋𝐹𝑡 + 𝜃
𝑄 ↑ 𝑉𝑄= 𝐴 sin 2𝜋𝐹𝑡 + 𝜃
where F is the continuous frequency with units of cycles/second or
Hertz (Hz)
Phase
Amplitude

What is a Negative Frequency?
 Negative frequencies can cause some confusion
+ It is hard to visualize a negative frequency viewed as inverse period of a
sinusoid
 Define it through the rate of rotation of a complex sinusoid V
+ A negative frequency simply implies rotation of V in a clockwise direction
+ Negative frequencies are real, just like negative numbers are real

The document discusses various applications of matrices including: 1) Linear transformations which must satisfy properties of vector addition and scalar multiplication. 2) Cryptography which uses matrix transformations to encrypt and decrypt data. 3) Computer animations which use matrix transformations for operations like scaling, translation, reflection and rotation on digital images and video. 4) Electronics where the behavior of components can be described using matrices relating input and output voltages and currents.

Grade 12 Unit1-L1-Kinematic Equationsgruszecki1

��

This document provides an overview and review of kinematics concepts including: 1) Defining directions as positive or negative is important to avoid errors in kinematics problems. 2) Five fundamental kinematics equations are presented that assume constant or zero acceleration and deal with displacement, velocity, acceleration, and time. 3) An example problem is provided and instructions are given for homework practice problems to reinforce kinematics concepts.

Annotations 2Timmathy

��

The document discusses modeling tidal data with a sine wave function. It provides steps to sketch the graph based on key components: - D is the vertical shift (average sea level of 0 feet) - A is the amplitude of 2 feet - B determines the period of 12.5 hours - C is the horizontal shift starting at January 1st It describes finding the equation to model the tide heights over time by determining the A, B, C, and D values. The example uses the equation y=2sin((π/12.5)x) , solves for theta, and inputs back into the equation to find the first high tide was at 1:47 am on January 1st.

Chapter3.1Susan Graves

��

The document provides information about homework, office hours, and a tutorial center for a physics class. It then summarizes key concepts about vectors, including: - Vectors have magnitude and direction, while scalars have only magnitude - Two vectors are equal if they have the same magnitude and direction - Vector addition uses the tip-to-tail method to place the tail of one vector at the tip of another - Multiplying a vector by a scalar scales the vector's magnitude - Vectors can be represented by their x- and y-components

Grade 11, U1A-L4, Motion Equationsgruszecki1

��

The document discusses equations of motion using velocity-time graphs, including the relationships between displacement, average velocity, and the area under the graph. It provides examples of calculating time for one object to catch up to another using the kinematic equations and information about their initial velocities and accelerations. Practice problems are presented at the end to further illustrate applying the kinematic equations.

R kmethodAbhishekGHatti

��

The Runge-Kutta method is a numerical integration technique providing improved approximations to motion equations by calculating multiple slopes and using them as weighted averages, unlike Euler's method which only considers a single slope. The method involves a series of steps to derive slopes k1, k2, k3, and k4 to generate a more accurate value for the object's position and velocity. The document aims to visually explain the computation process of the Runge-Kutta method.

Vectors 5 2 Part 1ECI

��

MASON’S RULEimengineer

��

Signal flow graphs are an alternative to block diagrams for representing systems. In a signal flow graph, branches represent systems/transfer functions, nodes represent signals, and each signal is the sum of the input signals flowing into it. To create a signal flow graph, signals in a system are first represented as nodes, then the nodes are interconnected with branches representing the systems/transfer functions. The document provides an example signal flow graph and explains how each signal is calculated based on the inputs flowing into the corresponding node.

What is I/Q phaseSeokseong Jeon

��

QPSK modulation encodes 2 bits of data by changing the phase of a carrier signal across four possible phases. I-phase and Q-phase refer to representing the signal as a complex number with real and imaginary components. At the transmitter, the I and Q components are used to modulate the amplitude of sine and cosine carrier waves, resulting in a signal with the desired phase. At the receiver, the signal is mixed with the carrier and low-pass filtered to recover the I and Q components and decode the two bits of data. I/Q representation allows the modulated signal to be analyzed and processed using tools from complex analysis and linear systems theory.

2014.06.19 Time Series Analysis Workshop ..Signal Processing MethodsNUI Galway

��

The document introduces key concepts of digital signal processing and time series analysis, aiming to present foundational knowledge in an accessible manner. It covers essential topics such as sampling, time domain analysis, frequency domain analysis, and the significance of sine waves in understanding complex signals through Fourier analysis. The importance of proper sampling frequency to avoid aliasing is emphasized, along with examples illustrating the effects of sampling and quantization in practical scenarios.

Imaginary part – A source of creativityFangXuIEEE

��

Replacing real values with complex values in areas like window functions can lead to new solutions. A complex-valued window function was developed that can be applied to non-coherently sampled waveforms without spectral leakage artifacts. This "extended Fourier transform" works by decomposing the signal into a complex expression, rounding the number of periods to an integer, and applying a "twiddle function" or complex-valued window to change the angular velocity before taking the Fourier transform. More research is needed to fully understand this approach and explore other applications of complex values.

Wideband Complex Modulation Analysis Using a Real-Time Digital DemodulatorRohde & Schwarz North America

��

The document discusses wideband complex modulation analysis using real-time digital demodulation techniques, covering key concepts like modulation basics, I/Q modulation, and OFDM. It outlines measurement challenges, the capabilities of the RTO-K11 I/Q software interface, as well as solutions for various modulated signals, specifically addressing bandwidth and signal quality. The document concludes with an overview of Rohde & Schwarz as a key player in the electronics and communications field.

Digital Signal Processing-Digital FiltersNelson Anand

��

This document discusses digital signal processing using digital filters in MATLAB. It begins by introducing signals and their analog and digital processing. It then covers key digital signal processing tasks like filtering, transforms, and convolution. It describes different filter types including FIR and IIR, and filter design methods. MATLAB sessions are included to demonstrate filtering and filter design. The overall document provides a conceptual overview of digital filters and digital signal processing.

Dc3 t1Nachiket Rajput

��

This document discusses the physical layer and media in networking. It covers: - The physical layer is responsible for carrying information between nodes by converting data to signals and transmitting them across a medium. - Data must be transformed into electromagnetic signals to be transmitted. Both analog and digital signals can be used for transmission. - Periodic analog signals like sine waves are commonly used. They are defined by amplitude, frequency, and phase. Composite signals can be decomposed into sums of sine waves. - The bandwidth of a signal is the range of its component frequencies. Frequency spectrum refers to the specific frequencies present in a signal.

Types Of Window Being Used For The Selected GranuleLeslie Lee

��

The document discusses different types of mode selective devices that can be used for mode multiplexing over few-mode fiber. Free-space based devices are bulky while fiber based devices are more compact and easier to integrate. Early demonstrations transmitted data over 107 Gb/s using the LP01 and LP11 fiber modes and 58.8 Gb/s using dual modes with electronic MIMO processing for mode separation. Mode selective devices can be categorized as either free-space based or fiber based, with fiber based being preferable due to their compact size and integration capabilities.

Communication system 1 chapter 2-part-2BetelihemMesfin1

��

The document discusses Fourier analysis and Fourier transforms. It explains that Fourier analysis can be used to break down non-sinusoidal waveforms into combinations of sinusoidal components. The Fourier transform represents this decomposition in the frequency domain. The document provides examples of applying Fourier analysis to common waveforms like square waves. It also summarizes properties and applications of the Fourier transform, including filters and filtering of signals.

Communication system 1 chapter 2-part-2BetelihemMesfin1

��

The document discusses Fourier analysis and Fourier transforms. It explains that Fourier analysis can be used to break down non-sinusoidal waveforms into sums of sinusoidal components. The Fourier transform represents this decomposition in the frequency domain. The document provides examples of applying Fourier analysis to common waveforms like square waves. It also summarizes properties of the Fourier transform like differentiation, time scaling, and convolution. Finally, it discusses various types of filters and how they are implemented using components like resistors, capacitors, and inductors.

Pertemuan 1 - Sinyal dan Sistem Linier Kelas Praktisi.pptxssuser9996f4

��

The document provides an overview of linear signals and systems, highlighting the importance of representing signals in both time and frequency domains. It discusses the use of sinusoidal representations for signal analysis, explaining how this approach simplifies the analysis of linear systems and facilitates control applications. Additionally, it covers various application areas, including communication, signal processing, and biological signal analysis, emphasizing the versatility of signals in different contexts.

Inside maths : 1 Jaydeep ShahJAYDEEP SHAH

��

The document provides an overview of fundamental mathematical concepts, including Fourier transform, Euler’s theorem, complex numbers, and the center of mass, emphasizing their significance in engineering and science. It explains how Fourier transform decomposes time-based functions into their frequency components and illustrates connections with trigonometry to represent AC waveforms. Additionally, the document discusses the application of these concepts in practical scenarios, highlighting the importance of understanding complex number systems in various scientific fields.

Cv &fs presentaionNoorQadar

��

This document discusses the application of complex numbers in analyzing alternating current (AC) circuits. It explains that AC quantities like voltage and current have two dimensions of frequency and phase shift that must be accounted for, which scalar numbers cannot represent. Complex numbers are introduced to represent these multi-dimensional AC quantities, allowing engineers to analyze circuits containing reactance from capacitors and inductors. Representing AC signals as complex numbers provides insight into oscillating behavior and simplifies the analysis of AC circuits.

Fb24958960IJERA Editor

��

This document discusses polyphase filters and their applications. It begins with an introduction to polyphase filters and how they are used for decimation and interpolation in digital signal processing applications. Next, it describes active and passive polyphase filter implementations and their advantages. Finally, it discusses some example applications of polyphase filters, including predistortion for linearization of nonlinear systems and nonlinear echo cancellation using Volterra filters.

Analysis Of Ofdm Parameters Using Cyclostationary Spectrum SensingOmer Ali

��

The document discusses the analysis of OFDM parameters using cyclostationary spectrum sensing in cognitive radio, highlighting cognitive radio's ability to identify and utilize empty spectrum efficiently. It covers the advantages and disadvantages of OFDM, the significance of spectrum sensing, and the research goal of improving bandwidth for DVB-T applications. Additionally, it details the steps taken for signal generation and detection utilizing DSS techniques and explores the impact of spectral correlation functions on primary and secondary user detection.

Multiband Transceivers - [Chapter 1] Simen Li

��

This document provides an overview of RF transceiver systems and related concepts. It begins with definitions of dB, phasors, and modulation techniques. It then discusses transmitter and receiver architectures, moving from basics to more advanced concepts. Key topics covered include I/Q modulation, linear modulation, transmitter architectures using either I/Q or polar modulation, and the use of phasors in various applications from circuit analysis to communications systems.

Introduction to Digital Signal Processing (DSP) - Course NotesAhmed Gad

��

These course notes on Digital Signal Processing (DSP) provide a comprehensive overview of the subject, covering topics from signal classification, system properties, to Fourier transforms and MATLAB applications. The material addresses both continuous and discrete signals, outlines key operations such as convolution and signal manipulation, and offers examples and exercises for practical understanding. It is structured in sections, each focusing on distinct aspects of DSP, including definitions, mathematical foundations, and practical implementations using MATLAB.

Implementation performance analysis of cordiciaemedu

��

This document discusses the implementation of a CORDIC (COordinate Rotation Digital Computer) algorithm in an OFDM-based wireless local area network receiver. It first provides background on the CORDIC algorithm and its basic principles. It then describes the design of an OFDM-based WLAN transmitter in MATLAB that provides phase angle values to a CORDIC module. This CORDIC module is implemented using VHDL and analyzes the phase angles to compute sine and cosine functions. Simulation results show that the VHDL-implemented CORDIC produces the same output waveforms as MATLAB, validating the accuracy of the hardware implementation.

Lec3ksrinivas_ece

��

This document provides an overview of topics covered in a lecture on digital signal processing. It discusses digital signals and systems, reviewing concepts from the previous lecture such as sampling and analog to digital conversion. It then introduces digital sequences like bounded and periodic sequences. Elementary digital signals like the unit impulse and unit step functions are defined. Periodic sinusoidal signals in digital form are discussed, noting they may or may not be periodic depending on the sampling frequency. The document concludes by discussing operations that can be performed on digital signals like multiplication and convolution.

DSP_note_for_lab especially ofr Lab finalsSadiaAfrin313004

��

The document explains key concepts in signal processing, particularly focusing on MATLAB commands for plotting signals and the differences between time domain and frequency domain representations. It covers various waveforms, such as sine, cosine, square, and exponential waves, along with techniques like the Discrete Fourier Transform (DFT) and linear convolution, highlighting their applications in audio, image processing, and communications. Additionally, it discusses autocorrelation and the Fast Fourier Transform (FFT), illustrating their roles in identifying patterns in signals and efficiently transforming data.

BTC108 5 FourierJames Uren

��

BSides Canberra 2018: A low cost guide to satellite listeningPamela O'Shea

��

The document is a comprehensive guide on satellite receiving, detailing various aspects such as satellite types, transmission techniques, and amateur radio applications. It includes technical information about satellite frequency bands, Doppler effects, and equipment recommendations for receiving signals from satellites like the ISS and NOAA. Additionally, it covers projects like Cubesats and Iridium satellite communications, providing resources for enthusiasts and budding ham operators.

Platypus2017 foxhunt-instructionsPamela O'Shea

��

The document provides instructions for a foxhunt activity at Platypus Camp where participants will use RTL SDR devices and antennae to locate 4 hidden transmitters, or "foxes", broadcasting signals at 433Mhz. It details the type of signals each fox is broadcasting, tips for locating them such as using directional antennae and radios to triangulate signals, and procedures for logging locations and optionally decoding signals for bonus points. The winners will be announced at the end of the camp.

More Related Content

Similar to Complex (iq) signals (20)

What is I/Q phaseSeokseong Jeon

��

2014.06.19 Time Series Analysis Workshop ..Signal Processing MethodsNUI Galway

��

Imaginary part – A source of creativityFangXuIEEE

��

Wideband Complex Modulation Analysis Using a Real-Time Digital DemodulatorRohde & Schwarz North America

��

Digital Signal Processing-Digital FiltersNelson Anand

��

Dc3 t1Nachiket Rajput

��

Types Of Window Being Used For The Selected GranuleLeslie Lee

��

Communication system 1 chapter 2-part-2BetelihemMesfin1

��

Communication system 1 chapter 2-part-2BetelihemMesfin1

��

Pertemuan 1 - Sinyal dan Sistem Linier Kelas Praktisi.pptxssuser9996f4

��

Inside maths : 1 Jaydeep ShahJAYDEEP SHAH

��

Cv &fs presentaionNoorQadar

��

Fb24958960IJERA Editor

��

Analysis Of Ofdm Parameters Using Cyclostationary Spectrum SensingOmer Ali

��

Multiband Transceivers - [Chapter 1] Simen Li

��

Introduction to Digital Signal Processing (DSP) - Course NotesAhmed Gad

��

Implementation performance analysis of cordiciaemedu

��

Lec3ksrinivas_ece

��

DSP_note_for_lab especially ofr Lab finalsSadiaAfrin313004

��

BTC108 5 FourierJames Uren

��

What is I/Q phaseSeokseong Jeon

��

2014.06.19 Time Series Analysis Workshop ..Signal Processing MethodsNUI Galway

��

Imaginary part – A source of creativityFangXuIEEE

��

Wideband Complex Modulation Analysis Using a Real-Time Digital DemodulatorRohde & Schwarz North America

��

Digital Signal Processing-Digital FiltersNelson Anand

��

Dc3 t1Nachiket Rajput

��

Types Of Window Being Used For The Selected GranuleLeslie Lee

��

Communication system 1 chapter 2-part-2BetelihemMesfin1

��

Communication system 1 chapter 2-part-2BetelihemMesfin1

��

Pertemuan 1 - Sinyal dan Sistem Linier Kelas Praktisi.pptxssuser9996f4

��

Inside maths : 1 Jaydeep ShahJAYDEEP SHAH

��

Cv &fs presentaionNoorQadar

��

Fb24958960IJERA Editor

��

Analysis Of Ofdm Parameters Using Cyclostationary Spectrum SensingOmer Ali

��

Multiband Transceivers - [Chapter 1] Simen Li

��

Introduction to Digital Signal Processing (DSP) - Course NotesAhmed Gad

��

Implementation performance analysis of cordiciaemedu

��

Lec3ksrinivas_ece

��

DSP_note_for_lab especially ofr Lab finalsSadiaAfrin313004

��

BTC108 5 FourierJames Uren

��

More from Pamela O'Shea (6)

BSides Canberra 2018: A low cost guide to satellite listeningPamela O'Shea

��

Platypus2017 foxhunt-instructionsPamela O'Shea

��

Worksheet for Introduction to Software Defined Radio (SDR)Pamela O'Shea

��

This document provides instructions for using Software Defined Radio (SDR) equipment and tools included on a provided USB stick to perform various exercises, including frequency scanning using qspectrumanalyzer, remote control demonstrations using gqrx tuned to 433MHz, listening to pagers at 148MHz using gqrx and multimon-ng, and detecting airplanes using dump1090. It also provides information on learning more through monthly meetings and online communities.

Introduction to Software Defined Radio (SDR)Pamela O'Shea

��

The document provides an introduction to Software Defined Radio (SDR), covering hardware components, software tools, and practical applications such as frequency scanning and remote control analysis. It details various SDR hardware options, including their specifications and costs, as well as recommended software like GNU Radio and SDR#. Furthermore, it explains functionalities like tracking airplanes and ships using ADS-B and AIS, and includes a section on decoding pager signals and remote control analysis techniques.

Introduction to Software Defined Radio (SDR) on LinuxPamela O'Shea

��

The document is about the Cyberspectrum Melbourne Meetup, focusing on software-defined radio (SDR) topics, including hardware, software, and applications for planes, ships, pagers, and home devices. It outlines available SDR hardware, software tools for different operating systems, and various practical applications like ADS-B for aircraft tracking and AIS for ships. Additionally, it invites participation for future talks and includes a raffle for RTL-SDR dongles.

Inspectrum vs the doorbellPamela O'Shea

��

BSides Canberra 2018: A low cost guide to satellite listeningPamela O'Shea

��

Platypus2017 foxhunt-instructionsPamela O'Shea

��

Worksheet for Introduction to Software Defined Radio (SDR)Pamela O'Shea

��

Introduction to Software Defined Radio (SDR)Pamela O'Shea

��

Introduction to Software Defined Radio (SDR) on LinuxPamela O'Shea

��

Inspectrum vs the doorbellPamela O'Shea

��

Recently uploaded (20)

PyCon SG 25 - Firecracker Made Easy with Python.pdfMuhammad Yuga Nugraha

��

Explore the ease of managing Firecracker microVM with the firecracker-python. In this session, I will introduce the basics of Firecracker microVM and demonstrate how this custom SDK facilitates microVM operations easily. We will delve into the design and development process behind the SDK, providing a behind-the-scenes look at its creation and features. While traditional Firecracker SDKs were primarily available in Go, this module brings a simplicity of Python to the table.

Artificial Intelligence in the Nonprofit Boardroom.pdfOnBoard

��

Crypto Super 500 - 14th Report - June2025.pdfStephen Perrenod

��

This OrionX's 14th semi-annual report on the state of the cryptocurrency mining market. The report focuses on Proof-of-Work cryptocurrencies since those use substantial supercomputer power to mint new coins and encode transactions on their blockchains. Only two make the cut this time, Bitcoin with $18 billion of annual economic value produced and Dogecoin with $1 billion. Bitcoin has now reached the Zettascale with typical hash rates of 0.9 Zettahashes per second. Bitcoin is powered by the world's largest decentralized supercomputer in a continuous winner take all lottery incentive network.

Wenn alles versagt - IBM Tape schützt, was zählt! Und besonders mit dem neust...Josef Weingand

��

June Patch TuesdayIvanti

��

Ivanti’s Patch Tuesday breakdown goes beyond patching your applications and brings you the intelligence and guidance needed to prioritize where to focus your attention first. Catch early analysis on our Ivanti blog, then join industry expert Chris Goettl for the Patch Tuesday Webinar Event. There we’ll do a deep dive into each of the bulletins and give guidance on the risks associated with the newly-identified vulnerabilities.

Information Security Response Team Nepal_npCERT_Vice_President_Sudan_Jha.pdfICT Frame Magazine Pvt. Ltd.

��

AI vs Human Writing: Can You Tell the Difference?Shashi Sathyanarayana, Ph.D

��

Securing Account Lifecycles in the Age of Deepfakes.pptxFIDO Alliance

��

Raman Bhaumik - Passionate Tech EnthusiastRaman Bhaumik

��

You are not excused! How to avoid security blind spots on the way to productionMichele Leroux Bustamante

��

We live in an ever evolving landscape for cyber threats creating security risk for your production systems. Mitigating these risks requires participation throughout all stages from development through production delivery - and by every role including architects, developers QA and DevOps engineers, product owners and leadership. No one is excused! This session will cover examples of common mistakes or missed opportunities that can lead to vulnerabilities in production - and ways to do better throughout the development lifecycle.

The Future of Technology: 2025-2125 by Saikat Basu.pdfSaikat Basu

��

“From Enterprise to Makers: Driving Vision AI Innovation at the Extreme Edge,...Edge AI and Vision Alliance

��

For the full video of this presentation, please visit: https://www.edge-ai-vision.com/2025/06/from-enterprise-to-makers-driving-vision-ai-innovation-at-the-extreme-edge-a-presentation-from-sony-semiconductor-solutions/ Amir Servi, Edge Deep Learning Product Manager at Sony Semiconductor Solutions, presents the “From Enterprise to Makers: Driving Vision AI Innovation at the Extreme Edge” tutorial at the May 2025 Embedded Vision Summit. Sony’s unique integrated sensor-processor technology is enabling ultra-efficient intelligence directly at the image source, transforming vision AI for enterprises and developers alike. In this presentation, Servi showcases how the AITRIOS platform simplifies vision AI for enterprises with tools for large-scale deployments and model management. Servi also highlights his company’s collaboration with Ultralytics and Raspberry Pi, which brings YOLO models to the developer community, empowering grassroots innovation. Whether you’re scaling vision AI for industry or experimenting with cutting-edge tools, this presentation will demonstrate how Sony is accelerating high-performance, energy-efficient vision AI for all.

Can We Use Rust to Develop Extensions for PostgreSQL? (POSETTE: An Event for ...NTT DATA Technology & Innovation

��

Enabling BIM / GIS integrations with Other Systems with FMESafe Software

��

Jacobs has successfully utilized FME to tackle the complexities of integrating diverse data sources in a confidential $1 billion campus improvement project. The project aimed to create a comprehensive digital twin by merging Building Information Modeling (BIM) data, Construction Operations Building Information Exchange (COBie) data, and various other data sources into a unified Geographic Information System (GIS) platform. The challenge lay in the disparate nature of these data sources, which were siloed and incompatible with each other, hindering efficient data management and decision-making processes. To address this, Jacobs leveraged FME to automate the extraction, transformation, and loading (ETL) of data between ArcGIS Indoors and IBM Maximo. This process ensured accurate transfer of maintainable asset and work order data, creating a comprehensive 2D and 3D representation of the campus for Facility Management. FME's server capabilities enabled real-time updates and synchronization between ArcGIS Indoors and Maximo, facilitating automatic updates of asset information and work orders. Additionally, Survey123 forms allowed field personnel to capture and submit data directly from their mobile devices, triggering FME workflows via webhooks for real-time data updates. This seamless integration has significantly enhanced data management, improved decision-making processes, and ensured data consistency across the project lifecycle.

Smarter Aviation Data Management: Lessons from Swedavia Airports and SwecoSafe Software

��

Managing airport and airspace data is no small task, especially when you’re expected to deliver it in AIXM format without spending a fortune on specialized tools. But what if there was a smarter, more affordable way? Join us for a behind-the-scenes look at how Sweco partnered with Swedavia, the Swedish airport operator, to solve this challenge using FME and Esri. Learn how they built automated workflows to manage periodic updates, merge airspace data, and support data extracts – all while meeting strict government reporting requirements to the Civil Aviation Administration of Sweden. Even better? Swedavia built custom services and applications that use the FME Flow REST API to trigger jobs and retrieve results – streamlining tasks like securing the quality of new surveyor data, creating permdelta and baseline representations in the AIS schema, and generating AIXM extracts from their AIS data. To conclude, FME expert Dean Hintz will walk through a GeoBorders reading workflow and highlight recent enhancements to FME’s AIXM (Aeronautical Information Exchange Model) processing and interpretation capabilities. Discover how airports like Swedavia are harnessing the power of FME to simplify aviation data management, and how you can too.

OpenPOWER Foundation & Open-Source Core InnovationsIBM

��

penPOWER offers a fully open, royalty-free CPU architecture for custom chip design. It enables both lightweight FPGA cores (like Microwatt) and high-performance processors (like POWER10). Developers have full access to source code, specs, and tools for end-to-end chip creation. It supports AI, HPC, cloud, and embedded workloads with proven performance. Backed by a global community, it fosters innovation, education, and collaboration.

FIDO Seminar: Targeting Trust: The Future of Identity in the Workforce.pptxFIDO Alliance

��

FIDO Seminar: Perspectives on Passkeys & Consumer Adoption.pptxFIDO Alliance

��

No-Code Workflows for CAD & 3D Data: Scaling AI-Driven InfrastructureSafe Software

��

When projects depend on fast, reliable spatial data, every minute counts. AI Clearing needed a faster way to handle complex spatial data from drone surveys, CAD designs and 3D project models across construction sites. With FME Form, they built no-code workflows to clean, convert, integrate, and validate dozens of data formats – cutting analysis time from 5 hours to just 30 minutes. Join us, our partner Globema, and customer AI Clearing to see how they: -Automate processing of 2D, 3D, drone, spatial, and non-spatial data -Analyze construction progress 10x faster and with fewer errors -Handle diverse formats like DWG, KML, SHP, and PDF with ease -Scale their workflows for international projects in solar, roads, and pipelines If you work with complex data, join us to learn how to optimize your own processes and transform your results with FME.

ENERGY CONSUMPTION CALCULATION IN ENERGY-EFFICIENT AIR CONDITIONER.pdfMuhammad Rizwan Akram

��

DC Inverter Air Conditioners are revolutionizing the cooling industry by delivering affordable, energy-efficient, and environmentally sustainable climate control solutions. Unlike conventional fixed-speed air conditioners, DC inverter systems operate with variable-speed compressors that modulate cooling output based on demand, significantly reducing energy consumption and extending the lifespan of the appliance. These systems are critical in reducing electricity usage, lowering greenhouse gas emissions, and promoting eco-friendly technologies in residential and commercial sectors. With advancements in compressor control, refrigerant efficiency, and smart energy management, DC inverter air conditioners have become a benchmark in sustainable climate control solutions

PyCon SG 25 - Firecracker Made Easy with Python.pdfMuhammad Yuga Nugraha

��

Artificial Intelligence in the Nonprofit Boardroom.pdfOnBoard

��

Crypto Super 500 - 14th Report - June2025.pdfStephen Perrenod

��

Wenn alles versagt - IBM Tape schützt, was zählt! Und besonders mit dem neust...Josef Weingand

��

June Patch TuesdayIvanti

��

Information Security Response Team Nepal_npCERT_Vice_President_Sudan_Jha.pdfICT Frame Magazine Pvt. Ltd.

��

AI vs Human Writing: Can You Tell the Difference?Shashi Sathyanarayana, Ph.D

��

Securing Account Lifecycles in the Age of Deepfakes.pptxFIDO Alliance

��

Raman Bhaumik - Passionate Tech EnthusiastRaman Bhaumik

��

You are not excused! How to avoid security blind spots on the way to productionMichele Leroux Bustamante

��

The Future of Technology: 2025-2125 by Saikat Basu.pdfSaikat Basu

��

“From Enterprise to Makers: Driving Vision AI Innovation at the Extreme Edge,...Edge AI and Vision Alliance

��

Can We Use Rust to Develop Extensions for PostgreSQL? (POSETTE: An Event for ...NTT DATA Technology & Innovation

��

Enabling BIM / GIS integrations with Other Systems with FMESafe Software

��

Smarter Aviation Data Management: Lessons from Swedavia Airports and SwecoSafe Software

��

OpenPOWER Foundation & Open-Source Core InnovationsIBM

��

FIDO Seminar: Targeting Trust: The Future of Identity in the Workforce.pptxFIDO Alliance

��

FIDO Seminar: Perspectives on Passkeys & Consumer Adoption.pptxFIDO Alliance

��

No-Code Workflows for CAD & 3D Data: Scaling AI-Driven InfrastructureSafe Software

��

ENERGY CONSUMPTION CALCULATION IN ENERGY-EFFICIENT AIR CONDITIONER.pdfMuhammad Rizwan Akram

��

Complex (iq) signals

1. Complex (IQ) Signals Qasim Chaudhari Cyberspectrum Melbourne

2. Why DSP?  Software in Software Defined Radio (SDR)  Writing your own software + Knowledge of communication systems and DSP algorithms is required  Can be understood with basic mathematical skills

3. Complex Numbers  Rick Lyons wrote a tutorial with the title “Quadrature signals – Complex but not complicated”  The question is: how to deal with an ordered pair of real numbers on a 2-d plane  We will avoid the use of j and e

4. Complex Numbers …  Start with an ordered pair of real numbers  A complex number can be considered as a vector with initial point at (0,0)  Problem with vectors: all arithmetic operations cannot be applied + Addition of two vectors is another vector in (x,y)- plane – that’s good

5. Complex Numbers … + Dot product of two vectors is a scalar, not a vector – not good + Cross product of two vectors in a plane is a vector that is outside of that plane – not good as well  Product of complex numbers is a complex number -- an extremely useful property

6. Complex Numbers …  x-axis = I (inphase), y-axis = Q (quadrature)  From a signal processing perspective, I and Q are just two real signals that appear on two separate wires

7. Magnitude and Phase  The magnitude of a complex number is  Phase is given by adjusting to the correct quadrant

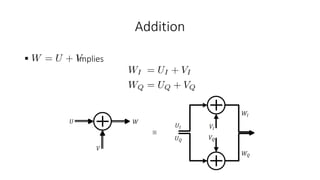

8. Addition  implies

9. Concept of Frequency  Wireless signals between two devices travel through the use of radio waves  A radio wave is an electromagnetic wave propagated by an antenna  What is a frequency?

10. Concept of Frequency …  Consider a complex number V in an IQ-plane with an angle 𝜃 and length A  Now imagine V rotating with an angle continuously increasing with time  Then, V can be treated as a signal with time as independent variable and we call it a complex sinusoid

11. Concept of Frequency …  Just like velocity is the rate of change of displacement, frequency is the rate of change in phase of a complex sinusoid + This rate of change of phase results in V rotating in the time IQ-plane at an angular velocity 2𝜋𝐹

12. Concept of Frequency  As time passes, V is shown as coming out of the page + When its projection from a 3-dimensional plane to a 2-dimensional plane formed by time and I-axis is drawn, we get 𝐴 cos 2𝜋𝐹𝑡 + 𝜃 + Similarly, when the projection is drawn on a 2-dimensional plane formed by time and Q-axis, it generates 𝐴 sin 2𝜋𝐹𝑡 + 𝜃 + Randomly choosing cos() as our reference sinusoid, ‡ I component is called inphase because it is in phase with cos() ‡ Q component is called qaudrature because sin is at 90o with cos()

13. Concept of Frequency …  In conclusion, a complex sinusoid with frequency F is composed of two real sinusoids 𝐼 → 𝑉𝐼= 𝐴 cos 2𝜋𝐹𝑡 + 𝜃 𝑄 ↑ 𝑉𝑄= 𝐴 sin 2𝜋𝐹𝑡 + 𝜃 where F is the continuous frequency with units of cycles/second or Hertz (Hz) Phase Amplitude

14. What is a Negative Frequency?  Negative frequencies can cause some confusion + It is hard to visualize a negative frequency viewed as inverse period of a sinusoid  Define it through the rate of rotation of a complex sinusoid V + A negative frequency simply implies rotation of V in a clockwise direction + Negative frequencies are real, just like negative numbers are real

�ݺ�ߣ

Complex (iq) signals

Recommended

More Related Content

Similar to Complex (iq) signals (20)

More from Pamela O'Shea (6)

Recently uploaded (20)

Complex (iq) signals
