The document discusses two methods for constructing a min-heap from a given sequence of numbers. The first method builds a complete binary tree and then checks that each node's value is greater than its parent's value, swapping if needed. The second method inserts nodes one by one, checking and swapping with the parent if the parent's value is greater. Both methods are walked through step-by-step using the example sequence 15, 3, 6, 18, 5, 9, 11.

DATA STRUCTURES
AND ALGORITHMS
MIN-HEAP
CONSTRUCTION
SADIA ZAR
GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 1

MIN-HEAP – DATA STRUCTURE
• Construct a min-heap from the following sequence:
15, 3, 6, 18 ,5 ,9 ,11
• In this lecture I’ve discussed two methods to construct a min-heap.
GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W),
RAWALPINDI.
2

MIN-HEAP – DATA STRUCTURE
FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11
In the first method, at first we will construct a complete
binary tree first and then we will check the condition i.e
A[Parent[i]] < = A[i] for every node in the tree.
GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W),
RAWALPINDI.
3

MIN-HEAP – DATA STRUCTURE
FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11
GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W),
RAWALPINDI.
4

MIN-HEAP – DATA STRUCTURE
FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11
GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W),
RAWALPINDI.
5

MIN-HEAP – DATA STRUCTURE
FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11
GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W),
RAWALPINDI.
6

MIN-HEAP – DATA STRUCTURE
FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11
GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W),
RAWALPINDI.
7

MIN-HEAP – DATA STRUCTURE
FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11
GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W),
RAWALPINDI.
8

MIN-HEAP – DATA STRUCTURE
FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11
GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W),
RAWALPINDI.
9

MIN-HEAP – DATA STRUCTURE
FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11
GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W),
RAWALPINDI.
10

MIN-HEAP – DATA STRUCTURE
FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11
Now Let’s check the condition for every node
Starting from leaf nodes
GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W),
RAWALPINDI.
11

MIN-HEAP – DATA STRUCTURE
FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11
Now Let’s check the condition for every node
Starting from leaf nodes
i = 3
Parent[i] = Parent[3] = 1
So the condition is A[1] <= A[3]
i.e, 3 <= 18 so no need to swap
0
1
2
3
4 5 6
GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W),
RAWALPINDI.
12

MIN-HEAP – DATA STRUCTURE
FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11
Now Let’s check the condition for every node
Starting from leaf nodes
i = 4
Parent[i] = Parent[4] = 1
So the condition is A[1] <= A[4]
i.e, 3 <= 5 so no need to swap
0
1
2
3
4 5 6
GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W),
RAWALPINDI.
13

MIN-HEAP – DATA STRUCTURE
FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11
Now Let’s check the condition for every node
Starting from leaf nodes
i = 5
Parent[i] = Parent[5] = 2
So the condition is A[2] <= A[5]
i.e, 6 <= 9 so no need to swap
0
1
2
3
4 5 6
GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W),
RAWALPINDI.
14

MIN-HEAP – DATA STRUCTURE
FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11
Now Let’s check the condition for every node
Starting from leaf nodes
i = 6
Parent[i] = Parent[6] = 2
So the condition is A[2] <= A[6]
i.e, 6 <= 11 so no need to swap
0
1
2
3
4 5 6
GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W),
RAWALPINDI.
15

MIN-HEAP – DATA STRUCTURE
FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11
Now Let’s check the condition for every node
Starting from leaf nodes
i = 1
Parent[i] = Parent[1] = 0
So the condition is A[0] <= A[1]
i.e, 15 <= 3 (false) so we have to swap
0
1
2
3
4 5 6
GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W),
RAWALPINDI.
16

MIN-HEAP – DATA STRUCTURE
FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11
Now Let’s check the condition for every node
Starting from leaf nodes
After swapping check other nodes as well
i = 2
Parent[i] = Parent[2] = 0
So the condition is A[0] <= A[2]
i.e, 3 <= 6 so no need to swap
0
1
2
3
4 5 6
GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W),
RAWALPINDI.
17

MIN-HEAP – DATA STRUCTURE
FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11
Now Let’s check the condition for every node
Starting from leaf nodes
Again check all the nodes now the problem
Lies in node 1 and node 4
i = 4
Parent[i] = Parent[4] = 1
So the condition is A[1] <= A[4]
i.e, 15 <= 5 (false) so we have to swap
0
1
2
3
4 5 6
GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W),
RAWALPINDI.
18

MIN-HEAP – DATA STRUCTURE
FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11
Now Let’s check the condition for every node
Starting from leaf nodes
Now again check
i = 4
Parent[i] = Parent[4] = 1
So the condition is A[1] <= A[4]
i.e, 5 <= 15 so no need to swap
0
1
2
3
4 5 6
GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W),
RAWALPINDI.
19

MIN-HEAP – DATA STRUCTURE
FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11
Now Let’s check the condition for every node
Starting from leaf nodes
As you can see that the min-heap is ready
0
1
2
3
4 5 6
GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W),
RAWALPINDI.
20

MIN-HEAP – DATA STRUCTURE
SECOND METHOD - 15, 3, 6, 18 ,5 ,9 ,11
In the second method, as we construct a complete binary
tree, we will check the condition i.e A[Parent[i]] < = A[i] for
every node that is inserted in the tree.
GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W),
RAWALPINDI.
21

MIN-HEAP – DATA STRUCTURE
SECOND METHOD - 15, 3, 6, 18 ,5 ,9 ,11
0
GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W),
RAWALPINDI.
22

MIN-HEAP – DATA STRUCTURE
SECOND METHOD - 15, 3, 6, 18 ,5 ,9 ,11
i = 1
Parent[i] = Parent[1] = 0
Check the condition A[0]<=A[1]
15<=3 (false) so, we need to swap these two values
0
1
GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W),
RAWALPINDI.
23

MIN-HEAP – DATA STRUCTURE
SECOND METHOD - 15, 3, 6, 18 ,5 ,9 ,11
i = 1
Parent[i] = Parent[1] = 0
Check the condition A[0]<=A[1]
3<=15 (true) so, continue
0
1
GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W),
RAWALPINDI.
24

MIN-HEAP – DATA STRUCTURE
SECOND METHOD - 15, 3, 6, 18 ,5 ,9 ,11
i = 2
Parent[i] = Parent[2] = 0
Check the condition A[0]<=A[2]
i.e, 3<=15 so no need to swap
0
1 2
GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W),
RAWALPINDI.
25

MIN-HEAP – DATA STRUCTURE
SECOND METHOD - 15, 3, 6, 18 ,5 ,9 ,11
i = 3
Parent[i] = Parent[3] = 1
Check the condition A[1]<=A[3]
i.e, 15<=18 so no need to swap
0
1 2
3
GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W),
RAWALPINDI.
26

MIN-HEAP – DATA STRUCTURE

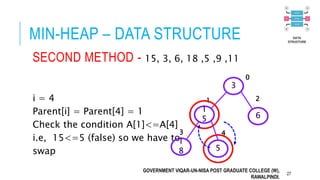

SECOND METHOD - 15, 3, 6, 18 ,5 ,9 ,11
i = 4
Parent[i] = Parent[4] = 1
Check the condition A[1]<=A[4]
i.e, 15<=5 (false) so we have to
swap
0
1 2
3 4
GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W),
RAWALPINDI.
27

MIN-HEAP – DATA STRUCTURE
SECOND METHOD - 15, 3, 6, 18 ,5 ,9 ,11
No the min-heap is okay
0
1 2
3 4
GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W),
RAWALPINDI.
28

MIN-HEAP – DATA STRUCTURE
SECOND METHOD - 15, 3, 6, 18 ,5 ,9 ,11
i = 5
Parent[i] = Parent[5] = 2
Check the condition A[2]<=A[5]
i.e, 6<=9 so no need to swap
0
1 2
3 4 5
GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W),
RAWALPINDI.
29

MIN-HEAP – DATA STRUCTURE
SECOND METHOD - 15, 3, 6, 18 ,5 ,9 ,11
i = 6
Parent[i] = Parent[6] = 2
Check the condition A[2]<=A[6]
i.e, 6<=11 so no need to swap
0
1 2
3 4 5 6
GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W),
RAWALPINDI.
30

MIN-HEAP – DATA STRUCTURE
SECOND METHOD - 15, 3, 6, 18 ,5 ,9 ,11
Now Let’s check the condition for every node
Starting from leaf nodes
As you can see that the min-heap is ready
0
1
2
3
4 5 6
GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W),
RAWALPINDI.
31

A queue is a non-primitive linear data structure that follows the first-in, first-out (FIFO) principle, where new elements are added to the rear end and existing elements are deleted from the front end. Common real-world examples of queues include lines at the printer, cashier, bank ATM, and the operations of a queue include enqueue to insert an element, dequeue to remove an element, and checking if the queue is full or empty.

VectorsPTCL

��

Queue Implementation Using Array & Linked ListPTCL

��

This document describes two implementations of a queue data structure in C++. A queue uses the First In First Out (FIFO) principle to add and remove elements. Elements can be added to the rear of the queue using the Enque operation and removed from the front using the Deque operation. The first implementation uses an array to store queue elements, while the second uses linked nodes to dynamically allocate memory for elements as they are added. Both implementations provide functions for Enqueuing, Dequeuing, checking if the queue is empty, and displaying the queue elements.

2024 Trend Updates: What Really Works In SEO & Content MarketingSearch Engine Journal

��

The future of SEO is trending toward a more human-first and user-centric approach, powered by AI intelligence and collaboration. Are you ready? Watch as we explore which SEO trends to prioritize to achieve sustainable growth and deliver reliable results. We’ll dive into best practices to adapt your strategy around industry-wide disruptions like SGE, how to navigate the top challenges SEO professionals are facing, and proven tactics for prioritizing quality and building trust. You’ll hear: - The top SEO trends to prioritize in 2024 to achieve long-term success. - Predictions for SGE’s impact, and how to adapt. - What E-E-A-T really means, and how to implement it holistically (hint: it’s never been more important). With Zack Kadish and Alex Carchietta, we’ll show you which SEO trends to ignore and which to focus on, along with the solution to overcoming rapid, significant and disruptive Google algorithm updates. If you’re looking to cut through the noise of constant SEO and content trends to drive success, you won’t want to miss this webinar.

Storytelling For The Web: Integrate Storytelling in your Design ProcessChiara Aliotta

��

Artificial Intelligence, Data and Competition – SCHREPEL – June 2024 OECD dis...OECD Directorate for Financial and Enterprise Affairs

��

This presentation by Thibault Schrepel, Associate Professor of Law at Vrije Universiteit Amsterdam University, was made during the discussion “Artificial Intelligence, Data and Competition” held at the 143rd meeting of the OECD Competition Committee on 12 June 2024. More papers and presentations on the topic can be found at oe.cd/aicomp. This presentation was uploaded with the author’s consent.

How to Leverage AI to Boost Employee Wellness - Lydia Di Francesco - SocialHR...SocialHRCamp

��

Speaker: Lydia Di Francesco In this workshop, participants will delve into the realm of AI and its profound potential to revolutionize employee wellness initiatives. From stress management to fostering work-life harmony, AI offers a myriad of innovative tools and strategies that can significantly enhance the wellbeing of employees in any organization. Attendees will learn how to effectively leverage AI technologies to cultivate a healthier, happier, and more productive workforce. Whether it's utilizing AI-powered chatbots for mental health support, implementing data analytics to identify internal, systemic risk factors, or deploying personalized wellness apps, this workshop will equip participants with actionable insights and best practices to harness the power of AI for boosting employee wellness. Join us and discover how AI can be a strategic partner towards a culture of wellbeing and resilience in the workplace.

2024 State of Marketing Report – by HubspotMarius Sescu

��

https://www.hubspot.com/state-of-marketing · Scaling relationships and proving ROI · Social media is the place for search, sales, and service · Authentic influencer partnerships fuel brand growth · The strongest connections happen via call, click, chat, and camera. · Time saved with AI leads to more creative work · Seeking: A single source of truth · TLDR; Get on social, try AI, and align your systems. · More human marketing, powered by robots

Urinary Tract Infection & Sexually Transmt ted Diseases.pptxAshish Umale

��

ANTIVIRAL agent by Mrs. Manjushri DabhadeDabhade madam Dabhade

��

3. AI Trust Layer, Governance – Explainability, Security & Compliance.pdfMukesh Kala

��

STOMACH Gross Anatomy & Clinical Anatomy.pptxSid Roy

��

Yale VMOC Special Report - Measles Outbreak Southwest US 3-26-2025 FINAL.pptxYale School of Public Health - The Virtual Medical Operations Center (VMOC)

��

The Virtual Medical Operations Center Briefs (VMOC) were created as a service-learning project by the Yale School of Public Health faculty and graduate students in response to the 2010 Haiti Earthquake. Each year, students enrolled in Environmental Health Science Course 581—Public Health Emergencies: Disaster Planning and Response produce the VMOC Briefs. These briefs compile diverse information sources—including status reports, maps, news articles, and web content—into a single, easily digestible document that can be widely shared and used interactively. Key features of this report include: - Comprehensive Overview: Provides situation updates, maps, relevant news, and web resources. - Accessibility: Designed for easy reading, wide distribution, and interactive use. - Collaboration: The “unlocked" format enables other responders to share, copy, and adapt it seamlessly. The students learn by doing, quickly discovering how and where to find critical��information and presenting��it in an easily understood manner.

How to Install Odoo 18 with Pycharm - Odoo 18 �ݺ�ߣsCeline George

��

EDL 290F Week 5 - Facing Headwinds and Hairpin Turns (2025).pdfLiz Walsh-Trevino

��

S. Y. G. N. M. CHILD HEALTH NURSING Leukemia in Children.pptxsachin7989

��

Leukemia is a type of cancer that affects the blood and bone marrow. It occurs when abnormal white blood cells accumulate in the bone marrow and interfere with the production of normal blood cells. Types of Leukemia 1. Acute Lymphoblastic Leukemia (ALL): A type of leukemia that affects the lymphoid cells. 2. Acute Myeloid Leukemia (AML): A type of leukemia that affects the myeloid cells. 3. Chronic Lymphocytic Leukemia (CLL): A type of leukemia that affects the lymphoid cells and progresses slowly. 4. Chronic Myeloid Leukemia (CML): A type of leukemia that affects the myeloid cells and progresses slowly. Symptoms of Leukemia 1. Fatigue 2. Weight loss 3. Pale skin 4. Bruising or bleeding easily 5. Bone or joint pain 6. Swollen lymph nodes 7. Loss of appetite Treatment of Leukemia 1. Chemotherapy 2. Radiation therapy 3. Bone marrow transplant 4. Targeted therapy Thalassemia Thalassemia is a genetic disorder that affects the production of hemoglobin, a protein in red blood cells that carries oxygen to the body's tissues. Types of Thalassemia 1. Alpha-Thalassemia: A type of thalassemia that affects the production of alpha-globin chains. 2. Beta-Thalassemia: A type of thalassemia that affects the production of beta-globin chains. Symptoms of Thalassemia 1. Anemia 2. Fatigue 3. Pale skin 4. Shortness of breath 5. Enlarged spleen 6. Bone deformities Treatment of Thalassemia 1. Blood transfusions 2. Iron chelation therapy 3. Bone marrow transplant 4. Gene therapy

Crafting Winning STEM & Science Grant ProposalsKevin Welch

��

Anti-Viral Agents.pptx Medicinal Chemistry III, B Pharm SEM VISamruddhi Khonde

��

Antiviral agents are crucial in combating viral infections, causing a variety of diseases from mild to life-threatening. Developed through medicinal chemistry, these drugs target viral structures and processes while minimizing harm to host cells. Viruses are classified into DNA and RNA viruses, with each replicating through distinct mechanisms. Treatments for herpesviruses involve nucleoside analogs like acyclovir and valacyclovir, which inhibit the viral DNA polymerase. Influenza is managed with neuraminidase inhibitors like oseltamivir and zanamivir, which prevent the release of new viral particles. HIV is treated with a combination of antiretroviral drugs targeting various stages of the viral life cycle. Hepatitis B and C are treated with different strategies, with nucleoside analogs like lamivudine inhibiting viral replication and direct-acting antivirals targeting the viral RNA polymerase and other key proteins. Antiviral agents are designed based on their mechanisms of action, with several categories including nucleoside and nucleotide analogs, protease inhibitors, neuraminidase inhibitors, reverse transcriptase inhibitors, and integrase inhibitors. The design of these agents often relies on understanding the structure-activity relationship (SAR), which involves modifying the chemical structure of compounds to enhance efficacy, selectivity, and bioavailability while reducing side effects. Despite their success, challenges such as drug resistance, viral mutation, and the need for long-term therapy remain.

EDL 290F Week 4 - Group Ride (2025).pdfLiz Walsh-Trevino

��

📣 Marketing is Everything in the Beauty Business! 💅🏾✨ Talent gets you in the ...coreylewis960

��

📣 Marketing is Everything in the Beauty Business! 💅🏾✨ Talent gets you in the game—but visibility keeps your chair full. Today’s top stylists aren’t just skilled—they’re seen. That’s where MyFi Beauty comes in. 🌟 We Help You Get Noticed with Tools That Work: 📱 Social Media Scheduling & Strategy We make it easy for you to stay consistent and on-brand across Instagram, Facebook, TikTok, and more. You’ll get content prompts, captions, and posting tools that do the work while you do the hair. 🖥️ Your Own Personal Beauty App Stand out from the crowd with a custom app made just for you. Clients can: Book appointments Browse your services View your gallery Join your email/text list Leave reviews & refer friends 🖼️ Offline Marketing Made Easy We provide digital flyers, QR codes, and branded business cards that connect straight to your app—turning strangers into loyal clients with just one tap. 🎯 The Result? You build a strong personal brand that reaches more people, books more clients, and grows with you. Whether you’re just starting out or trying to level up—MyFi Beauty is your silent partner in success.

20250402 ACCA TeamScienceAIEra 20250402 v10.pptxhome

��

Team Science in the AI Era: Talk for the Association of Cancer Center Administrators (ACCA) Team Science Network (April 2, 2025, 3pm ET) Host: Jill Slack-Davis (https://www.linkedin.com/in/jill-slack-davis-56024514/) 20250402 Team Science in the AI Era These slides: TBD Jim Twin V1 (English video - Heygen) - https://youtu.be/T4S0uZp1SHw Jim Twin V1 (French video - Heygen) - https://youtu.be/02hCGRJnCoc Jim Twin (Chat) Tmpt.me Platform – https://tmpt.app/@jimtwin Jim Twin (English video – OpenSource) – https://youtu.be/mwnZjTNegXE Jim Blog Post - https://service-science.info/archives/6612 Jim EIT Article (Real Jim) - https://www.eitdigital.eu/newsroom/grow-digital-insights/personal-ai-digital-twins-the-future-of-human-interaction/ Jim EIT Talk (Real Jim) - https://youtu.be/_1X6bRfOqc4 Reid Hoffman (English video) - https://youtu.be/rgD2gmwCS10

Yale VMOC Special Report - Measles Outbreak Southwest US 3-30-2025 FINAL v2...Yale School of Public Health - The Virtual Medical Operations Center (VMOC)

��

U.S. Department of Education certificationMebane Rash

��

Tollywood Quiz- 21st March 2025, Quiz Club NITWQuiz Club NITW

��

Unit1 Inroduction to Internal Combustion EnginesNileshKumbhar21

��

URLS and routing in odoo 18 - Odoo �ݺ�ߣsCeline George

��

VTU notes for Indian Knowledge System 2022 scheme pptSuvarna Hiremath

��

Sulfonamides by Mrs. Manjushri P. DabhadeDabhade madam Dabhade

��

Everything You Need To Know About ChatGPTExpeed Software

��

ChatGPT is a revolutionary addition to the world since its introduction in 2022. A big shift in the sector of information gathering and processing happened because of this chatbot. What is the story of ChatGPT? How is the bot responding to prompts and generating contents? Swipe through these slides prepared by Expeed Software, a web development company regarding the development and technical intricacies of ChatGPT!

Product Design Trends in 2024 | Teenage EngineeringsPixeldarts

��

More Related Content

Recently uploaded (20)

Urinary Tract Infection & Sexually Transmt ted Diseases.pptxAshish Umale

��

ANTIVIRAL agent by Mrs. Manjushri DabhadeDabhade madam Dabhade

��

3. AI Trust Layer, Governance – Explainability, Security & Compliance.pdfMukesh Kala

��

STOMACH Gross Anatomy & Clinical Anatomy.pptxSid Roy

��

Yale VMOC Special Report - Measles Outbreak Southwest US 3-26-2025 FINAL.pptxYale School of Public Health - The Virtual Medical Operations Center (VMOC)

��

How to Install Odoo 18 with Pycharm - Odoo 18 �ݺ�ߣsCeline George

��

EDL 290F Week 5 - Facing Headwinds and Hairpin Turns (2025).pdfLiz Walsh-Trevino

��

S. Y. G. N. M. CHILD HEALTH NURSING Leukemia in Children.pptxsachin7989

��

Crafting Winning STEM & Science Grant ProposalsKevin Welch

��

Anti-Viral Agents.pptx Medicinal Chemistry III, B Pharm SEM VISamruddhi Khonde

��

EDL 290F Week 4 - Group Ride (2025).pdfLiz Walsh-Trevino

��

📣 Marketing is Everything in the Beauty Business! 💅🏾✨ Talent gets you in the ...coreylewis960

��

20250402 ACCA TeamScienceAIEra 20250402 v10.pptxhome

��

Yale VMOC Special Report - Measles Outbreak Southwest US 3-30-2025 FINAL v2...Yale School of Public Health - The Virtual Medical Operations Center (VMOC)

��

U.S. Department of Education certificationMebane Rash

��

Tollywood Quiz- 21st March 2025, Quiz Club NITWQuiz Club NITW

��

Unit1 Inroduction to Internal Combustion EnginesNileshKumbhar21

��

URLS and routing in odoo 18 - Odoo �ݺ�ߣsCeline George

��

VTU notes for Indian Knowledge System 2022 scheme pptSuvarna Hiremath

��

Sulfonamides by Mrs. Manjushri P. DabhadeDabhade madam Dabhade

��

Urinary Tract Infection & Sexually Transmt ted Diseases.pptxAshish Umale

��

ANTIVIRAL agent by Mrs. Manjushri DabhadeDabhade madam Dabhade

��

3. AI Trust Layer, Governance – Explainability, Security & Compliance.pdfMukesh Kala

��

STOMACH Gross Anatomy & Clinical Anatomy.pptxSid Roy

��

Yale VMOC Special Report - Measles Outbreak Southwest US 3-26-2025 FINAL.pptxYale School of Public Health - The Virtual Medical Operations Center (VMOC)

��

How to Install Odoo 18 with Pycharm - Odoo 18 �ݺ�ߣsCeline George

��

EDL 290F Week 5 - Facing Headwinds and Hairpin Turns (2025).pdfLiz Walsh-Trevino

��

S. Y. G. N. M. CHILD HEALTH NURSING Leukemia in Children.pptxsachin7989

��

Crafting Winning STEM & Science Grant ProposalsKevin Welch

��

Anti-Viral Agents.pptx Medicinal Chemistry III, B Pharm SEM VISamruddhi Khonde

��

EDL 290F Week 4 - Group Ride (2025).pdfLiz Walsh-Trevino

��

📣 Marketing is Everything in the Beauty Business! 💅🏾✨ Talent gets you in the ...coreylewis960

��

20250402 ACCA TeamScienceAIEra 20250402 v10.pptxhome

��

Yale VMOC Special Report - Measles Outbreak Southwest US 3-30-2025 FINAL v2...Yale School of Public Health - The Virtual Medical Operations Center (VMOC)

��

U.S. Department of Education certificationMebane Rash

��

Tollywood Quiz- 21st March 2025, Quiz Club NITWQuiz Club NITW

��

Unit1 Inroduction to Internal Combustion EnginesNileshKumbhar21

��

URLS and routing in odoo 18 - Odoo �ݺ�ߣsCeline George

��

VTU notes for Indian Knowledge System 2022 scheme pptSuvarna Hiremath

��

Sulfonamides by Mrs. Manjushri P. DabhadeDabhade madam Dabhade

��

Featured (20)

Everything You Need To Know About ChatGPTExpeed Software

��

Product Design Trends in 2024 | Teenage EngineeringsPixeldarts

��

How Race, Age and Gender Shape Attitudes Towards Mental HealthThinkNow

��

Mental health has been in the news quite a bit lately. Dozens of U.S. states are currently suing Meta for contributing to the youth mental health crisis by inserting addictive features into their products, while the U.S. Surgeon General is touring the nation to bring awareness to the growing epidemic of loneliness and isolation. The country has endured periods of low national morale, such as in the 1970s when high inflation and the energy crisis worsened public sentiment following the Vietnam War. The current mood, however, feels different. Gallup recently reported that national mental health is at an all-time low, with few bright spots to lift spirits. To better understand how Americans are feeling and their attitudes towards mental health in general, ThinkNow conducted a nationally representative quantitative survey of 1,500 respondents and found some interesting differences among ethnic, age and gender groups. Technology For example, 52% agree that technology and social media have a negative impact on mental health, but when broken out by race, 61% of Whites felt technology had a negative effect, and only 48% of Hispanics thought it did. While technology has helped us keep in touch with friends and family in faraway places, it appears to have degraded our ability to connect in person. Staying connected online is a double-edged sword since the same news feed that brings us pictures of the grandkids and fluffy kittens also feeds us news about the wars in Israel and Ukraine, the dysfunction in Washington, the latest mass shooting and the climate crisis. Hispanics may have a built-in defense against the isolation technology breeds, owing to their large, multigenerational households, strong social support systems, and tendency to use social media to stay connected with relatives abroad. Age and Gender When asked how individuals rate their mental health, men rate it higher than women by 11 percentage points, and Baby Boomers rank it highest at 83%, saying it’s good or excellent vs. 57% of Gen Z saying the same. Gen Z spends the most amount of time on social media, so the notion that social media negatively affects mental health appears to be correlated. Unfortunately, Gen Z is also the generation that’s least comfortable discussing mental health concerns with healthcare professionals. Only 40% of them state they’re comfortable discussing their issues with a professional compared to 60% of Millennials and 65% of Boomers. Race Affects Attitudes As seen in previous research conducted by ThinkNow, Asian Americans lag other groups when it comes to awareness of mental health issues. Twenty-four percent of Asian Americans believe that having a mental health issue is a sign of weakness compared to the 16% average for all groups. Asians are also considerably less likely to be aware of mental health services in their communities (42% vs. 55%) and most likely to seek out information on social media (51% vs. 35%).

AI Trends in Creative Operations 2024 by Artwork Flow.pdfmarketingartwork

��

Creative operations teams expect increased AI use in 2024. Currently, over half of tasks are not AI-enabled, but this is expected to decrease in the coming year. ChatGPT is the most popular AI tool currently. Business leaders are more actively exploring AI benefits than individual contributors. Most respondents do not believe AI will impact workforce size in 2024. However, some inhibitions still exist around AI accuracy and lack of understanding. Creatives primarily want to use AI to save time on mundane tasks and boost productivity.

Skeleton Culture CodeSkeleton Technologies

��

Organizational culture includes values, norms, systems, symbols, language, assumptions, beliefs, and habits that influence employee behaviors and how people interpret those behaviors. It is important because culture can help or hinder a company's success. Some key aspects of Netflix's culture that help it achieve results include hiring smartly so every position has stars, focusing on attitude over just aptitude, and having a strict policy against peacocks, whiners, and jerks.

PEPSICO Presentation to CAGNY Conference Feb 2024Neil Kimberley

��

PepsiCo provided a safe harbor statement noting that any forward-looking statements are based on currently available information and are subject to risks and uncertainties. It also provided information on non-GAAP measures and directing readers to its website for disclosure and reconciliation. The document then discussed PepsiCo's business overview, including that it is a global beverage and convenient food company with iconic brands, $91 billion in net revenue in 2023, and nearly $14 billion in core operating profit. It operates through a divisional structure with a focus on local consumers.

Content Methodology: A Best Practices Report (Webinar)contently

��

This document provides an overview of content methodology best practices. It defines content methodology as establishing objectives, KPIs, and a culture of continuous learning and iteration. An effective methodology focuses on connecting with audiences, creating optimal content, and optimizing processes. It also discusses why a methodology is needed due to the competitive landscape, proliferation of channels, and opportunities for improvement. Components of an effective methodology include defining objectives and KPIs, audience analysis, identifying opportunities, and evaluating resources. The document concludes with recommendations around creating a content plan, testing and optimizing content over 90 days.

How to Prepare For a Successful Job Search for 2024Albert Qian

��

The document provides guidance on preparing a job search for 2024. It discusses the state of the job market, focusing on growth in AI and healthcare but also continued layoffs. It recommends figuring out what you want to do by researching interests and skills, then conducting informational interviews. The job search should involve building a personal brand on LinkedIn, actively applying to jobs, tailoring resumes and interviews, maintaining job hunting as a habit, and continuing self-improvement. Once hired, the document advises setting new goals and keeping skills and networking active in case of future opportunities.

Social Media Marketing Trends 2024 // The Global Indie InsightsKurio // The Social Media Age(ncy)

��

A report by thenetworkone and Kurio. The contributing experts and agencies are (in an alphabetical order): Sylwia Rytel, Social Media Supervisor, 180heartbeats + JUNG v MATT (PL), Sharlene Jenner, Vice President - Director of Engagement Strategy, Abelson Taylor (USA), Alex Casanovas, Digital Director, Atrevia (ES), Dora Beilin, Senior Social Strategist, Barrett Hoffher (USA), Min Seo, Campaign Director, Brand New Agency (KR), Deshé M. Gully, Associate Strategist, Day One Agency (USA), Francesca Trevisan, Strategist, Different (IT), Trevor Crossman, CX and Digital Transformation Director; Olivia Hussey, Strategic Planner; Simi Srinarula, Social Media Manager, The Hallway (AUS), James Hebbert, Managing Director, Hylink (CN / UK), Mundy Álvarez, Planning Director; Pedro Rojas, Social Media Manager; Pancho González, CCO, Inbrax (CH), Oana Oprea, Head of Digital Planning, Jam Session Agency (RO), Amy Bottrill, Social Account Director, Launch (UK), Gaby Arriaga, Founder, Leonardo1452 (MX), Shantesh S Row, Creative Director, Liwa (UAE), Rajesh Mehta, Chief Strategy Officer; Dhruv Gaur, Digital Planning Lead; Leonie Mergulhao, Account Supervisor - Social Media & PR, Medulla (IN), Aurelija Plioplytė, Head of Digital & Social, Not Perfect (LI), Daiana Khaidargaliyeva, Account Manager, Osaka Labs (UK / USA), Stefanie Söhnchen, Vice President Digital, PIABO Communications (DE), Elisabeth Winiartati, Managing Consultant, Head of Global Integrated Communications; Lydia Aprina, Account Manager, Integrated Marketing and Communications; Nita Prabowo, Account Manager, Integrated Marketing and Communications; Okhi, Web Developer, PNTR Group (ID), Kei Obusan, Insights Director; Daffi Ranandi, Insights Manager, Radarr (SG), Gautam Reghunath, Co-founder & CEO, Talented (IN), Donagh Humphreys, Head of Social and Digital Innovation, THINKHOUSE (IRE), Sarah Yim, Strategy Director, Zulu Alpha Kilo (CA).

Trends In Paid Search: Navigating The Digital Landscape In 2024Search Engine Journal

��

The search marketing landscape is evolving rapidly with new technologies, and professionals, like you, rely on innovative paid search strategies to meet changing demands. It’s important that you’re ready to implement new strategies in 2024. Check this out and learn the top trends in paid search advertising that are expected to gain traction, so you can drive higher ROI more efficiently in 2024. You’ll learn: - The latest trends in AI and automation, and what this means for an evolving paid search ecosystem. - New developments in privacy and data regulation. - Emerging ad formats that are expected to make an impact next year. Watch Sreekant Lanka from iQuanti and Irina Klein from OneMain Financial as they dive into the future of paid search and explore the trends, strategies, and technologies that will shape the search marketing landscape. If you’re looking to assess your paid search strategy and design an industry-aligned plan for 2024, then this webinar is for you.

5 Public speaking tips from TED - Visualized summarySpeakerHub

��

From their humble beginnings in 1984, TED has grown into the world’s most powerful amplifier for speakers and thought-leaders to share their ideas. They have over 2,400 filmed talks (not including the 30,000+ TEDx videos) freely available online, and have hosted over 17,500 events around the world. With over one billion views in a year, it’s no wonder that so many speakers are looking to TED for ideas on how to share their message more effectively. The article “5 Public-Speaking Tips TED Gives Its Speakers”, by Carmine Gallo for Forbes, gives speakers five practical ways to connect with their audience, and effectively share their ideas on stage. Whether you are gearing up to get on a TED stage yourself, or just want to master the skills that so many of their speakers possess, these tips and quotes from Chris Anderson, the TED Talks Curator, will encourage you to make the most impactful impression on your audience. See the full article and more summaries like this on SpeakerHub here: https://speakerhub.com/blog/5-presentation-tips-ted-gives-its-speakers See the original article on Forbes here: http://www.forbes.com/forbes/welcome/?toURL=http://www.forbes.com/sites/carminegallo/2016/05/06/5-public-speaking-tips-ted-gives-its-speakers/&refURL=&referrer=#5c07a8221d9b

ChatGPT and the Future of Work - Clark Boyd Clark Boyd

��

Everyone is in agreement that ChatGPT (and other generative AI tools) will shape the future of work. Yet there is little consensus on exactly how, when, and to what extent this technology will change our world. Businesses that extract maximum value from ChatGPT will use it as a collaborative tool for everything from brainstorming to technical maintenance. For individuals, now is the time to pinpoint the skills the future professional will need to thrive in the AI age. Check out this presentation to understand what ChatGPT is, how it will shape the future of work, and how you can prepare to take advantage.

Getting into the tech field. what next Tessa Mero

��

The document provides career advice for getting into the tech field, including: - Doing projects and internships in college to build a portfolio. - Learning about different roles and technologies through industry research. - Contributing to open source projects to build experience and network. - Developing a personal brand through a website and social media presence. - Networking through events, communities, and finding a mentor. - Practicing interviews through mock interviews and whiteboarding coding questions.

Google's Just Not That Into You: Understanding Core Updates & Search IntentLily Ray

��

1. Core updates from Google periodically change how its algorithms assess and rank websites and pages. This can impact rankings through shifts in user intent, site quality issues being caught up to, world events influencing queries, and overhauls to search like the E-A-T framework. 2. There are many possible user intents beyond just transactional, navigational and informational. Identifying intent shifts is important during core updates. Sites may need to optimize for new intents through different content types and sections. 3. Responding effectively to core updates requires analyzing "before and after" data to understand changes, identifying new intents or page types, and ensuring content matches appropriate intents across video, images, knowledge graphs and more.

How to have difficult conversations Rajiv Jayarajah, MAppComm, ACC

��

Introduction to Data ScienceChristy Abraham Joy

��

Time Management & Productivity - Best PracticesVit Horky

��

The six step guide to practical project managementMindGenius

��

The six step guide to practical project management If you think managing projects is too difficult, think again. We’ve stripped back project management processes to the basics – to make it quicker and easier, without sacrificing the vital ingredients for success. “If you’re looking for some real-world guidance, then The Six Step Guide to Practical Project Management will help.” Dr Andrew Makar, Tactical Project Management

Beginners Guide to TikTok for Search - Rachel Pearson - We are Tilt __ Bright...RachelPearson36

��

Unlocking the Power of ChatGPT and AI in Testing - A Real-World Look, present...Applitools

��

During this webinar, Anand Bagmar demonstrates how AI tools such as ChatGPT can be applied to various stages of the software development life cycle (SDLC) using an eCommerce application case study. Find the on-demand recording and more info at https://applitools.info/b59 Key takeaways: • Learn how to use ChatGPT to add AI power to your testing and test automation • Understand the limitations of the technology and where human expertise is crucial • Gain insight into different AI-based tools • Adopt AI-based tools to stay relevant and optimize work for developers and testers * ChatGPT and OpenAI belong to OpenAI, L.L.C.

Everything You Need To Know About ChatGPTExpeed Software

��

Product Design Trends in 2024 | Teenage EngineeringsPixeldarts

��

How Race, Age and Gender Shape Attitudes Towards Mental HealthThinkNow

��

AI Trends in Creative Operations 2024 by Artwork Flow.pdfmarketingartwork

��

Skeleton Culture CodeSkeleton Technologies

��

PEPSICO Presentation to CAGNY Conference Feb 2024Neil Kimberley

��

Content Methodology: A Best Practices Report (Webinar)contently

��

How to Prepare For a Successful Job Search for 2024Albert Qian

��

Social Media Marketing Trends 2024 // The Global Indie InsightsKurio // The Social Media Age(ncy)

��

Trends In Paid Search: Navigating The Digital Landscape In 2024Search Engine Journal

��

5 Public speaking tips from TED - Visualized summarySpeakerHub

��

ChatGPT and the Future of Work - Clark Boyd Clark Boyd

��

Getting into the tech field. what next Tessa Mero

��

Google's Just Not That Into You: Understanding Core Updates & Search IntentLily Ray

��

How to have difficult conversations Rajiv Jayarajah, MAppComm, ACC

��

Introduction to Data ScienceChristy Abraham Joy

��

Time Management & Productivity - Best PracticesVit Horky

��

The six step guide to practical project managementMindGenius

��

Beginners Guide to TikTok for Search - Rachel Pearson - We are Tilt __ Bright...RachelPearson36

��

Unlocking the Power of ChatGPT and AI in Testing - A Real-World Look, present...Applitools

��

Construct min heap from the given sequence

1. DATA STRUCTURES AND ALGORITHMS MIN-HEAP CONSTRUCTION SADIA ZAR GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 1

2. MIN-HEAP – DATA STRUCTURE • Construct a min-heap from the following sequence: 15, 3, 6, 18 ,5 ,9 ,11 • In this lecture I’ve discussed two methods to construct a min-heap. GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 2

3. MIN-HEAP – DATA STRUCTURE FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11 In the first method, at first we will construct a complete binary tree first and then we will check the condition i.e A[Parent[i]] < = A[i] for every node in the tree. GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 3

4. MIN-HEAP – DATA STRUCTURE FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11 GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 4

5. MIN-HEAP – DATA STRUCTURE FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11 GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 5

6. MIN-HEAP – DATA STRUCTURE FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11 GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 6

7. MIN-HEAP – DATA STRUCTURE FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11 GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 7

8. MIN-HEAP – DATA STRUCTURE FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11 GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 8

9. MIN-HEAP – DATA STRUCTURE FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11 GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 9

10. MIN-HEAP – DATA STRUCTURE FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11 GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 10

11. MIN-HEAP – DATA STRUCTURE FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11 Now Let’s check the condition for every node Starting from leaf nodes GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 11

12. MIN-HEAP – DATA STRUCTURE FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11 Now Let’s check the condition for every node Starting from leaf nodes i = 3 Parent[i] = Parent[3] = 1 So the condition is A[1] <= A[3] i.e, 3 <= 18 so no need to swap 0 1 2 3 4 5 6 GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 12

13. MIN-HEAP – DATA STRUCTURE FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11 Now Let’s check the condition for every node Starting from leaf nodes i = 4 Parent[i] = Parent[4] = 1 So the condition is A[1] <= A[4] i.e, 3 <= 5 so no need to swap 0 1 2 3 4 5 6 GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 13

14. MIN-HEAP – DATA STRUCTURE FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11 Now Let’s check the condition for every node Starting from leaf nodes i = 5 Parent[i] = Parent[5] = 2 So the condition is A[2] <= A[5] i.e, 6 <= 9 so no need to swap 0 1 2 3 4 5 6 GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 14

15. MIN-HEAP – DATA STRUCTURE FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11 Now Let’s check the condition for every node Starting from leaf nodes i = 6 Parent[i] = Parent[6] = 2 So the condition is A[2] <= A[6] i.e, 6 <= 11 so no need to swap 0 1 2 3 4 5 6 GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 15

16. MIN-HEAP – DATA STRUCTURE FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11 Now Let’s check the condition for every node Starting from leaf nodes i = 1 Parent[i] = Parent[1] = 0 So the condition is A[0] <= A[1] i.e, 15 <= 3 (false) so we have to swap 0 1 2 3 4 5 6 GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 16

17. MIN-HEAP – DATA STRUCTURE FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11 Now Let’s check the condition for every node Starting from leaf nodes After swapping check other nodes as well i = 2 Parent[i] = Parent[2] = 0 So the condition is A[0] <= A[2] i.e, 3 <= 6 so no need to swap 0 1 2 3 4 5 6 GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 17

18. MIN-HEAP – DATA STRUCTURE FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11 Now Let’s check the condition for every node Starting from leaf nodes Again check all the nodes now the problem Lies in node 1 and node 4 i = 4 Parent[i] = Parent[4] = 1 So the condition is A[1] <= A[4] i.e, 15 <= 5 (false) so we have to swap 0 1 2 3 4 5 6 GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 18

19. MIN-HEAP – DATA STRUCTURE FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11 Now Let’s check the condition for every node Starting from leaf nodes Now again check i = 4 Parent[i] = Parent[4] = 1 So the condition is A[1] <= A[4] i.e, 5 <= 15 so no need to swap 0 1 2 3 4 5 6 GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 19

20. MIN-HEAP – DATA STRUCTURE FIRST METHOD - 15, 3, 6, 18 ,5 ,9 ,11 Now Let’s check the condition for every node Starting from leaf nodes As you can see that the min-heap is ready 0 1 2 3 4 5 6 GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 20

21. MIN-HEAP – DATA STRUCTURE SECOND METHOD - 15, 3, 6, 18 ,5 ,9 ,11 In the second method, as we construct a complete binary tree, we will check the condition i.e A[Parent[i]] < = A[i] for every node that is inserted in the tree. GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 21

22. MIN-HEAP – DATA STRUCTURE SECOND METHOD - 15, 3, 6, 18 ,5 ,9 ,11 0 GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 22

23. MIN-HEAP – DATA STRUCTURE SECOND METHOD - 15, 3, 6, 18 ,5 ,9 ,11 i = 1 Parent[i] = Parent[1] = 0 Check the condition A[0]<=A[1] 15<=3 (false) so, we need to swap these two values 0 1 GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 23

24. MIN-HEAP – DATA STRUCTURE SECOND METHOD - 15, 3, 6, 18 ,5 ,9 ,11 i = 1 Parent[i] = Parent[1] = 0 Check the condition A[0]<=A[1] 3<=15 (true) so, continue 0 1 GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 24

25. MIN-HEAP – DATA STRUCTURE SECOND METHOD - 15, 3, 6, 18 ,5 ,9 ,11 i = 2 Parent[i] = Parent[2] = 0 Check the condition A[0]<=A[2] i.e, 3<=15 so no need to swap 0 1 2 GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 25

26. MIN-HEAP – DATA STRUCTURE SECOND METHOD - 15, 3, 6, 18 ,5 ,9 ,11 i = 3 Parent[i] = Parent[3] = 1 Check the condition A[1]<=A[3] i.e, 15<=18 so no need to swap 0 1 2 3 GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 26

27. MIN-HEAP – DATA STRUCTURE SECOND METHOD - 15, 3, 6, 18 ,5 ,9 ,11 i = 4 Parent[i] = Parent[4] = 1 Check the condition A[1]<=A[4] i.e, 15<=5 (false) so we have to swap 0 1 2 3 4 GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 27

28. MIN-HEAP – DATA STRUCTURE SECOND METHOD - 15, 3, 6, 18 ,5 ,9 ,11 No the min-heap is okay 0 1 2 3 4 GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 28

29. MIN-HEAP – DATA STRUCTURE SECOND METHOD - 15, 3, 6, 18 ,5 ,9 ,11 i = 5 Parent[i] = Parent[5] = 2 Check the condition A[2]<=A[5] i.e, 6<=9 so no need to swap 0 1 2 3 4 5 GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 29

30. MIN-HEAP – DATA STRUCTURE SECOND METHOD - 15, 3, 6, 18 ,5 ,9 ,11 i = 6 Parent[i] = Parent[6] = 2 Check the condition A[2]<=A[6] i.e, 6<=11 so no need to swap 0 1 2 3 4 5 6 GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 30

31. MIN-HEAP – DATA STRUCTURE SECOND METHOD - 15, 3, 6, 18 ,5 ,9 ,11 Now Let’s check the condition for every node Starting from leaf nodes As you can see that the min-heap is ready 0 1 2 3 4 5 6 GOVERNMENT VIQAR-UN-NISA POST GRADUATE COLLEGE (W), RAWALPINDI. 31

�ݺ�ߣ

Construct min heap from the given sequence

Recommended

More Related Content

Recently uploaded (20)

Featured (20)

Construct min heap from the given sequence
