Conveying_Systems

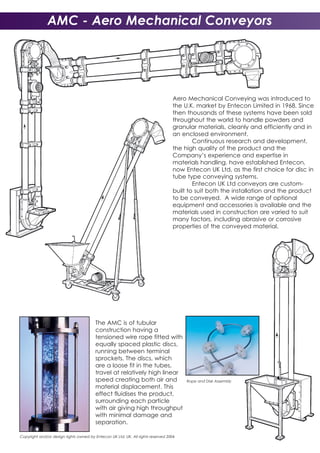

- 2. AMC - Aero Mechanical Conveyors Aero Mechanical Conveying was introduced to the U.K. market by Entecon Limited in 1968. Since then thousands of these systems have been sold throughout the world to handle powders and granular materials, cleanly and efficiently and in an enclosed environment. Continuous research and development, the high quality of the product and the Companys experience and expertise in materials handling, have established Entecon, now Entecon UK Ltd, as the first choice for disc in tube type conveying systems. Entecon UK Ltd conveyors are custom- built to suit both the installation and the product to be conveyed. A wide range of optional equipment and accessories is available and the materials used in construction are varied to suit many factors, including abrasive or corrosive properties of the conveyed material. The AMC is of tubular construction having a tensioned wire rope fitted with equally spaced plastic discs, running between terminal sprockets. The discs, which are a loose fit in the tubes, travel at relatively high linear speed creating both air and material displacement. This effect fluidises the product, surrounding each particle with air giving high throughput with minimal damage and separation. Copyright and/or design rights owned by Entecon UK Ltd, UK. All rights reserved 2004 Rope and Disk Assembly

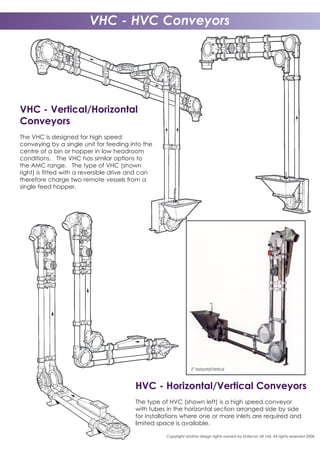

- 3. VHC - HVC Conveyors VHC - Vertical/Horizontal Conveyors The VHC is designed for high speed conveying by a single unit for feeding into the centre of a bin or hopper in low headroom conditions. The VHC has similar options to the AMC range. The type of VHC (shown right) is fitted with a reversible drive and can therefore charge two remote vessels from a single feed hopper. HVC - Horizontal/Vertical Conveyors The type of HVC (shown left) is a high speed conveyor with tubes in the horizontal section arranged side by side for installations where one or more inlets are required and limited space is available. 3 Horizontal/Vertical Copyright and/or design rights owned by Entecon UK Ltd. All rights reserved 2004

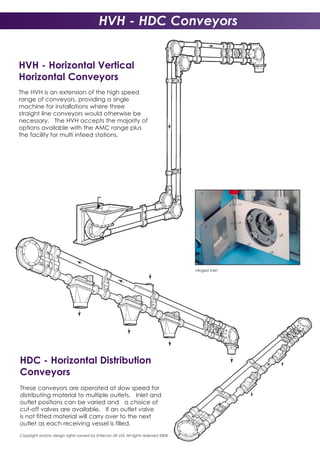

- 4. HVH - HDC Conveyors HVH - Horizontal Vertical Horizontal Conveyors The HVH is an extension of the high speed range of conveyors, providing a single machine for installations where three straight line conveyors would otherwise be necessary. The HVH accepts the majority of options available with the AMC range plus the facility for multi infeed stations. HDC - Horizontal Distribution Conveyors These conveyors are operated at slow speed for distributing material to multiple outlets. Inlet and outlet positions can be varied and a choice of cut-off valves are available. If an outlet valve is not fitted material will carry over to the next outlet as each receiving vessel is filled. Hinged Inlet Copyright and/or design rights owned by Entecon UK Ltd. All rights reserved 2004

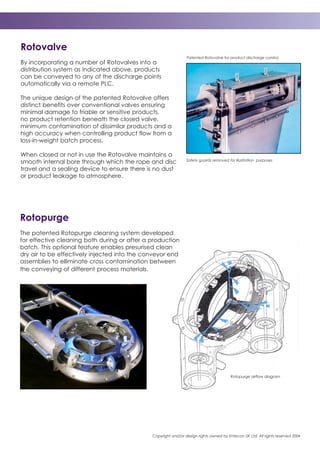

- 5. Copyright and/or design rights owned by Entecon UK Ltd. All rights reserved 2004 Rotovalve By incorporating a number of Rotovalves into a distribution system as indicated above, products can be conveyed to any of the discharge points automatically via a remote PLC. The unique design of the patented Rotovalve offers distinct benefits over conventional valves ensuring minimal damage to friable or sensitive products, no product retention beneath the closed valve, minimum contamination of dissimilar products and a high accuracy when controlling product flow from a loss-in-weight batch process. When closed or not in use the Rotovalve maintains a smooth internal bore through which the rope and disc travel and a sealing device to ensure there is no dust or product leakage to atmosphere. Patented Rotovalve for product discharge control Safety guards removed for illustration purposes Rotopurge The patented Rotopurge cleaning system developed for effective cleaning both during or after a production batch. This optional feature enables presurised clean dry air to be effectively injected into the conveyor end assemblies to elliminate cross contamination between the conveying of different process materials. Rotopurge airflow diagram

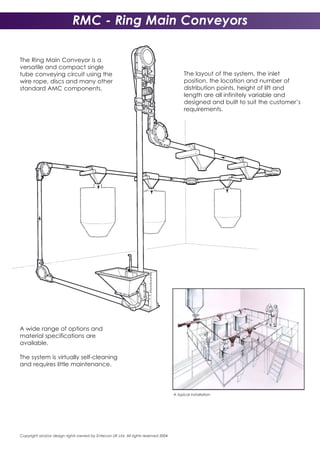

- 6. RMC - Ring Main Conveyors The Ring Main Conveyor is a versatile and compact single tube conveying circuit using the wire rope, discs and many other standard AMC components. Copyright and/or design rights owned by Entecon UK Ltd. All rights reserved 2004 The layout of the system, the inlet position, the location and number of distribution points, height of lift and length are all infinitely variable and designed and built to suit the customers requirements. A wide range of options and material specifications are available. The system is virtually self-cleaning and requires little maintenance. A typical installation

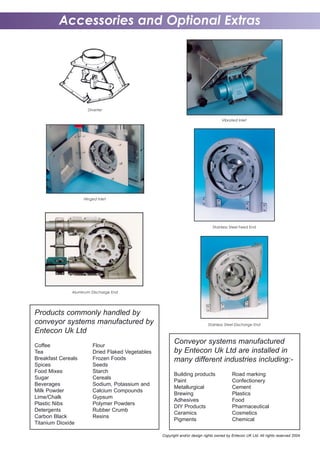

- 7. Accessories and Optional Extras Diverter Hinged Inlet Vibrated Inlet Copyright and/or design rights owned by Entecon UK Ltd. All rights reserved 2004 Stainless Steel Feed End Aluminum Discharge End Stainless Steel Discharge End Conveyor systems manufactured by Entecon Uk Ltd are installed in many different industries including:- Building products Road marking Paint Confectionery Metallurgical Cement Brewing Plastics Adhesives Food DIY Products Pharmaceutical Ceramics Cosmetics Pigments Chemical Products commonly handled by conveyor systems manufactured by Entecon Uk Ltd Coffee Flour Tea Dried Flaked Vegetables Breakfast Cereals Frozen Foods Spices Seeds Food Mixes Starch Sugar Cereals Beverages Sodium, Potassium and Milk Powder Calcium Compounds Lime/Chalk Gypsum Plastic Nibs Polymer Powders Detergents Rubber Crumb Carbon Black Resins Titanium Dioxide

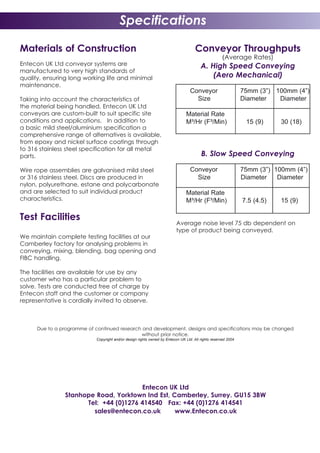

- 8. Specifications Materials of Construction Entecon UK Ltd conveyor systems are manufactured to very high standards of quality, ensuring long working life and minimal maintenance. Taking into account the characteristics of the material being handled, Entecon UK Ltd conveyors are custom-built to suit specific site conditions and applications. In addition to a basic mild steel/aluminium specification a comprehensive range of alternatives is available, from epoxy and nickel surface coatings through to 316 stainless steel specification for all metal parts. Wire rope assemblies are galvanised mild steel or 316 stainless steel. Discs are produced in nylon, polyurethane, estane and polycarbonate and are selected to suit individual product characteristics. Test Facilities We maintain complete testing facilities at our Camberley factory for analysing problems in conveying, mixing, blending, bag opening and FIBC handling. The facilities are available for use by any customer who has a particular problem to solve. Tests are conducted free of charge by Entecon staff and the customer or company representative is cordially invited to observe. Conveyor Throughputs (Average Rates) A. High Speed Conveying (Aero Mechanical) Conveyor 75mm (3) 100mm (4) Size Diameter Diameter Material Rate M続/Hr (F続/Min) 15 (9) 30 (18) B. Slow Speed Conveying Conveyor 75mm (3) 100mm (4) Size Diameter Diameter Material Rate M続/Hr (F続/Min) 7.5 (4.5) 15 (9) Average noise level 75 db dependent on type of product being conveyed. Due to a programme of continued research and development, designs and specifications may be changed without prior notice. Entecon UK Ltd Stanhope Road, Yorktown Ind Est, Camberley, Surrey. GU15 3BW Tel: +44 (0)1276 414540 Fax: +44 (0)1276 414541 sales@entecon.co.uk www.Entecon.co.uk Copyright and/or design rights owned by Entecon UK Ltd. All rights reserved 2004
