Cornerstone Application of Composite
- 1. 1 2016 900 E. Vienna Avenue, Milwaukee, WI 53212 P: 414-964-5200 www.cornerstonecomposites.com
- 2. Stronger Solutions As a team of engineers, we believe that stronger solutions are always worth striving for. We help nimble, open-minded manufacturers advance their products by replacing metal and thermoplastic parts with higher performance, customized composite formulations. Core Statement

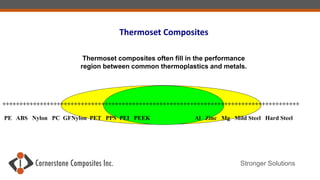

- 4. Stronger Solutions Thermoset Composites Thermoset composites often fill in the performance region between common thermoplastics and metals. PE ABS Nylon PC GFNylon PET PPS PEI PEEK Al Zinc Mg Mild Steel Hard Steel +++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++

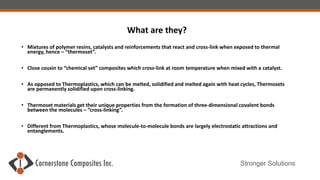

- 5. Stronger Solutions What are they? Mixtures of polymer resins, catalysts and reinforcements that react and cross-link when exposed to thermal energy, hence thermoset. Close cousin to chemical set composites which cross-link at room temperature when mixed with a catalyst. As opposed to Thermoplastics, which can be melted, solidified and melted again with heat cycles, Thermosets are permanently solidified upon cross-linking. Thermoset materials get their unique properties from the formation of three-dimensional covalent bonds between the molecules cross-linking. Different from Thermoplastics, whose molecule-to-molecule bonds are largely electrostatic attractions and entanglements.

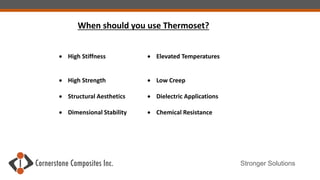

- 6. Stronger Solutions When should you use Thermoset? High Stiffness Elevated Temperatures High Strength Low Creep Structural Aesthetics Dielectric Applications Dimensional Stability Chemical Resistance

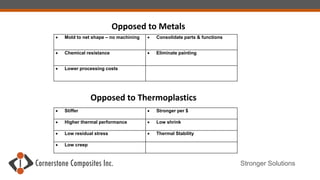

- 7. Stronger Solutions Opposed to Thermoplastics Opposed to Metals Mold to net shape no machining Consolidate parts & functions Chemical resistance Eliminate painting Lower processing costs Stiffer Stronger per $ Higher thermal performance Low shrink Low residual stress Thermal Stability Low creep

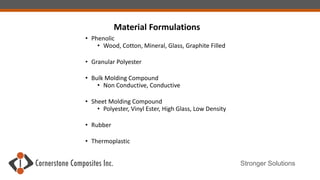

- 8. Stronger Solutions Phenolic Wood, Cotton, Mineral, Glass, Graphite Filled Granular Polyester Bulk Molding Compound Non Conductive, Conductive Sheet Molding Compound Polyester, Vinyl Ester, High Glass, Low Density Rubber Thermoplastic Material Formulations

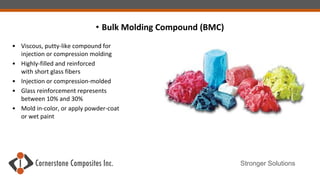

- 9. Stronger Solutions Bulk Molding Compound (BMC) Viscous, putty-like compound for injection or compression molding Highly-filled and reinforced with short glass fibers Injection or compression-molded Glass reinforcement represents between 10% and 30% Mold in-color, or apply powder-coat or wet paint

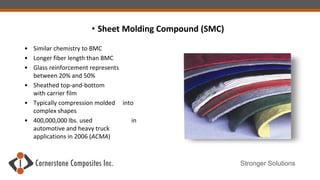

- 10. Stronger Solutions Sheet Molding Compound (SMC) Similar chemistry to BMC Longer fiber length than BMC Glass reinforcement represents between 20% and 50% Sheathed top-and-bottom with carrier film Typically compression molded into complex shapes 400,000,000 lbs. used in automotive and heavy truck applications in 2006 (ACMA)

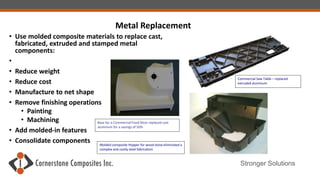

- 11. Stronger Solutions Use molded composite materials to replace cast, fabricated, extruded and stamped metal components: Reduce weight Reduce cost Manufacture to net shape Remove finishing operations Painting Machining Add molded-in features Consolidate components Metal Replacement Commercial Saw Table replaced extruded aluminum Base for a Commercial Food Slicer replaced cast aluminum for a savings of 50% Molded composite Hopper for wood stove eliminated a complex and costly steel fabrication

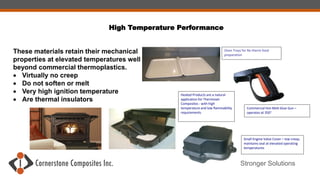

- 12. Stronger Solutions These materials retain their mechanical properties at elevated temperatures well beyond commercial thermoplastics. Virtually no creep Do not soften or melt Very high ignition temperature Are thermal insulators High Temperature Performance Oven Trays for Re-therm food preparation Small Engine Valve Cover low creep, maintains seal at elevated operating temperatures Commercial Hot-Melt Glue Gun operates at 350 Heated Products are a natural application for Thermoset Composites - with high temperature and low flammability requirements

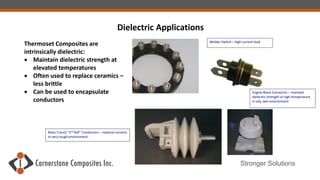

- 13. Stronger Solutions Dielectric Applications Thermoset Composites are intrinsically dielectric: Maintain dielectric strength at elevated temperatures Often used to replace ceramics less brittle Can be used to encapsulate conductors Welder Switch high current load Engine Block Connector maintain dielectric strength at high temperature in oily, wet environment Mass Transit 3rd Rail Conductors replaces ceramic in very tough environment.

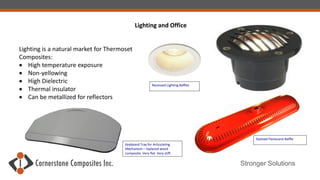

- 14. Stronger Solutions Lighting and Office Lighting is a natural market for Thermoset Composites: High temperature exposure Non-yellowing High Dielectric Thermal insulator Can be metallized for reflectors Keyboard Tray for Articulating Mechanism replaced wood composite. Very flat. Very stiff. Recessed Lighting Baffles Stylized Florescent Baffle

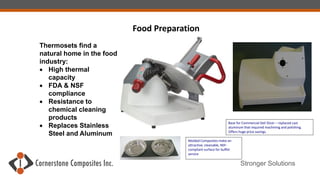

- 15. Stronger Solutions Food Preparation Thermosets find a natural home in the food industry: High thermal capacity FDA & NSF compliance Resistance to chemical cleaning products Replaces Stainless Steel and Aluminum Base for Commercial Deli Slicer replaced cast aluminum that required machining and polishing. Offers huge price savings. Molded Composites make an attractive, cleanable, NSF- compliant surface for buffet service

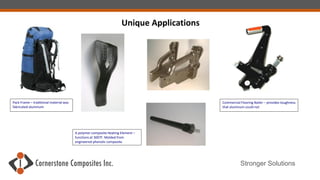

- 16. Stronger Solutions Unique Applications Pack Frame traditional material was fabricated aluminum Commercial Flooring Nailer provides toughness that aluminum could not A polymer composite Heating Element functions at 300?F. Molded from engineered phenolic composite.

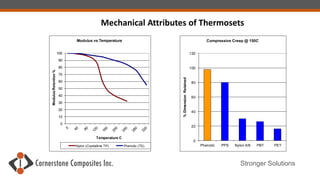

- 17. Stronger Solutions Mechanical Attributes of Thermosets 0 10 20 30 40 50 60 70 80 90 100ModulusRetention% Temperature C Modulus vs Temperature Nylon (Crystalline TP) Phenolic (TS) 0 20 40 60 80 100 120 Phenolic PPS Nylon 6/6 PBT PET %DimensionRetained Compressive Creep @ 150C

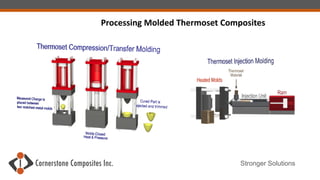

- 18. Stronger Solutions Processing Molded Thermoset Composites

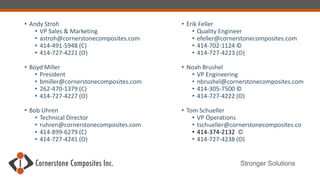

- 19. Stronger Solutions Andy Stroh VP Sales & Marketing astroh@cornerstonecomposites.com 414-491-5948 (C) 414-727-4221 (O) Boyd Miller President bmiller@cornerstonecomposites.com 262-470-1379 (C) 414-727-4227 (O) Bob Uhren Technical Director ruhren@cornerstonecomposites.com 414-899-6279 (C) 414-727-4241 (O) Erik Feller Quality Engineer efeller@cornerstonecomposites.com 414-702-1124 息 414-727-4223 (O) Noah Brushel VP Engineering nbrushel@cornerstonecomposites.com 414-305-7500 息 414-727-4222 (O) Tom Schueller VP Operations tschueller@cornerstonecomposites.co 414-374-2132 息 414-727-4238 (O)
