The document provides specifications for various signage for an attraction exit. It includes dimensions, materials, installation details, and quantities for different sign types, including: - Attraction signs to be placed on interstates and exit ramps - Large, medium, and small directional signs - Welcome signs for entrances - A visitor center sign - Directory boards with maps The signs will be made of materials like aluminum, vinyl, and gold leafing and mounted on steel posts set in concrete. Dimensions and quantities are provided for each unique sign. A site map shows proposed locations.
Corydon Signage (1)
- 1. ATTRACTIONEXIT 105 A Attraction Sign: On interstate and at top of exit ramps Size: to Te determined Materials: To be determined Installation: To be determined Quantity: Four (4) total

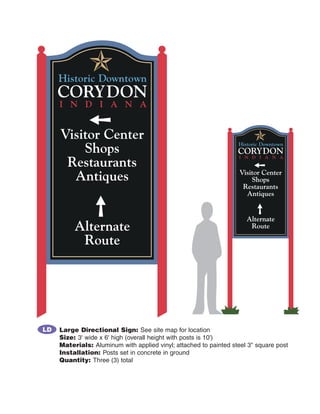

- 2. LD Large Directional Sign: See site map for location Size: 3' wide x 6' high (overall height with posts is 10') Materials: Aluminum with applied vinyl; attached to painted steel 3" square post Installation: Posts set in concrete in ground Quantity: Three (3) total

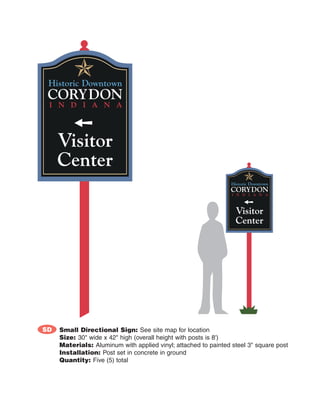

- 3. SD Small Directional Sign: See site map for location Size: 30" wide x 42" high (overall height with posts is 8') Materials: Aluminum with applied vinyl; attached to painted steel 3" square post Installation: Post set in concrete in ground Quantity: Five (5) total

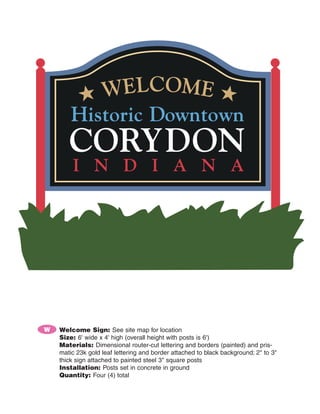

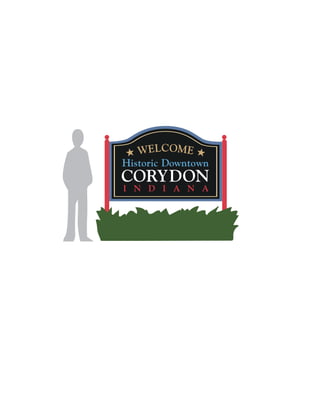

- 4. W Welcome Sign: See site map for location Size: 6' wide x 4' high (overall height with posts is 6') Materials: Dimensional router-cut lettering and borders (painted) and pris- matic 23k gold leaf lettering and border attached to black background; 2" to 3" thick sign attached to painted steel 3" square posts Installation: Posts set in concrete in ground Quantity: Four (4) total

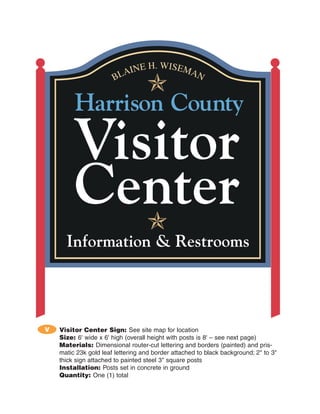

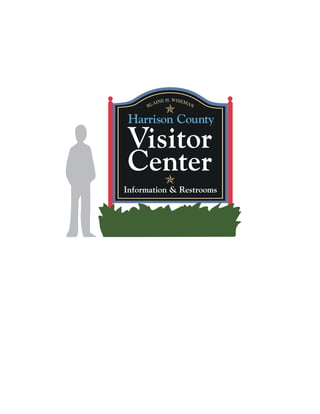

- 6. V Visitor Center Sign: See site map for location Size: 6' wide x 6' high (overall height with posts is 8' see next page) Materials: Dimensional router-cut lettering and borders (painted) and pris- matic 23k gold leaf lettering and border attached to black background; 2" to 3" thick sign attached to painted steel 3" square posts Installation: Posts set in concrete in ground Quantity: One (1) total

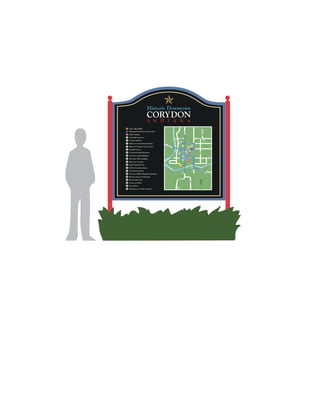

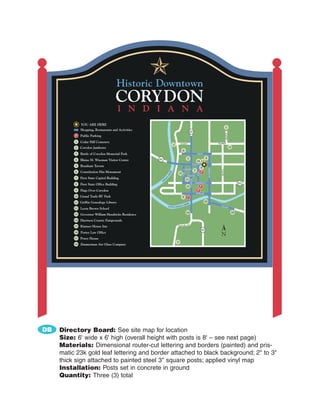

- 8. YOU ARE HERE 1 Shopping, Restaurants and Activities 337 MAPLE P Public Parking 1 Cedar Hill Cemetery HURST SUMMIT 2 2 Corydon Jamboree 12 6 3 Battle of Corydon Memorial Park HIGH 62 5 8 4 Blaine H. Wiseman Visitor Center 16 13 WALNUT 5 Branham Tavern 4 MULBERRY CHERRY MAPLE 7 6 Constitution Elm Monument P K OAK ELM EE 17 CR BEAVER 7 First State Capitol Building N A I 11 CAPITAL D IN 8 First State Office Building CHESTNUT 62 15 P 9 Flags Over Corydon P POPLAR 10 Grand Trails RV Park 9 P 11 Griffin Genealogy Library 10 EK CRE VAL LITTLE INDIAN L EY 12 Leora Brown School 14 18 13 Governor William Hendricks Residence 14 Harrison County Fairgrounds 135 15 Kintner House Inn OLD S.R. 337 16 Porter Law Office N 17 Posey House 3 18 Zimmerman Art Glass Company DB Directory Board: See site map for location Size: 6' wide x 6' high (overall height with posts is 8' see next page) Materials: Dimensional router-cut lettering and borders (painted) and pris- matic 23k gold leaf lettering and border attached to black background; 2" to 3" thick sign attached to painted steel 3" square posts; applied vinyl map Installation: Posts set in concrete in ground Quantity: Three (3) total
- 9. YOU ARE HERE 1 Shopping, Restaurants and Activities 337 MAPLE P Public Parking 1 Cedar Hill Cemetery HURST SUMMIT 2 2 Corydon Jamboree 12 6 3 Battle of Corydon Memorial Park HIGH 62 5 8 4 Blaine H. Wiseman Visitor Center 16 13 WALNUT 5 Branham Tavern 4 MULBERRY CHERRY MAPLE 7 6 Constitution Elm Monument P EK OAK ELM 17 E CR BEAVER 7 First State Capitol Building N A I 11 CAPITAL D IN 8 First State Office Building CHESTNUT 62 15 P 9 Flags Over Corydon P POPLAR 10 Grand Trails RV Park 9 P 11 Griffin Genealogy Library 10 K CREE VALL LITTLE INDIAN EY 12 Leora Brown School 14 18 13 Governor William Hendricks Residence 14 Harrison County Fairgrounds 135 15 Kintner House Inn OLD S.R. 337 16 Porter Law Office N 17 Posey House 3 18 Zimmerman Art Glass Company

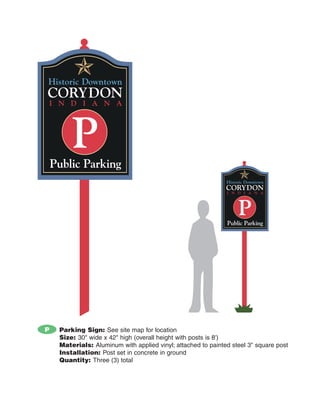

- 10. P Parking Sign: See site map for location Size: 30" wide x 42" high (overall height with posts is 8') Materials: Aluminum with applied vinyl; attached to painted steel 3" square post Installation: Post set in concrete in ground Quantity: Three (3) total
