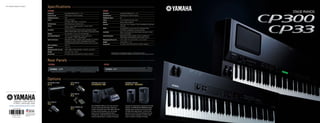

- 1. Specifications Rear Panels Options CP300 Keyboard GH keyboard 88 keys (A-1 – C7) Sound Source AWM Dynamic Stereo Sampling Polyphony (max.) 128 Voices Presets: 50 Voices XG Voices: 480 Voices + 12 Drum kits Performances 64 Performamces x 56 files (max.) Effects Reverb, Chorus, Master Equalizer, Variation effect, Insertion effect x 3 Controller Master Volume Dial, Pitch Bend Wheel, Modulation Wheel, Master Equalizer 狠狠撸r, Zone Control 狠狠撸r, Song Volume 狠狠撸r Display 24 characters x 2 lines, LCD with back-light Recording/Playback 16-track recording/playback, Tempo adjustment, max. capacity: 1.4 MB, 140,000 notes Jacks/Connectors MIDI (IN/OUT/THRU), PHONES, INPUT (L/MONO, R), OUTPUT (L/MONO, R), OUTPUT (L/R), ASSIGNABLE FOOT PEDAL (SUSTAIN/SOSTENUTO/SOFT/AUX), USB TO HOST, AC INLET Main Amplifiers 30 W x 2 Speakers 13 cm x 2 Dimensions (W x D x H) 1391 x 460 x 170 mm (54-3/4" x 18-1/8" x 6-15/16") Weight 32.5 kg (71 lbs., 10 oz) Accessories AC Power Cord, Foot Switch FC3, Owner’s Manual CP33 Keyboard GH keyboard 88 keys (A-1 – C7) Sound Source AWM Dynamic Stereo Sampling Polyphony (max.) 64 Voices 14 x 2 variations for each Voice Effects Reverb, Effect, Brilliance Controls Dual, Split, Click, Transpose, Touch (Hard/Medium/Soft/Fixed), Functions Pedal SUSTAIN PEDAL (can be used with half-pedal effect), AUX PEDAL (assignable to various functions) Controller Master Volume Dial, Pitch Bend Wheel, Modulation Wheel, Zone Control 狠狠撸rs Jacks/Connectors MIDI (IN/OUT/THRU), PHONES, OUTPUT (L/MONO, R), FOOT PEDAL (SUSTAIN/AUX), USB TO HOST, DC IN Dimensions (W x D x H) 1312 x 330 x 151 mm (51-5/8" x 13 x 5-15/16") Weight 18 kg (39 lbs., 11 oz) Accessories AC Power Cord, Foot Switch FC3, Owner’s Manual ? Specifications and appearance subject to change without notice. ? All trademarks and registered trademarks are property of their respective owners. FOOT SWITCH FC3 FOOT SWITCH FC4 FOOT SWITCH FC5 FOOT CONTROLLER FC7 KEYBOARD STAND LP-3 The STAGEPAS 300 is an all-in-one solution for your small-scale PA needs. Featuring a built-in powered mixer with eight channels of input and PA speakers, you can simply plug in your CP series keyboard (and a microphone, if desired), and you can set up and be entertaining in a matter of minutes. Compact in size but big in sound and versatile features, the MSR100 and MSR400 powered speakers pack a powerful sonic punch (100 and 400 watts respectively). Connect them directly to your CP series keyboard and use them as monitor speakers, or add a small mixer to create a compact PA setup. POWERED SPEAKER MSR100 / MSR400 PORTABLE PA SYSTEM STAGEPAS 300 CP300 CP33 For details please contact: This document is printed on chlorine-free (ECF) paper with soy ink. www.yamahasynth.com Printed in Japan

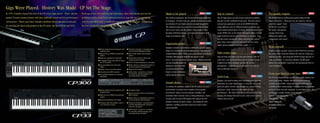

- 2. ● 88-key Graded Hammer keyboard with authentic touch ● State-of-the-art AWM tone generation system ● Maximum polyphony of 64 notes ● Compact, light and portable—easy to carry and easy to set up ● 28 original Voices ● Reverb and other effects Comprehensive MIDI functions ● Master mode, for independent control of up to two external tone generators ● Real-time controllers—including sliders and Pitch Bend/Modulation wheels for maximum expression ● USB terminal—connect to a computer for recording, editing/arranging, and converting songs to notation ● 88-key Graded Hammer keyboard with authentic touch ● State-of-the-art AWM tone generation system ● Maximum polyphony of 128 notes ● 50 original Voices, plus 480 XG Voices and 12 Drum Kits ● Five-band Master EQ, with panel sliders ● Reverb, Chorus and other effects ● Comprehensive MIDI functions ● Four pedal connectors for maximum expression ● Real-time controllers—including sliders and Pitch Bend/Modulation wheels ● Built-in high-quality stereo speaker system ● Performance mode for storing and recalling custom settings ● Built-in 16-track sequencer for recording ● Master mode, for independent control of up to four external tone generators ● Balanced XLR outputs ● USB terminal—connect to a computer for recording, editing/arranging, and converting songs to notation Made to be played Like all fine instruments, the CP series keyboards simply beg to be played. Sit down with one, and the instrument becomes an extension of your hands and your musical imagination. The authentic piano voices and rich expressiveness come alive at your touch, and the sound is big enough to blast through a full band onstage—yet nuanced enough to work magic in an intimate club. Expressive power Yamaha’s extensive experience in crafting fine acoustic pianos helps us in creating the ultimate digital pianos. Our advanced Graded Hammer Effect (GHE) action gives all keys an authentic resistance that increases from the top register to the lower—just as on an actual acoustic piano. Which means that you can naturally pound out thunderous low notes with your left hand and let the fingers on your right dance and fly with the high notes. Sound choice In crafting the authentic sound of the CP series, we used meticulously recorded stereo samples of top-quality instruments, taken at various playing strengths, and included subtle elements such as String Resonance, Stereo Sustain, and even Key-Off Samples that capture the felt dampers muting the piano strings—providing the most authentic sounding and finely nuanced acoustic piano voices possible. Stay in control The CP stage pianos are also master keyboard controllers that give you full command of your gear. Play and control external tone generators (such as the MOTIF-RACK ES). Assign different voices to different keyboard sections and create multi-textured layers of sound. Four instrument Zones on the CP300 (two on the CP33), with panel sliders, let you easily tweak the level of each instrument as you play. You can also freely reassign the sliders and wheels to control other sonic characteristics of your gear, such as sound attack, decay, brightness and filter cutoff. Take center stage Step out front and make your presence known. The CP series has a special Mono Piano sound, complete with a compression effect, designed specifically for live performance. It has the punch and power to stand out, even in full band situations. Lock it up Onstage, you need to make sure everything goes smoothly. Sometimes an errant hand (yours or someone else’s) can touch the panel controls and change your special settings, giving you a rude surprise in the middle of your performance. The Panel Lock button lets you prevent that, keeping all settings fixed and secure, until you’re ready to change them yourself. Pro-quality outputs The CP300 features professional quality balanced XLR output connectors. These give you the cleanest, clearest noise-free signal—both for serious recording in the studio, and playing onstage where long unbalanced cables may compromise your sound. Hear yourself A built-in stereo speaker system on the CP300 lets you hear the sound of the keyboard without the need for setting up a separate monitor. Just bring the CP300 onstage and you’re ready to perform! A convenient Speaker On/Off panel button lets you disable it and leave the monitoring levels to your soundman. From your head to your toes The CP series keyboards give you the same pedal control as an actual grand piano. Sustain, Soft and Sostenuto jacks are available on the CP300—along with a fourth pedal input for controlling other sound settings—while the CP33 has a Sustain and an AUX jack (for Soft, Sostenuto, or even Expression). On certain piano sounds, Sustain can be partially applied—reproducing the “half-damper” effect of slightly muting the resonating strings on a real piano. Made to be played Like all fine instruments, the CP series keyboards simply beg to be played. Sit down with one, and the instrument becomes an extension of your hands and your musical imagination. The authentic piano voices and rich expressiveness come alive at your touch, and the sound is big enough to blast through a full band onstage—yet nuanced enough to work magic in an intimate club. Expressive power Yamaha’s extensive experience in crafting fine acoustic pianos helps us in creating the ultimate digital pianos. Our advanced Graded Hammer Effect (GHE) action gives all keys an authentic resistance that increases from the top register to the lower—just as on an actual acoustic piano. Which means that you can naturally pound out thunderous low notes with your left hand and let the fingers on your right dance and fly with the high notes. Sound choice In crafting the authentic sound of the CP series, we used meticulously recorded stereo samples of top-quality instruments, taken at various playing strengths, and included subtle elements such as String Resonance, Stereo Sustain, and even Key-Off Samples that capture the felt dampers muting the piano strings—providing the most authentic sounding and finely nuanced acoustic piano voices possible. Stay in control The CP stage pianos are also master keyboard controllers that give you full command of your gear. Play and control external tone generators (such as the MOTIF-RACK ES). Assign different voices to different keyboard sections and create multi-textured layers of sound. Four instrument Zones on the CP300 (two on the CP33), with panel sliders, let you easily tweak the level of each instrument as you play. You can also freely reassign the sliders and wheels to control other sonic characteristics of your gear, such as sound attack, decay, brightness and filter cutoff. Take center stage Step out front and make your presence known. The CP series has a special Mono Piano sound, complete with a compression effect, designed specifically for live performance. It has the punch and power to stand out, even in full band situations. Lock it up Onstage, you need to make sure everything goes smoothly. Sometimes an errant hand (yours or someone else’s) can touch the panel controls and change your special settings, giving you a rude surprise in the middle of your performance. The Panel Lock button lets you prevent that, keeping all settings fixed and secure, until you’re ready to change them yourself. Pro-quality outputs The CP300 features professional quality balanced XLR output connectors. These give you the cleanest, clearest noise-free signal—both for serious recording in the studio, and playing onstage where long unbalanced cables may compromise your sound. Hear yourself A built-in stereo speaker system on the CP300 lets you hear the sound of the keyboard without the need for setting up a separate monitor. Just bring the CP300 onstage and you’re ready to perform! A convenient Speaker On/Off panel button lets you disable it and leave the monitoring levels to your soundman. From your head to your toes The CP series keyboards give you the same pedal control as an actual grand piano. Sustain, Soft and Sostenuto jacks are available on the CP300—along with a fourth pedal input for controlling other sound settings—while the CP33 has a Sustain and an AUX jack (for Soft, Sostenuto, or even Expression). On certain piano sounds, Sustain can be partially applied—reproducing the “half-damper” effect of slightly muting the resonating strings on a real piano. STAGE PIANO STAGE PIANO Gigs Were Played. History Was Made. CP Set The Stage. Gigs Were Played. History Was Made. CP Set The Stage. In 1976, Yamaha released the first of the CP series stage pianos. These ‘electric grands’ became instant classics with their authentic sound and live performance convenience. Thirty years later, Yamaha celebrates those milestone keyboards by unveiling the latest and greatest in the CP series: the new CP300 and CP33. Drawing on our rich tradition and experience, these instruments give the live performer all the sound and expressiveness of a superbly mic’d grand piano with the portability and versatility of a modern digital instrument. Introducing the new standard in stage pianos—the CP series. In 1976, Yamaha released the first of the CP series stage pianos. These ‘electric grands’ became instant classics with their authentic sound and live performance convenience. Thirty years later, Yamaha celebrates those milestone keyboards by unveiling the latest and greatest in the CP series: the new CP300 and CP33. Drawing on our rich tradition and experience, these instruments give the live performer all the sound and expressiveness of a superbly mic’d grand piano with the portability and versatility of a modern digital instrument. Introducing the new standard in stage pianos—the CP series.
