Las Vegas 2012

Intermediate Pig Know How

Timothy Potter (Twitter: thelabdude)
Pigout Hackday, Austin TX
May 11, 2012
® 2011 Dachis Group.

dachisgroup.com

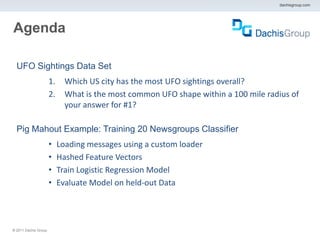

Agenda

UFO Sightings Data Set
1. Which US city has the most UFO sightings overall?
2. What is the most common UFO shape within a 100 mile radius of
your answer for #1?

Pig Mahout Example: Training 20 Newsgroups Classifier
• Loading messages using a custom loader
• Hashed Feature Vectors
• Train Logistic Regression Model
• Evaluate Model on held-out Data


dachisgroup.com

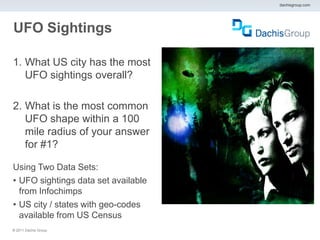

UFO Sightings

1. What US city has the most
UFO sightings overall?

2. What is the most common
UFO shape within a 100
mile radius of your answer
for #1?

Using Two Data Sets:
• UFO sightings data set available
from Infochimps
• US city / states with geo-codes
available from US Census

dachisgroup.com

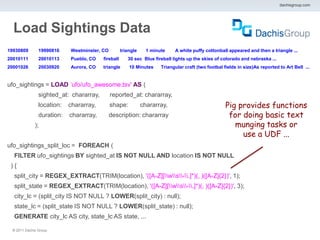

Load Sightings Data
19930809 19990816 Westminster, CO triangle 1 minute A white puffy cottonball appeared and then a triangle ...
20010111 20010113 Pueblo, CO fireball 30 sec Blue fireball lights up the skies of colorado and nebraska ...
20001026 20030920 Aurora, CO triangle 10 Minutes Triangular craft (two footbal fields in size)As reported to Art Bell ...

ufo_sightings = LOAD ’ufo/ufo_awesome.tsv' AS (
sighted_at: chararray, reported_at: chararray,
location: chararray, shape: chararray, Pig provides functions
duration: chararray, description: chararray for doing basic text
); munging tasks or
use a UDF ...
ufo_sightings_split_loc = FOREACH (
FILTER ufo_sightings BY sighted_at IS NOT NULL AND location IS NOT NULL
){
split_city = REGEX_EXTRACT(TRIM(location), '([A-Z][ws-.]*)(, )([A-Z]{2})', 1);
split_state = REGEX_EXTRACT(TRIM(location), '([A-Z][ws-.]*)(, )([A-Z]{2})', 3);
city_lc = (split_city IS NOT NULL ? LOWER(split_city) : null);
state_lc = (split_state IS NOT NULL ? LOWER(split_state) : null);
GENERATE city_lc AS city, state_lc AS state, ...


dachisgroup.com

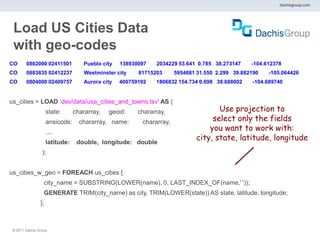

Load US Cities Data
with geo-codes
CO 0862000 02411501 Pueblo city 138930097 2034229 53.641 0.785 38.273147 -104.612378
CO 0883835 02412237 Westminster city 81715203 5954681 31.550 2.299 39.882190 -105.064426
CO 0804000 02409757 Aurora city 400759192 1806832 154.734 0.698 39.688002 -104.689740

us_cities = LOAD ’dev/data/usa_cities_and_towns.tsv' AS (
state: chararray, geoid: chararray, Use projection to
ansicode: chararray, name: chararray, select only the fields
....
you want to work with:
latitude: double, longitude: double
city, state, latitude, longitude
);

us_cities_w_geo = FOREACH us_cities {
city_name = SUBSTRING(LOWER(name), 0, LAST_INDEX_OF(name,' '));
GENERATE TRIM(city_name) as city, TRIM(LOWER(state)) AS state, latitude, longitude;
};


dachisgroup.com

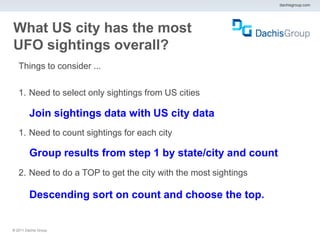

What US city has the most
Things to consider ...

1. Need to select only sightings from US cities

Join sightings data with US city data
1. Need to count sightings for each city

Group results from step 1 by state/city and count
2. Need to do a TOP to get the city with the most sightings

Descending sort on count and choose the top.


dachisgroup.com

ufo_sightings_with_geo = FOREACH (
JOIN ufo_sightings_by_city BY (state,city), us_cities_w_geo BY (state,city) USING ‘replicated’
) GENERATE
ufo_sightings_by_city::state AS state, Inner JOIN by
ufo_sightings_by_city::city AS city,
(state,city) to
ufo_sightings_by_city::sighted_at AS sighted_at,
attach geo-codes
to sightings
ufo_sightings_by_city::sighted_year AS sighted_year,
ufo_sightings_by_city::shape AS shape,
us_cities_w_geo::latitude AS latitude,
us_cities_w_geo::longitude AS longitude;

grp_by_state_city = FOREACH (GROUP ufo_sightings_with_geo BY (state,city,latitude,longitude))
GENERATE FLATTEN($0) AS (state,city,latitude,longitude),
COUNT($1) AS the_count;

Group by (state,city)
to get number of
most_freq = ORDER grp_by_state_city BY the_count DESC;
top_city_state = LIMIT most_freq 1;

DUMP top_city_state;
sightings for each
Poor man’s TOP City


dachisgroup.com

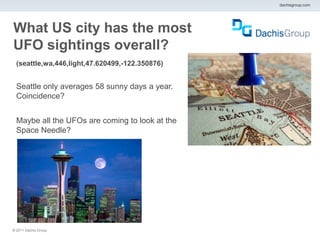

(seattle,wa,446,light,47.620499,-122.350876)

Seattle only averages 58 sunny days a year.
Coincidence?

Maybe all the UFOs are coming to look at the
Space Needle?


dachisgroup.com

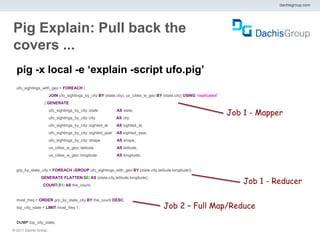

Pig Explain: Pull back the
covers ...
pig -x local -e ‘explain -script ufo.pig’
ufo_sightings_with_geo = FOREACH (
JOIN ufo_sightings_by_city BY (state,city), us_cities_w_geo BY (state,city) USING ‘replicated’
) GENERATE
ufo_sightings_by_city::state
ufo_sightings_by_city::city
AS state,
AS city,
Job 1 - Mapper
ufo_sightings_by_city::sighted_at AS sighted_at,
ufo_sightings_by_city::sighted_year AS sighted_year,
ufo_sightings_by_city::shape AS shape,
us_cities_w_geo::latitude AS latitude,
us_cities_w_geo::longitude AS longitude;

grp_by_state_city = FOREACH (GROUP ufo_sightings_with_geo BY (state,city,latitude,longitude))

Job 1 - Reducer
GENERATE FLATTEN($0) AS (state,city,latitude,longitude),
COUNT($1) AS the_count;

most_freq = ORDER grp_by_state_city BY the_count DESC;
top_city_state = LIMIT most_freq 1; Job 2 – Full Map/Reduce
DUMP top_city_state;

dachisgroup.com

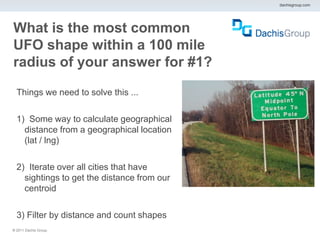

What is the most common
UFO shape within a 100 mile
radius of your answer for #1?

Things we need to solve this ...

1) Some way to calculate geographical
distance from a geographical location
(lat / lng)

2) Iterate over all cities that have
sightings to get the distance from our
centroid

3) Filter by distance and count shapes

dachisgroup.com

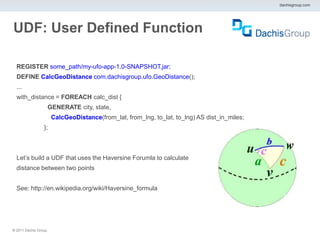

UDF: User Defined Function

REGISTER some_path/my-ufo-app-1.0-SNAPSHOT.jar;
DEFINE CalcGeoDistance com.dachisgroup.ufo.GeoDistance();
...
with_distance = FOREACH calc_dist {
GENERATE city, state,
CalcGeoDistance(from_lat, from_lng, to_lat, to_lng) AS dist_in_miles;
};

Let’s build a UDF that uses the Haversine Forumla to calculate
distance between two points

See: http://en.wikipedia.org/wiki/Haversine_formula


dachisgroup.com

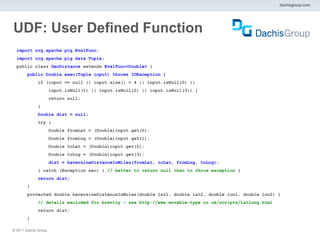

UDF: User Defined Function
import org.apache.pig.EvalFunc;
import org.apache.pig.data.Tuple;
public class GeoDistance extends EvalFunc<Double> {
public Double exec(Tuple input) throws IOException {
if (input == null || input.size() < 4 || input.isNull(0) ||
input.isNull(1) || input.isNull(2) || input.isNull(3)) {
return null;
}
Double dist = null;
try {
Double fromLat = (Double)input.get(0);
Double fromLng = (Double)input.get(1);
Double toLat = (Double)input.get(2);
Double toLng = (Double)input.get(3);
dist = haversineDistanceInMiles(fromLat, toLat, fromLng, toLng);
} catch (Exception exc) { // better to return null than to throw exception }
return dist;
}
protected double haversineDistanceInMiles(double lat1, double lat2, double lon1, double lon2) {
// details excluded for brevity – see http://www.movable-type.co.uk/scripts/latlong.html
return dist;
}


dachisgroup.com

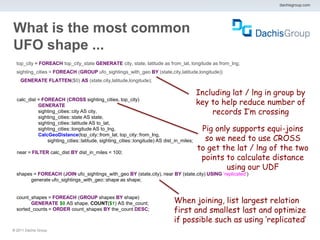

What is the most common
UFO shape ...
top_city = FOREACH top_city_state GENERATE city, state, latitude as from_lat, longitude as from_lng;
sighting_cities = FOREACH (GROUP ufo_sightings_with_geo BY (state,city,latitude,longitude))
GENERATE FLATTEN($0) AS (state,city,latitude,longitude);

Including lat / lng in group by
calc_dist = FOREACH (CROSS sighting_cities, top_city)
GENERATE key to help reduce number of
sighting_cities::city AS city, records I’m crossing
sighting_cities::state AS state,
sighting_cities::latitude AS to_lat,
sighting_cities::longitude AS to_lng, Pig only supports equi-joins
so we need to use CROSS
CalcGeoDistance(top_city::from_lat, top_city::from_lng,
sighting_cities::latitude, sighting_cities::longitude) AS dist_in_miles;

near = FILTER calc_dist BY dist_in_miles < 100;
to get the lat / lng of the two
points to calculate distance
using our UDF
shapes = FOREACH (JOIN ufo_sightings_with_geo BY (state,city), near BY (state,city) USING ‘replicated’)
generate ufo_sightings_with_geo::shape as shape;

count_shapes = FOREACH (GROUP shapes BY shape)
GENERATE $0 AS shape, COUNT($1) AS the_count; When joining, list largest relation
sorted_counts = ORDER count_shapes BY the_count DESC; first and smallest last and optimize
if possible such as using ‘replicated’

dachisgroup.com

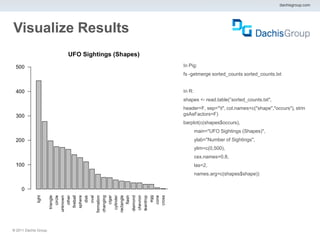

Visualize Results

In Pig:
fs -getmerge sorted_counts sorted_counts.txt

In R:
shapes <- read.table(”sorted_counts.txt",
header=F, sep="t", col.names=c("shape","occurs"), strin
gsAsFactors=F)
barplot(c(shapes$occurs),
main="UFO Sightings (Shapes)",
ylab="Number of Sightings",
ylim=c(0,500),
cex.names=0.8,
las=2,
names.arg=c(shapes$shape))


dachisgroup.com

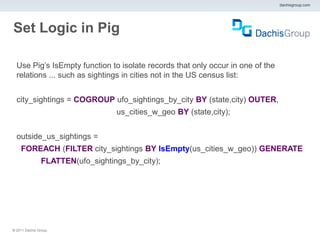

Set Logic in Pig

Use Pig’s IsEmpty function to isolate records that only occur in one of the
relations ... such as sightings in cities not in the US census list:

city_sightings = COGROUP ufo_sightings_by_city BY (state,city) OUTER,
us_cities_w_geo BY (state,city);

outside_us_sightings =
FOREACH (FILTER city_sightings BY IsEmpty(us_cities_w_geo)) GENERATE
FLATTEN(ufo_sightings_by_city);


dachisgroup.com

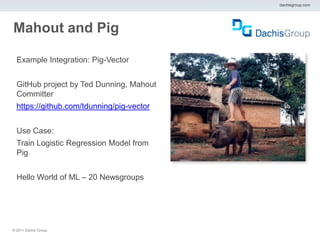

Mahout and Pig

Example Integration: Pig-Vector

GitHub project by Ted Dunning, Mahout
Committer
https://github.com/tdunning/pig-vector

Use Case:
Train Logistic Regression Model from
Pig

Hello World of ML – 20 Newsgroups


dachisgroup.com

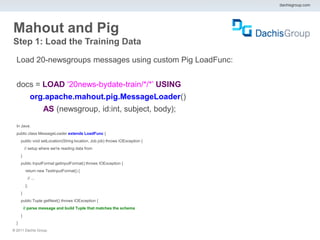

Mahout and Pig
Step 1: Load the Training Data

Load 20-newsgroups messages using custom Pig LoadFunc:

docs = LOAD '20news-bydate-train/*/*’ USING
org.apache.mahout.pig.MessageLoader()
AS (newsgroup, id:int, subject, body);
In Java:
public class MessageLoader extends LoadFunc {
public void setLocation(String location, Job job) throws IOException {
// setup where we're reading data from
}
public InputFormat getInputFormat() throws IOException {
return new TextInputFormat() {
// ...
};
}
public Tuple getNext() throws IOException {
// parse message and build Tuple that matches the schema
}
}

dachisgroup.com

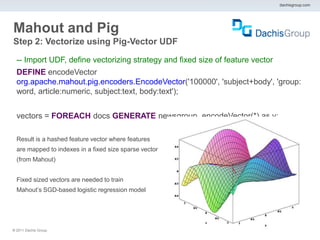

Mahout and Pig
Step 2: Vectorize using Pig-Vector UDF

-- Import UDF, define vectorizing strategy and fixed size of feature vector
DEFINE encodeVector
org.apache.mahout.pig.encoders.EncodeVector('100000', 'subject+body', 'group:
word, article:numeric, subject:text, body:text');

vectors = FOREACH docs GENERATE newsgroup, encodeVector(*) as v;

Result is a hashed feature vector where features
are mapped to indexes in a fixed size sparse vector
(from Mahout)

Fixed sized vectors are needed to train
Mahout’s SGD-based logistic regression model


dachisgroup.com

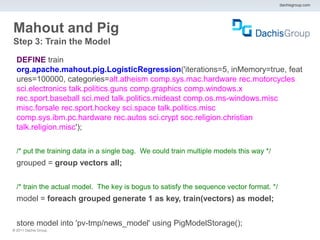

Mahout and Pig
Step 3: Train the Model

DEFINE train
org.apache.mahout.pig.LogisticRegression('iterations=5, inMemory=true, feat
ures=100000, categories=alt.atheism comp.sys.mac.hardware rec.motorcycles
sci.electronics talk.politics.guns comp.graphics comp.windows.x
rec.sport.baseball sci.med talk.politics.mideast comp.os.ms-windows.misc
misc.forsale rec.sport.hockey sci.space talk.politics.misc
comp.sys.ibm.pc.hardware rec.autos sci.crypt soc.religion.christian
talk.religion.misc');

/* put the training data in a single bag. We could train multiple models this way */
grouped = group vectors all;

/* train the actual model. The key is bogus to satisfy the sequence vector format. */
model = foreach grouped generate 1 as key, train(vectors) as model;

store model into 'pv-tmp/news_model' using PigModelStorage();

dachisgroup.com

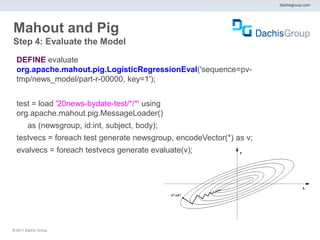

Mahout and Pig
Step 4: Evaluate the Model

DEFINE evaluate
org.apache.mahout.pig.LogisticRegressionEval('sequence=pv-
tmp/news_model/part-r-00000, key=1');

test = load '20news-bydate-test/*/*' using
org.apache.mahout.pig.MessageLoader()
as (newsgroup, id:int, subject, body);
testvecs = foreach test generate newsgroup, encodeVector(*) as v;
evalvecs = foreach testvecs generate evaluate(v);


dachisgroup.com

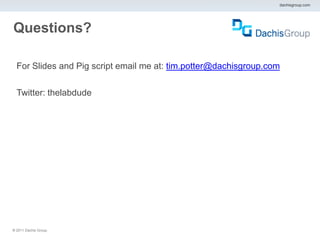

Questions?

For �ݺ�ߣs and Pig script email me at: tim.potter@dachisgroup.com

Twitter: thelabdude


�ݺ�ߣ

Dachis Group Pig Hackday: Pig 202

More Related Content

Viewers also liked (7)

Recently uploaded (20)

Dachis Group Pig Hackday: Pig 202

Editor's Notes
