Dd2 presentation

1. DD2 Presentation: Well: Tupilco 75 D Location: MCA-MXS (Villahermosa, TAB) Client: GSM Date: December 9 th , 2010 Eloy Giles.

2. Outline Well Location Well Challenges Anti-Collition (Spider Plot + TC Plot) Geological Faults Well Objectives Well Plan Well Plots BHA Designs Hydraulics Torque & Drag Results Plan VS Real

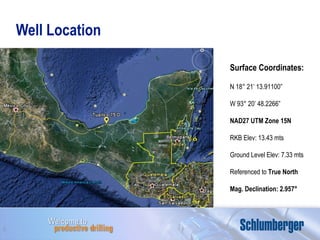

3. Well Location Surface Coordinates: N 18° 21’ 13.91100” W 93° 20’ 48.2266” NAD27 UTM Zone 15N RKB Elev: 13.43 mts Ground Level Elev: 7.33 mts Referenced to True North Mag. Declination: 2.957°

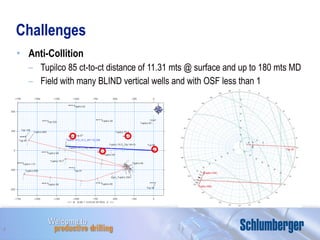

4. Challenges Anti-Collition Tupilco 85 ct-to-ct distance of 11.31 mts @ surface and up to 180 mts MD Field with many BLIND vertical wells and with OSF less than 1

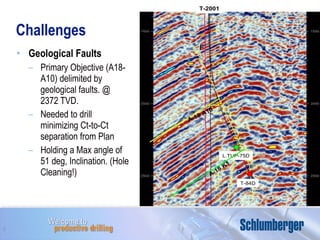

5. Challenges Geological Faults Primary Objective (A18-A10) delimited by geological faults. @ 2372 TVD. Needed to drill minimizing Ct-to-Ct separation from Plan Holding a Max angle of 51 deg, Inclination. (Hole Cleaning!)

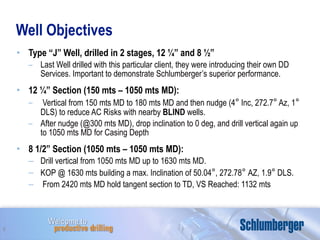

6. Well Objectives Type “J” Well, drilled in 2 stages, 12 ¼” and 8 ½” Last Well drilled with this particular client, they were introducing their own DD Services. Important to demonstrate Schlumberger’s superior performance. 12 ¼” Section (150 mts – 1050 mts MD): Vertical from 150 mts MD to 180 mts MD and then nudge (4 ° Inc, 272.7 ° Az, 1 ° DLS) to reduce AC Risks with nearby BLIND wells. After nudge (@300 mts MD), drop inclination to 0 deg, and drill vertical again up to 1050 mts MD for Casing Depth 8 1/2” Section (1050 mts – 1050 mts MD): Drill vertical from 1050 mts MD up to 1630 mts MD. KOP @ 1630 mts building a max. Inclination of 50.04 ° , 272.78 ° AZ, 1.9 ° DLS. From 2420 mts MD hold tangent section to TD, VS Reached: 1132 mts

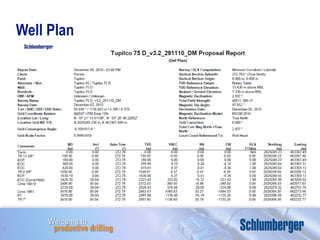

7. Well Plan

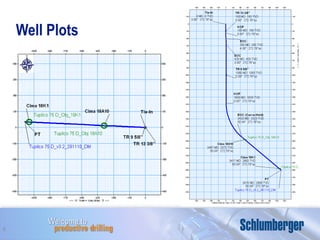

8. Well Plots

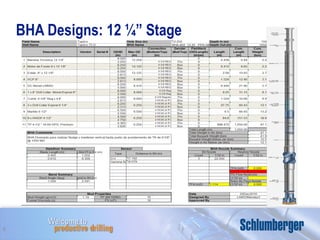

9. BHA Designs: 12 ¼” Stage

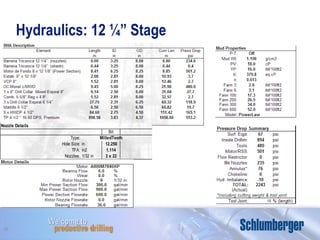

10. Hydraulics: 12 ¼” Stage

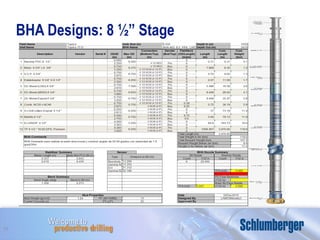

11. BHA Designs: 8 ½” Stage

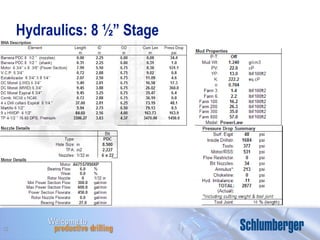

12. Hydraulics: 8 ½” Stage

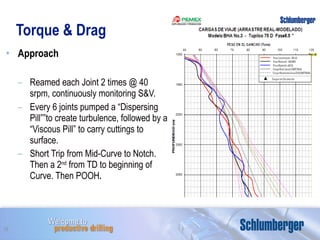

13. Torque & Drag Approach Reamed each Joint 2 times @ 40 srpm, continuously monitoring S&V. Every 6 joints pumped a “Dispersing Pill””to create turbulence, followed by a “Viscous Pill” to carry cuttings to surface. Short Trip from Mid-Curve to Notch. Then a 2 nd from TD to beginning of Curve. Then POOH .

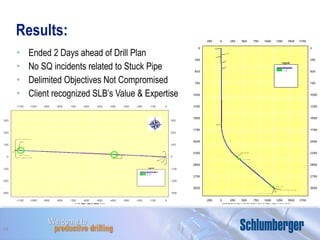

14. Results: Ended 2 Days ahead of Drill Plan No SQ incidents related to Stuck Pipe Delimited Objectives Not Compromised Client recognized SLB’s Value & Expertise

Editor's Notes

#2: 08/09/11 Good morning, good afternoon and good evening everyone and welcome to the Drilling Domain Conference Call and Webcast. Today, I am joined in Sugar Land by _______________; and Graham Ritchie and Ross Lowdon are joining us from Aberdeen; and Greg Conran from Saudi. We have an hour scheduled together today, and once I finish the presentation section we will switch to a question and answer session. The objective of today’s session is to give you an update on D&M’s Drilling Domain initiative that was introduced in Dec 2008 and to set the direction for 2010 Click…
#3: We are going to start with an overview of the Drilling Domain and review the plans for growth, with a specific focus on the role of the domain in performance assurance and drilling optimization. Finally we will finish with details on our 2010 direction and objectives with a focus on plans to be implemented in the GeoMarkets. 08/09/11
