Design the Right Electrical Earthing!!
1 like376 views
1) Nakshatra Power Tech Systems is a company that manufactures electrical earthing systems using modern chemical earthing techniques. 2) They provide a technical catalogue that outlines design considerations based on factors like load and soil resistivity, as well as regulations covering earthing applications. 3) Their chemical earthing systems use primary and secondary electrodes in a strip and pipe configuration that provides a parallel path for fault currents, ensuring utmost reliability.
Design the Right Electrical Earthing!!

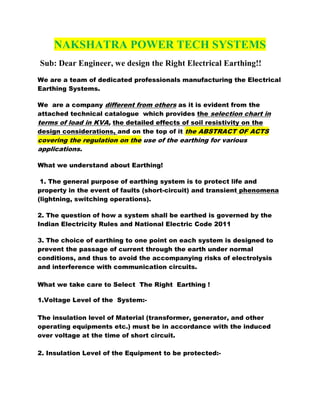

- 1. NAKSHATRA POWER TECH SYSTEMS Sub: Dear Engineer, we design the Right Electrical Earthing!! We are a team of dedicated professionals manufacturing the Electrical Earthing Systems. We are a company different from others as it is evident from the attached technical catalogue which provides the selection chart in terms of load in KVA, the detailed effects of soil resistivity on the design considerations, and on the top of it the ABSTRACT OF ACTS covering the regulation on the use of the earthing for various applications. What we understand about Earthing! 1. The general purpose of earthing system is to protect life and property in the event of faults (short-circuit) and transient phenomena (lightning, switching operations). 2. The question of how a system shall be earthed is governed by the Indian Electricity Rules and National Electric Code 2011 3. The choice of earthing to one point on each system is designed to prevent the passage of current through the earth under normal conditions, and thus to avoid the accompanying risks of electrolysis and interference with communication circuits. What we take care to Select The Right Earthing ! 1.Voltage Level of the System:The insulation level of Material (transformer, generator, and other operating equipments etc.) must be in accordance with the induced over voltage at the time of short circuit. 2. Insulation Level of the Equipment to be protected:-

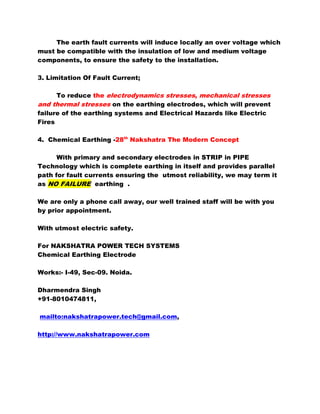

- 2. The earth fault currents will induce locally an over voltage which must be compatible with the insulation of low and medium voltage components, to ensure the safety to the installation. 3. Limitation Of Fault Current; To reduce the electrodynamics stresses, mechanical stresses and thermal stresses on the earthing electrodes, which will prevent failure of the earthing systems and Electrical Hazards like Electric Fires 4. Chemical Earthing -28th Nakshatra The Modern Concept With primary and secondary electrodes in STRIP in PIPE Technology which is complete earthing in itself and provides parallel path for fault currents ensuring the utmost reliability, we may term it as NO FAILURE earthing . We are only a phone call away, our well trained staff will be with you by prior appointment. With utmost electric safety. For NAKSHATRA POWER TECH SYSTEMS Chemical Earthing Electrode Works:- I-49, Sec-09. Noida. Dharmendra Singh +91-8010474811, mailto:nakshatrapower.tech@gmail.com, http://www.nakshatrapower.com
