This document describes a device that can be used to study acoustic and mechanical noise. The device contains a condenser mic and tone generator that can generate frequencies from 100 to 600Hz. It was used to test mechanical vibration transmissibility by placing three different sample holders - an aluminum plate, acrylic plate, and acrylic plate with a cut diaphragm - on the tone generator. Additional tests measured transmissibility using different piezo stage holders made of aluminum, polypropylene, and polypropylene with a rubber cushion.
Device for studying acoustic & mechanical noise
- 1. Device for studying acoustic & mechanical noise

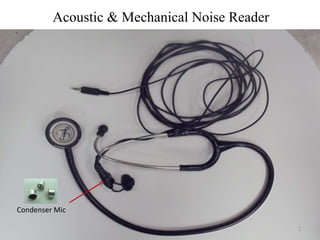

- 2. Acoustic & Mechanical Noise Reader Condenser Mic

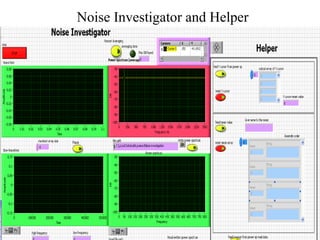

- 3. Noise Investigator and Helper

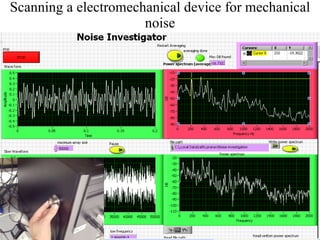

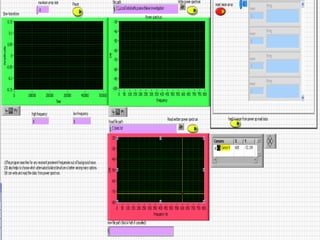

- 6. Scanning a electromechanical device for mechanical noise

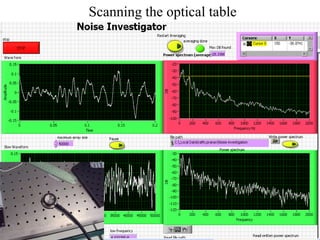

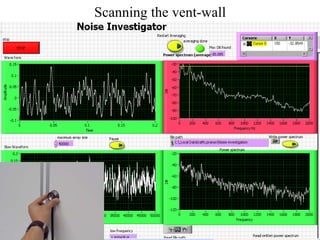

- 8. Scanning the optical table

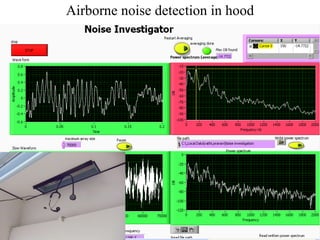

- 9. Airborne noise detection in hood

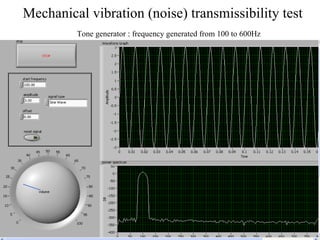

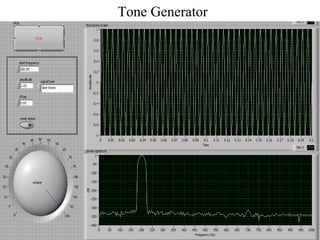

- 10. Mechanical vibration (noise) transmissibility test Tone generator : frequency generated from 100 to 600Hz

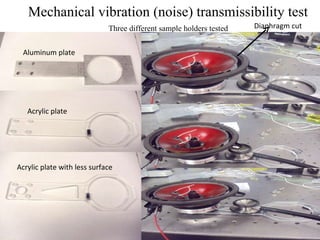

- 11. Mechanical vibration (noise) transmissibility test Three different sample holders tested Aluminum plate Acrylic plate Acrylic plate with less surface Diaphragm cut

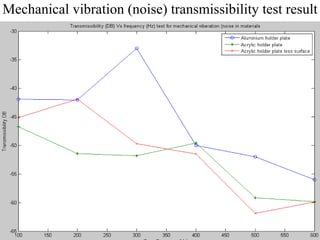

- 12. Mechanical vibration (noise) transmissibility test result

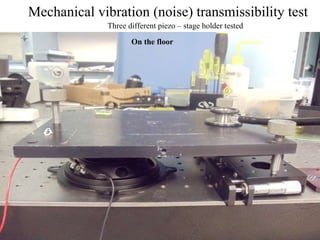

- 13. Mechanical vibration (noise) transmissibility test Three different piezo stage holder tested On the floor
- 14. Aluminum stage Aluminum stage holder+ piezo stage Polypropylene stage Polypropylene stage holder + piezo stage

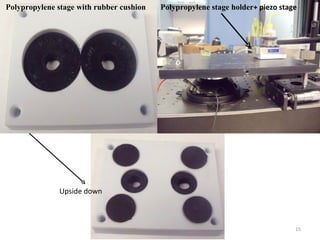

- 15. Polypropylene stage with rubber cushion Upside down Polypropylene stage holder + piezo stage

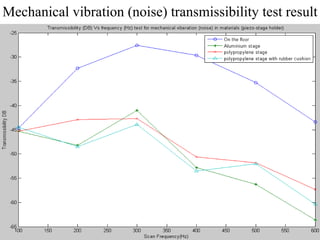

- 16. Mechanical vibration (noise) transmissibility test result

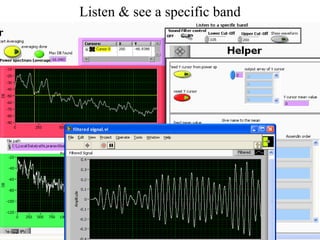

- 17. Listen & see a specific band
